DSServo RDS5160 60kg Robot Digital Servo High Torque Stainless Steel Gear Digital Servo Motor 180°, 270° (Optional) Degree RC Servo With Metal Gears Large Shaft Steering Servo With Mounting Brackets For Robotics

DSServo RDS5160 60kg Robot Digital Servo High Torque Stainless Steel Gear Digital Servo Motor 180°, 270° (Optional) Degree RC Servo With Metal Gears Large Shaft Steering Servo With Mounting Brackets For Robotics

RS8266

In stock

Rs. 2,229.00
Rs. 2,229.00
Sale Sold out
Shipping calculated at checkout.
Degree

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

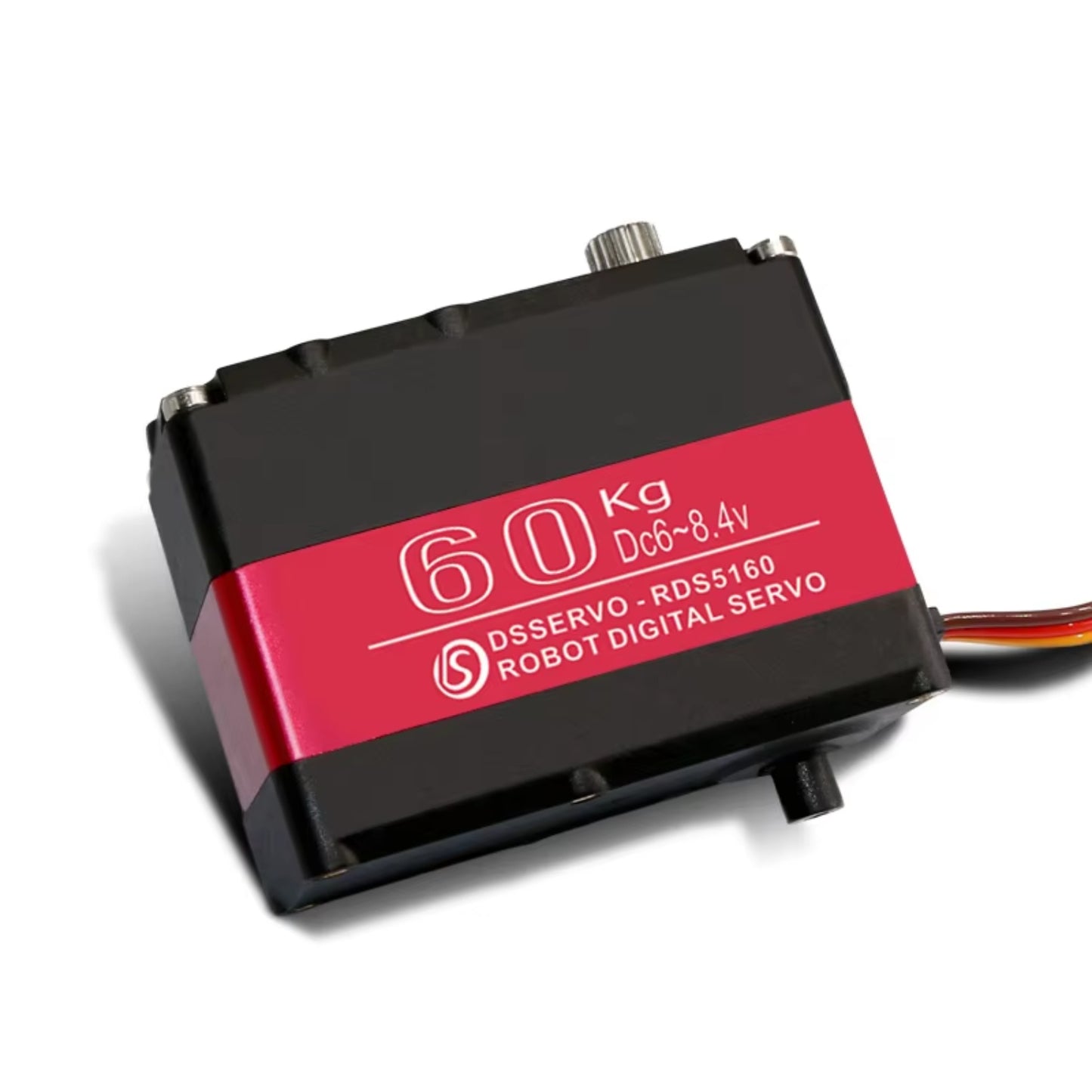

DSServo RDS5160 60kg Robot Digital Servo is high-precision steel gears and potentiometers, a high-resolution digital chip, waterproof rubber seal screws, made of first-grade material, and a CNC aluminum middle shell to ensure stable performance and long service life.

High Torque Stainless Steel Gear Digital Servo is suitable for robotic arm/industry robots, humanoid, bipedal, and multi-pedal robots, as well as PTZ monitoring equipment, remote-controlled vehicles, etc.

It is Durable, responsive, has strong anti-interference ability, low noise, and fast heat dissipation. Precision control, angle range from 0 to 270 degrees. Can be rotated within 360 degrees when the power is off. The power cable is long enough up to 45mm. Free U-brackets and accessories.

Specification:

Model  RDS5160
Material Metal
Bearing Double Bearing
Voltage  6v-8.4v
Angle  180°, 270°
Working Frequency  1520us/333hz
Operating Speed 0.17sec/60 degree at(6v)
0.15sec/60 degree at(7.4v)
0.13sec/60 degree at(8.4v)
Stall Torque  58kg.cm.at(6v)
65kg.cm.at(7.4v)
70kg.cm.at(8.4v)
Signal Dead Band  3us
Gare  18T

Features:

  • Dual Ball Bearing.
  • Durable Metal Gear.
  • Original factory product.
  • Bottom Side Axial Mount Hole.
  • Programmable Digital Amplifier with Mosft Drive.

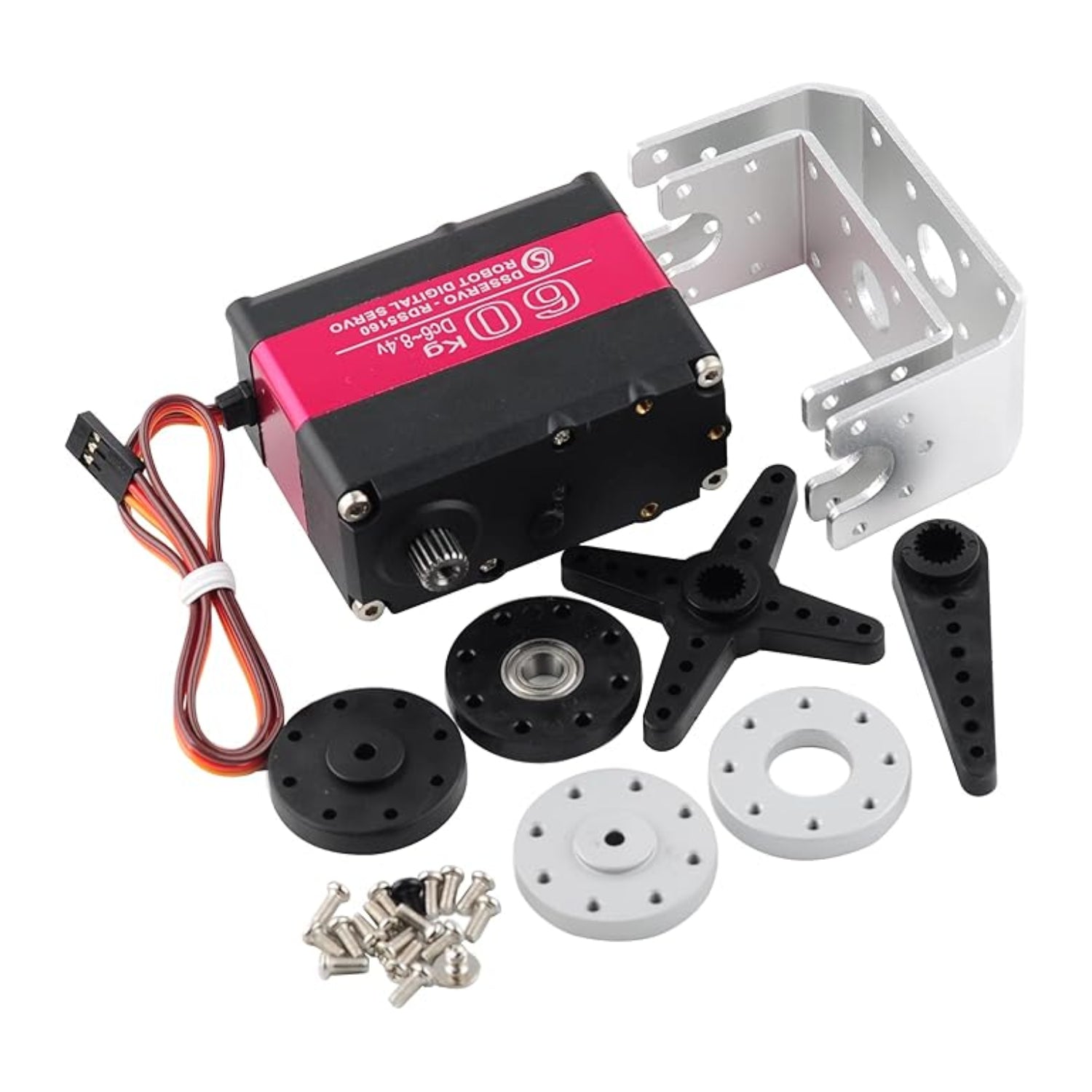

Package Included:

 1 X RDS5160 60KG Digital Rc Servo
 1 X Long U-shaped mounting Bracket
1 X Short U-Shaped Mounting Bracket
1 X Accessories Bag
