Description:

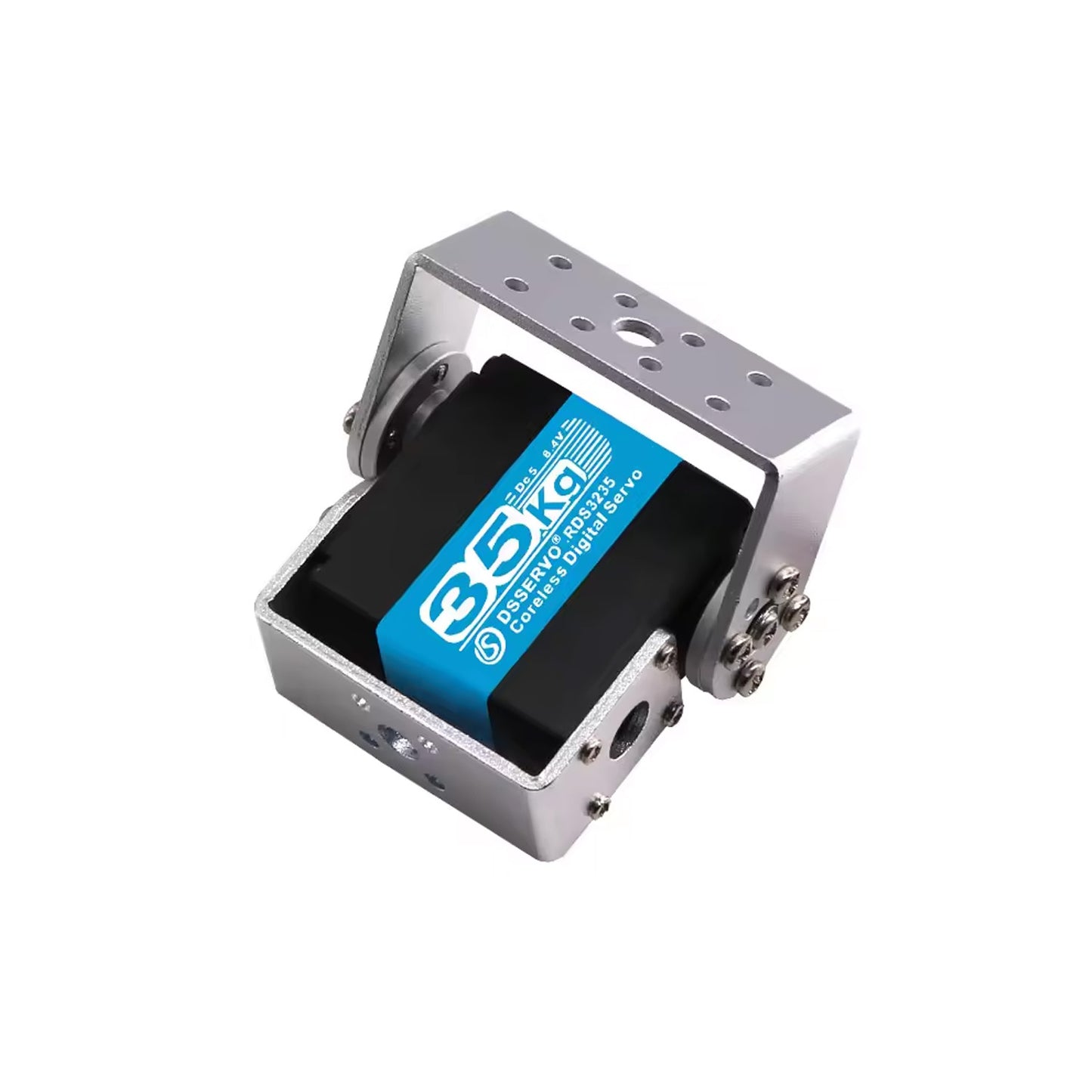

DSServo RDS3235 35kg Coreless Metal Gear Servo with high-precision steel gears and potentiometers, high-resolution digital chip, waterproof rubber seal screws, made of first-grade material and CNC aluminum middle shell ensure stable performance and long service life.
Stainless Steel Gear Digital Servo Motor is suitable for robotic arm/industry robots, humanoid, bipedal, and multi-pedal robots, as well as PTZ monitoring equipment, remote-controlled vehicles, etc.
Durable, responsive, strong anti-interference ability, low noise, fast heat dissipation. Precision control, angle range from 0 to 270 degrees. Can be rotated within 360 degrees when the power is off. The power cable is long enough up to 45mm. Free U-brackets and accessories.
Specifications:
| Models | RDS3235 35KG |
| Materials | Metal |
| Angles | 90°, 180°, 135°, 270°, 360° |
|
Operating Speed |
90°= @5V: 0.14 sec/60° 135°= Approx. @5V: 0.13 sec/60° 180°= @5V: 0.13 sec/60° 270°= @ 6.0V: 0.12 sec/60° 360°= @ 7.4V: 0.11 sec/60° |
| Stall Torque |
90°= @ 5.0V: 28 kg/cm 135°= Approx. @ 5.0V: 29 kg/cm 180°= @ 5.0V: 29 kg/cm 270°= @ 6.0V: 32 kg/cm 360°= @ 7.4V: 35 kg/cm |
| Signal Dead Band | 3μs |
Features:
- Servo control with MCU.
- Low operating noise, good linearity.
- CNC aluminum middle Shell for rugged use.
- Used for RC robots, cars, trucks, boats, etc.
- Dual ball bearings for smooth operation and long life.
- High-performance digital standard servo offers higher accuracy compared to standard servos.

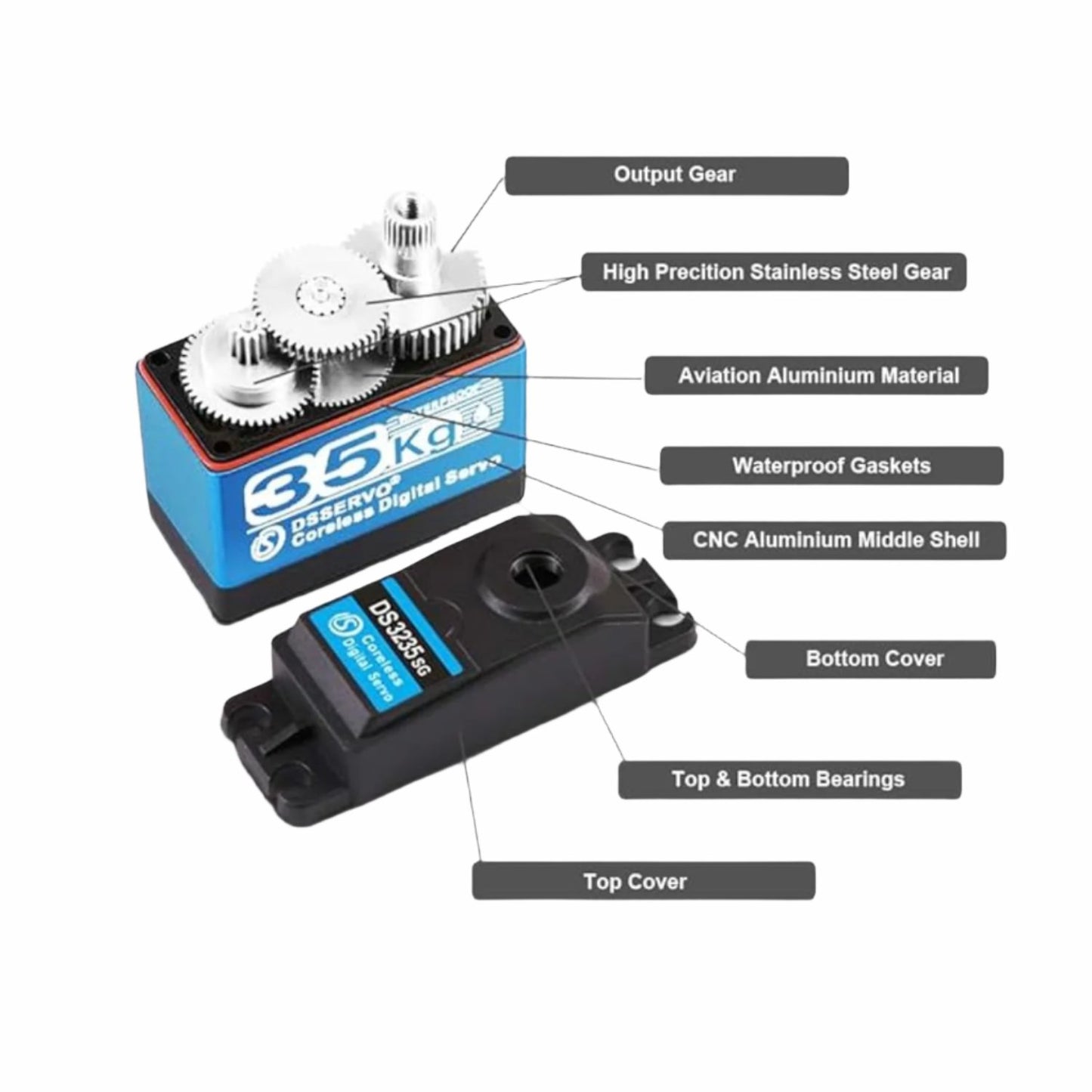

- High Precision metal gears with hard anodizing for high-torque applications.
Package Included:
- 1 X RDS3235 35KG Digital Rc Servo

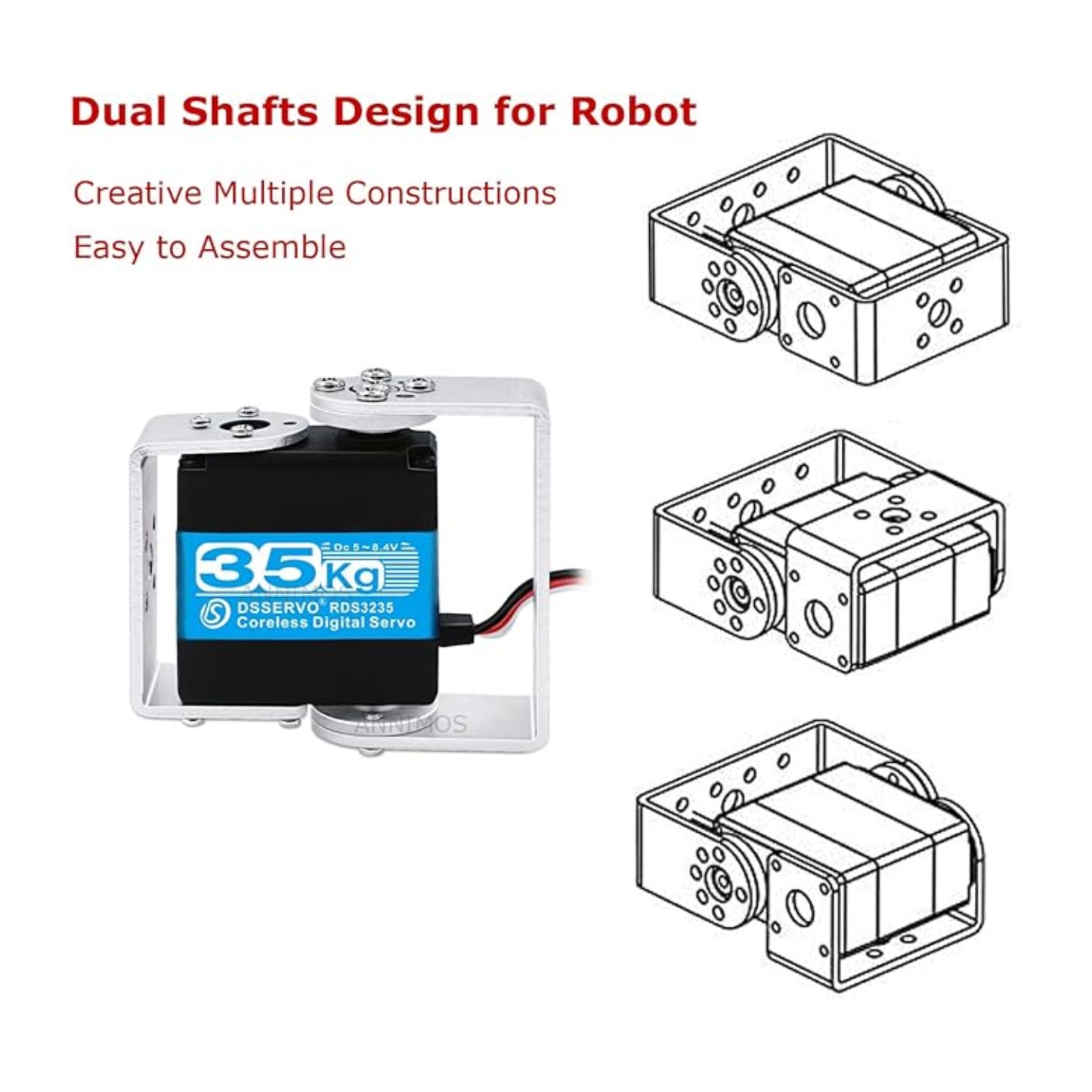

- 1 X Long U-shaped mounting Bracket
- 1 X Short U-Shaped Mounting Bracket
- 1 X Accessories Bag
