Description:

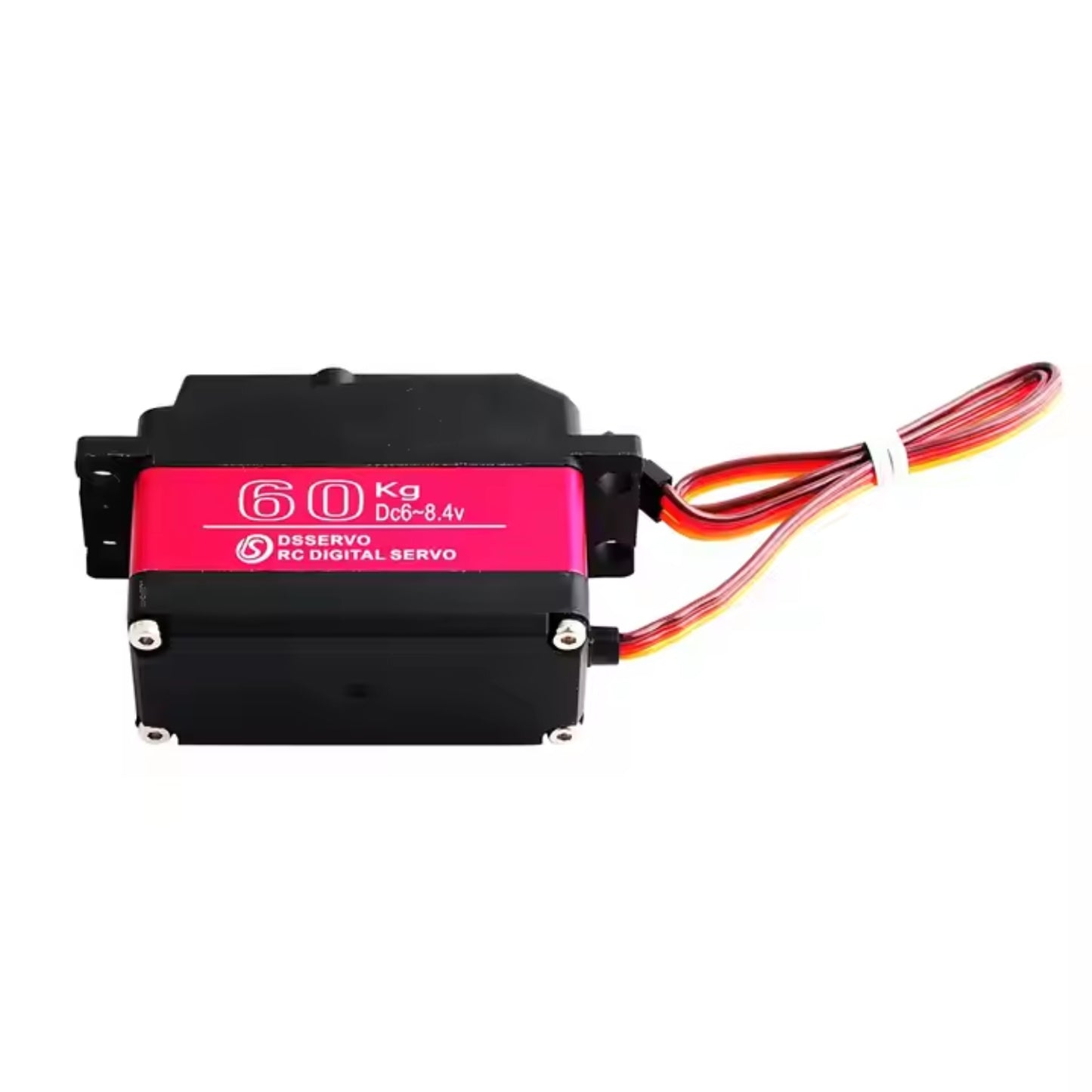

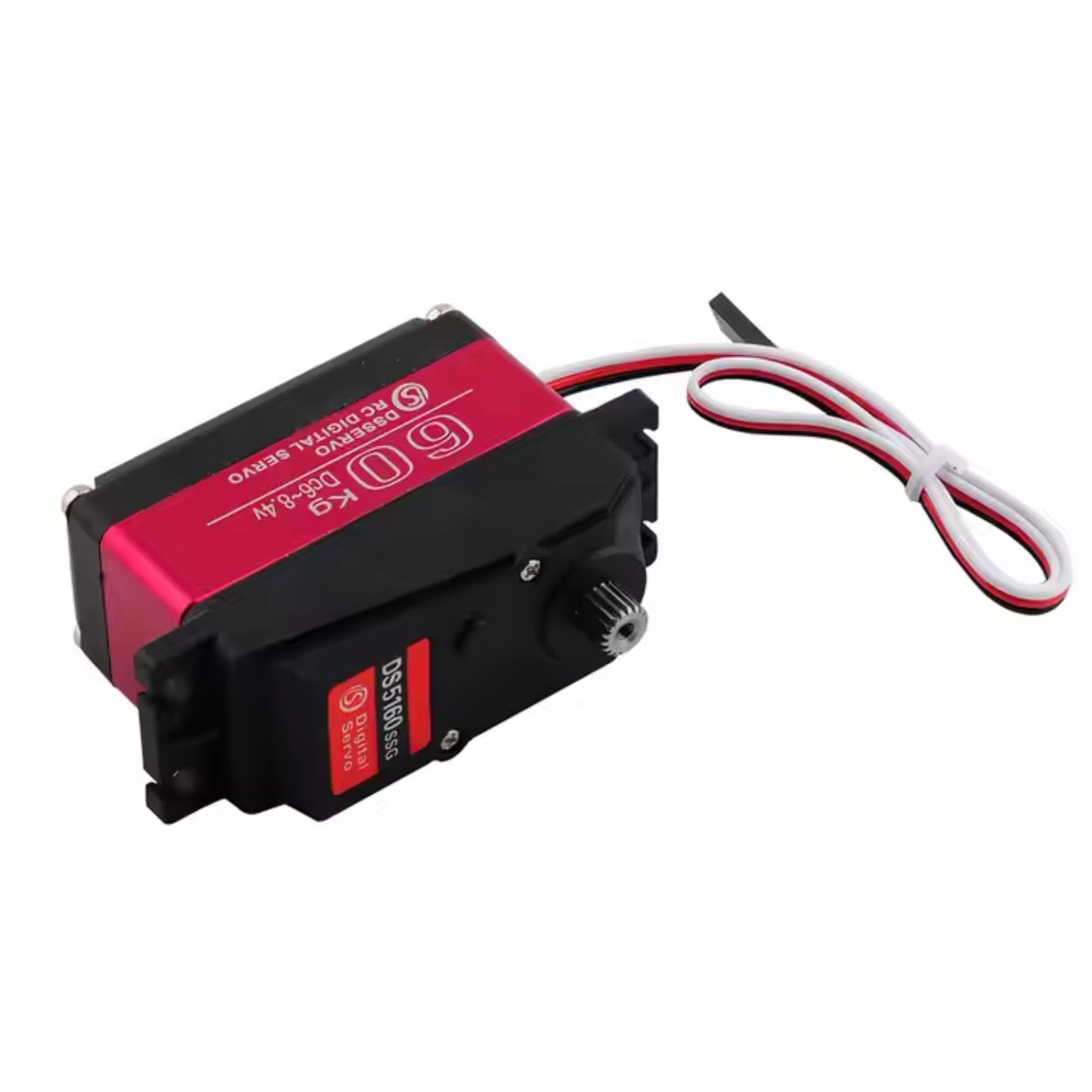

DSServo DS5160SSG 60kg Waterproof Digital Servo with CNC aluminum middle Shell for better heat dissipation, two ball bearings on the output shaft for reduced friction.Light weight, high speed big torque, water-resistant, sensitive, responsive, and low noise. Its’ Stainless Steel Gear offers faster speed and accuracy and longer service life. It also has plenty of power, is super strong and stable, and will help you to control your model better.
Specifications:
| Model | DS5160SSG |
| Gear Type | Copper & Aluminum |
| Angle | 180° 270° Degree |
Operating Voltage |
6V-8.4V |
| Working Frequency | 1520μs / 333hz |
| Bearing | Double Bearing |
| Gear | 18T |
| Operating Speed @ 6V | 0.17 sec/60° |
| Operating Speed @ 7.4V | 0.15 sec/60° |
| Operating Speed @ 8.4V | 0.13 sec/60° |
| Stall Torque @ 6.0V | 58 kg/cm |
| Stall Torque @ 7.4V | 65 kg/cm |
| Stall Torque @ 8.4V | 70 kg/cm |
| Signal Dead Band | 3μs |
Features:
- CNC aluminum middle Shell for rugged use.
- Dual ball bearings for smooth operation and long life.
- High-precision metal gears with hard anodizing for high-torque applications.
- High-performance digital standard servo offers higher accuracy compared to standard servos.
Package Included:

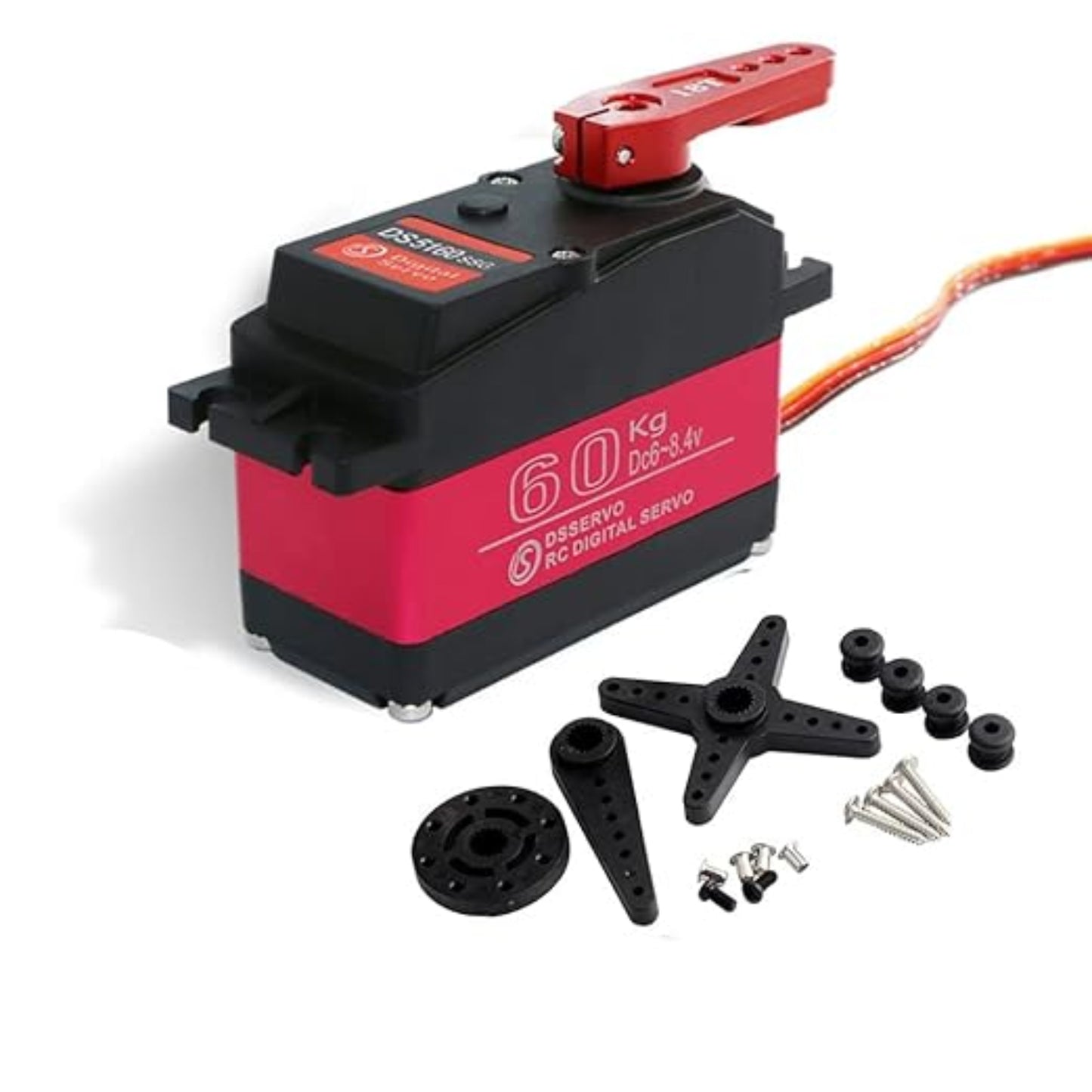

1 x DS5160SSG 60kg Digital Servo

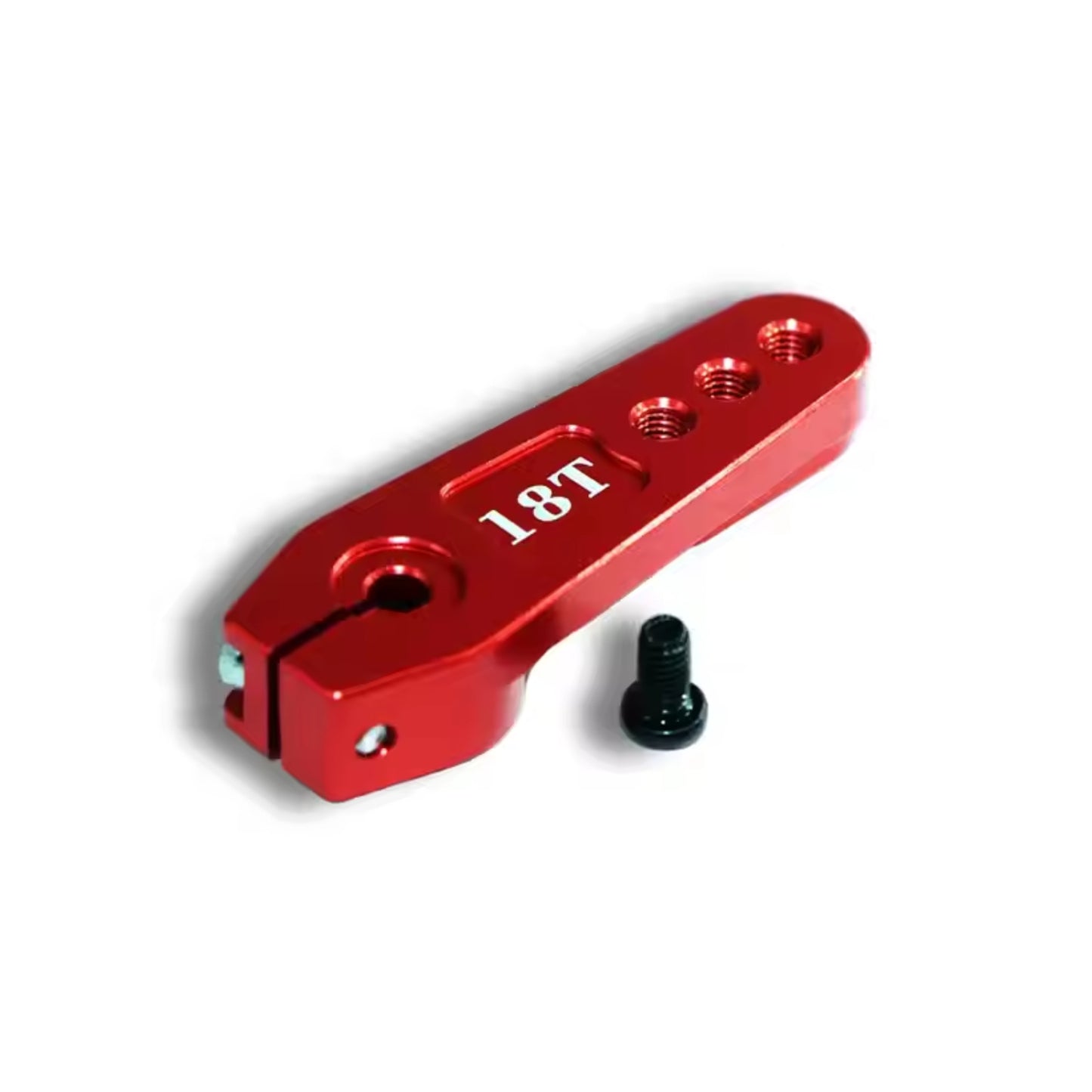

1 x 18T Metal Servo Arm

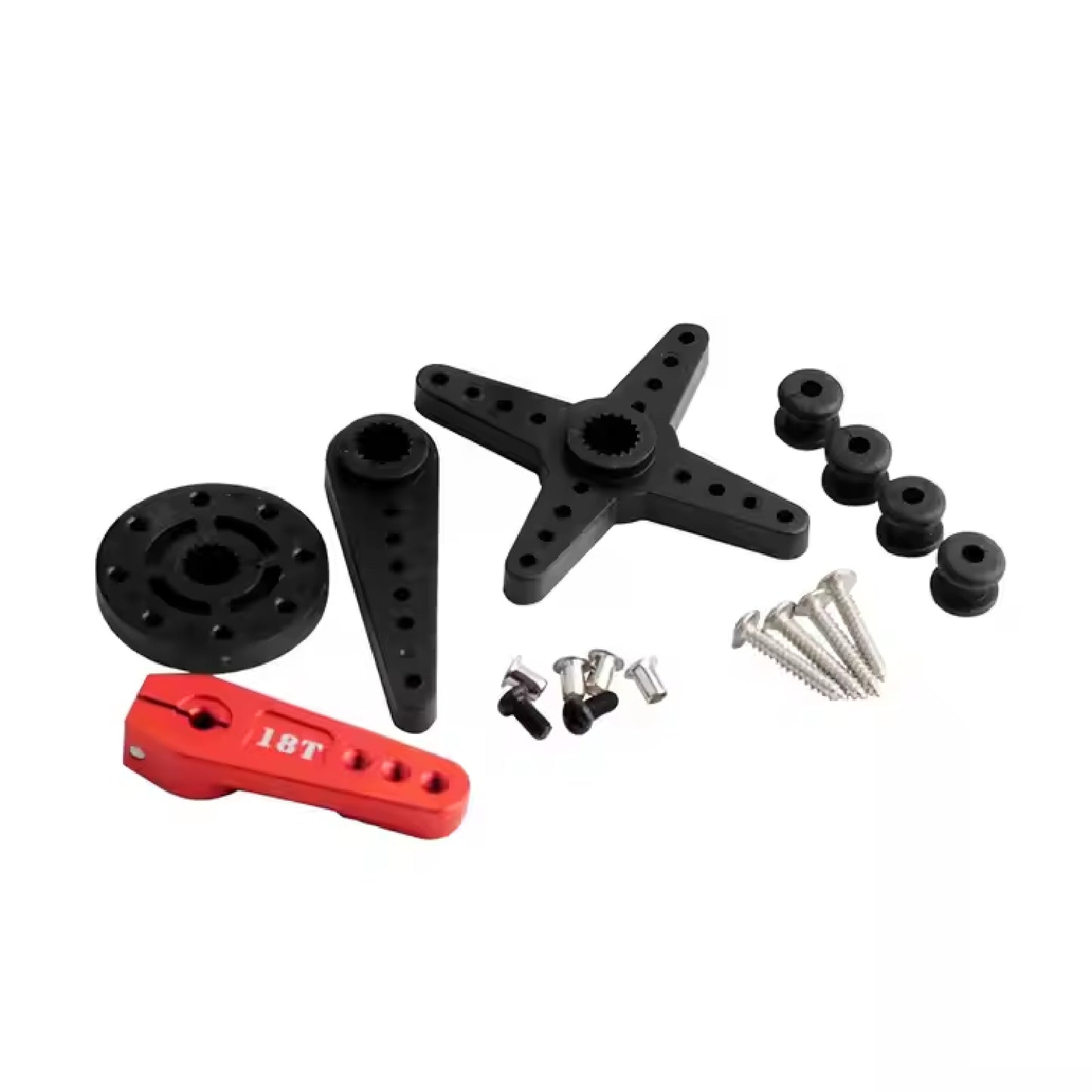

1 x Accessories Pack
