Description:
DSServo DS51150SSG 150KG Waterproof Servo is renowned for its rapid response and highly accurate control performance, making it suitable for applications that require quick response and high accuracy. The 150 Metal Gear Servo supports various programming interfaces and communicating protocols, facilitating user programming and integration, and enabling quick adaptation to various automation systems. The RC airplane servo is capable of handling weight loads up to 150 kg, meeting various heavy-duty operational needs, and ensuring stability and accuracy.
Specifications:
| Model | DS51150SSG |
| Material | Metal |
| Voltage | 10-12.6V |

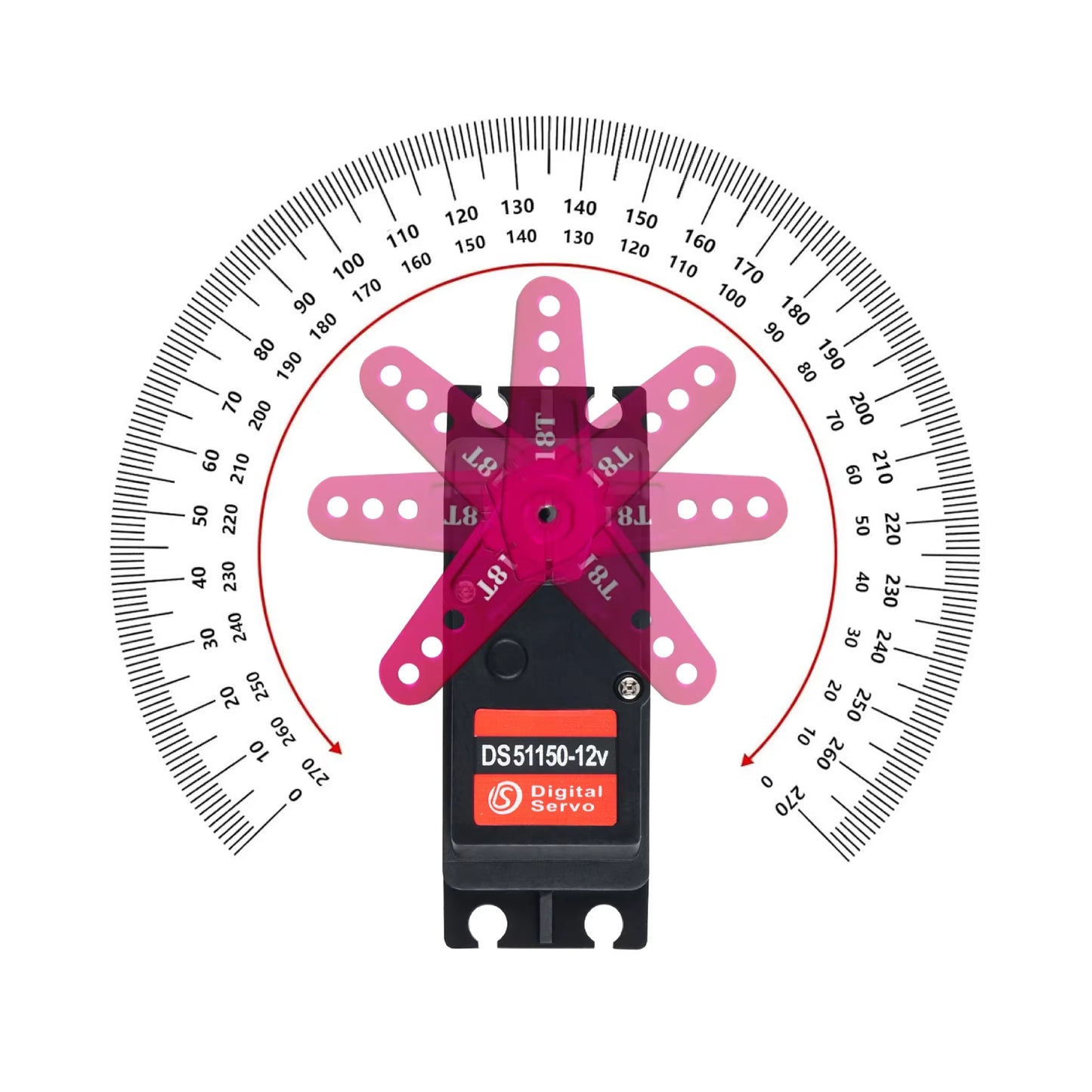

| Running Degree | 180° 270° |
| Dead Brand | 3μs |
| Working Frequency | 1520μs / 333hz |
| Working Speed | 0.24sec/60° (10V), 0.21sec/60° (12V), 0.19sec/60° (12.6V) |
| Working Torque | 150kg/cm (10V), 165kg/cm (12V), 173kg/cm (12.6V) |
| Idle Current(At Stopped) |
4mA 5mA 6mA |

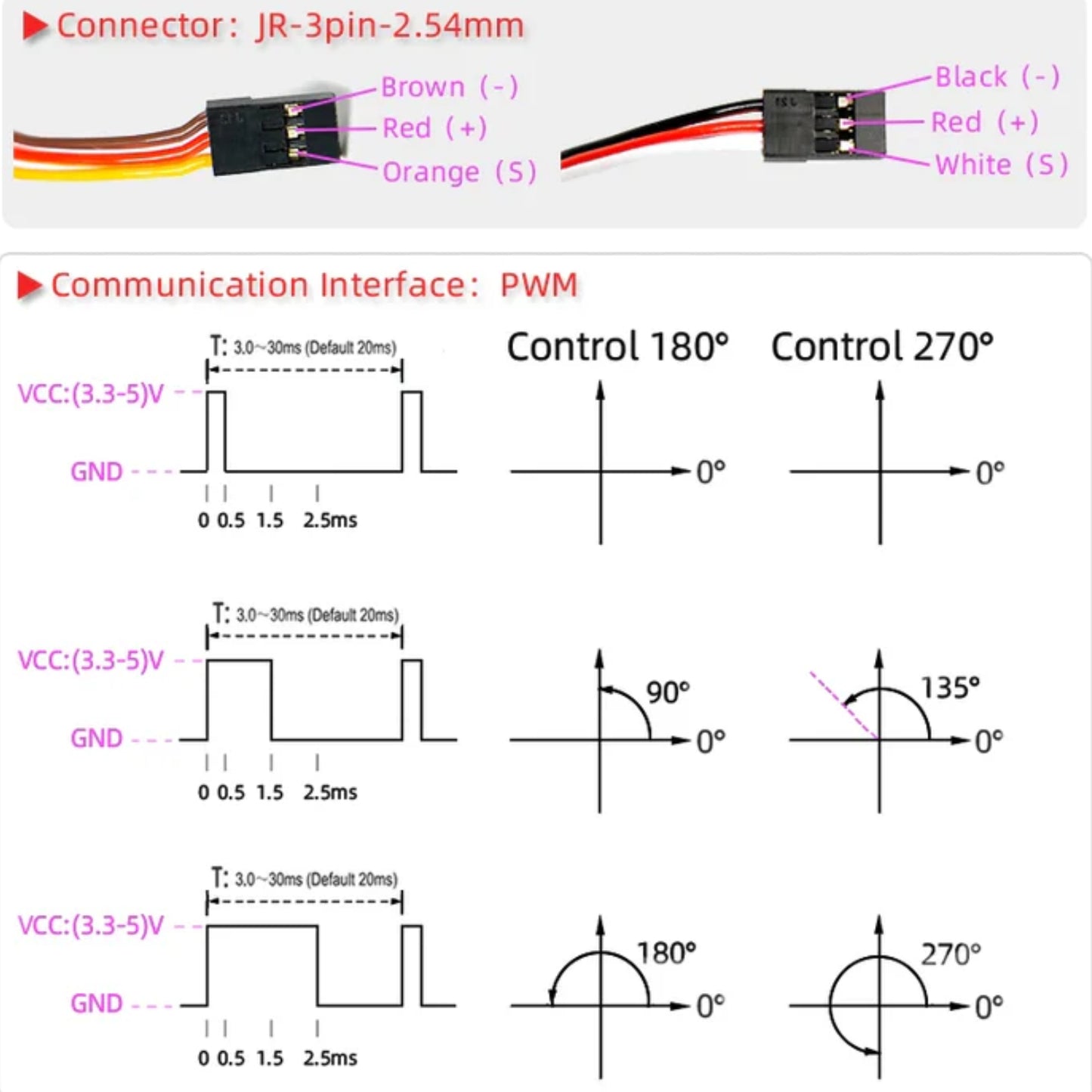

| Control System | PWM(Pulse Width Modification) |
| Pulse Width Range | 500～2500µsec |
| Neutral Position | 1500µsec |
Features:
- Dual ball bearings.
- CNC aluminum middle Shell.
- High-performance digital standard servo.
- High-precision metal gears with hard anodizing.

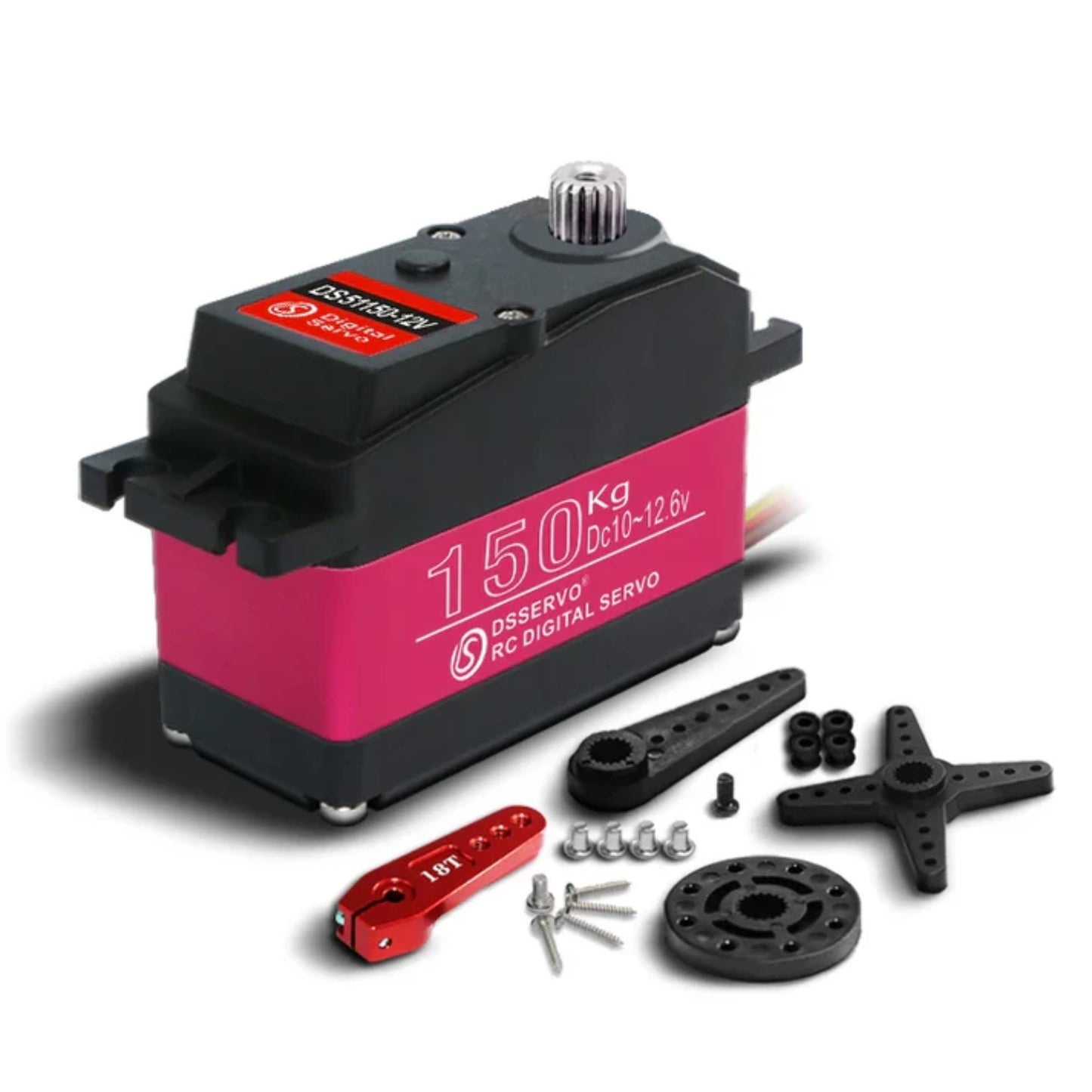

Package Included:
1 x DS51150SSG Digital Metal Robotic Servo

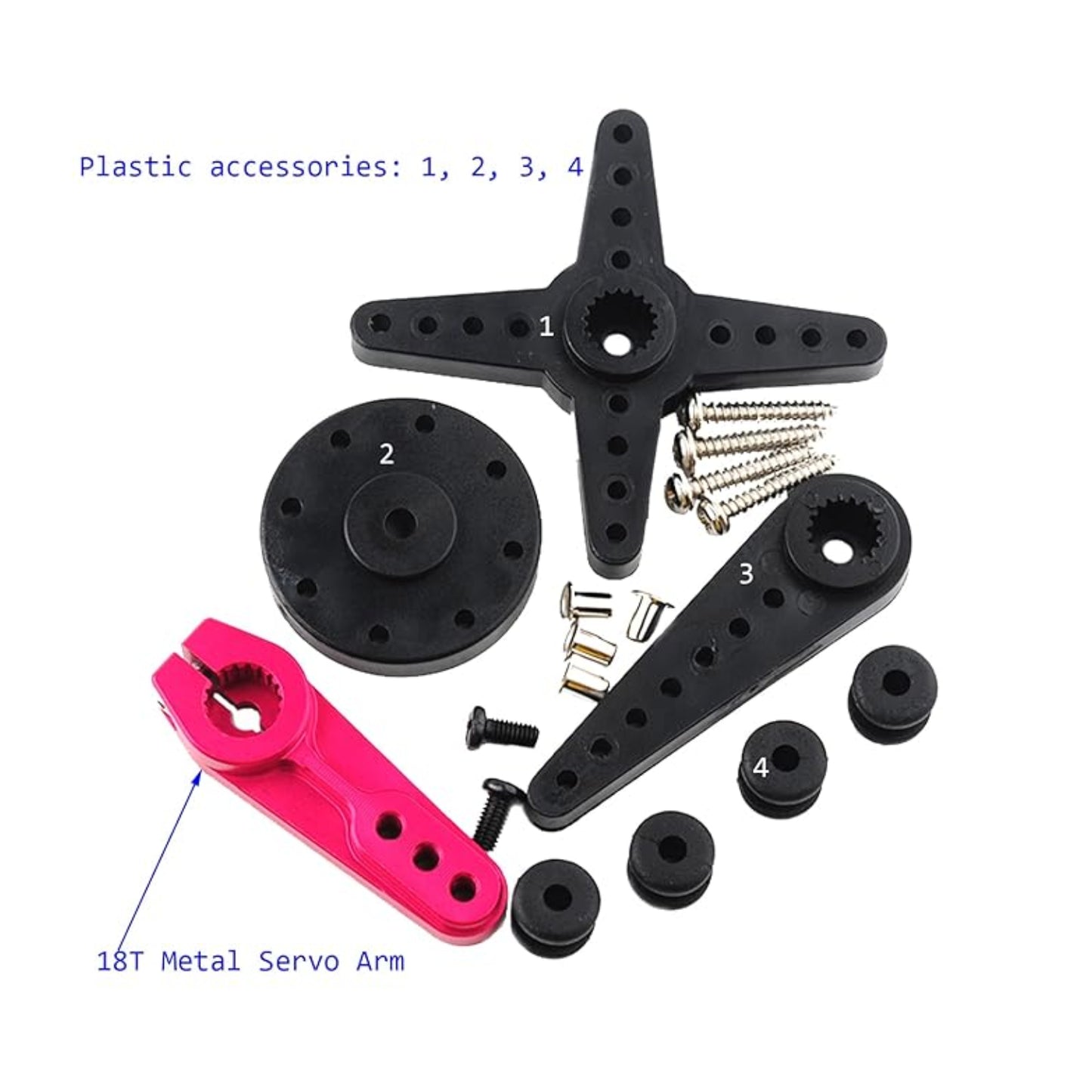

1 x 18T Adjustable Metal Servo Arm
1x Accessories (Like Pictures)
1 x 18T Adjustable Metal Servo Arm
1x Accessories (Like Pictures)
