DSServo DS3245SSG 45KG Coreless Digital Servo High Speed Waterproof Servo 180°/270° Degree Rotation High Torque Coreless Stainless Steel Gear Servo Motor For 1/8 1/10 1/12 RC Cars
DSServo DS3245SSG 45KG Coreless Digital Servo High Speed Waterproof Servo 180°/270° Degree Rotation High Torque Coreless Stainless Steel Gear Servo Motor For 1/8 1/10 1/12 RC Cars
SKU:RS8424
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
DSServo DS3245 45KG Coreless Digital Servo is Designed with high-precision steel gears and potentiometers, with a high-resolution digital chip. Waterproof rubber seals and screws enhance durability. The servo is made of top-grade materials and CNC aluminum center shell, ensuring stable performance and long service life.
DS3245 45KG High Torque Metal Gear Servo has durability, responsiveness, strong anti-interference ability, low noise, and efficient heat dissipation. Precision control allows for an angle range of 0 to 270 degrees, perfect for robot joint activities. The servo can be rotated within 360 degrees when the power is off. Moreover, it comes with a generous 45mm long cable and includes a free 25T servo horn and accessories.
Specifications:
| Model | DS3245SG |
| Motor Type | Coreless Motor |
| Gear Type | Full Metal Gears |
| Operating Voltage | 5-8.4 Volts |
| Rotation Angle | 180° 270° Degree |

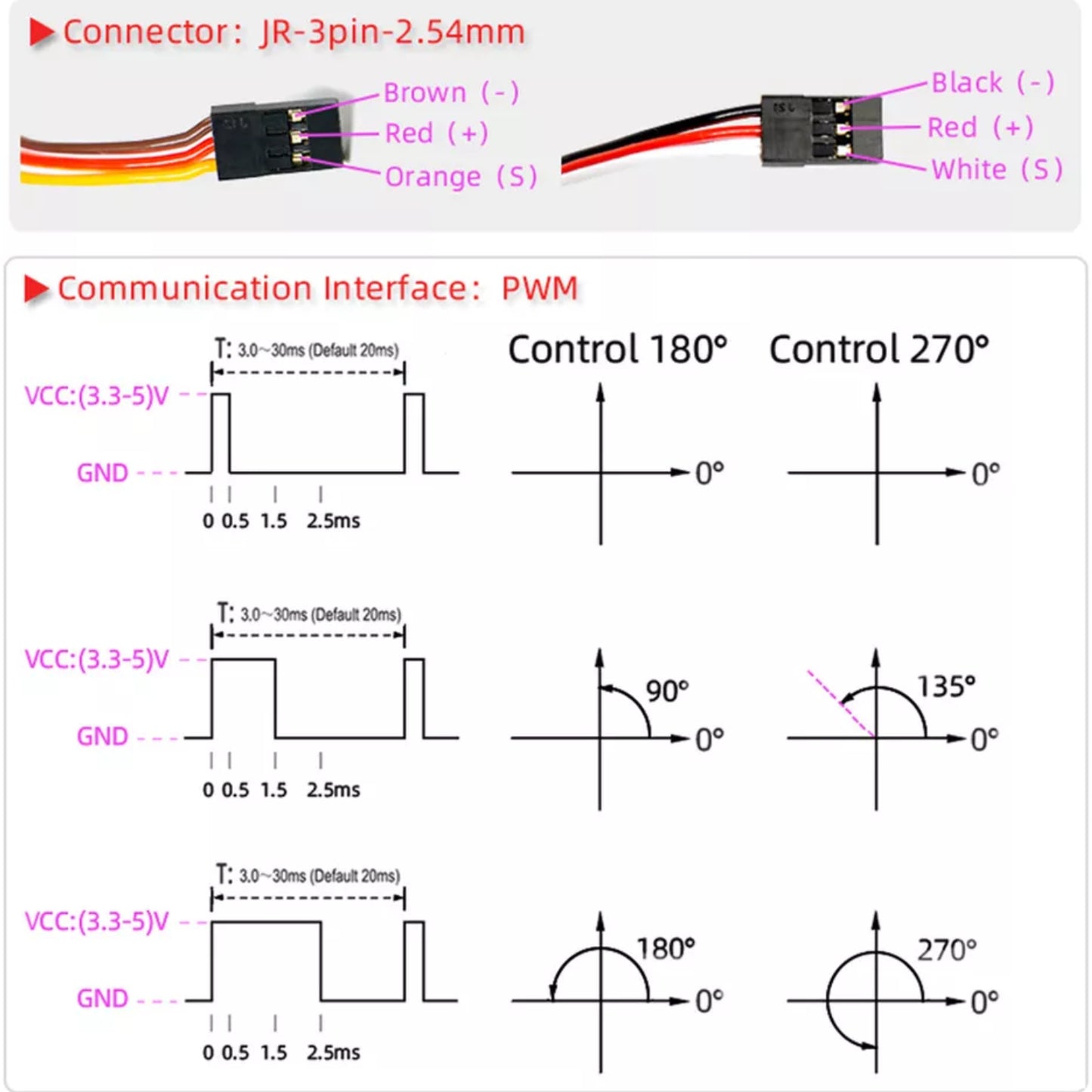

| Control System | PWM (Pulse Width Modification) |
| Pulse Width Range | 500-2500μsec |
| Neutral Position | 1500μsec |
| Dead Band Width | 2μsec |
| Operating Frequency | 50-330Hz |
| Rotating Direction |
Counterclockwise (When 1500-2500μsec) |
| Bearing | Double Bearing |
| Waterproof Performance | IP67 |
| Spline | 25 Tooth |
| Gear Ratio | 342 |
| Connector Wire | 17.7in (450mm) |
| Operating Speed at no load ( 5V ) | 0.18 sec/60° |
| Operating Speed at no load ( 7.4V ) | 0.13 sec/60° |
| Operating Speed at no load ( 8.4V ) | 0.11 sec/60° |
| Stall Torque at Locked ( 5V ) | 35kg.cm(486oz-in) |
| Stall Torque at Locked ( 7.4V ) | 46kg.cm(638.8oz-in) |
| Stall Torque at Locked ( 8.4V ) | 51kg.cm(708.2oz-in) |
| Stall Current at Locked ( 5V ) | 3.5A |
| Stall Current at Locked ( 7.4V ) | 5.2A |
| Stall Current at Locked ( 8.4V ) | 5.8A |
| Idle Current at Stopped (5/7.4/8.4V) | 5mA |
Features:
- DS3245SSG 45KG Coreless Digital Servo Motor offers longevity and reliability in industrial settings.
- IP67 waterproof rating allows for use in wet conditions, ideal for Baja Car racing.

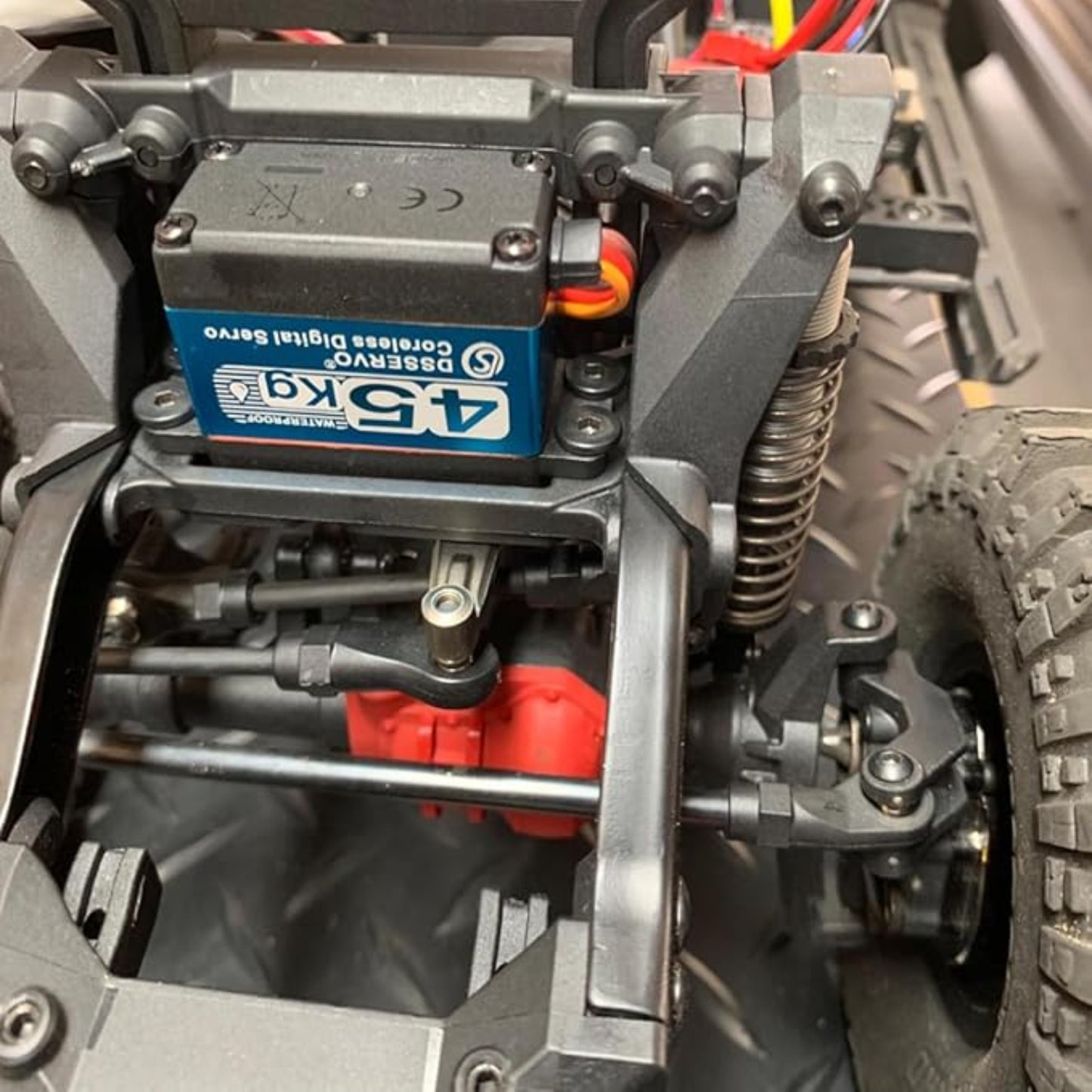

- its Designed for 1/8 to 1/12 scale RC cars, trucks, and robots, this servo is a versatile addition to your projects.

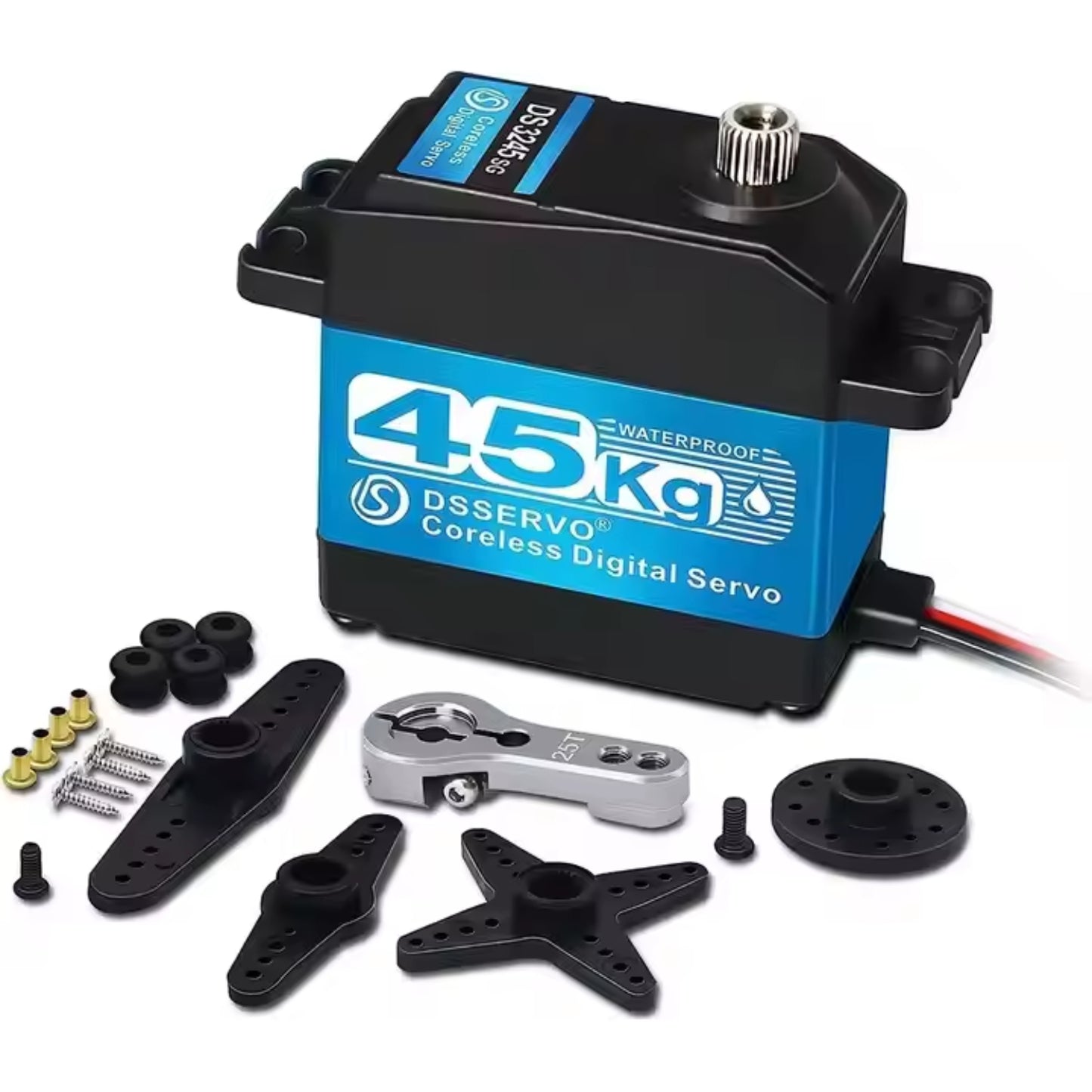

Package Included:
1 x DS3245SG 45kg Servo

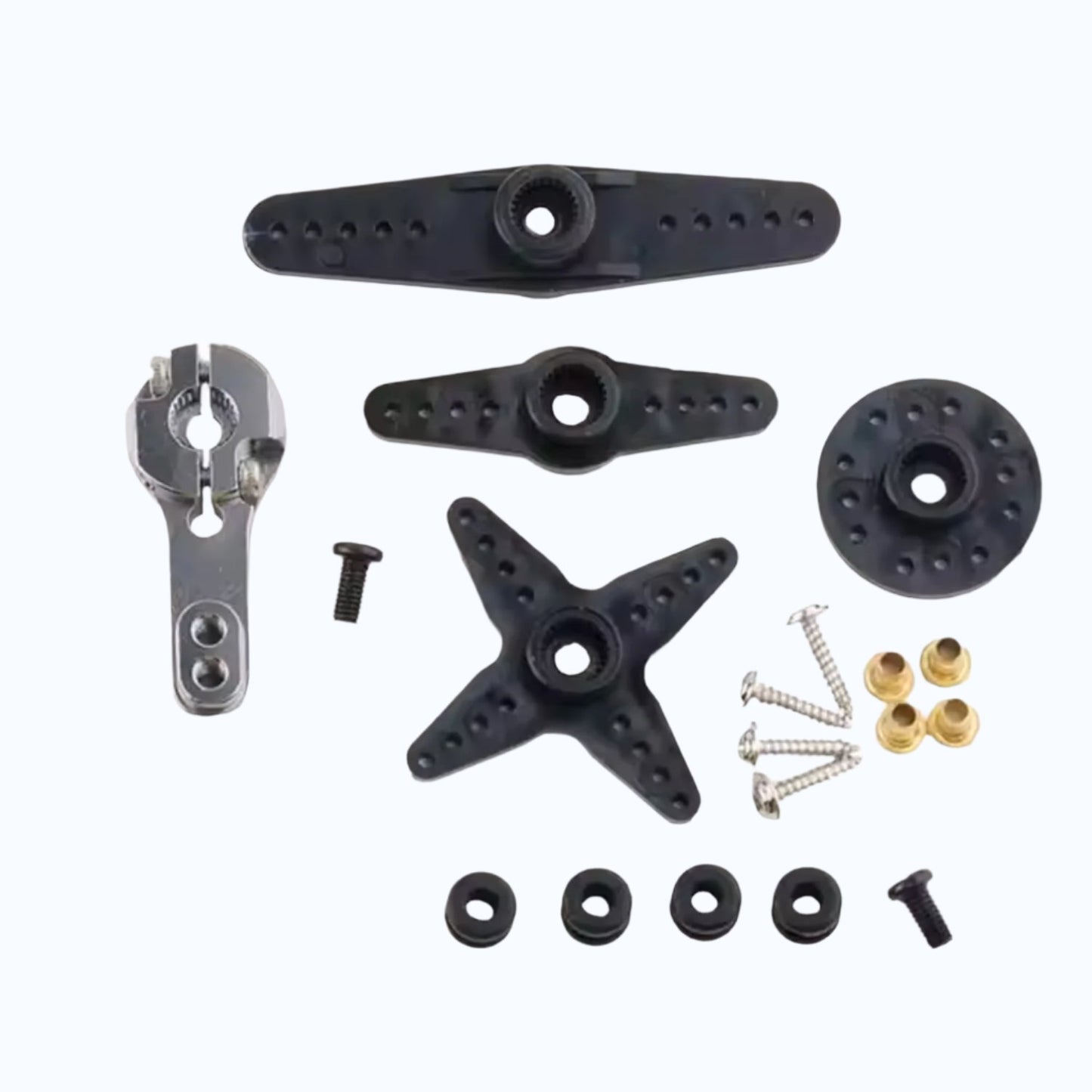

1 x 25T Adjustable Metal Servo Arm
1 x Accessories Set (As Shown In The Picture)
