Description:

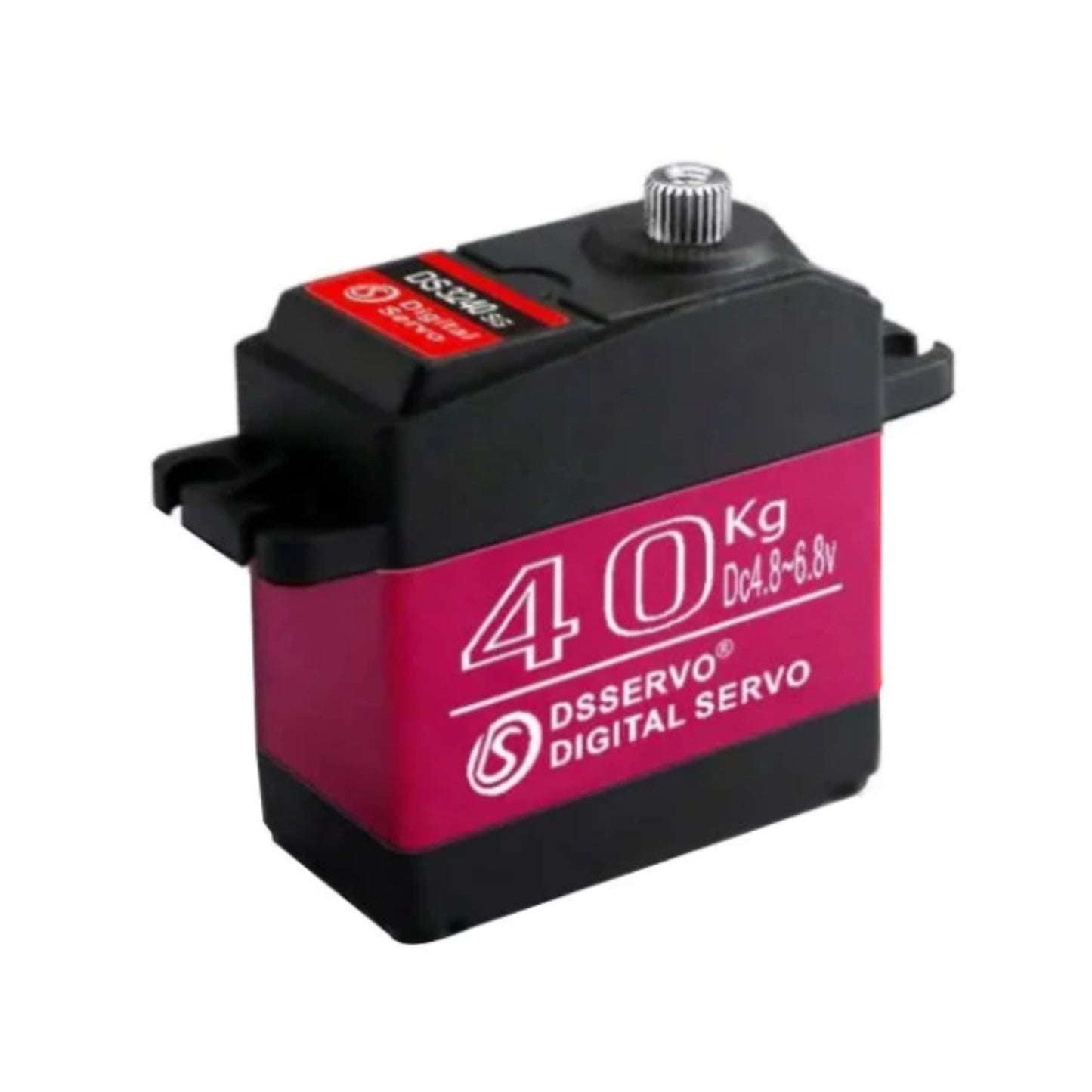

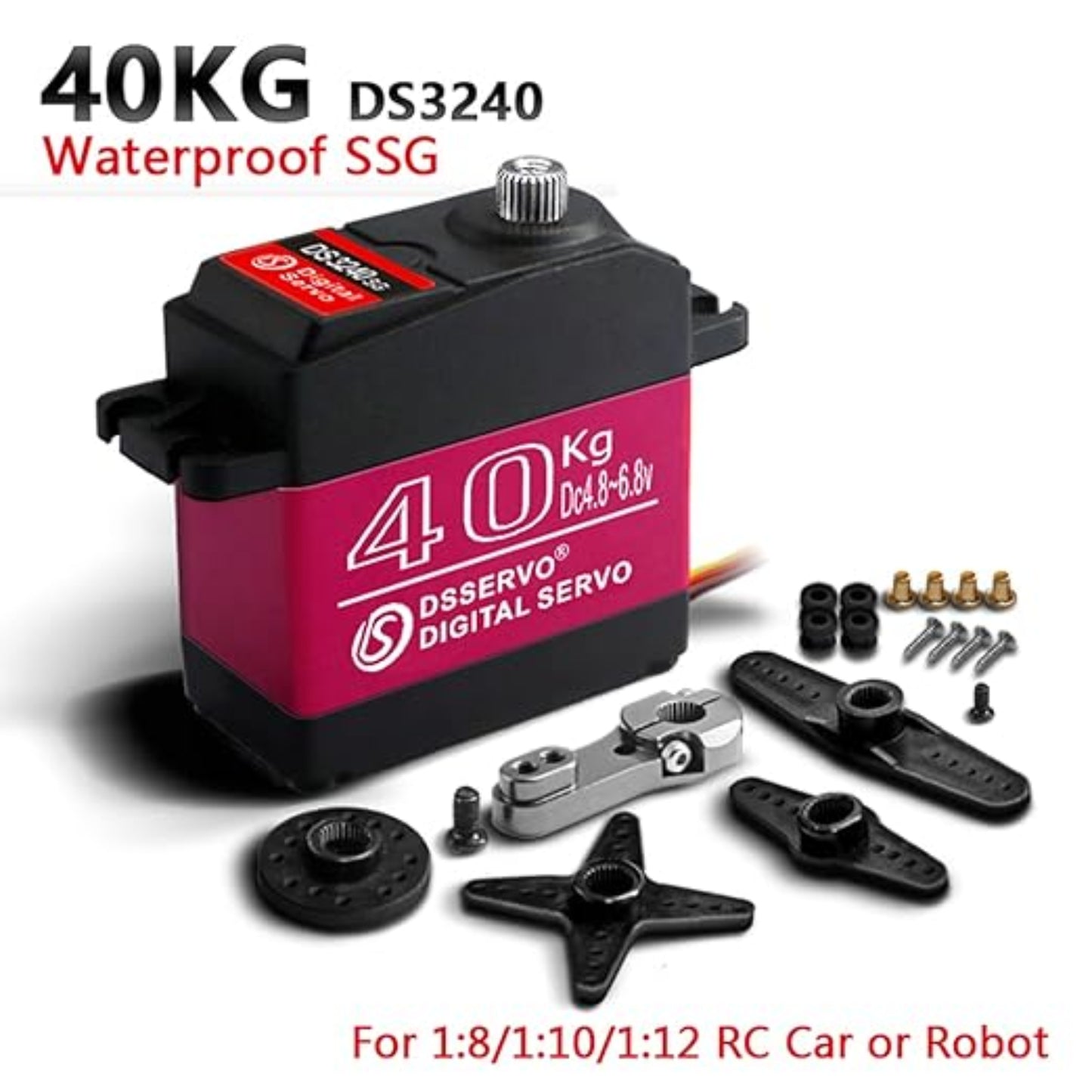

DSServo DS3240 40KG Metal Gear Servo features stainless steel gears and an aluminum alloy housing. The use of premium materials ensures superior strength and longevity, allowing the servo to withstand demanding conditions.
High Torque Metal Gear Waterproof Digital Servo Made of strong copper and aluminum gears, dual ball bearing. Quick response, strong anti-interference ability, low noise heat dissipation, fast.
Its high-resolution positioning and accurate response allow for smooth and precise movements, enhancing your overall experience. it is Made of top grade material ensures the longevity of the products. Excellent waterproof performance, can adapt to different harsh environments.
Specifications:
| Model | DS3240SSG |
| Material | Copper & Aluminum |
| Operating Voltage | 4.8 ~ 6.8V DC |
| Angle | 180° 270° |
| Working Frequency | 1520μs / 333hz |
| Speed | 180°= 0.2 sec/60°(5V) 270°= 0.17 sec/60°(6.8V) |
| Stall Torque(6.8V) | 34.5kg/cm (298.5 oz/in) |
| Torque Digital Servo Stall Torque (5V) | 39.5 kg/cm (263.8oz/in) |
| Signal Dead Band |
3μs |
Features:
- Dual ball bearings for smooth operation and long life.
- CNC aluminum middle Shell for IP66 Protection from Water & Dust.
- High-performance digital standard servo offers higher accuracy compared to standard servos.
- High-precision metal gears with hard anodizing for high-torque applications.

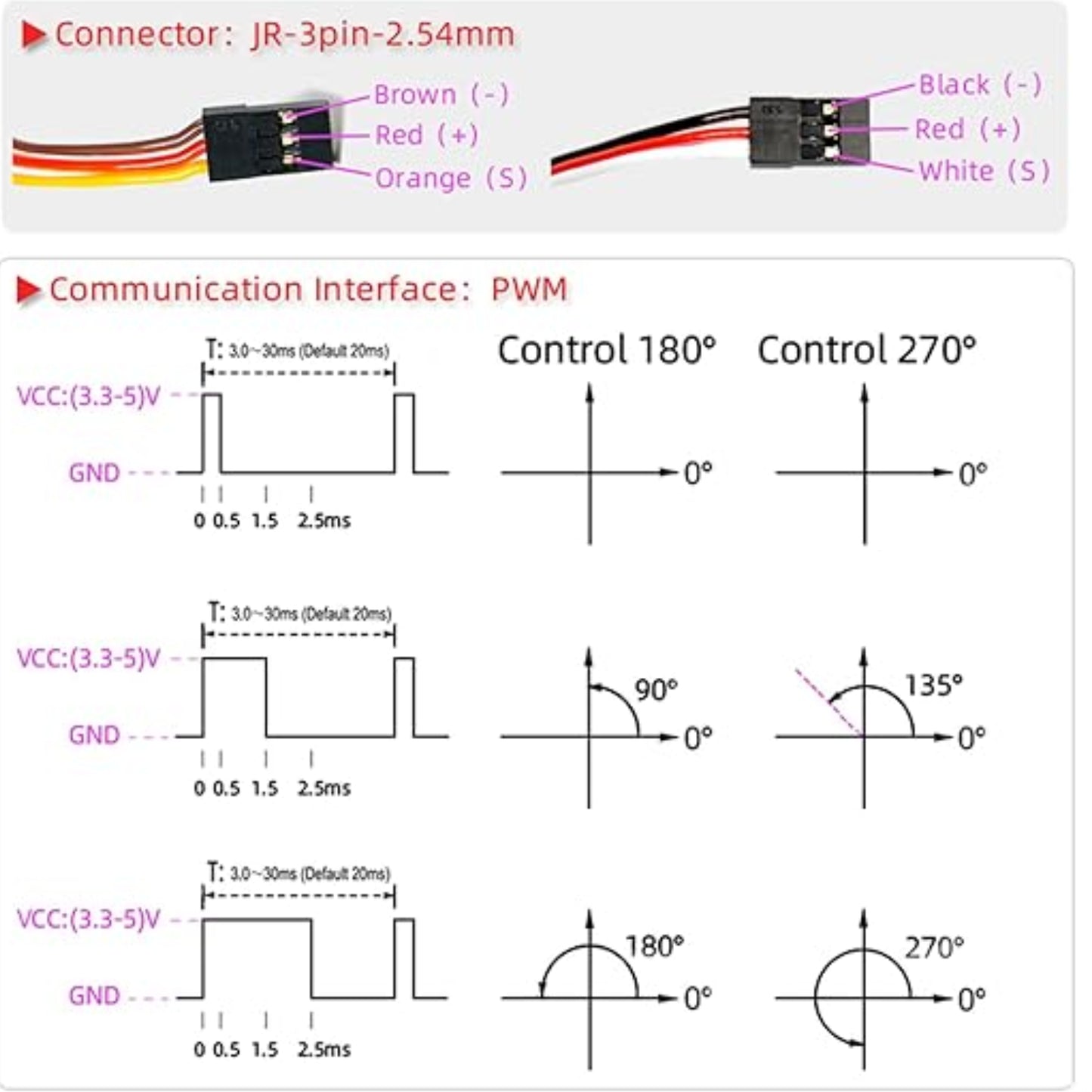

Pin Description:
Package Included:

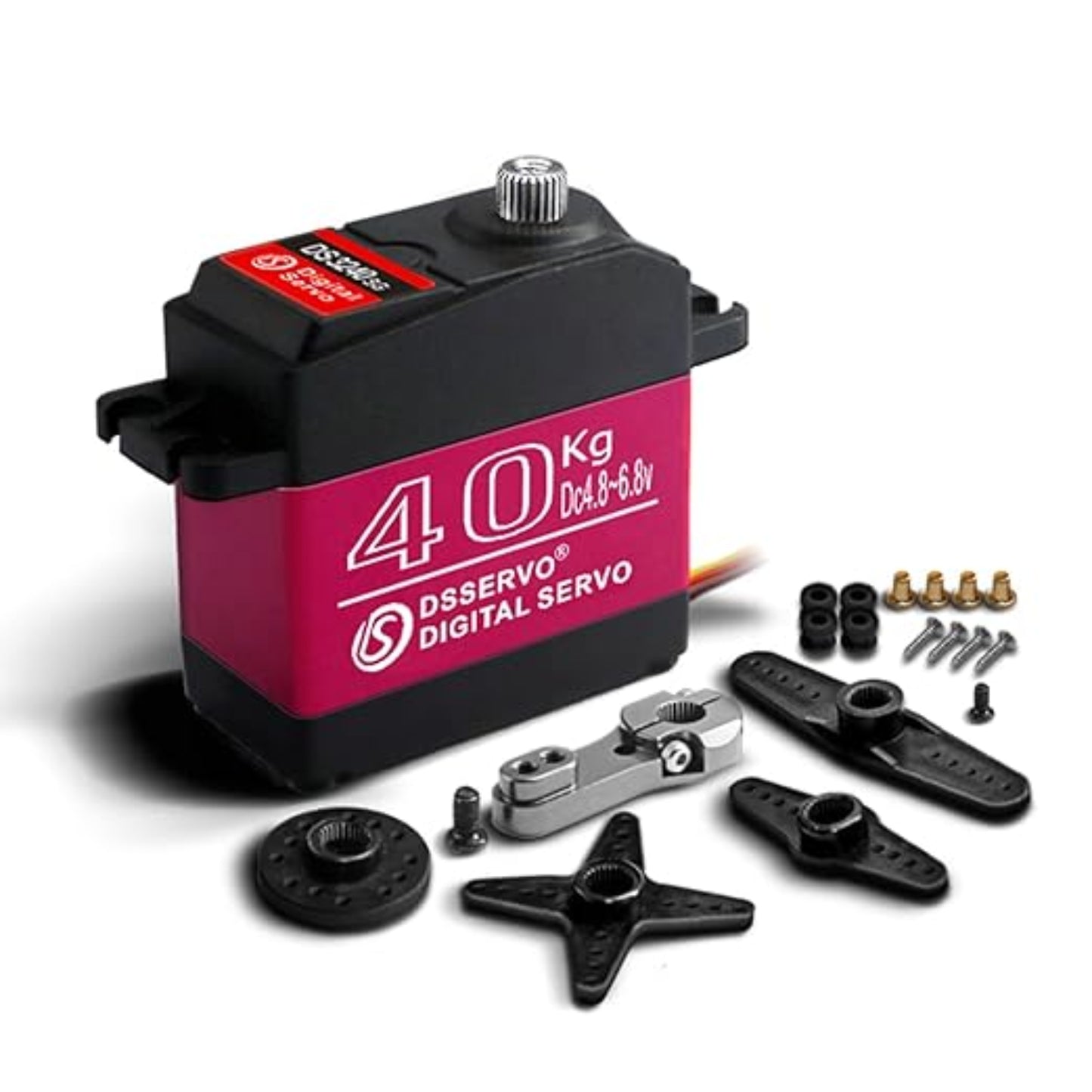

1 x Digital Servo DS3240 40Kg
1 x 25T Adjustable metal servo arm
1 x Accessories
