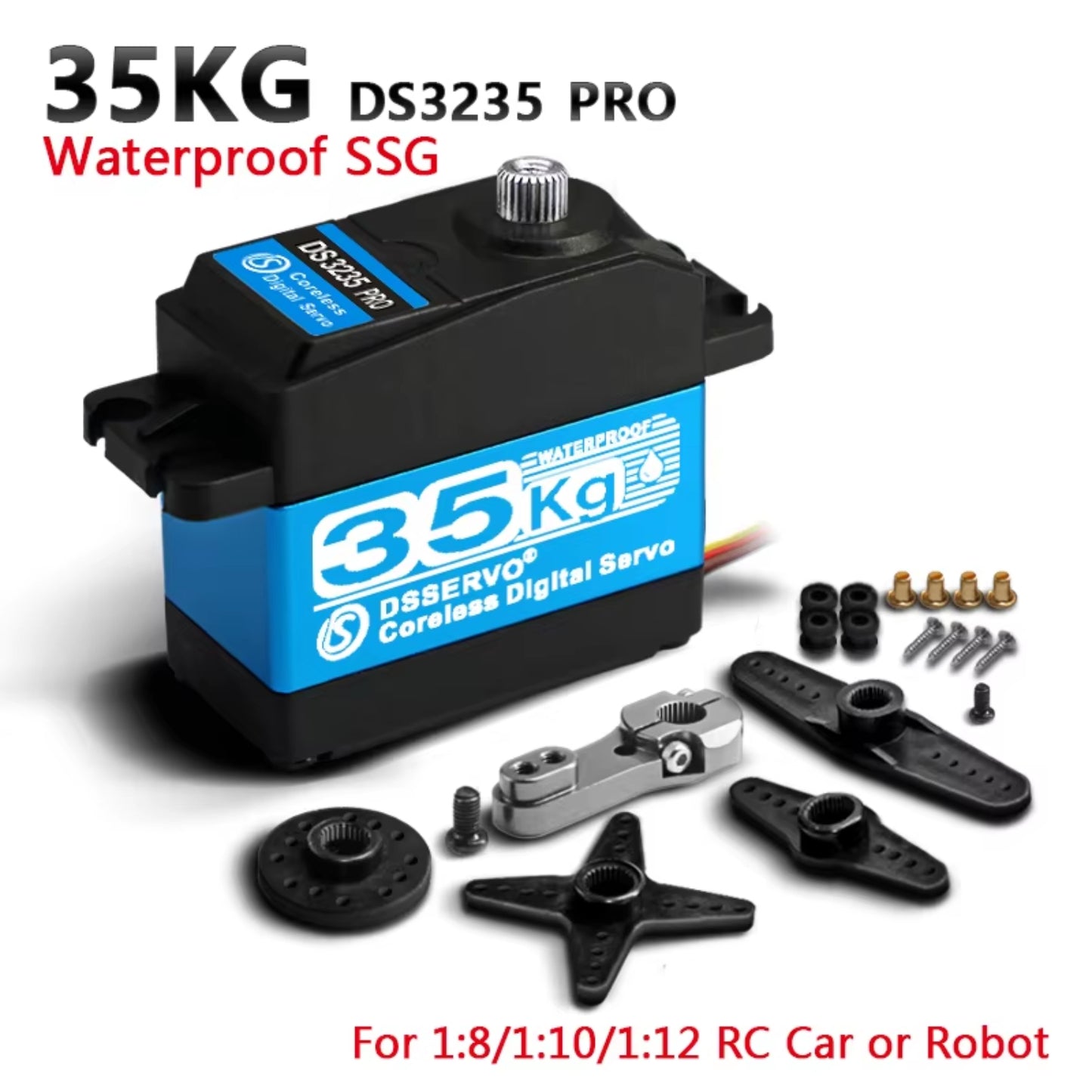

DSServo DS3235SSG 35KG Pro Waterproof Servo 180°, 270° (Optional) Degree Rotation Servo Motor Durable Stainless Steel Gear Servo Powerful 35kg Torque Coreless Servo For Robotics and RC Cars
DSServo DS3235SSG 35KG Pro Waterproof Servo 180°, 270° (Optional) Degree Rotation Servo Motor Durable Stainless Steel Gear Servo Powerful 35kg Torque Coreless Servo For Robotics and RC Cars
SKU:RS8335
In stock
Regular price
Rs. 2,310.00
Regular price
Sale price
Rs. 2,310.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
DSServo DS3235SSG 35KG Pro Waterproof Servo is Made of First-grade Material and CNC Aluminum Middle Shell to Ensure Stable Performance and Long Working Life. 35kg Full Metal Gear Standard Servo Suitable for RC Off-road Vehicles, Crawlers, Mechanical Arms, Robots, Remote Control Boat Giant Scale Aircraft etc.

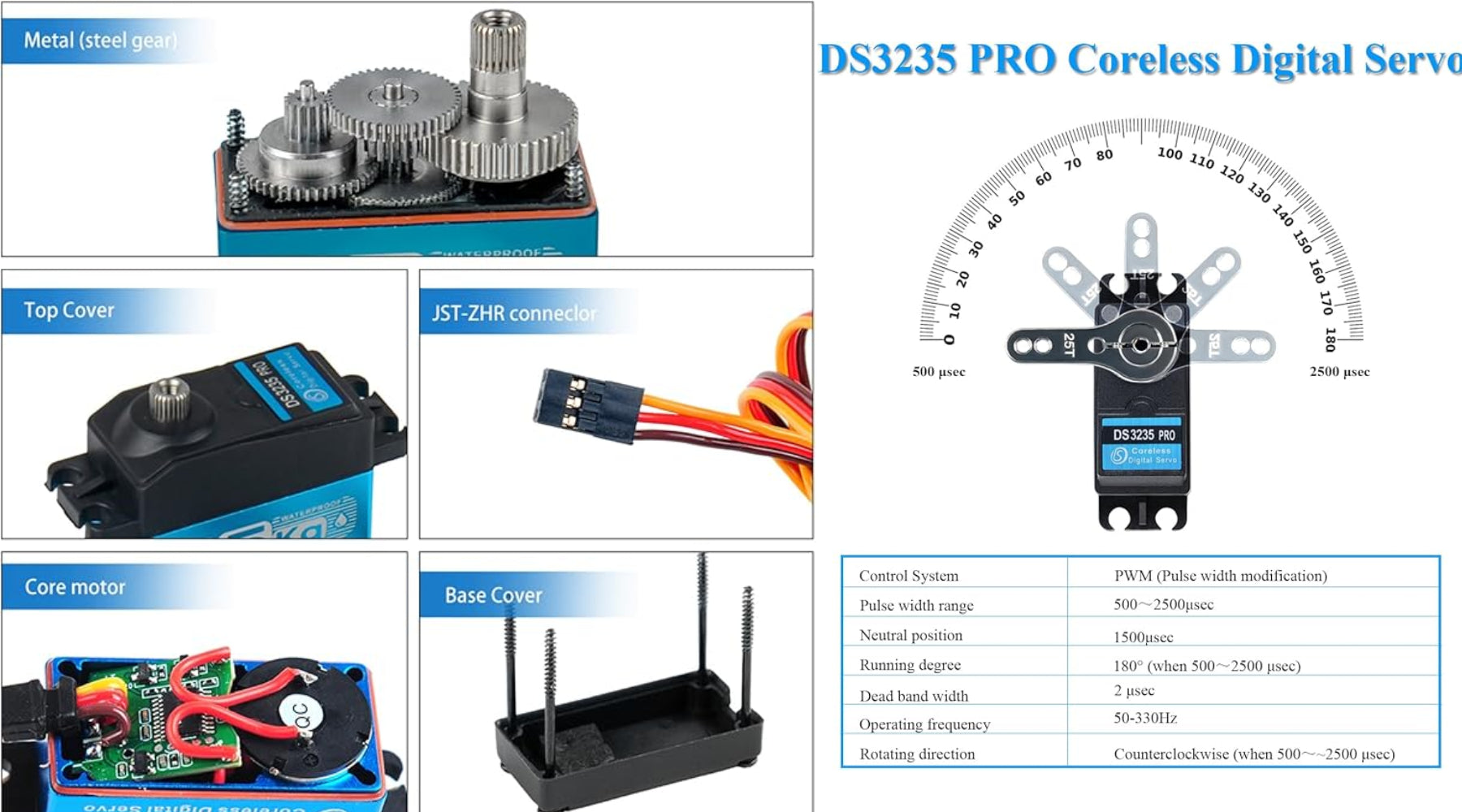

Specifications:
| Model | DS3235SSG 35KG Pro |
| Case Material | CNC Aluminum |
| Operating Voltage | 5 ~ 8.4 V |
| Working Frequency | 50-330 Hz |
| Angle Control | 180° 270° Degree |

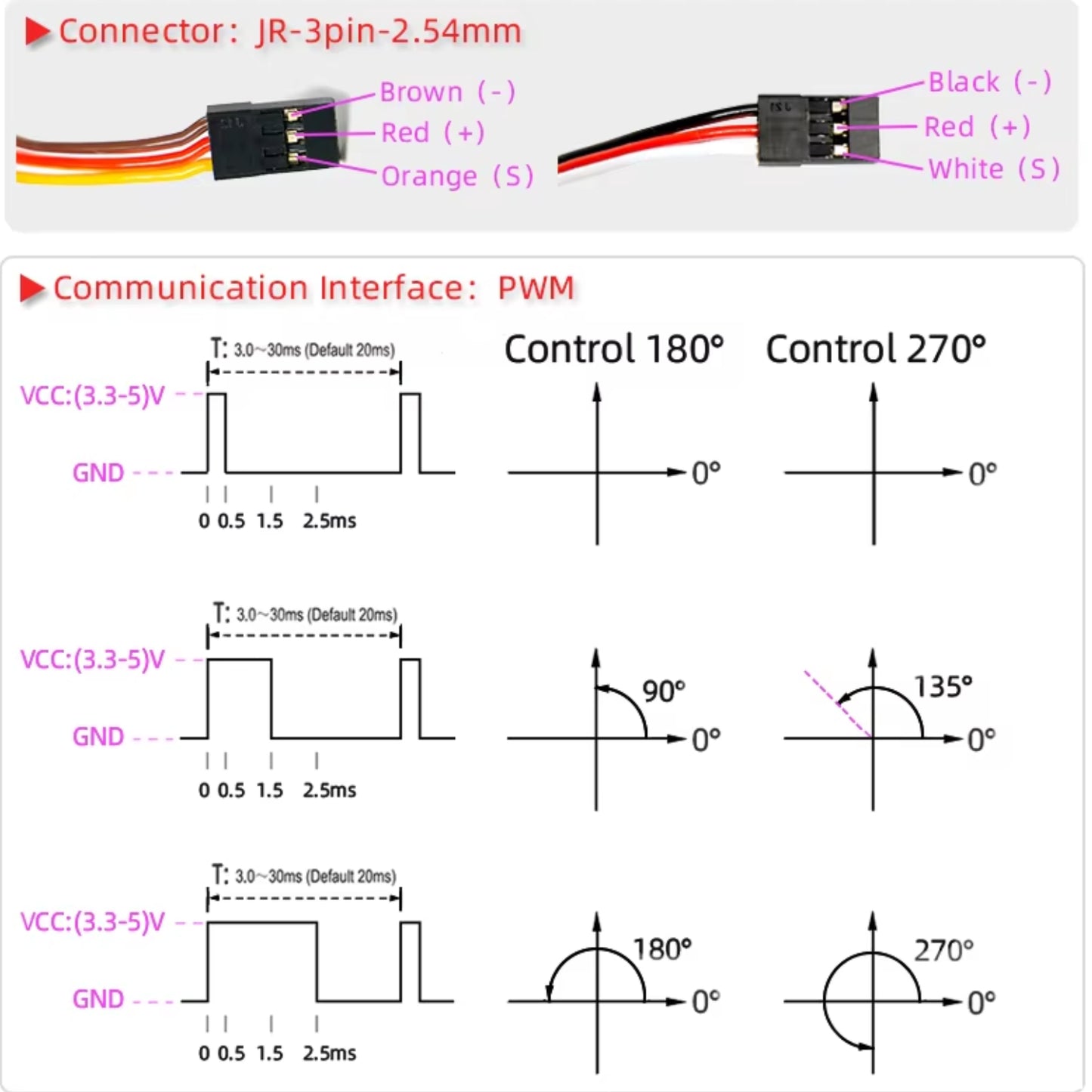

| Pulse Width Range | 500 ~ 2500 µsec |
| Neturel's Position | 1500 µsec |
| Dead Band | 2μs |
| Engine Type | Coreless Motor |
| Gear Type | Stainless Steel |
| Waterproof | IP66 |
| Direction of Rotation | Counterclockwise (when 1000～2000usec) |
| Locking Pair | 30kg/cm at (5V), 40kg/cm at (7.4V), 40kg/cm.at (8.4V) |
| Speed | 0.14 sec/60° (5V) / 0.09 sec/60° (7.4 V) /0.08 sec/60° (8.4 V) |
Features:
- Dual ball bearings.
- CNC aluminum middle Shell.
- High-performance digital standard servo.
- High-precision metal gears(Stainless steel gear)with hard anodizing.

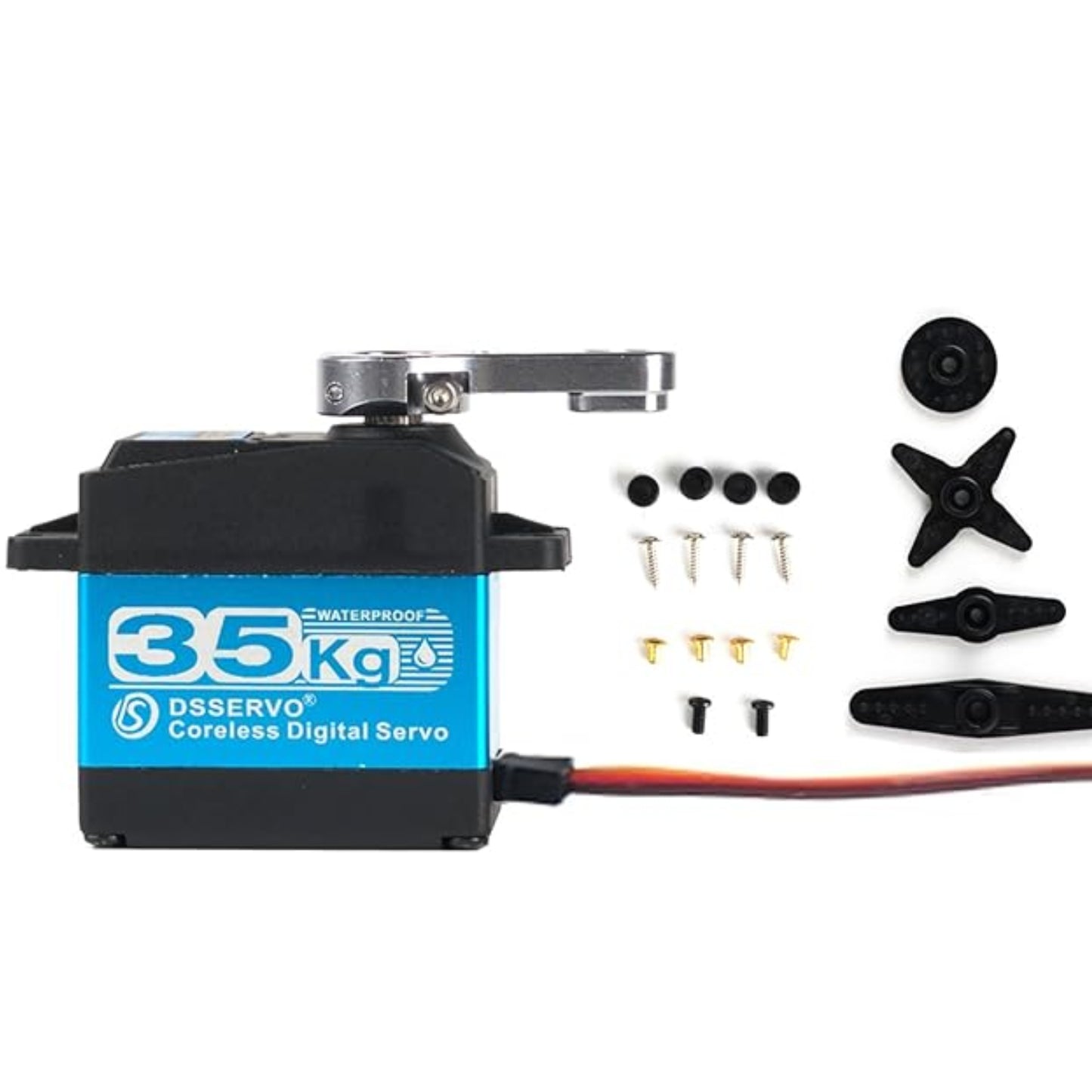

Package Included:
1 x DSServo DS3235 35KG Pro Waterproof Servo 180°, 270° (Optional) Degree Rotation Servo Motor Durable Stainless Steel Gear Servo Powerful 35kg Torque Coreless Servo For Robotics and RC Cars
