DSServo DS3235SSG 35Kg Coreless Servo Waterproof Digital Servor High Torque Coreless Servo Motor With 180°, 270° (Optional) Degree Rotation For Robotic Arms

DSServo DS3235SSG 35Kg Coreless Servo Waterproof Digital Servor High Torque Coreless Servo Motor With 180°, 270° (Optional) Degree Rotation For Robotic Arms

SKU:RS8331

In stock

Regular price Rs. 2,310.00
Regular price Sale price Rs. 2,310.00
Sale Sold out
Shipping calculated at checkout.
Degree

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

DSServo DS3235SSG 35Kg Coreless Waterproof Digital Servor is High precision Steel Gear and Potentiometers, High-resolution Digital Chip, Waterproof Rubber Seals Screws, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life. 35kg Full Metal Gear Standard Servo Suitable for RC Off-road Vehicle, Crawler, Mechanical Arms, Robots, Remote Control Boat Giant Scale Aircraft etc.

High Torque Coreless Servo has Durable, Responsive, Strong Anti-interference Ability, Low Noise, and Fast Heat Dissipation. Precision Control, Angle Range from 0 to 270 Degrees. Can be Rotated within 360 Degrees when Power Off. Power Wire is longer Enough Up to 45mm. Free 25T Servo Horn and Accessories.

Specifications:

Model DS3235 Coreless
Operating Voltage  5 ~ 7.4 DC Volts
Motor Type Coreless Motor

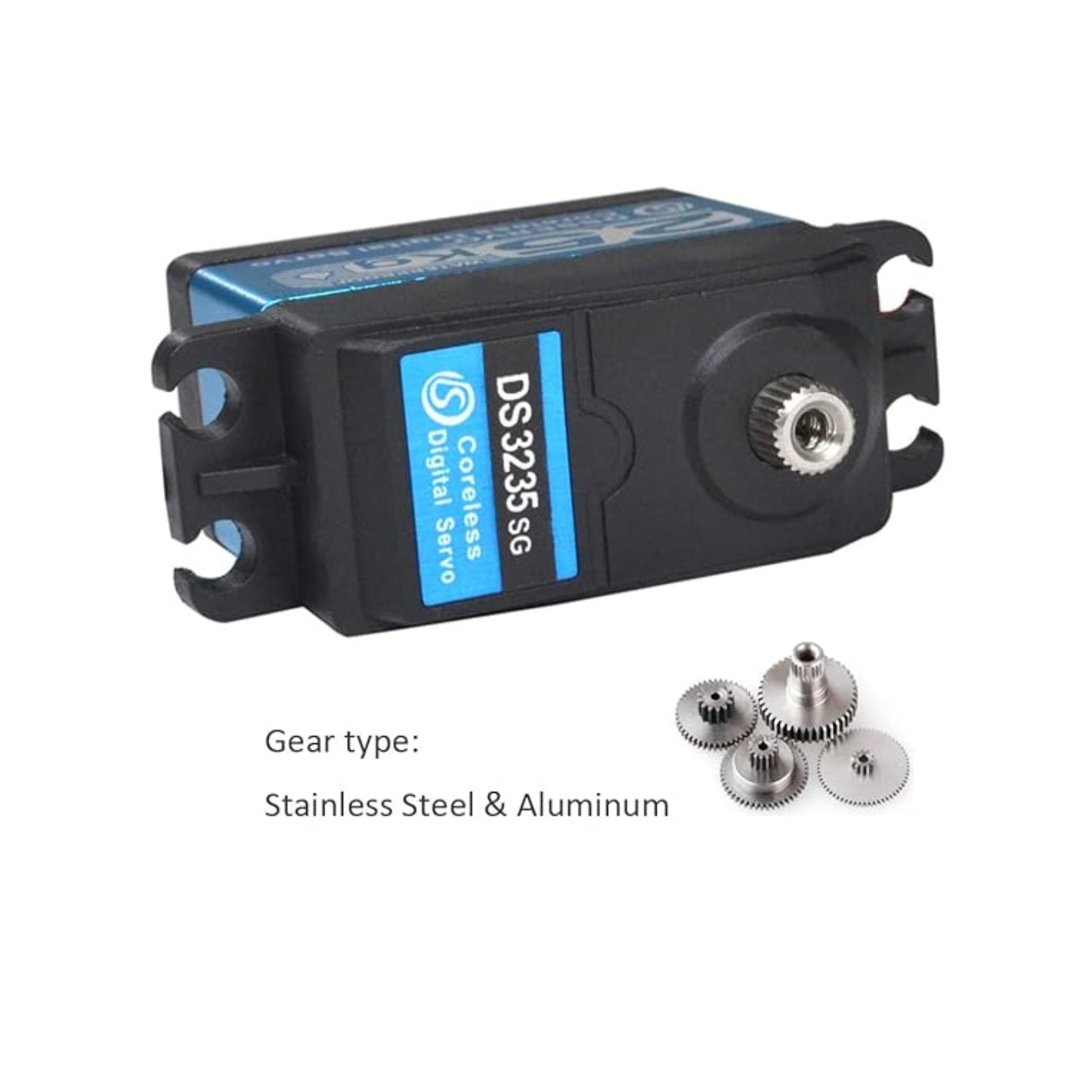

Gear Type Stainless Steel & Aluminum
Operating Frequency 50-333Hz

Control System

PWM (Pulse Width Modification)
Pulse Width Range  500-2500μsec
Neutral Position 1500μsec
Running Degree 180 °  270° (when 500-2500μsec)
Dead Band Width 3μsec
Operating Speed at no Load ( 5V ) 0.17 sec/60°
Operating Speed at no Load ( 7.4V )  0.14 sec/60°
Operating Speed at no Load ( 8.4V )  0.12 sec/60°
Stall Torque at locked ( 5V )  24.5kg.cm(340.2oz-in)
Stall Torque at locked ( 7.4V ) 34kg.cm(472oz-in)
Stall Torque at locked ( 8.4V  41kg.cm(569.3oz-in)
Stall Current at locked ( 5V ) 2.1A
Stall Current at locked ( 7.4V ) 3.2A
Stall Current at locked ( 8.4V  3.9A
Idle Current at stopped (5/7.4/8.4V 4mA
Bearing Double Bearing
Waterproof Performance IP67


Features:

  • Dual ball bearings.
  • CNC aluminum middle Shell.
  • High-performance digital standard servo.
  • High-precision metal gears (Stainless steel gear) with hard anodizing.

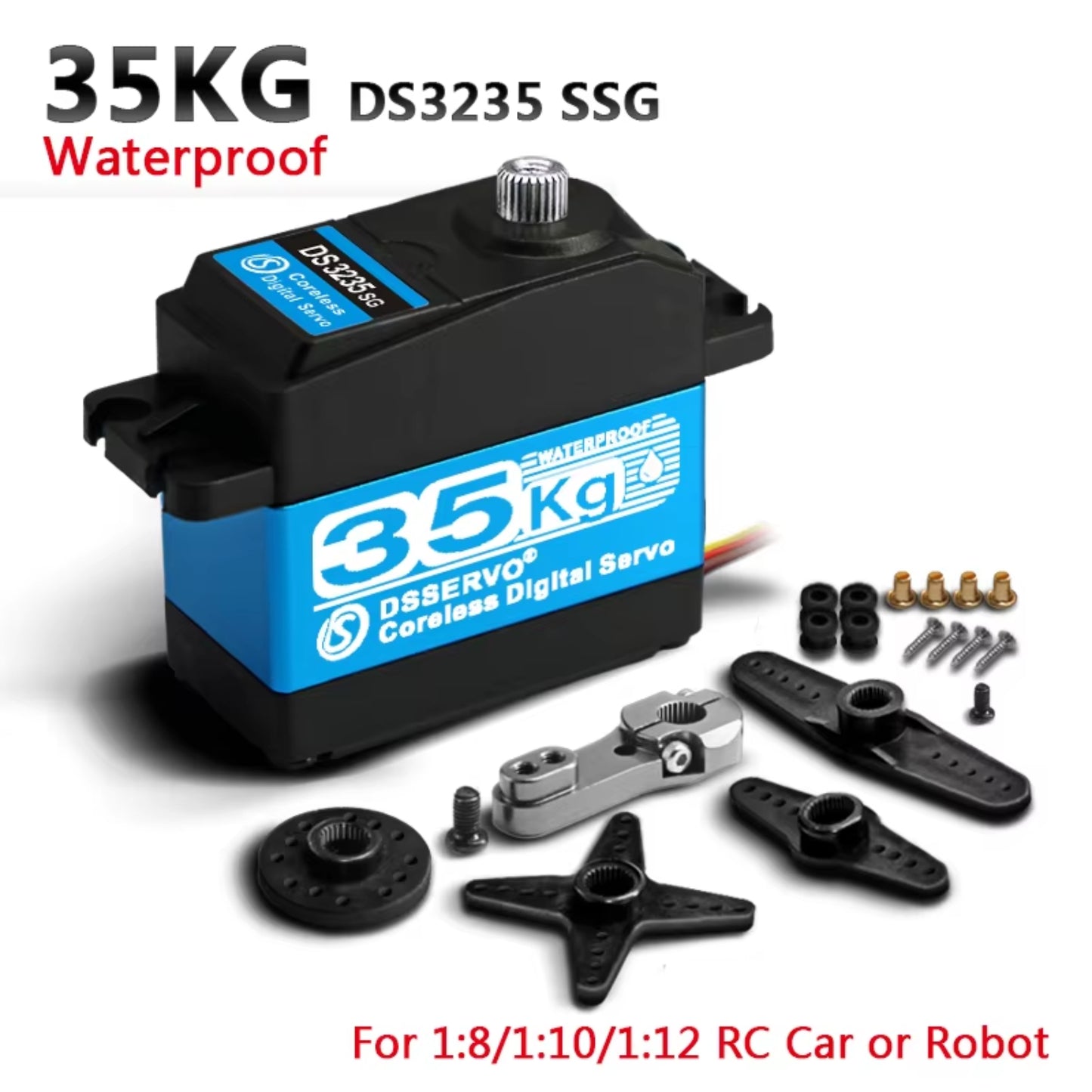

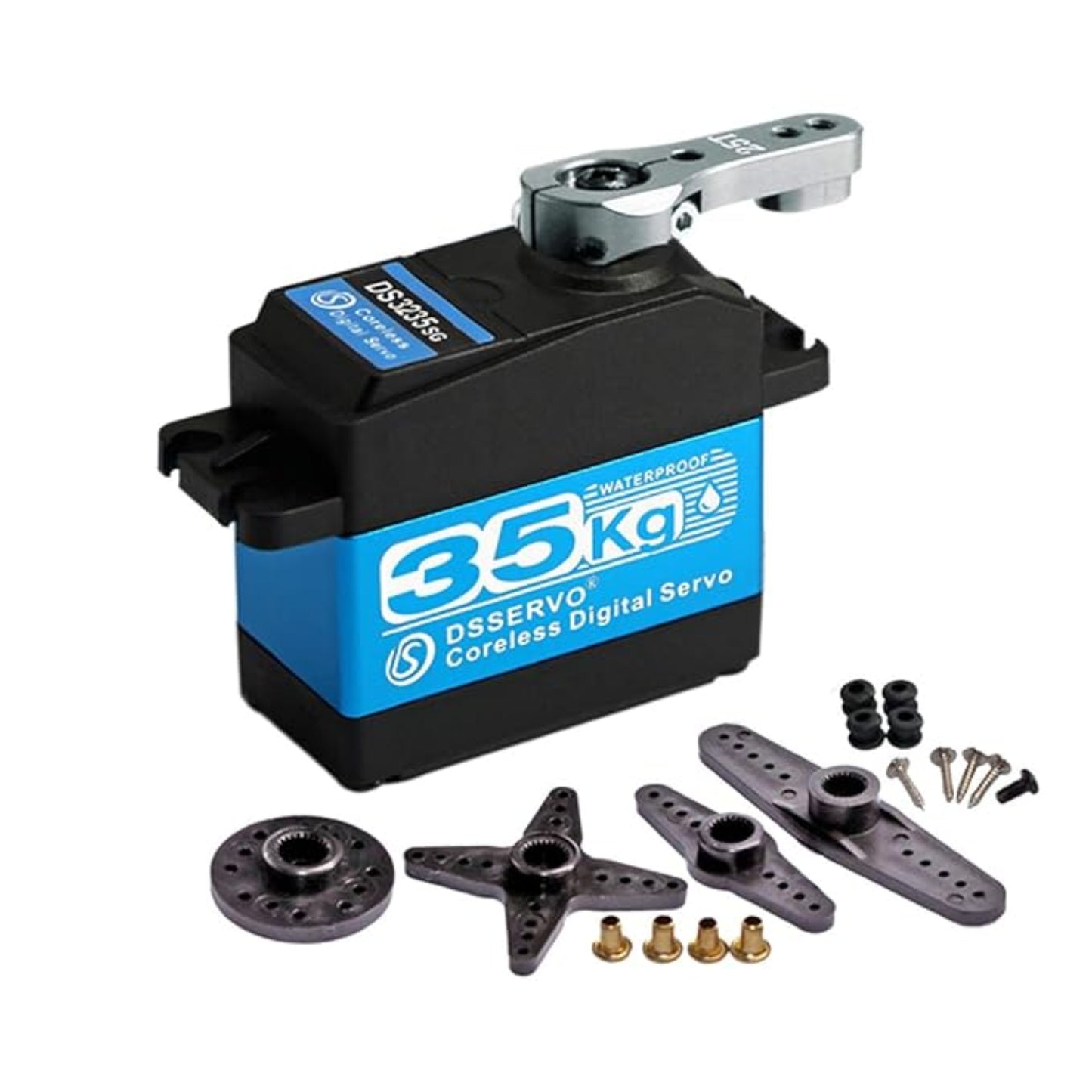

Package Included:

1 x DSServo DS3235SSG 35Kg Coreless Servo
1 x 25T Adjustable Metal Servo Arm
1 x Set Of Accessories
