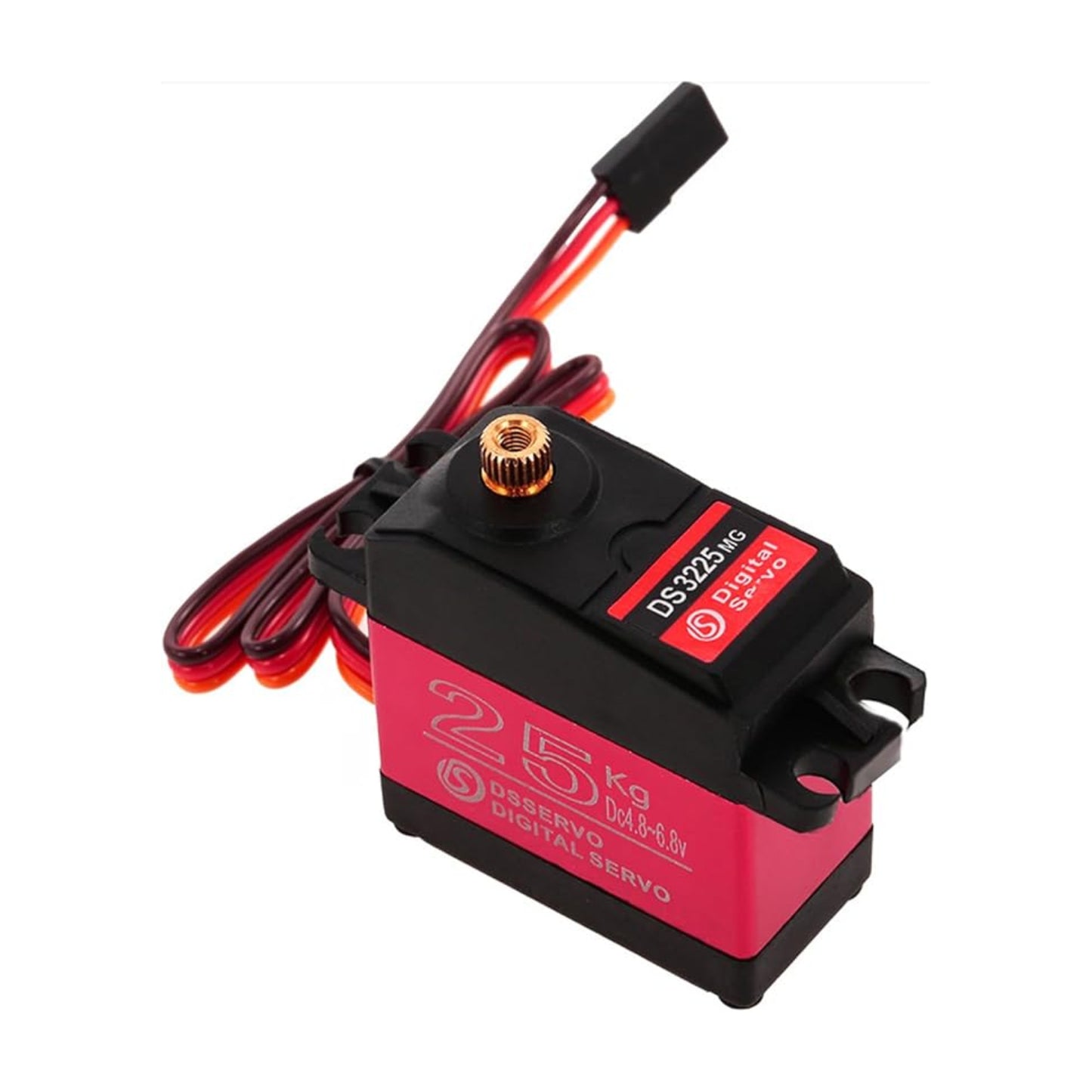

DSServo DS3225MG 25KG Waterproof Digital Servo 90°, 180°, 270° (Optional) Degree Rotation Servo High Torque Metal Gear Servo For RC Airplanes and Helicopters

DSServo DS3225MG 25KG Waterproof Digital Servo 90°, 180°, 270° (Optional) Degree Rotation Servo High Torque Metal Gear Servo For RC Airplanes and Helicopters

SKU:RS8284

In stock

Regular price Rs. 939.00
Regular price Sale price Rs. 939.00
Sale Sold out
Shipping calculated at checkout.
Degree

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DSServo DS3225MG 25KG Waterproof Digital Servo features high torque HV, metal gear, fast heat dissipation, sensitivity, and responsiveness. With high quality and performance. High Torque Metal Gear Servo comes with strong copper and aluminum gears, and a CNC aluminum center shell, made of first-grade material.

Specifications:

Model DS3225MG
Material Metal
Operating Voltage  4.8 - 6.8V

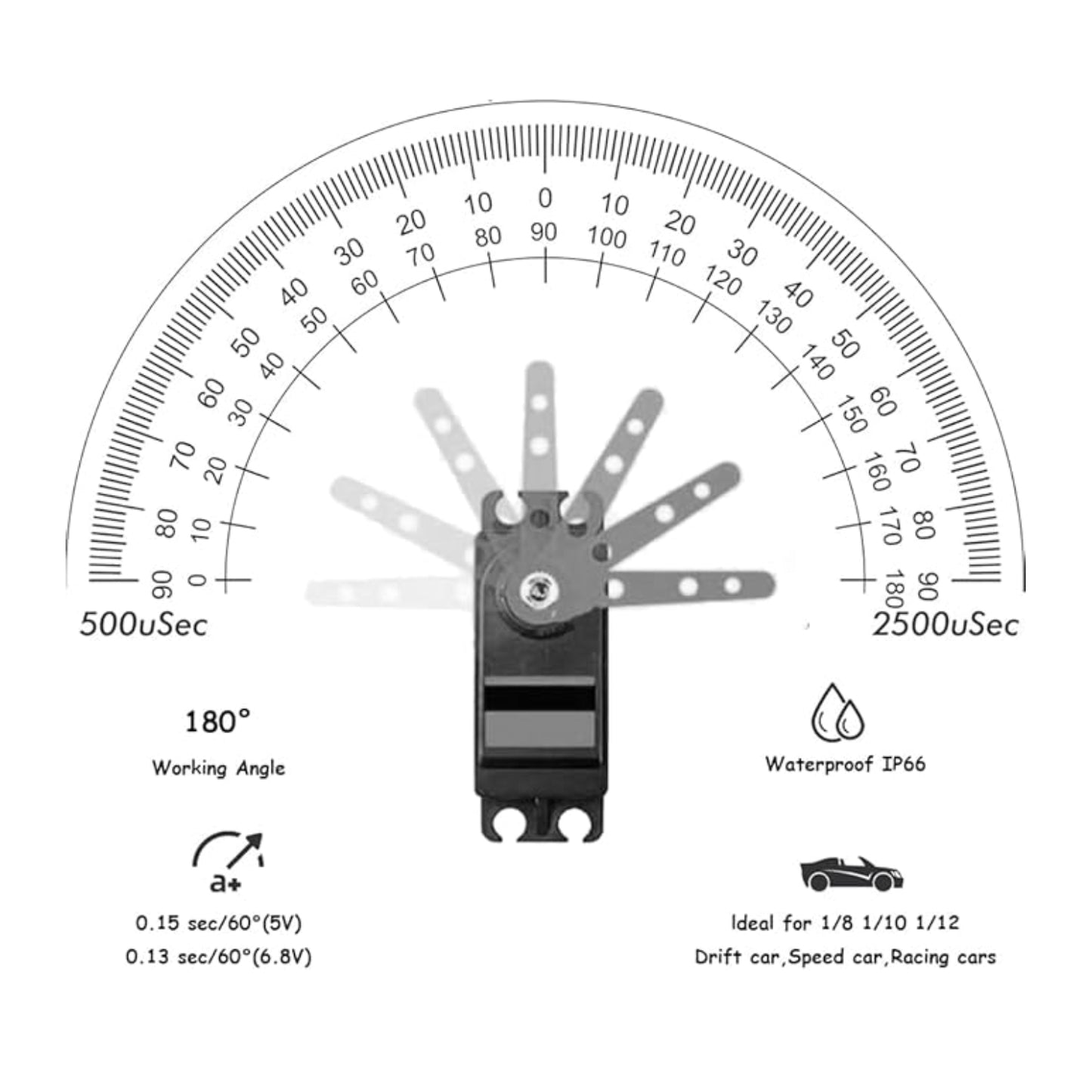

Angles 90°, 180°, 270°
Stall Torque ( 5.0V )  21kg/cm
Stall Torque ( 6.8V ) 25kg/cm

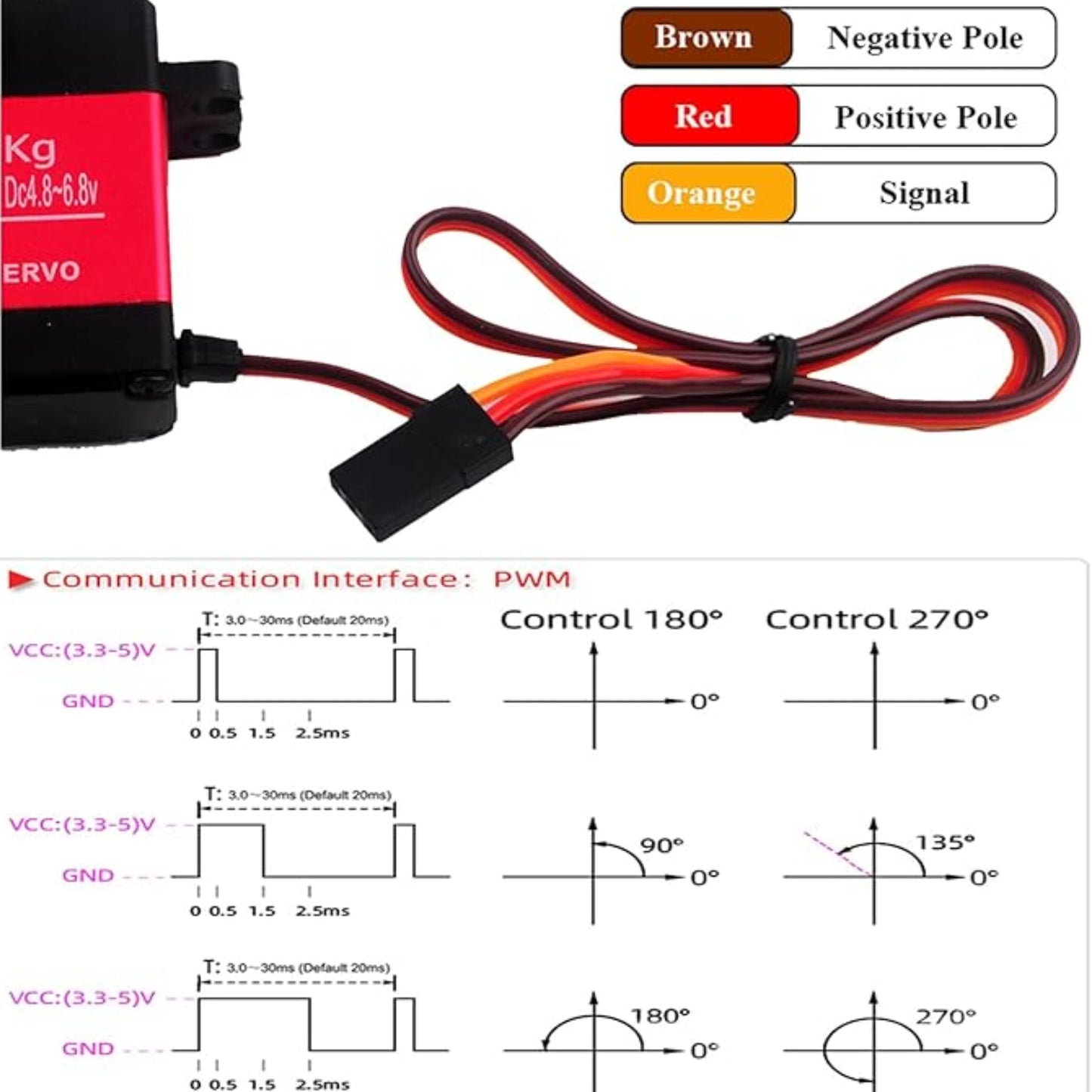

Working Frequency 50-333Hz
Operating Speed ( 5.0V )  0.15 sec/60 degree
Operating Speed ( 6.8V ) 0.13 sec/60 degree
Dead band  3μs

Features:

  • Dual ball bearings.
  • CNC aluminum middle Shell.
  • High-performance digital standard servo.
  • High-precision metal gears with hard anodizing.

Notes:

It is a water-resistant servo, not a waterproof servo, it works if gets a little wet, but can't work under the water, so pls be careful not to get it submerged in water, otherwise, it will be ruined.

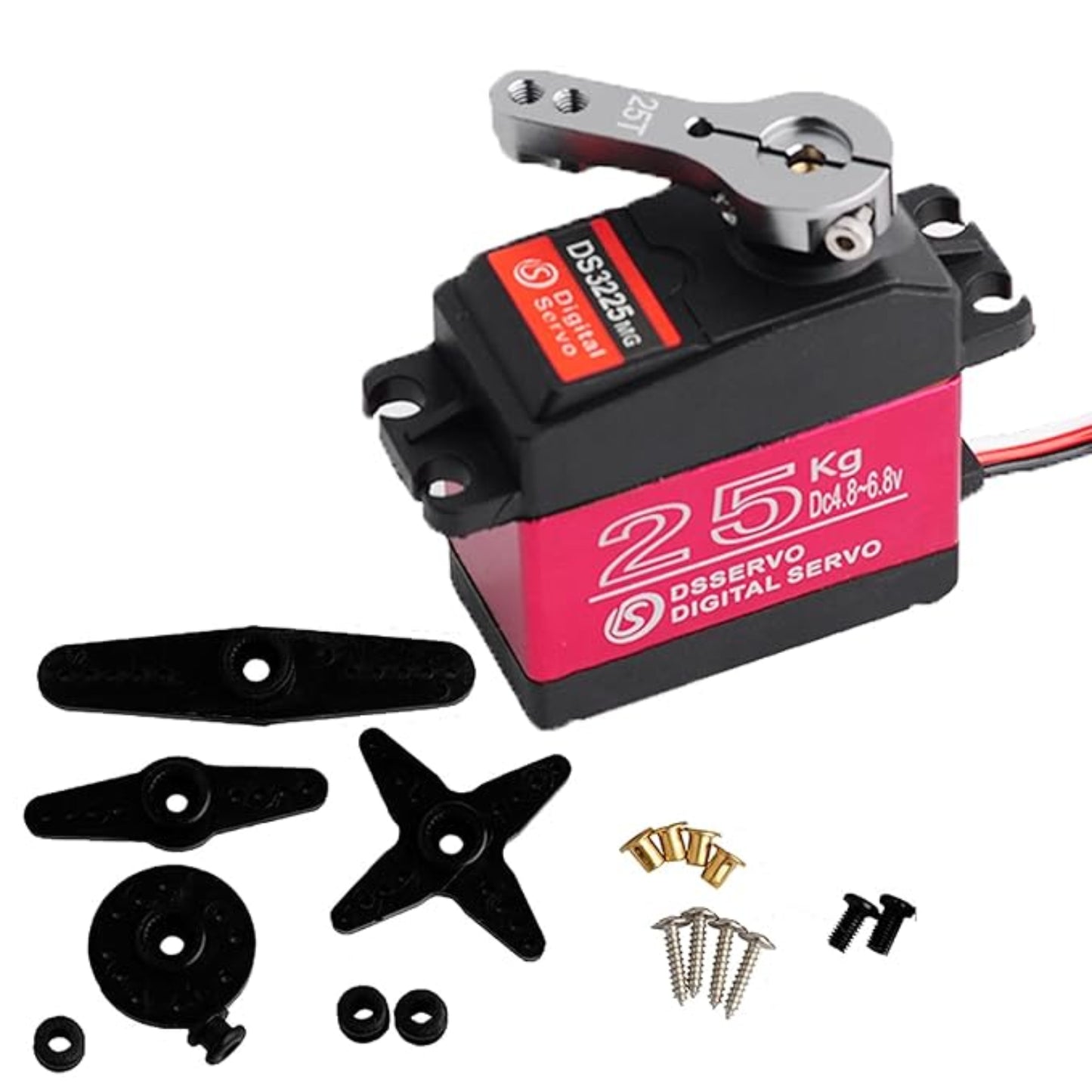

Package Included:

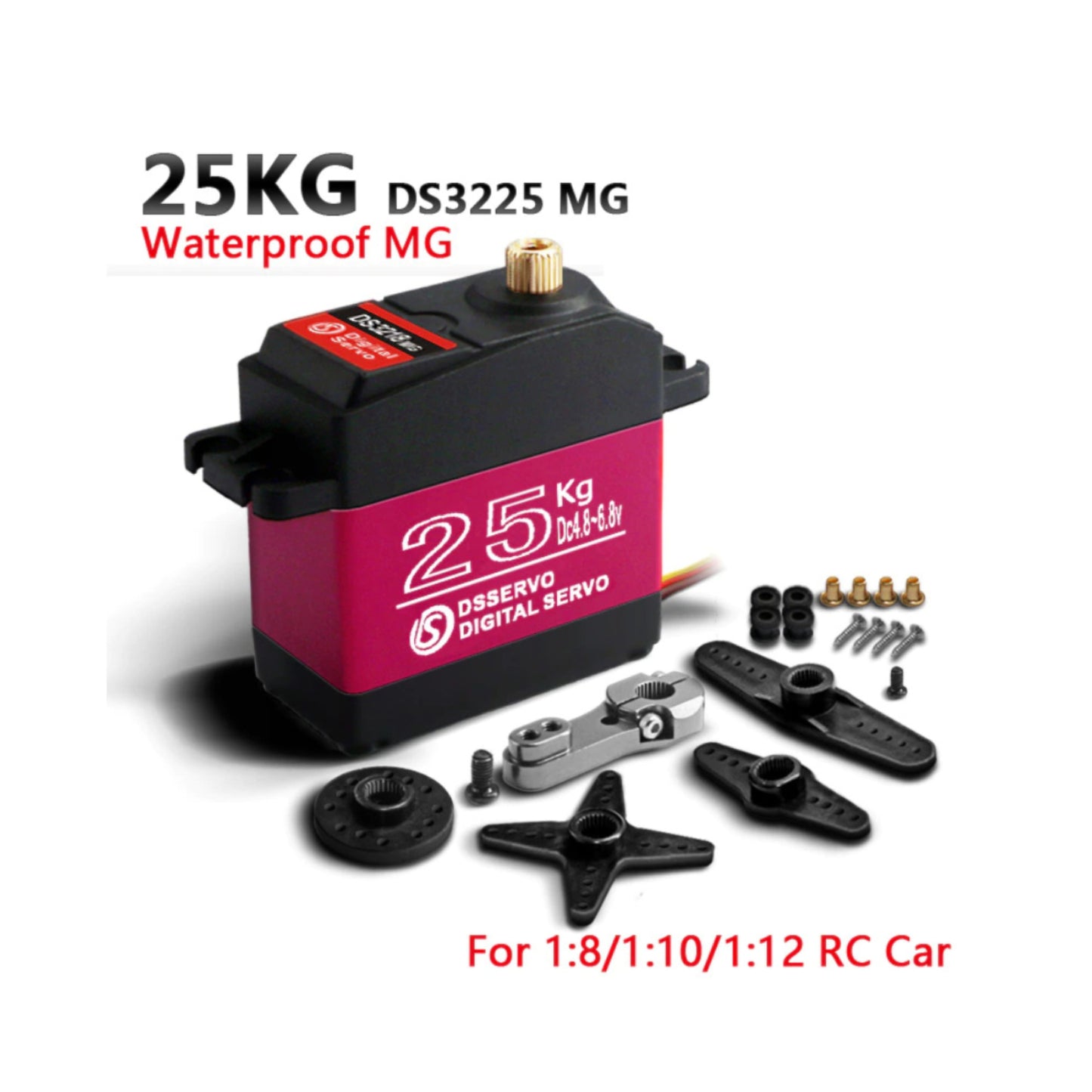

  • 1 x DS3225 25kg Digital Servo

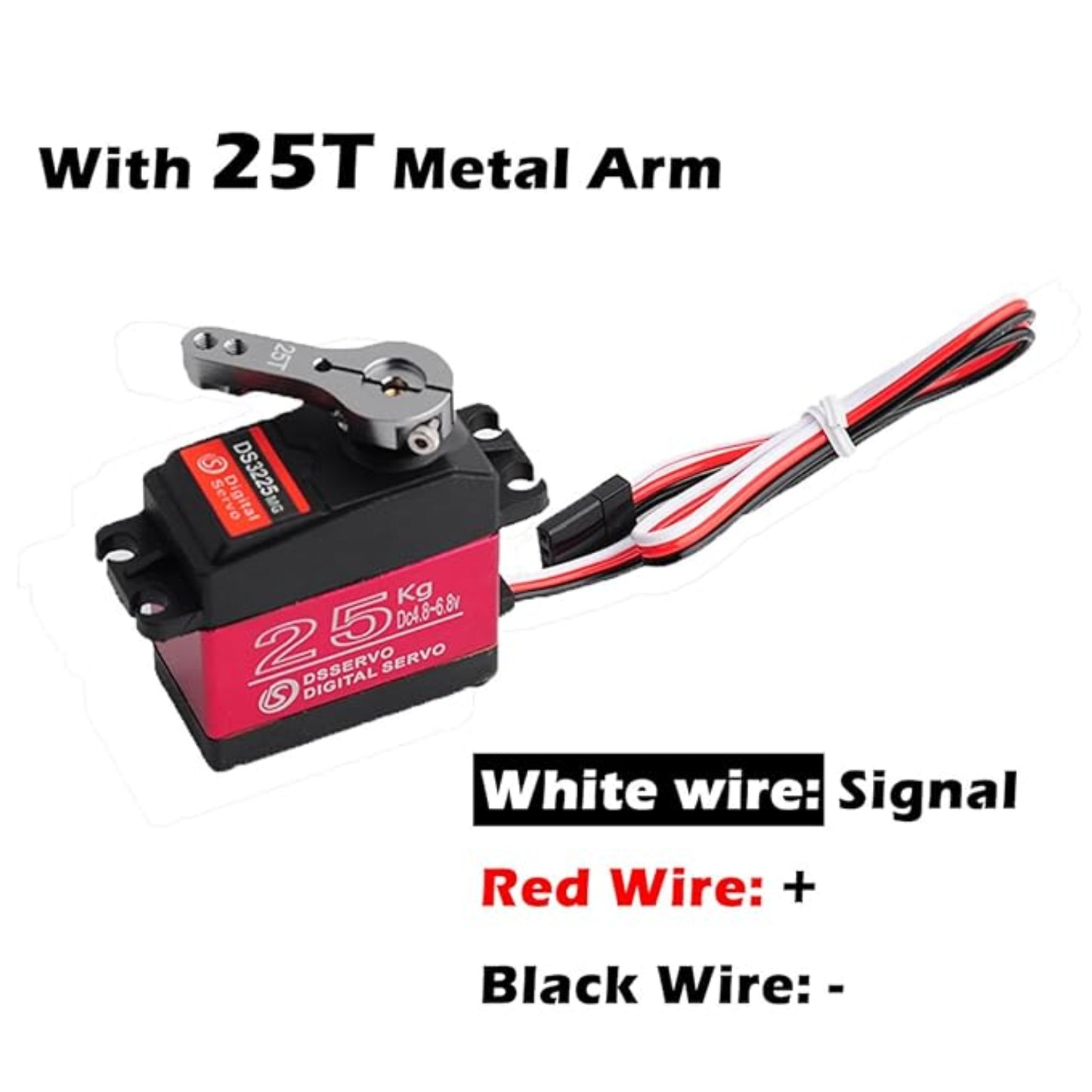

  • 1 x 25T Adjustable Metal Servo Arm
  • Accessories pack
