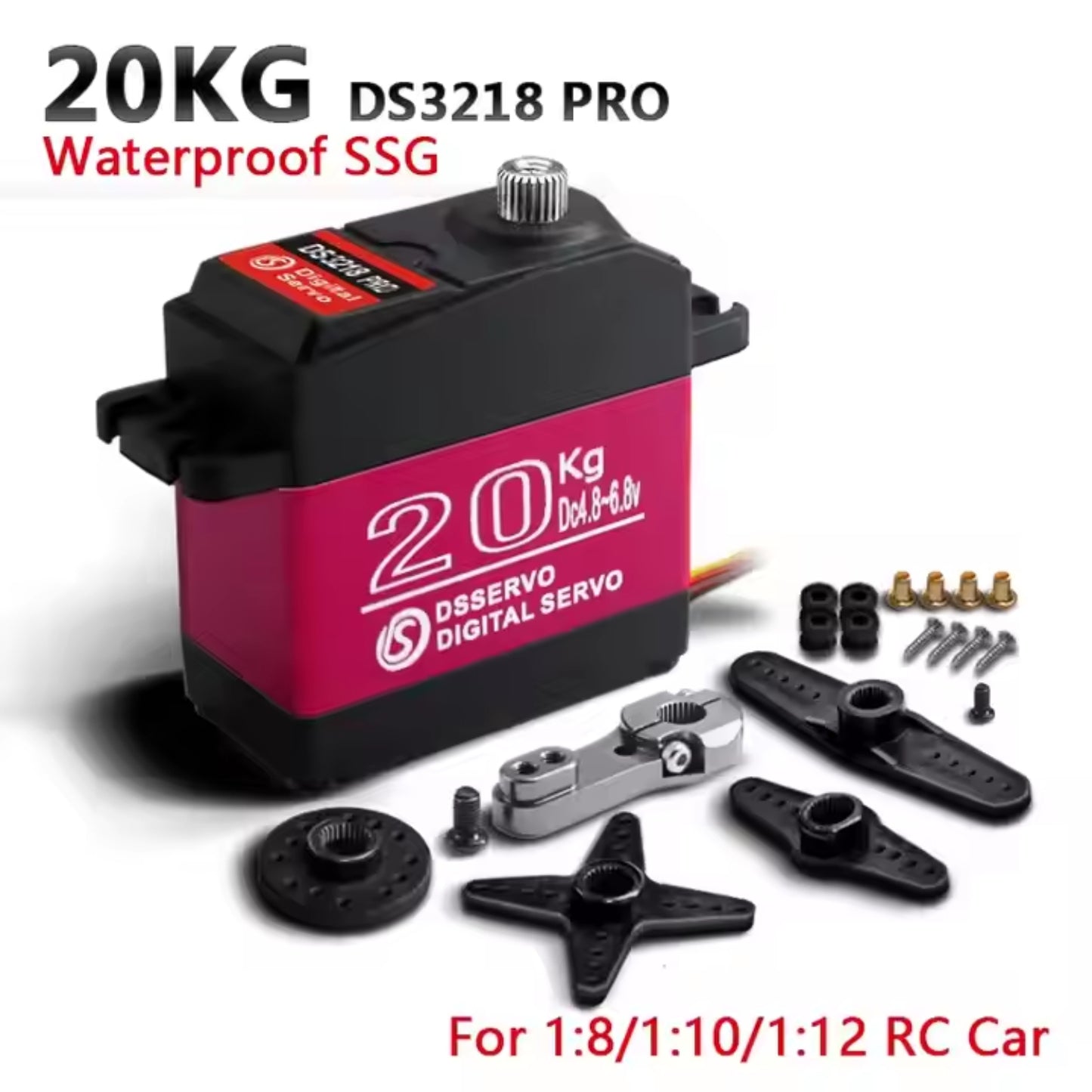

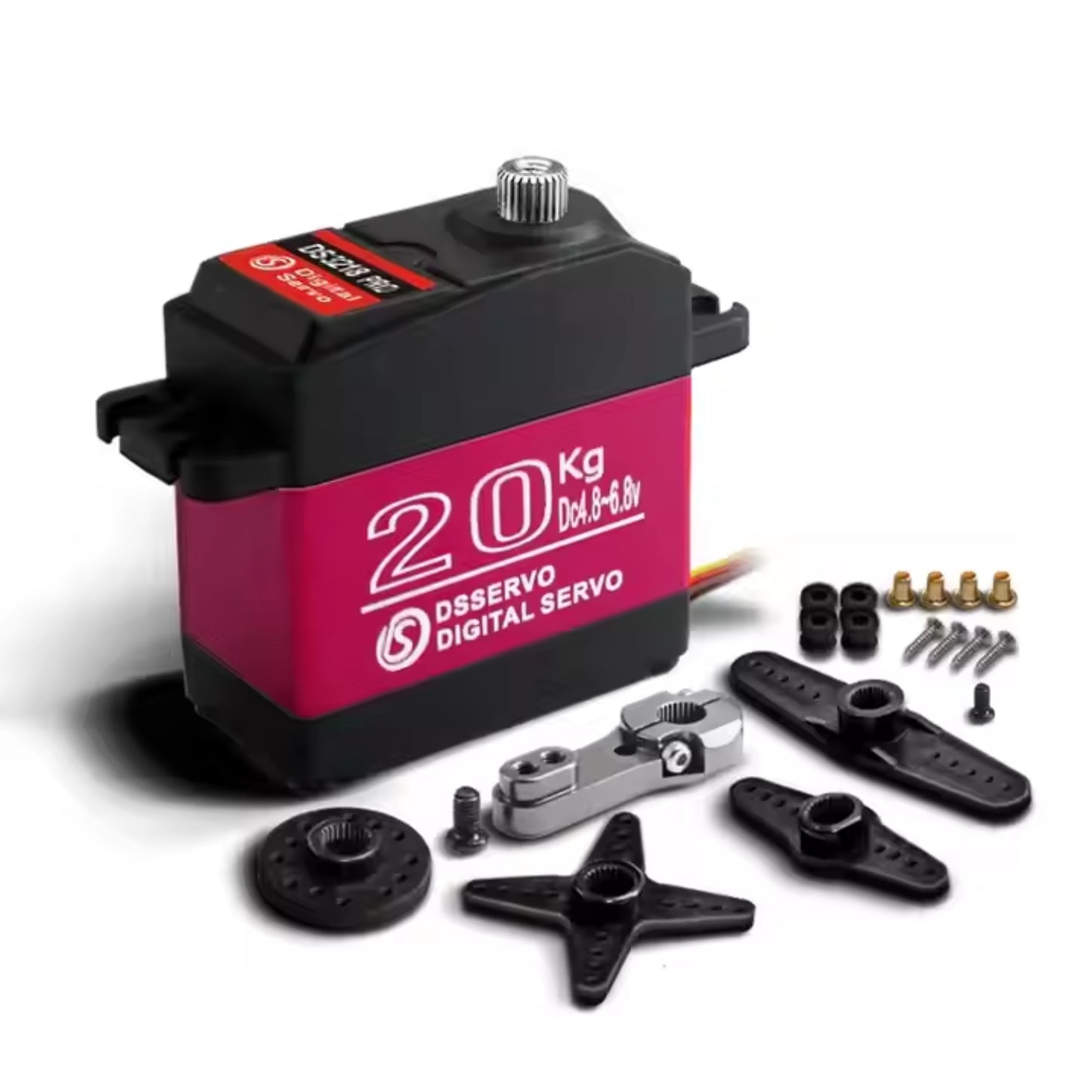

DSServo DS3218SSG Pro Servo Motor High Torque 20KG Stainless Steel Gear Digital Servo Waterproof SSG RC Servo With 180°, 270° (Optional) Degree Rotation For 1/8, 1/10 and 1/12 Scale RC Cars
DSServo DS3218SSG Pro Servo Motor High Torque 20KG Stainless Steel Gear Digital Servo Waterproof SSG RC Servo With 180°, 270° (Optional) Degree Rotation For 1/8, 1/10 and 1/12 Scale RC Cars
SKU:RS8282
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
DSServo DS3218SSG Pro Servo Motor is High precision potentiometer and High-resolution digital chip, with stable performance, strong anti-interference ability, fast response, high precision, and control is more delicate and smooth operation.
High Torque 20KG Stainless Steel Gear Digital Servo is a high-speed stainless steel gear, accuracy and service life has been greatly increased Accuracy and linearity have been greatly improved. Accurate movement can satisfy the needs of making robots.
Specifications:
| Model | DS3218 |
| Material | Copper, Aluminum |
| Angle | 180°, 270° |
| Operating Voltage | 4.8 ~ 6.8 DC Volts |
| Working Frequency | 50-333Hz |
| Stall Torque (5V) | 21 kg/cm (291.5oz/in) |
| Stall Torque (6.8V) | 23.5 kg/cm (326.2 oz/in) |
| Speed | 180°= 0.12 sec/60°(5V) 270°= 0.09 sec/60°(6.8V) |
| Waterproof Performance | IP66 |
| Dead Brand | 3μs |
Features:
- Dual ball bearings.
- CNC aluminum middle Shell.
- High-performance digital standard servo.
- High-precision metal gears with hard anodizing.
Package Included:
1 x DS3218 20KG Large Torque Digital Servo

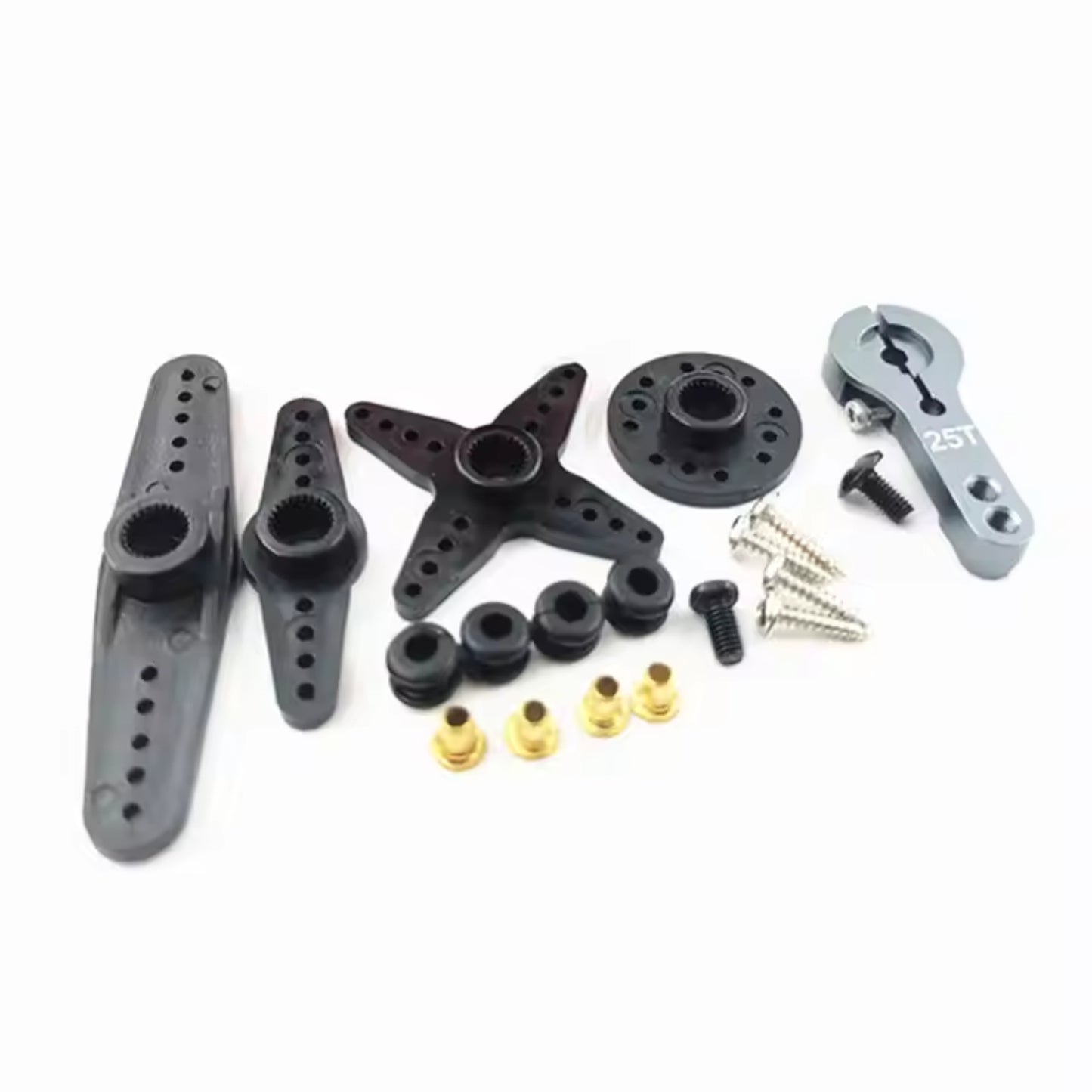

1 x 25T Adjustable metal servo arm
1 x Accessories pack
