DSServo DS3115MG 15Kg Digital Servo High Torque Metal Gear Digital Servo Motor 180°, 270°, 360° (Optional) Degree Rotation Digital Servo For Arduino 1/8, 1/10, 1/12 RC Cars Toy Robot

DSServo DS3115MG 15Kg Digital Servo High Torque Metal Gear Digital Servo Motor 180°, 270°, 360° (Optional) Degree Rotation Digital Servo For Arduino 1/8, 1/10, 1/12 RC Cars Toy Robot

RS8277

In stock

Rs. 709.00
Rs. 709.00
Sale Sold out
Shipping calculated at checkout.
Degree

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

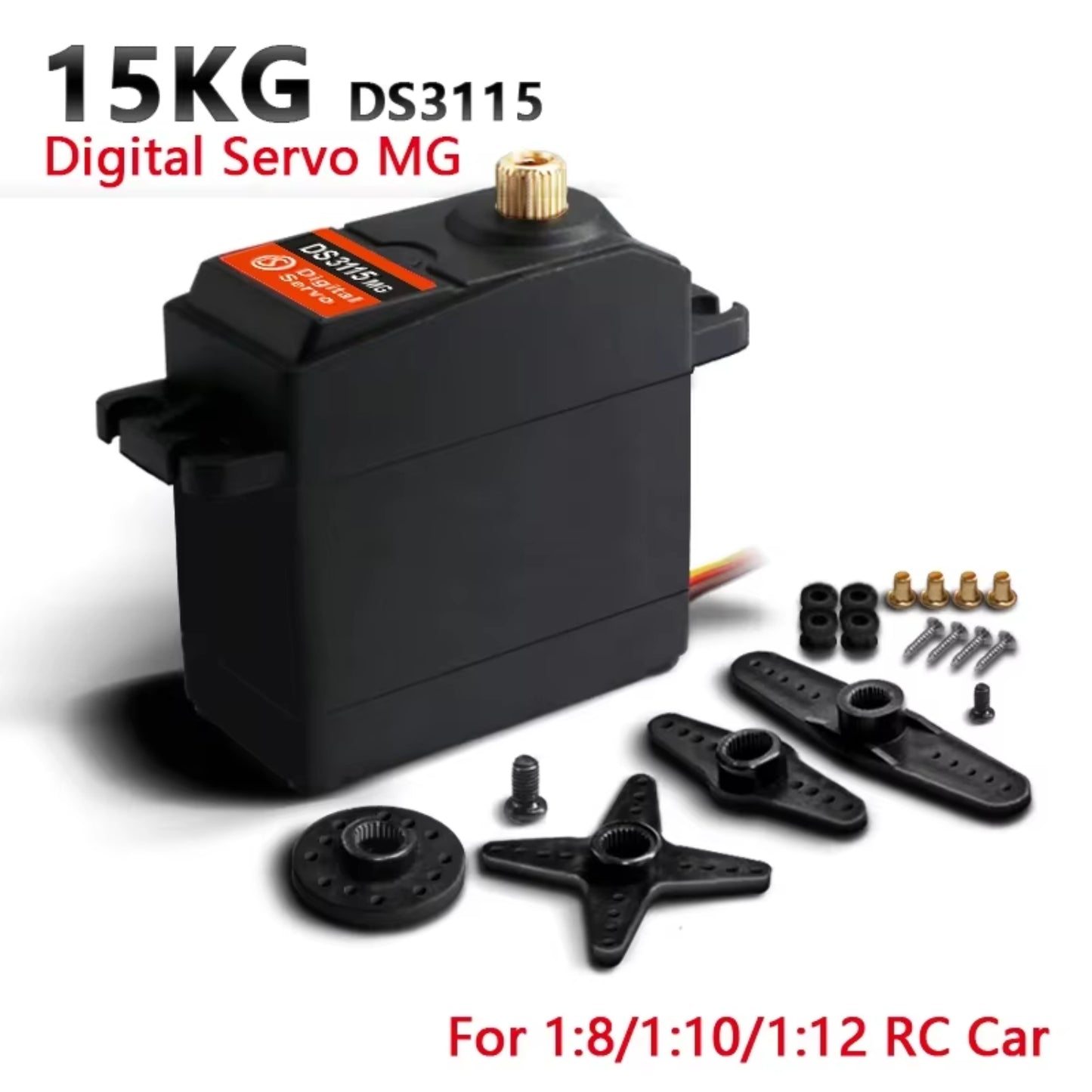

DSServo DS3115MG 15Kg Metal Gear Digital Servo is designed for precision and reliability in a wide range of applications. This servo motor is engineered to deliver a remarkable 15KG-cm of torque, providing the power and strength needed for demanding tasks.

Specifications:

Model DS3115MG
Material Metal
Operating Voltage 4.8-7.2 V
Operating Angle 180°,  270°,  360°
Operating Frequency 50-330Hz
Stall Current

 1.8A @ 4.8V

2.0A @ 6.5V

 1.5 A @7.2 V
Stall Torque

14.5Kg @ 4.8V

17.3Kg @ 6.5V

15.0 Kg @7.2 V
Dead Band  3 uS
Command Signal Pulse Width Modification
Amplifier Type Digital controller
Pulse Width Range 500～2500usec
Neutral Position 1500usec
Rotating Direction  Counterclockwise (when 1000～2000usec)
Bearing 2BB
Case  Alloy shell
Connector Wire 320mm±5mm
Storage Temperature Range -30°C~80°C
Operating Temperature Range 25°C~70°C
Gear Ratio 25T



Features:

  • The Dsservo digital servo effortlessly powers 1/8 and 1/10 RC cars.
  • The Dsservo's waterproof feature ensures reliable performance in diverse environments.
  • High Torque Metal Gear Digital Servo is perfect for a variety of RC applications.
  • This servo is a valuable addition to school experiments and robotic arm projects.

Package Included:

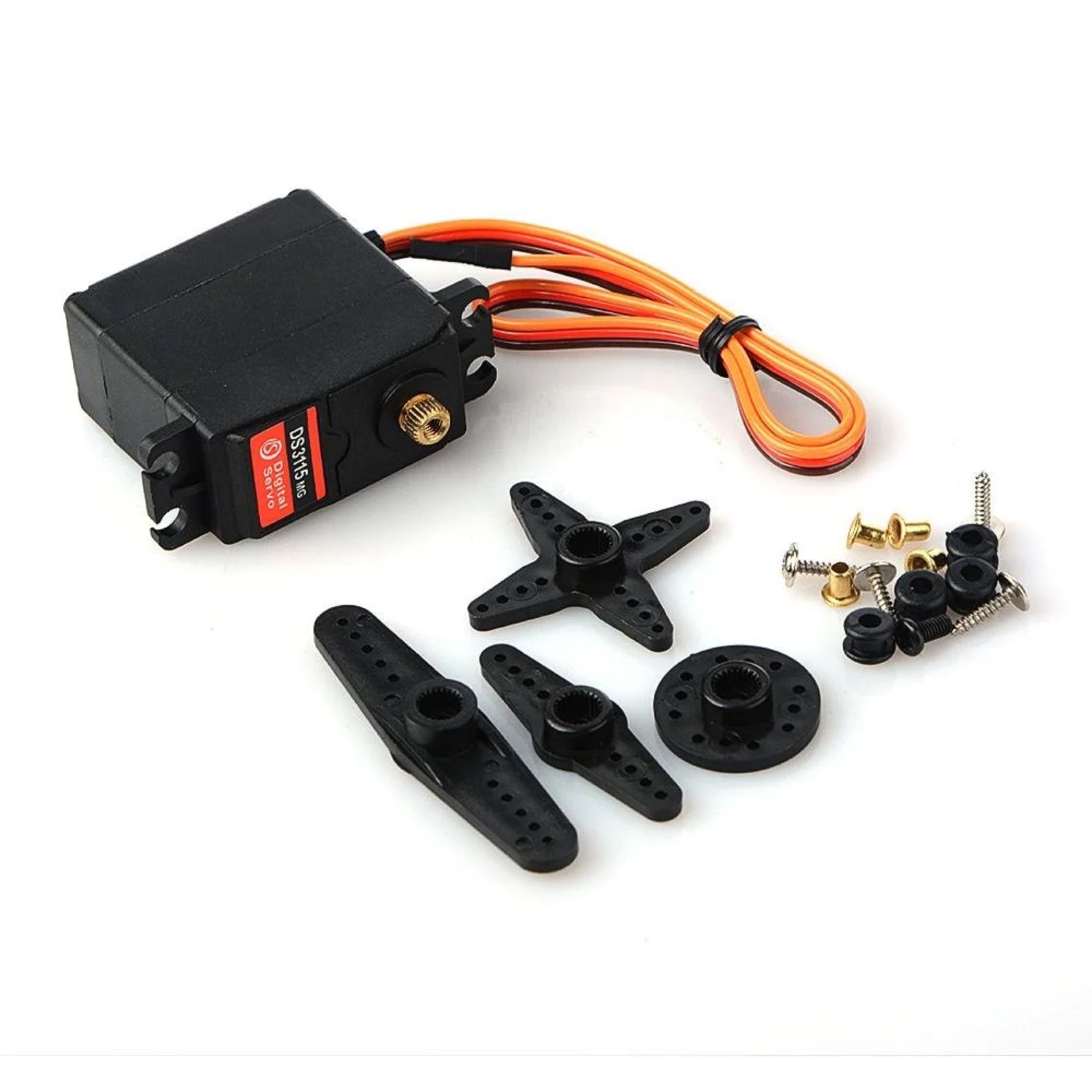

  • 1 x DSServo 15KG DS3115MG Metal Gear Digital Servo Motor Arduino High Torque
  • 1 x Horn Accessories with Servos
