Description:

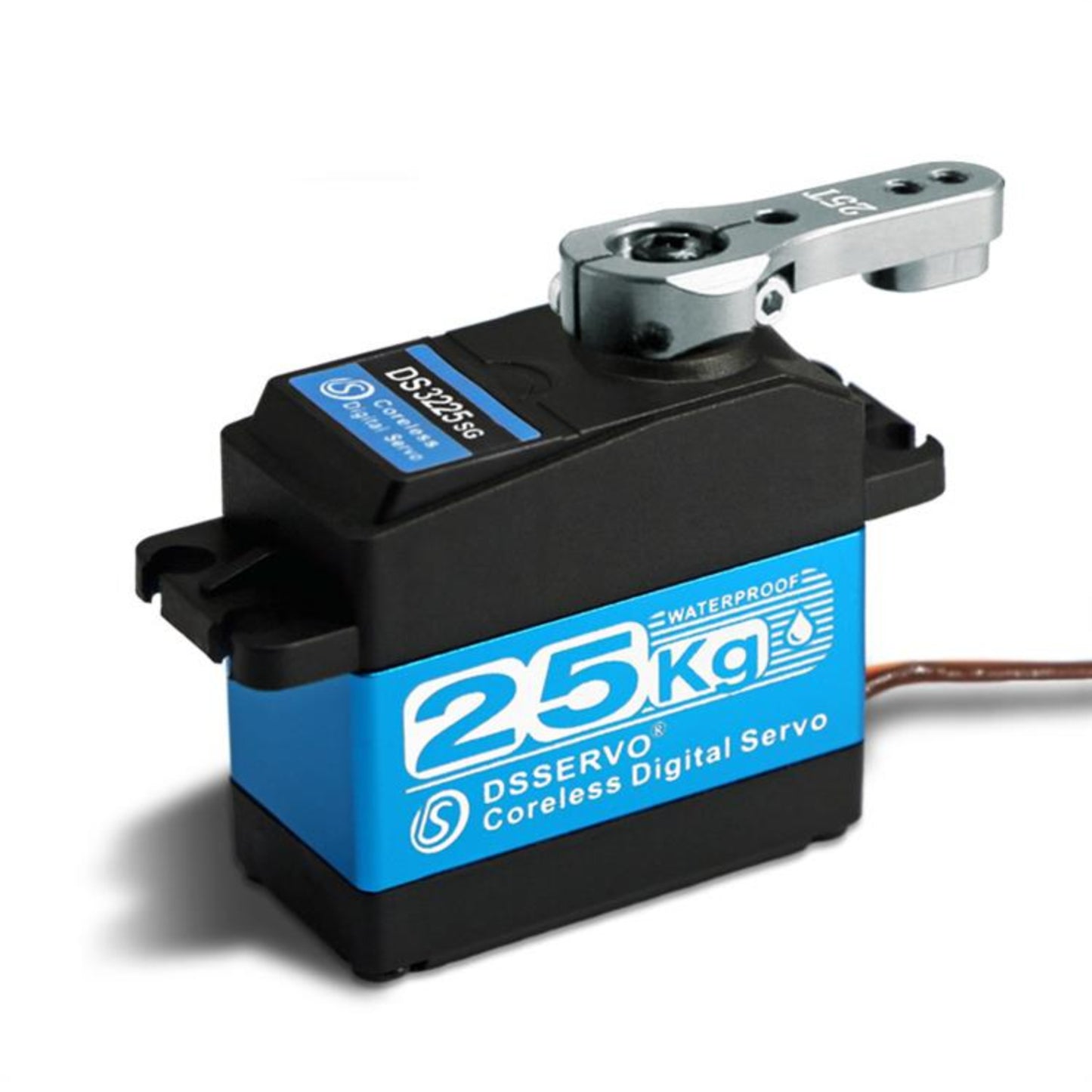

DSServo Coreless DS3225SSG 25kg Waterproof Servo is High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, control is more delicate and smooth operation.
High Speed Stainless Steel Gear Servo is Stainless Steel & Aluminum. The Coreless motor provides high speed, response, incredible efficiency and low power consumption. it is Suitable for 1/10 1/8 scale RC Crawler / Buggy / Truck and any application where waterproof standard servos.
Specifications:
| Model | Coreless DS3225 |
| Neutral Position | 1500μsec |
| Pulse Width Range | 500~2500 μsec |
| Control System | PWM(Pulse Width Modification) |
| Operating Frequency | 50-330Hz |
| Running Degree | 270° (when 500~2500 μsec) |
| Operating Speed at No Load ( 5V ) | 0.15 sec/60 degree |
| Operating Speed at no load ( 6.8V ) | 0.13 sec/60 degree |
| Operating speed at no Load ( 7.4V ) | 0.07 sec/60 degree |
| Stall Torque ( 5.0V ) | 22kg/cm |
| Stall Torque ( 6.0V ) | 24kg/cm |
| Stall Torque ( 7.4V | 25kg/cm |
| Bearing | Double Bearing |
| Connector Wire | 300+/-5mm |
| Gear Ratio | 275 |
| Waterproof Performance | IP66 |
| Motor | 3-Pole(s) |
Features:
- Dual ball bearings.
- CNC aluminium middle Shell.
- High performance digital standard servo.
- High-precision metal gears （Stainless steel gear）with hard anodizing.
Pin Description:

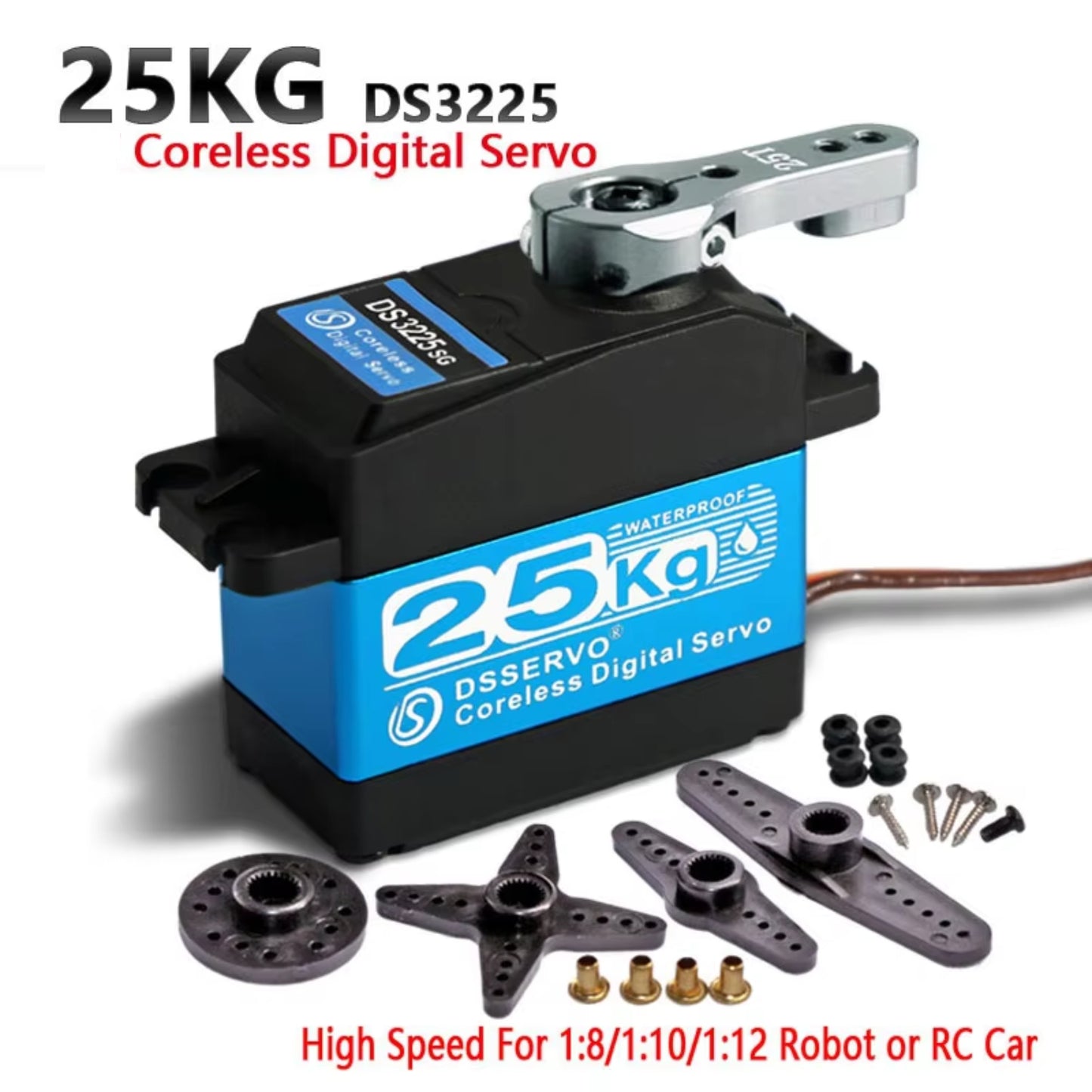

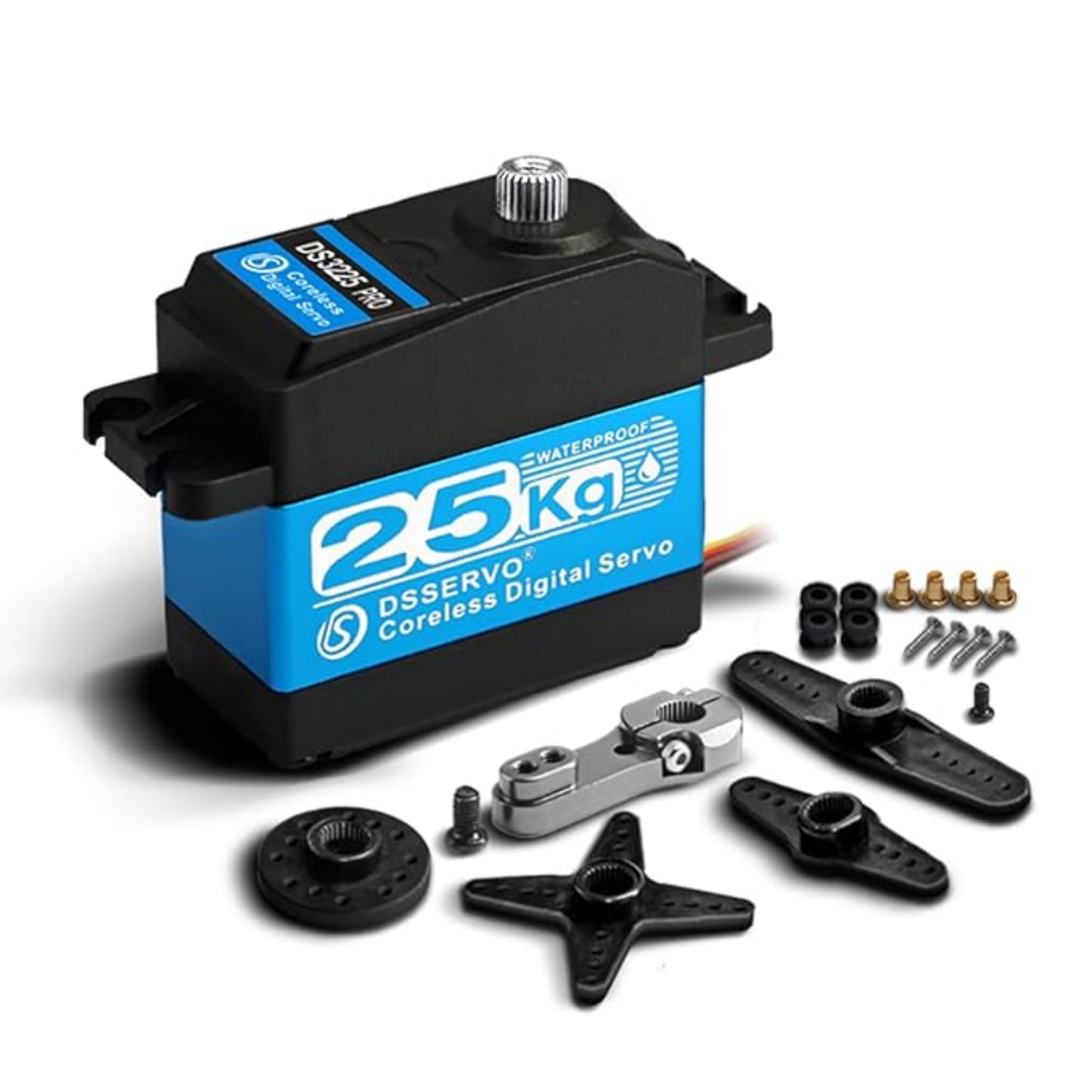

Package Included:
1 x DS3225 25KG Coreless Stainless Steel Gear Waterproof Digital Servo

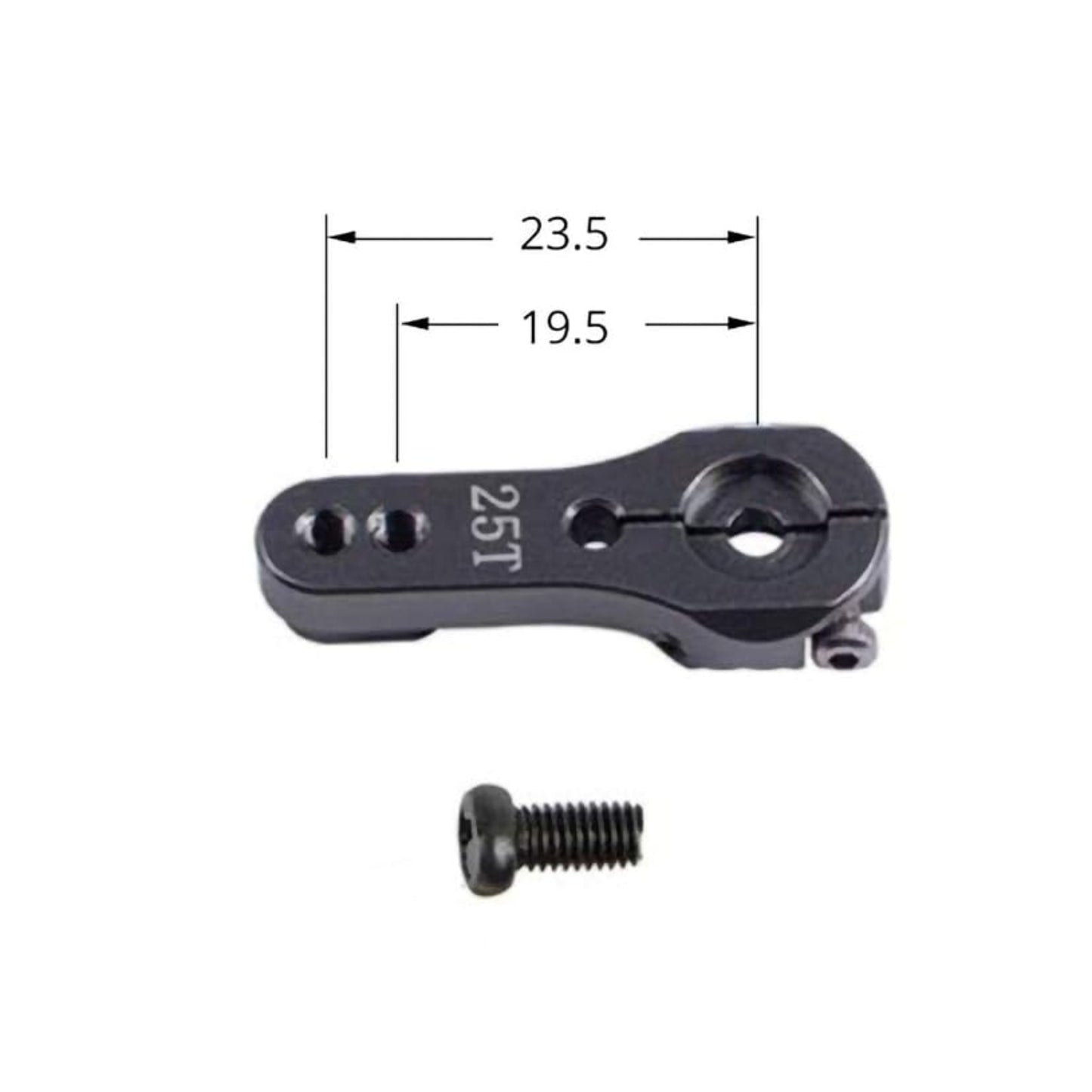

1 x 25T Adjustable Metal Servo Arm
1 x A Set of Accessories
