DSO138 Oscilloscope DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered - RC014

DSO138 Oscilloscope DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered - RC014

RC014

In stock

Rs. 1,429.00
Rs. 1,429.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This DSO138 Oscilloscope kit adopts an ARM Cortex-M3 processor and with a 2.4-inch TFT screen. It’s easy and reliable for circuit operation. DSO138 Oscilloscope can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. This DSO138 Oscilloscope Kit features automatic, regular, and one-shot modes, easy to capture the moment waveform.

Specifications:

Power Supply:

  • 9V DC (8 – 12V acceptable)
  • Supply Current: 120mA

Display:

  • 2.4-inch color TFT LCD with 320 x 240 resolution

Vertical:

  • Number of Channels: 1
  • Analog Bandwidth: 0 – 200KHz
  • Sensitivity: 10mV/Div – 5V/Div
  • Sensitivity error: < 5%
  • Resolution: 12-bit
  • Input Impedance: 1M ohm
  • Maximum Input voltage: 50Vpk
  • Coupling: DC, AC, GND

Horizontal:

  • Max Real-time Sampling Rate: 1Msps
  • Timebase: 10us/Div – 500s/Div
  • Record Length: 1024

Trigger:

  • Trigger Modes: Auto, Normal, Single
  • Trigger Types: Rising/falling edge
  • Trigger Position: 1/2 of buffer size fixed

Features:

  • Can be a secondary development based on this kit, for example, it can be changed to a Millivoltmeter, or data logger.
  • Adjustable vertical displacement, and with instructions.
  • With automatic, regular and one-shot modes, easy to capture the moment waveform.
  • Observable previous trigger waveform (negative delay).
  • DSO138 Oscilloscope can freeze at any time waveform display (the HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.

Package Included:

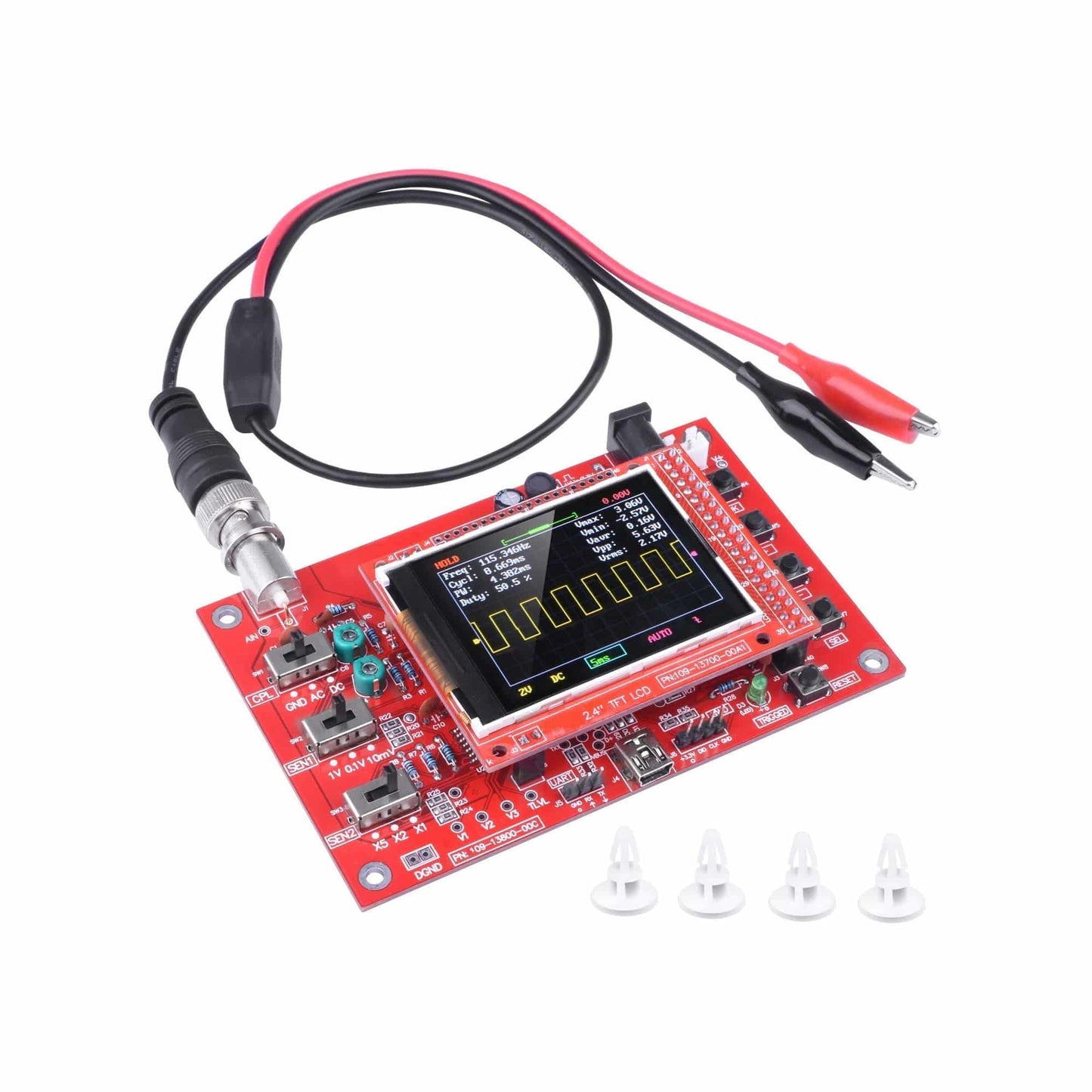

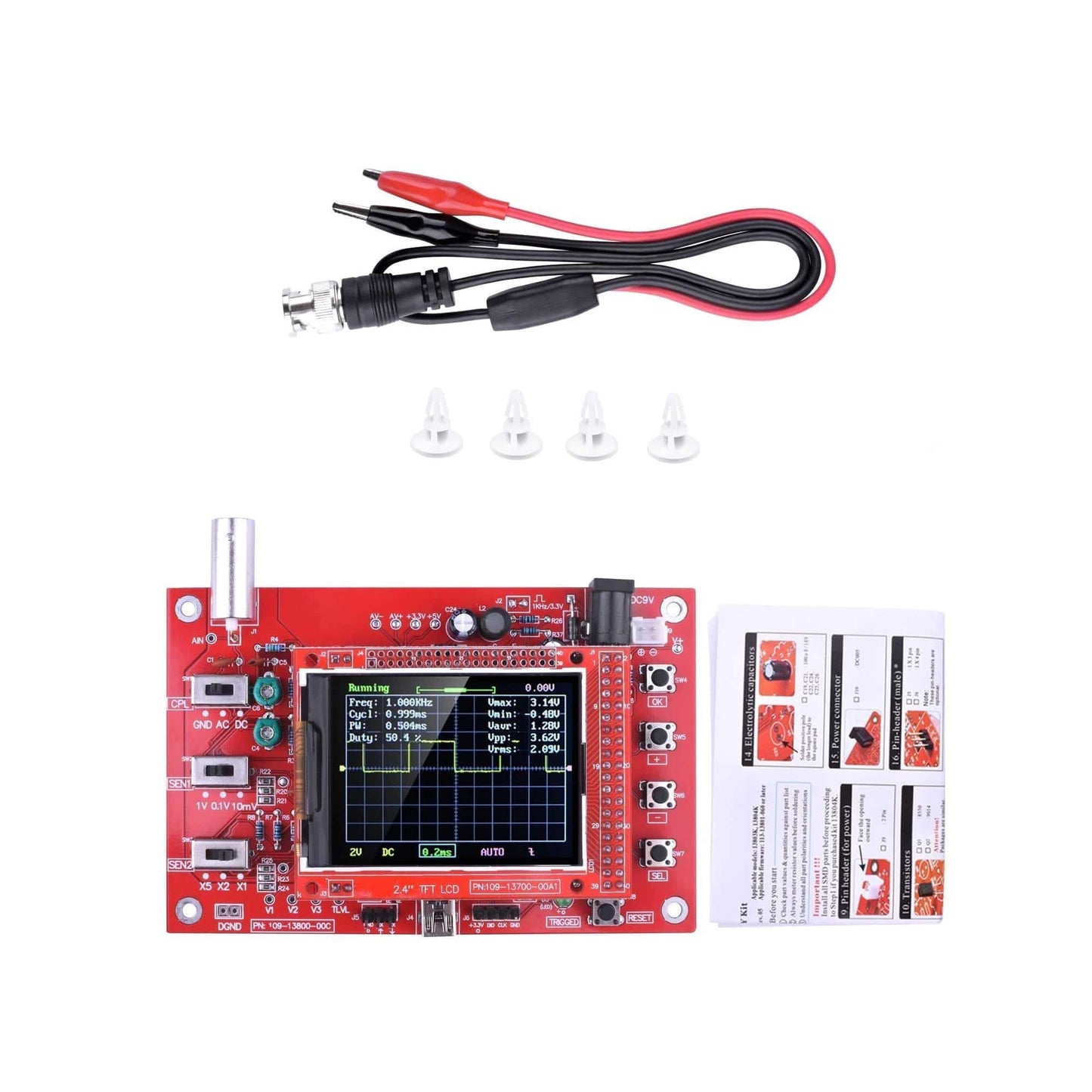

  • 1 x DSO138 Oscilloscope Kit

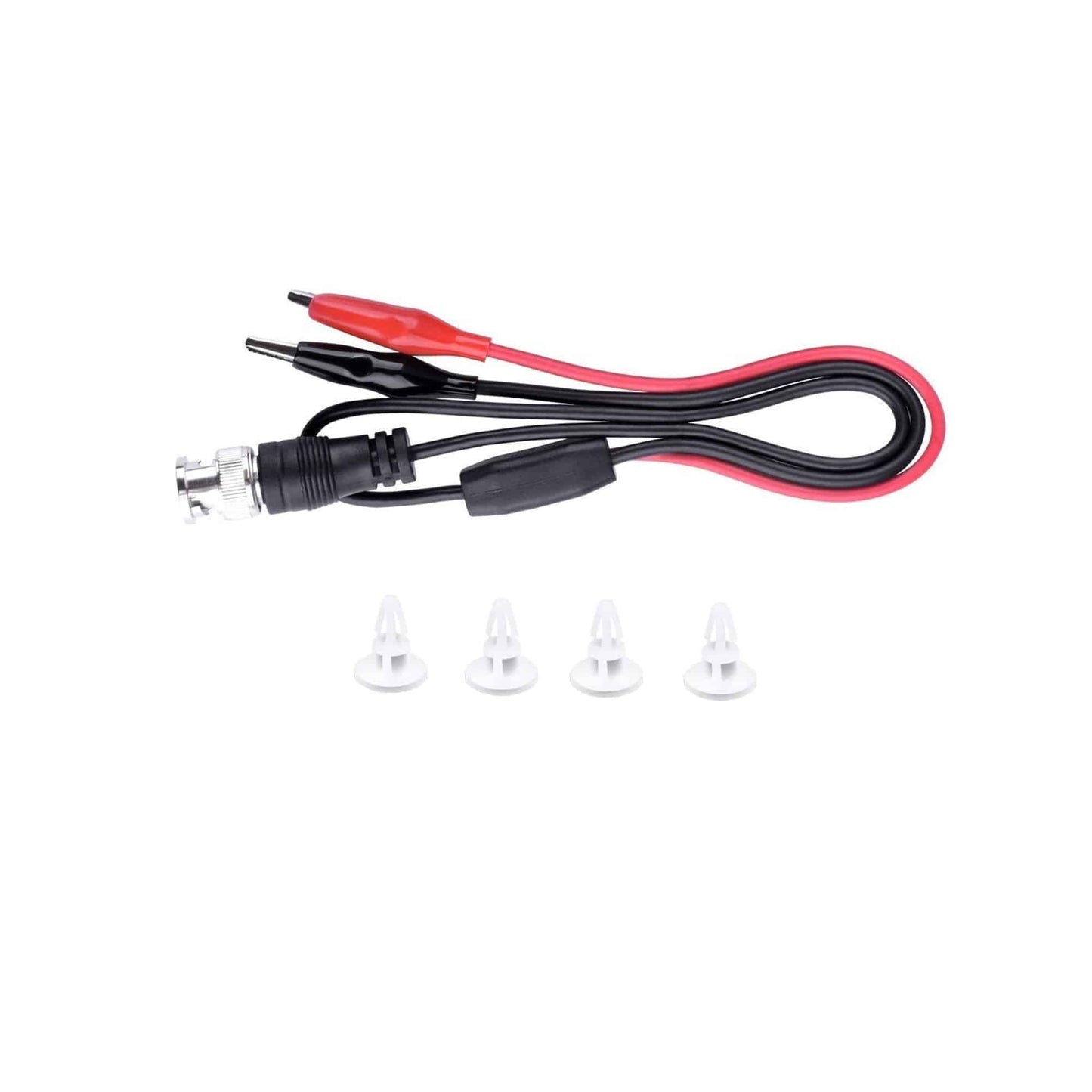

  • 1 x Testing Probe
