Description:

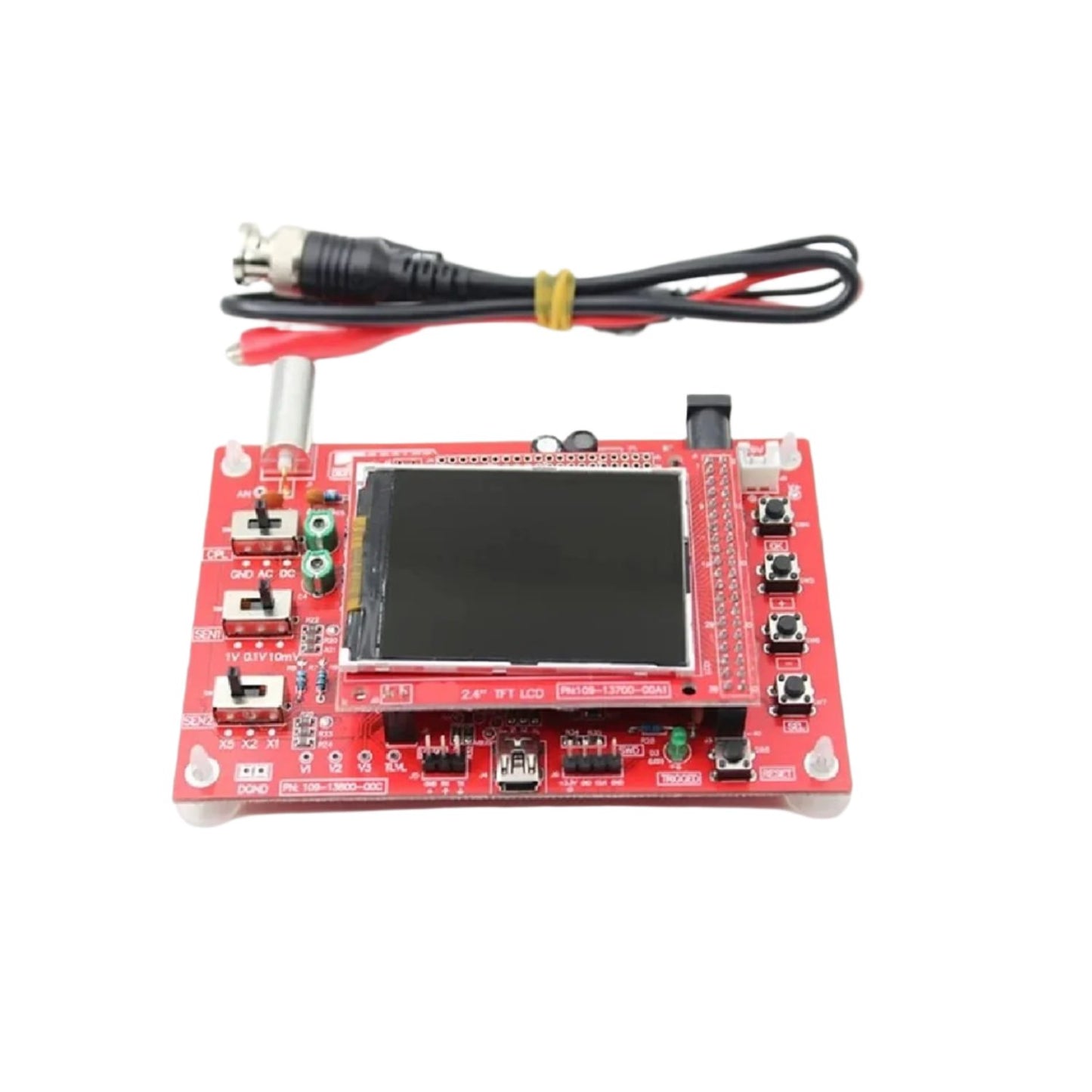

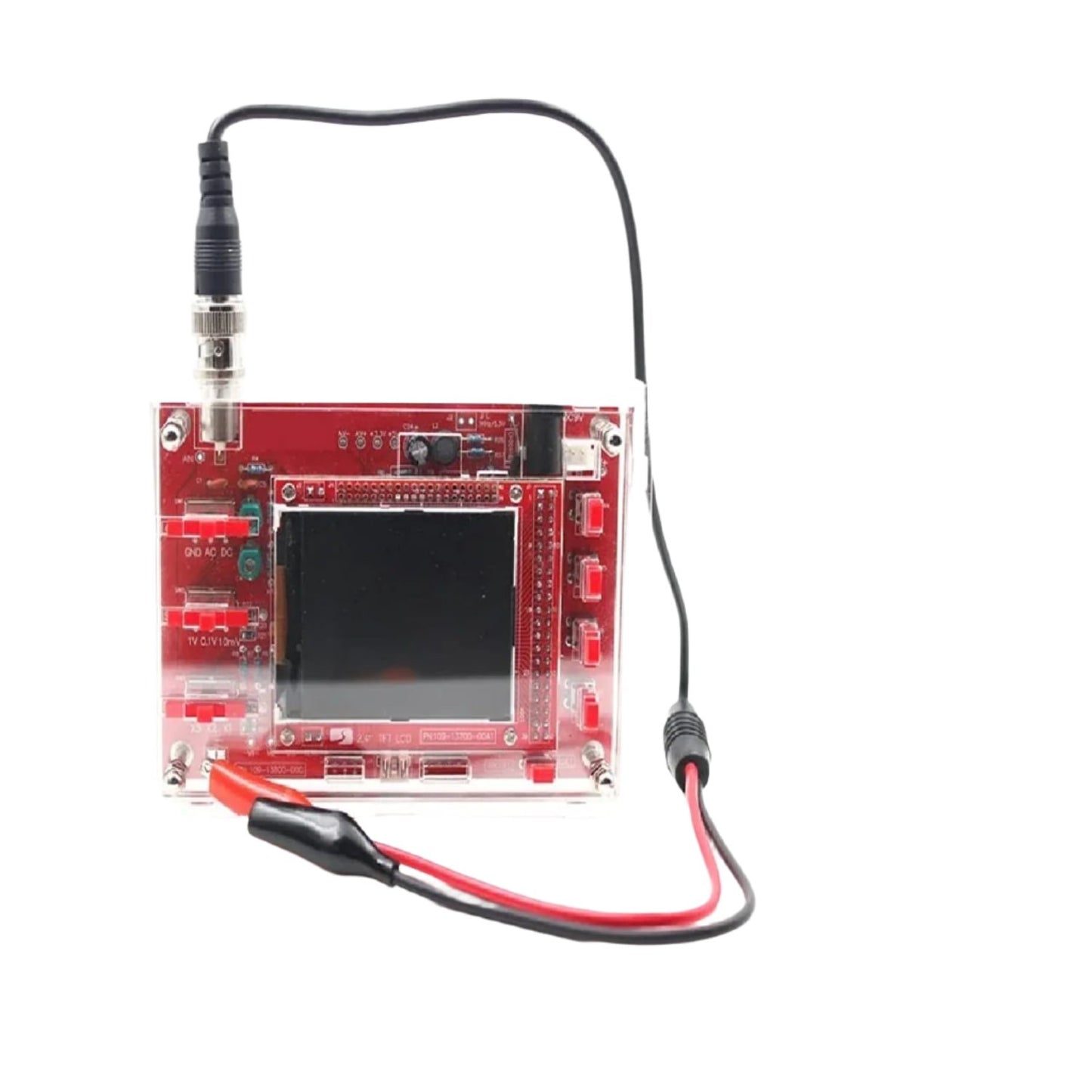

The DSO138, is a compact and powerful digital oscilloscope designed for portability and ease of use. This kit leverages the power of an ARM Cortex-M3 processor and boasts a clear 2.4-inch TFT display, enabling you to easily analyze and debug electronic circuits.
The DSO138 is an indispensable tool for electronics enthusiasts, hobbyists, and professionals alike. Its combination of power, portability, and ease of use makes it an ideal choice for a wide range of applications.
To further enhance the portability of your DSO138, consider pairing it with a compatible boost converter. This accessory allows you to power the oscilloscope directly from various power sources, making it truly independent and convenient for field use.
Specifications:
- Item Type: Oscilloscope
- Model No.: DSO138
- Impedance: 1MΩ
- Operating Voltage (VDC): 9
- Analog Bandwidth: 0-200KHz
- Sampling Buffer Depth: 1024 bytes
Features:
- Utilizes ARM Cortex-M3 (STM32F103C8) for high-performance processing.

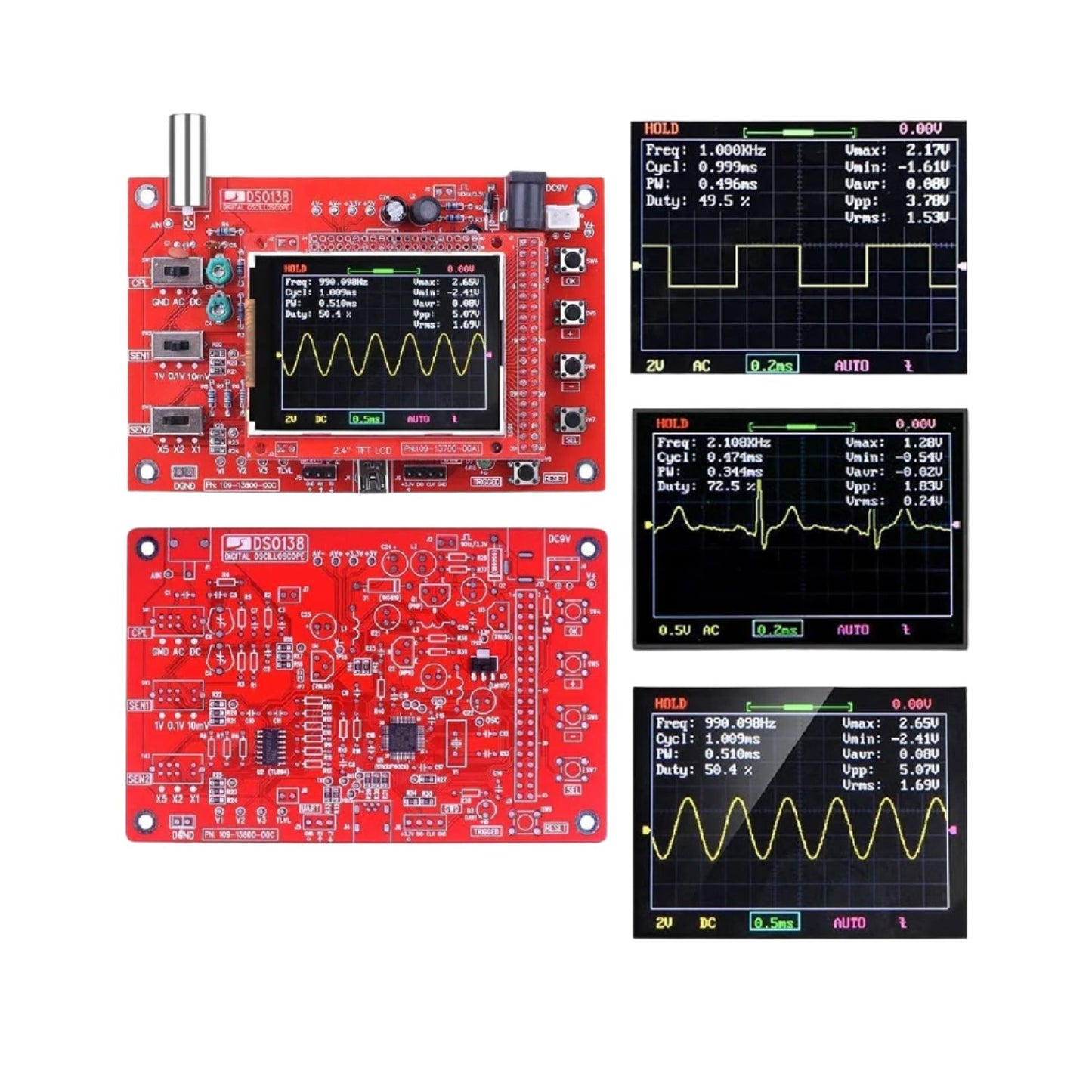

- Features a 2.4-inch colour TFT screen for clear signal visualization.
- Includes automatic, regular, and single-shot modes for easy waveform capture.
- includes adjustable vertical displacement and comes with comprehensive instructions.
- Offers both rising and falling edge triggering options.
Package Included:

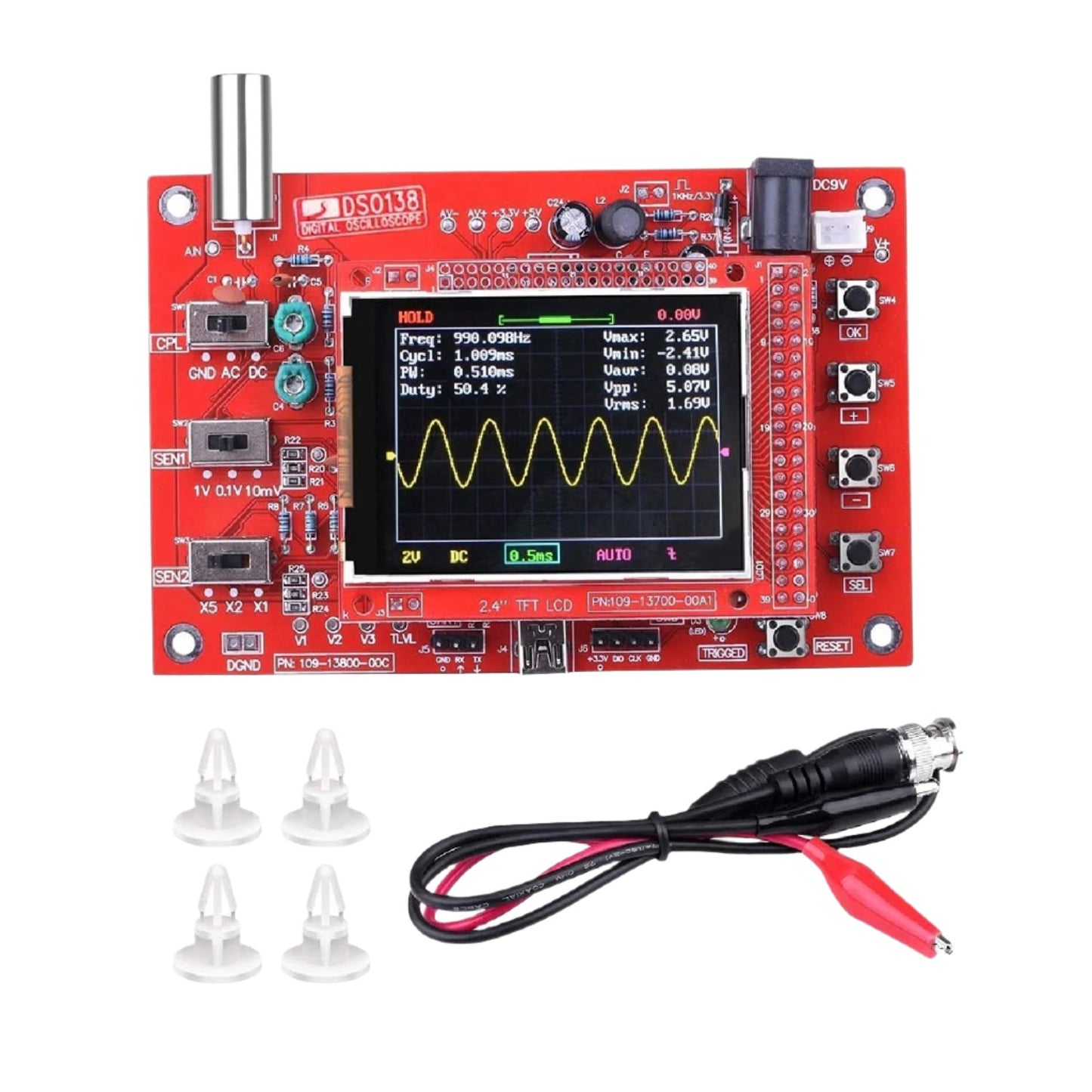

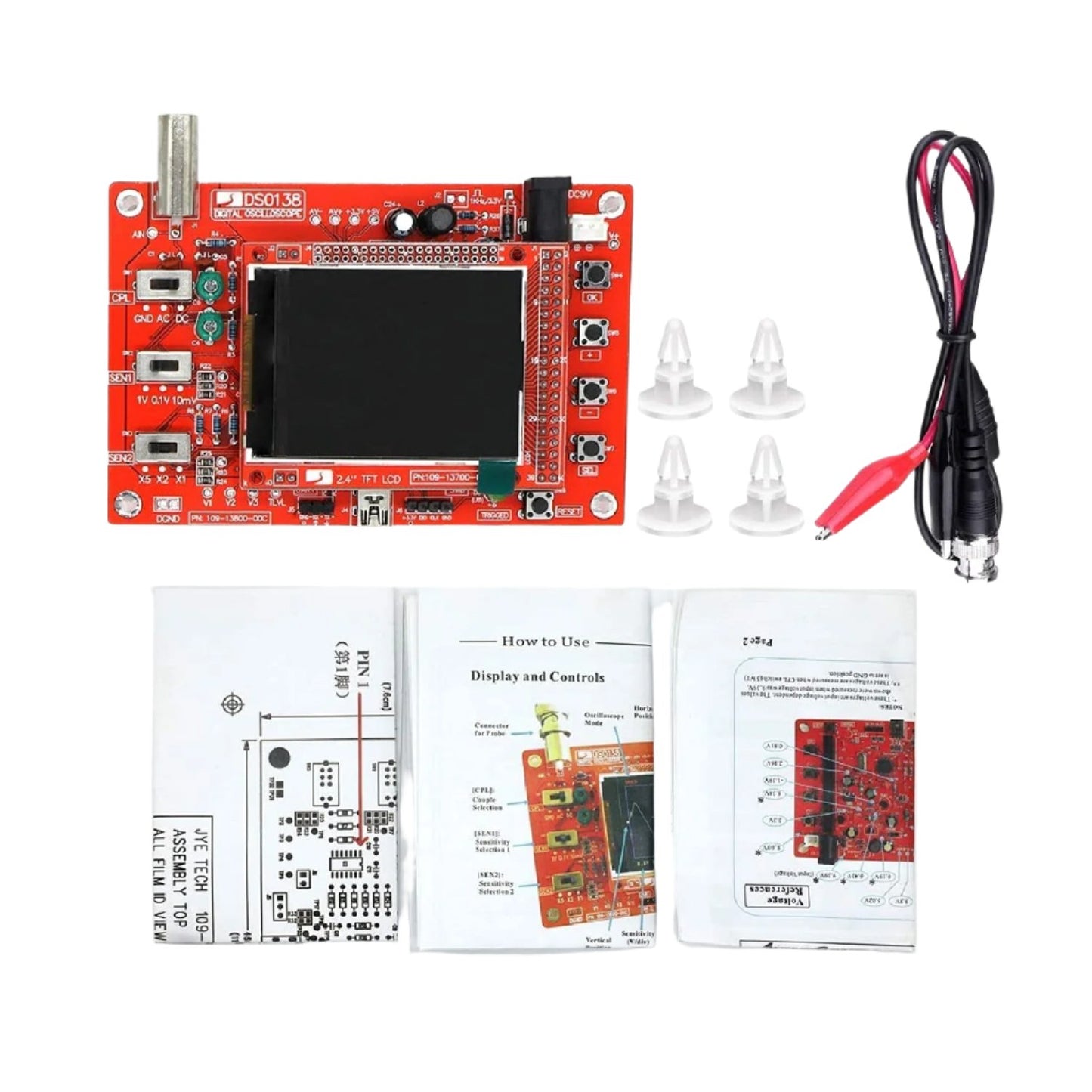

1 x DSO138 Digital Oscilloscope Kit - 2.4" TFT
