- Power Supply: 3.7 V
- Display: TFT color display
- Analog Frequency Bandwidth: 0~2 MHz
- External Trigger Voltage: 0 ~ 15 V
Description:

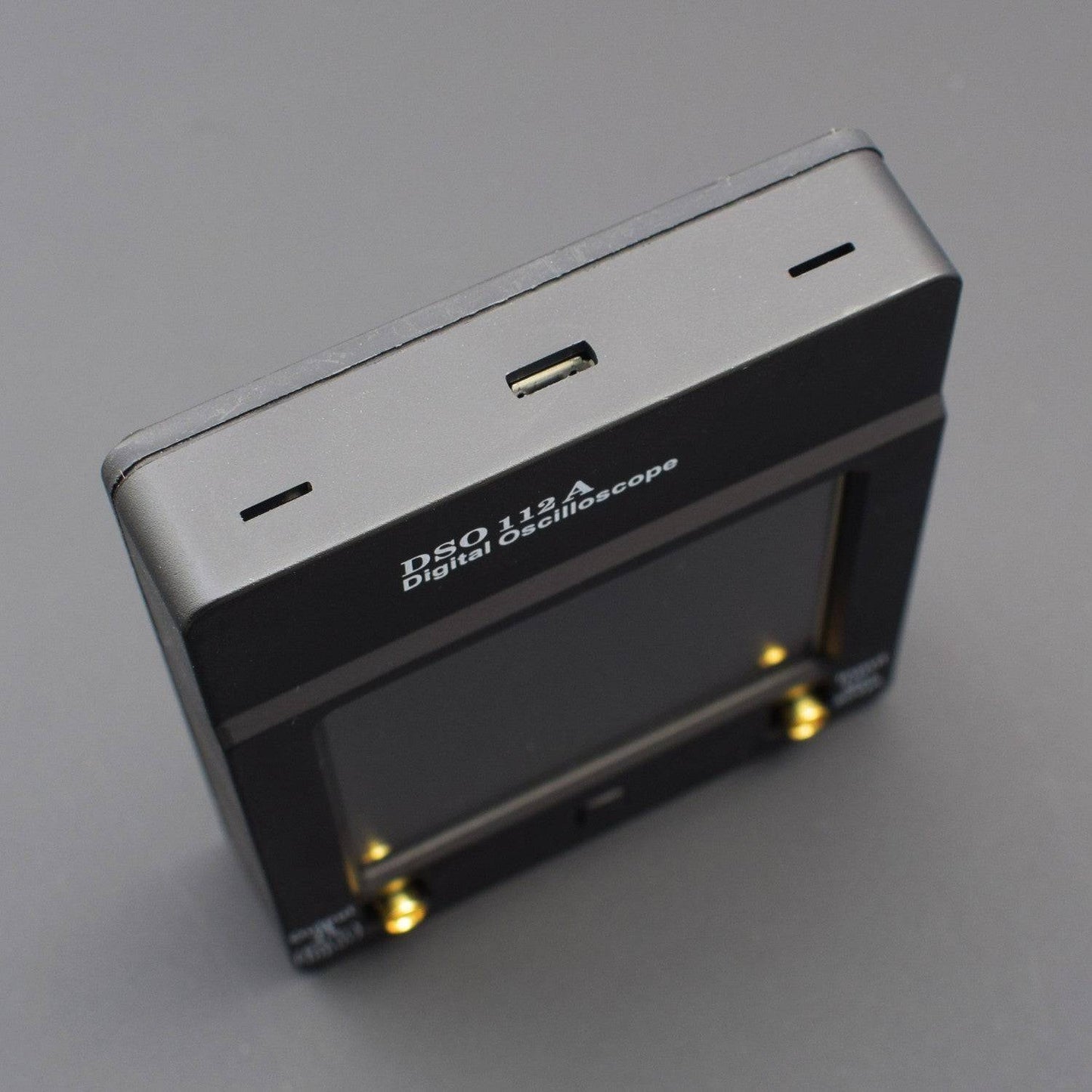

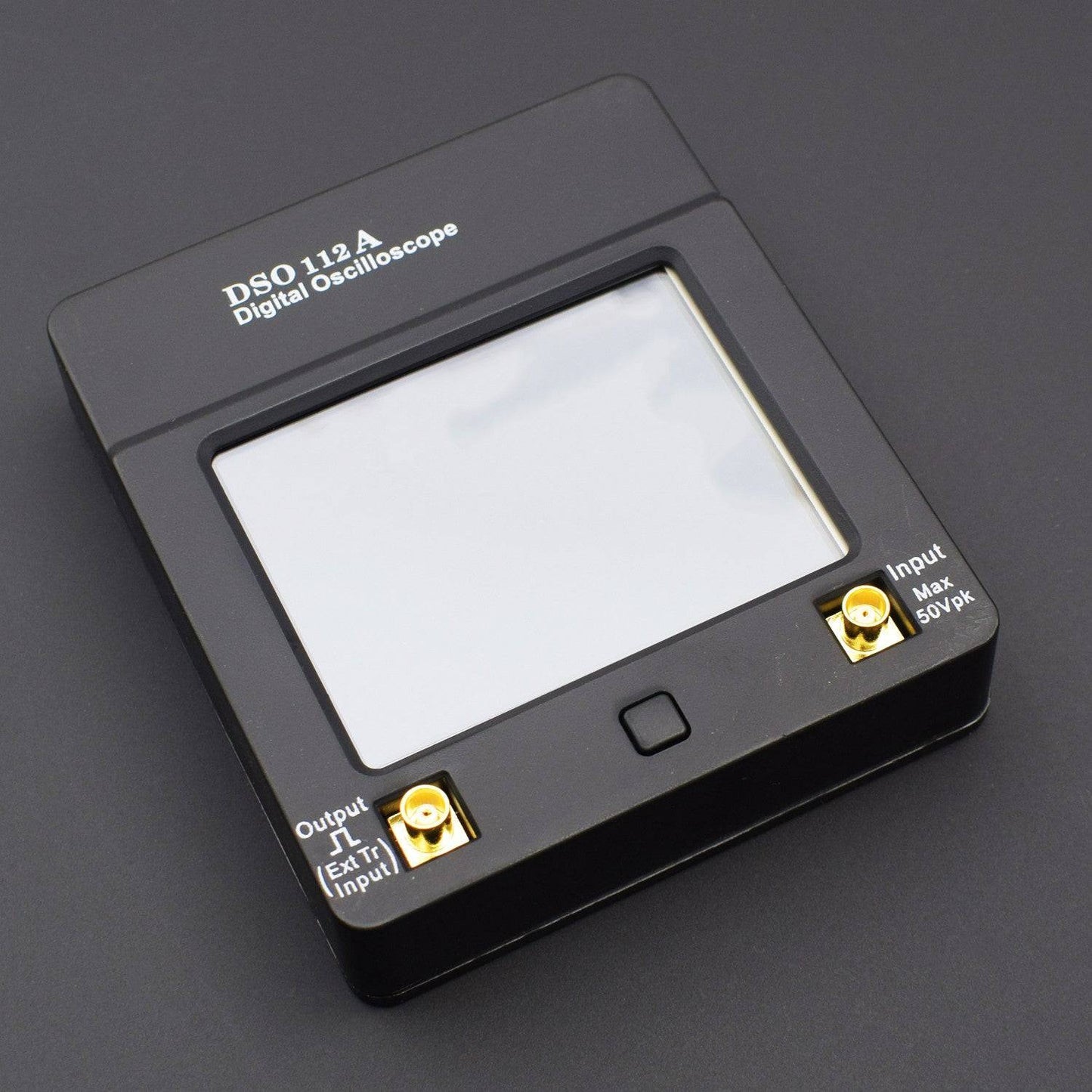

This is a DSO 112A mini digital oscilloscope. DSO112A is an upgraded model of DSO112 with a re-designed schematic and PCB. Due to the new design, this oscilloscope becomes more accurate and reliable. As high as 2mV/div sensitivity and ultra-low background noise made the device particularly useful for measuring weak signals. Up to 24 presets with customizable titles allow setups to be retrieved in seconds. Designed specifically for students and hobbyists, DSO112A is a great entrance level oscilloscope. With a size that fits right in your palm and pocket, DSO112A can do much more than you might think from its dimension.
Specification:
- Power Supply: 3.7 V
- Display: TFT colour display
- Analog Frequency Bandwidth: 0~2 MHz
- External Trigger Voltage: 0 ~ 15 V
- Max Real-Time Sampling Rate: 5 Msps
- Vertical Sensitivity: 2mV/Div-20V/Div, 12 grades(by way of progressive 1-2-5)
- Horizontal Time Base Range: 1μs/Div-50s/Div, 21 grades (by way of progressive 1-2-5)
- Max. Input Voltage: 50Vpk (100Vpp)
- Max. Record Length: 512/1024 optional
- Input Resistance: 1M ohm
- ADC Precision: 8-bit
- Coupling Method: DC/AC
- Trigger Type: Auto, normal, single
- Trigger Edge: Rising/falling edge
- Trigger Source: Internal/external
Features:
- A pocket oscilloscope with colour display and touch panel.
- 2MHz analogue bandwidth and 5Msps Max. real-time sampling rate.
- Unique rolling slow signal display, the display can be a fully continuous signal, unlike SCAN mode will cause the signal display discontinuous.
- Can save 24 groups of preset parameters, save and recall waveform conveniently.
- Measuring frequency and Max./Min./Vpp/Avg. values of voltage.
- Adds external triggering function, stronger signal capture ability.
- PC upload waveform data.
- Freeze at any time waveform display (HOLD function).
- Square wave test signal comes 1000Hz/3.3V.
- Firmware upgradable via Micro USB.
- Battery/USB powered built-in smart charger.
Package Included:

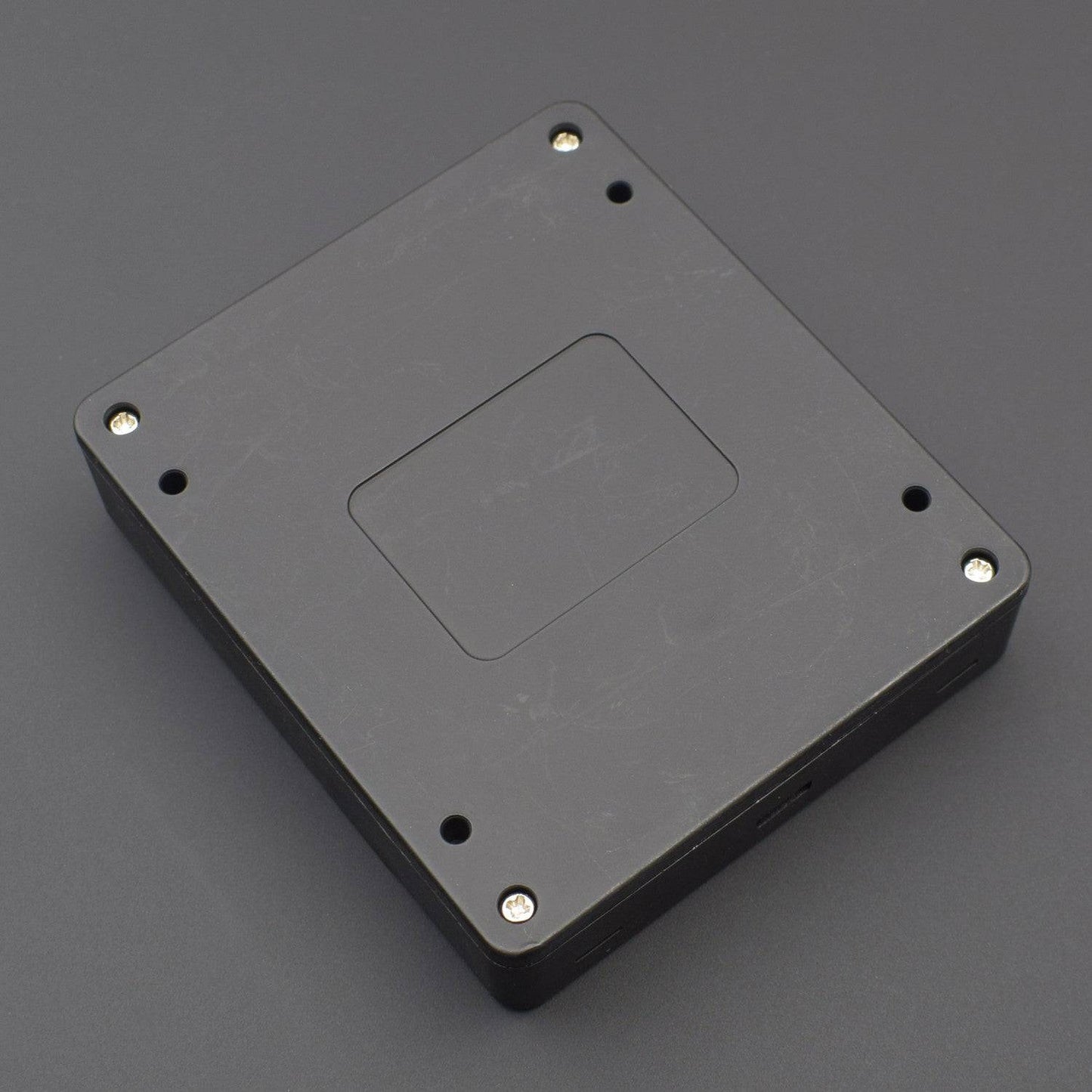

- 1 x DSO112A Touch Screen Oscilloscope with Battery

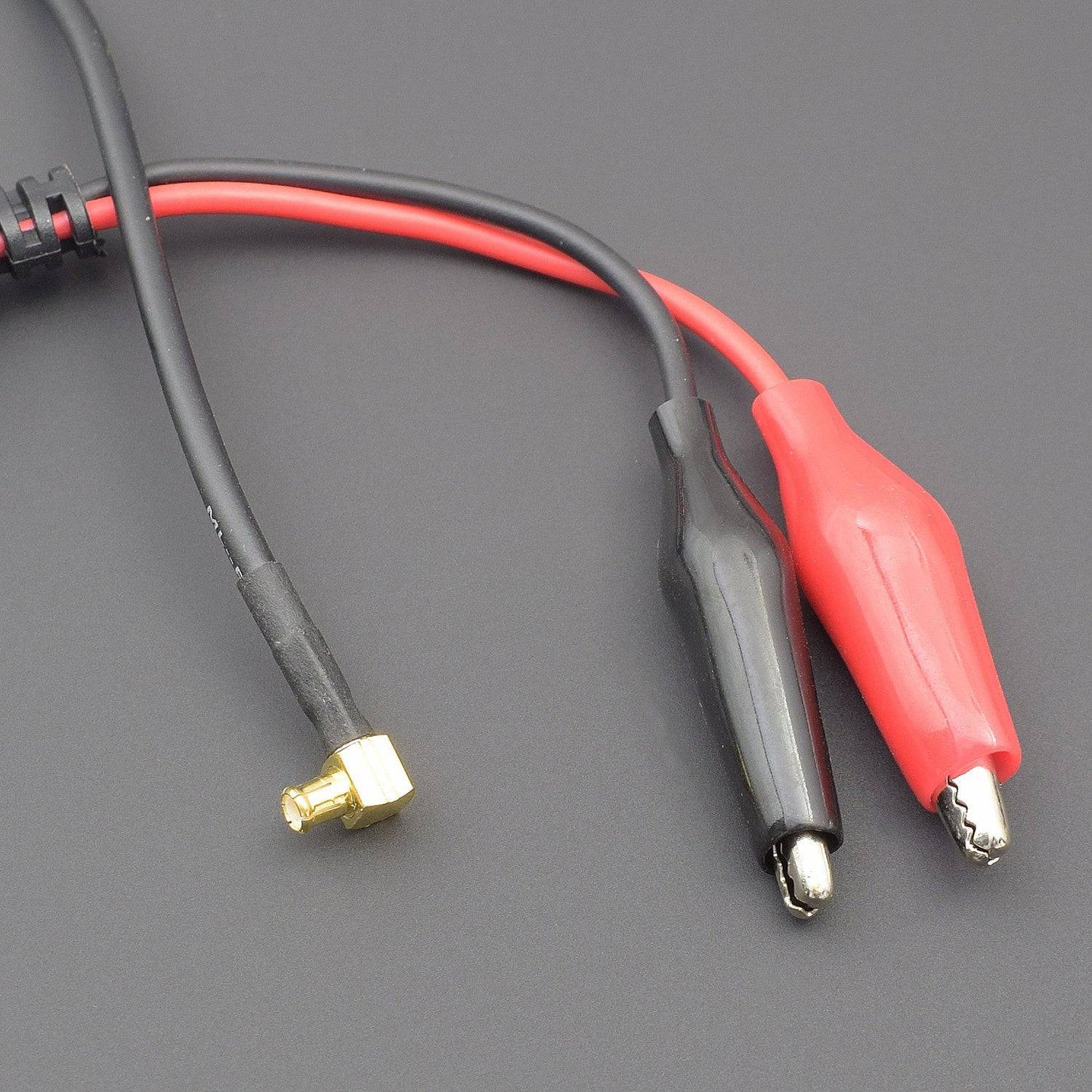

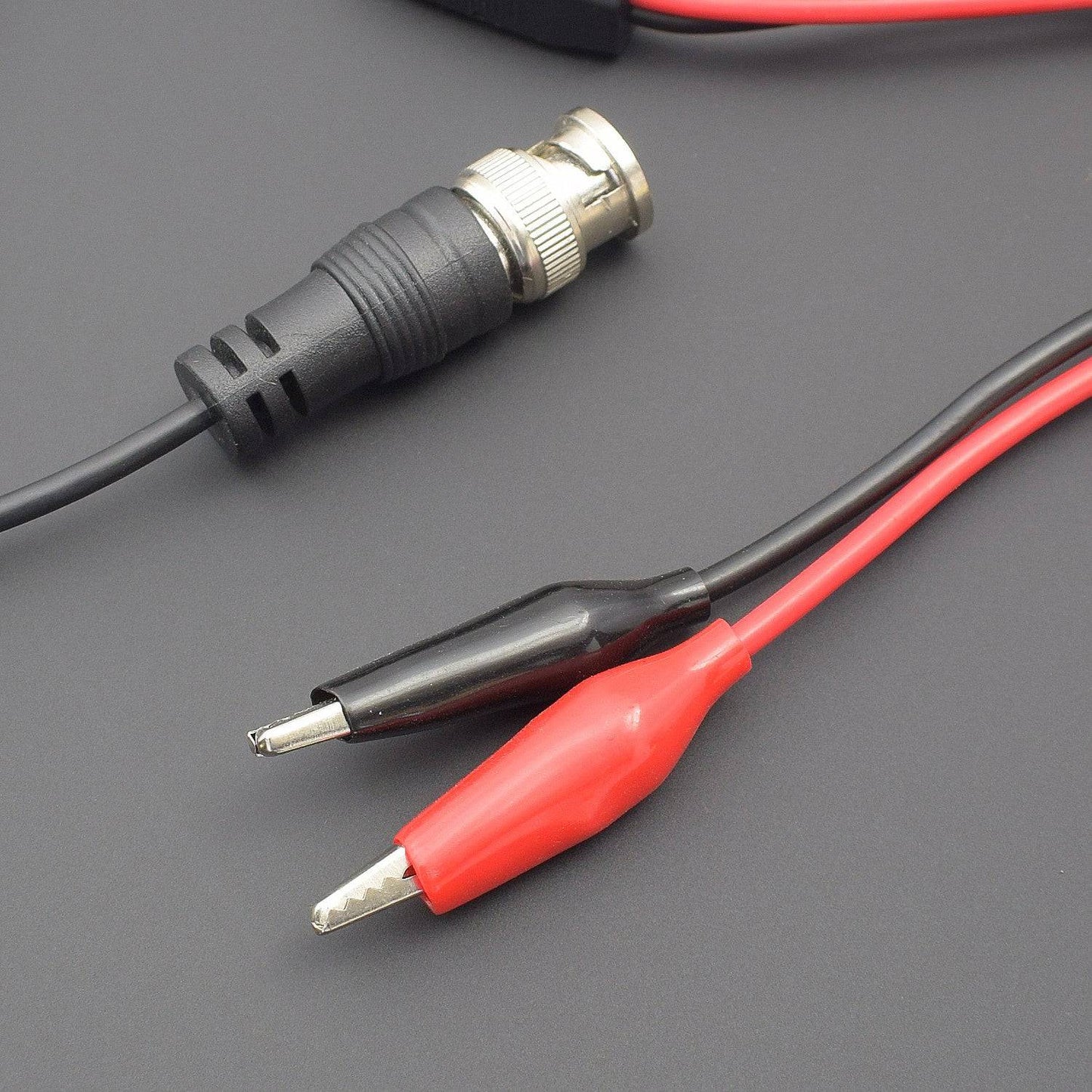

- 1 x Probe

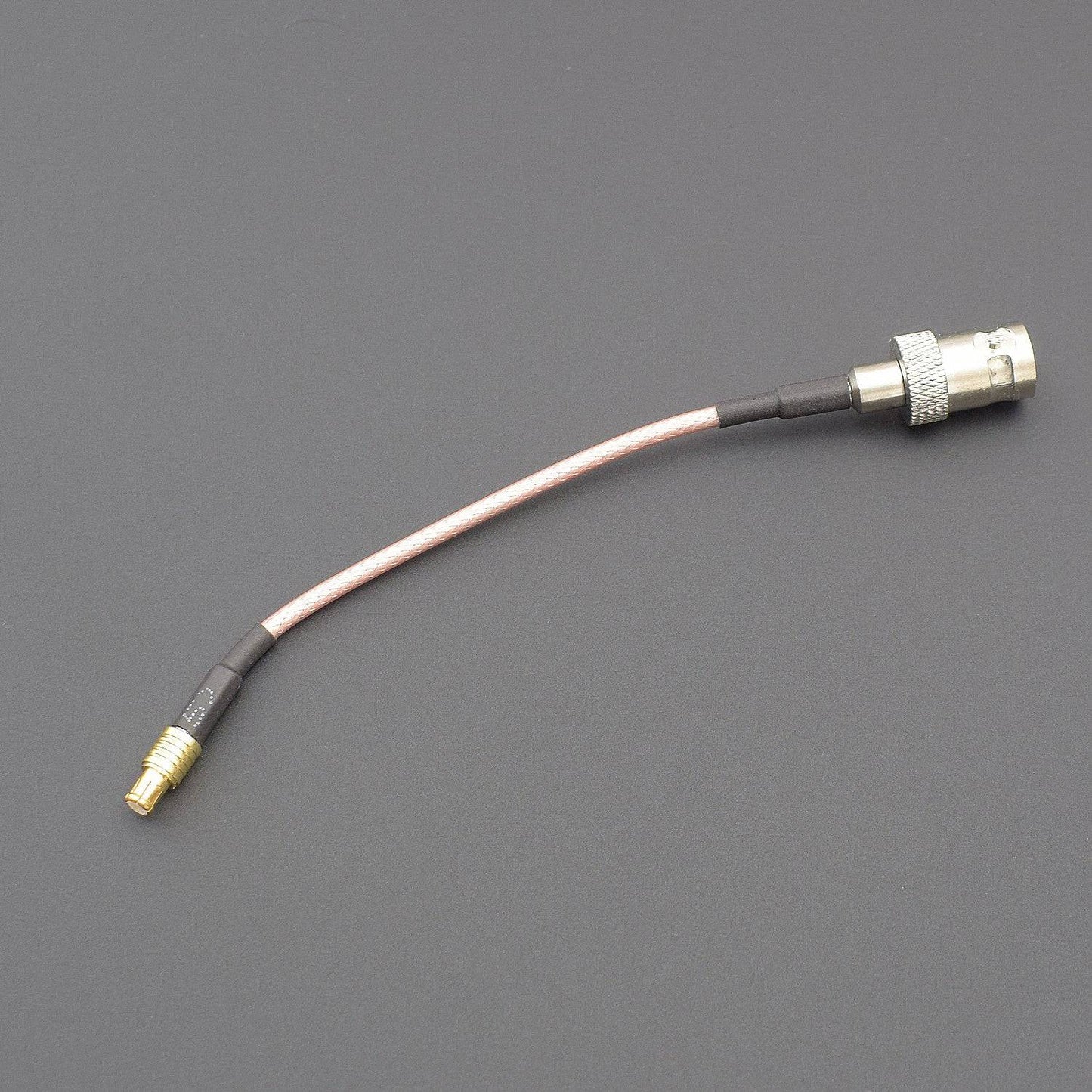

- 1 x BNC Probe
- 1 x USB Cable
- 1 x User Manual
