DSServo

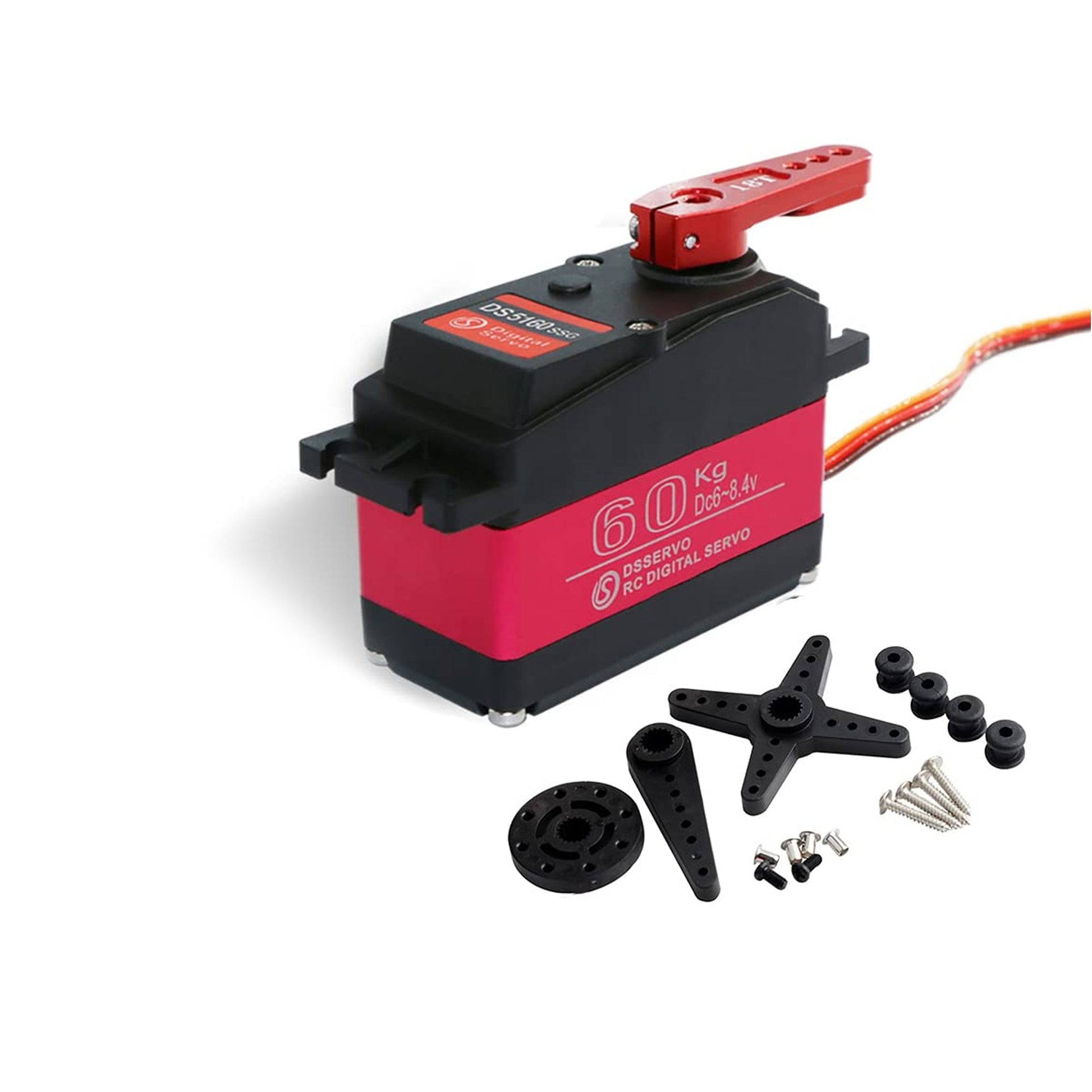

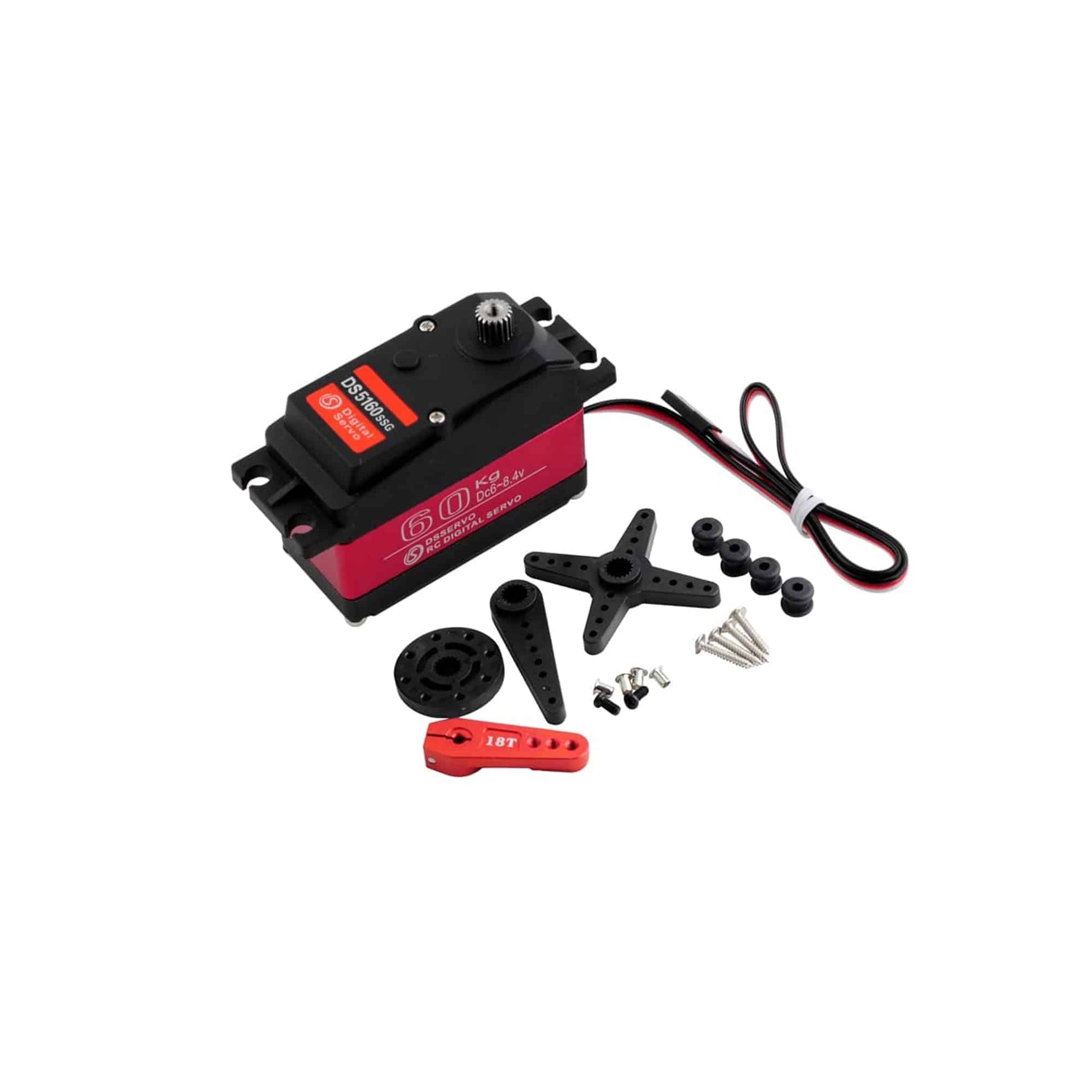

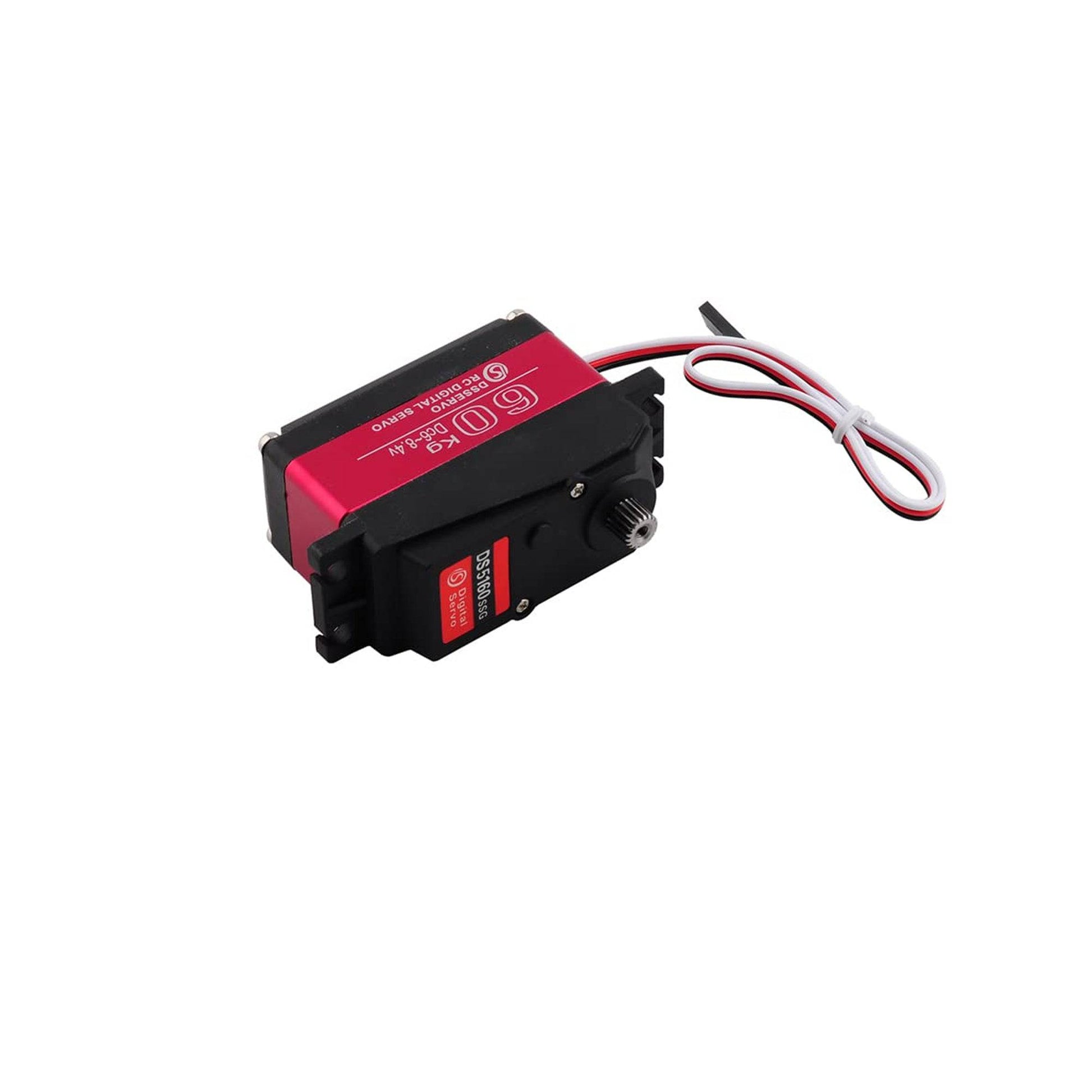

DSSERVO DS5160 360° High Torque Servo Motor 60KG.cm Metal Gear Digital Servo For Robotics - RS5884

DSSERVO DS5160 360° High Torque Servo Motor 60KG.cm Metal Gear Digital Servo For Robotics - RS5884

RS5884

25 in stock

Rs. 2,900.00
Rs. 2,900.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The DSSERVO DS5160 60KG.cm Digital Servo Motor is a premium high-torque servo designed for demanding RC, robotics, and industrial applications. Delivering an impressive 60KG.cm of torque with 180° rotational movement, it provides exceptional precision, smooth operation, and reliable performance for projects that require accurate position control.

Unlike standard DC motors, the DS5160 is controlled using a PWM (Pulse Width Modulation) signal, allowing the output shaft to move precisely to any position between 0° and 180°. It connects directly to a microcontroller without requiring external motor drivers or feedback sensors.

Built with high-strength metal gears, a water-resistant housing, and a rugged mechanical design, the DS5160 is engineered to withstand heavy loads, continuous operation, and harsh working environments. Its upgraded motor delivers higher torque, faster response, low operating noise, and excellent positional accuracy.

Whether you're building a robotic arm, designing an RC aircraft, or automating mechanical systems, the DS5160 offers dependable performance for professional and hobbyist applications alike.

Specifications:

  • Type: Digital High Torque Servo Motor
  • Rotation Angle: 360° Continuous Rotation
  • Operating Voltage: 4.8V – 8.4V DC
  • Torque: Up to 60KG.cm (at rated voltage)
  • Gear Material: Full Metal Gears
  • Control Signal: PWM (Pulse Width Modulation)
  • Operating Frequency: 50Hz (Standard RC PWM)
  • Motor Type: Core Motor
  • Waterproof Rating: Water-Resistant Design
  • Connector: Standard 3-Pin Servo Connector (Signal, VCC, GND)
  • Bearing: Dual Ball Bearings
  • Case Material: High-Strength Engineering Plastic with Aluminum Center Case (varies by version)
  • Spline Type: 25T Standard Servo Spline
  • Wire Length: Approx. 300mm
  • Weight: Approx. 80–85g
  • Operating Temperature: -20°C to +60°C

Features:

  • 360° Continuous Rotation for continuous clockwise and counterclockwise movement.
  • 60KG.cm High Torque for heavy-duty applications.
  • Full Metal Gears for durability and long service life.
  • Digital Servo with smooth, precise speed control.
  • Water-Resistant Design for reliable performance.
  • Low Noise & Stable Operation with high reliability.

Package Included:

  • 1 x DSSERVO DS5160 360° High Torque Servo Motor
  • 1 x Accessories Pack
