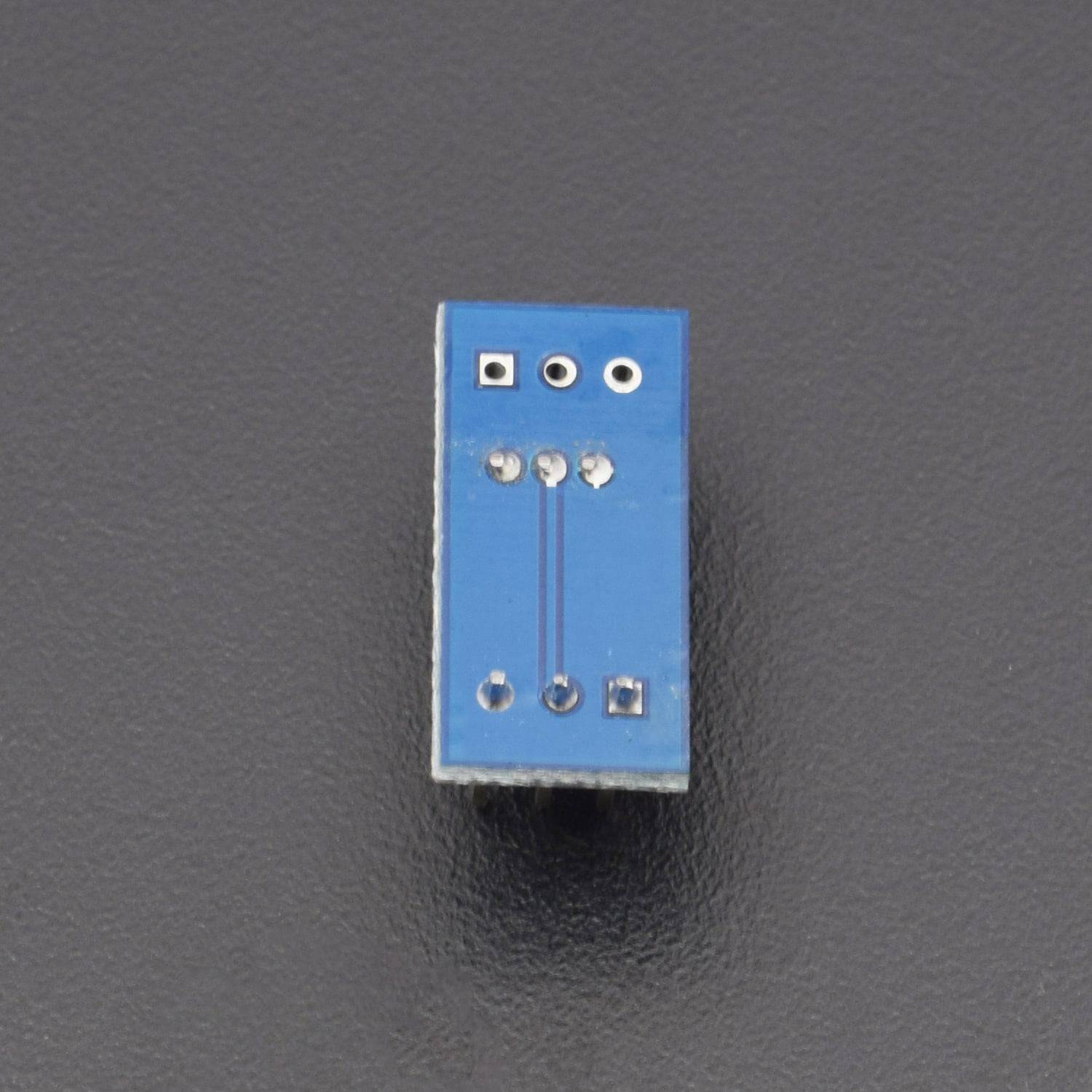

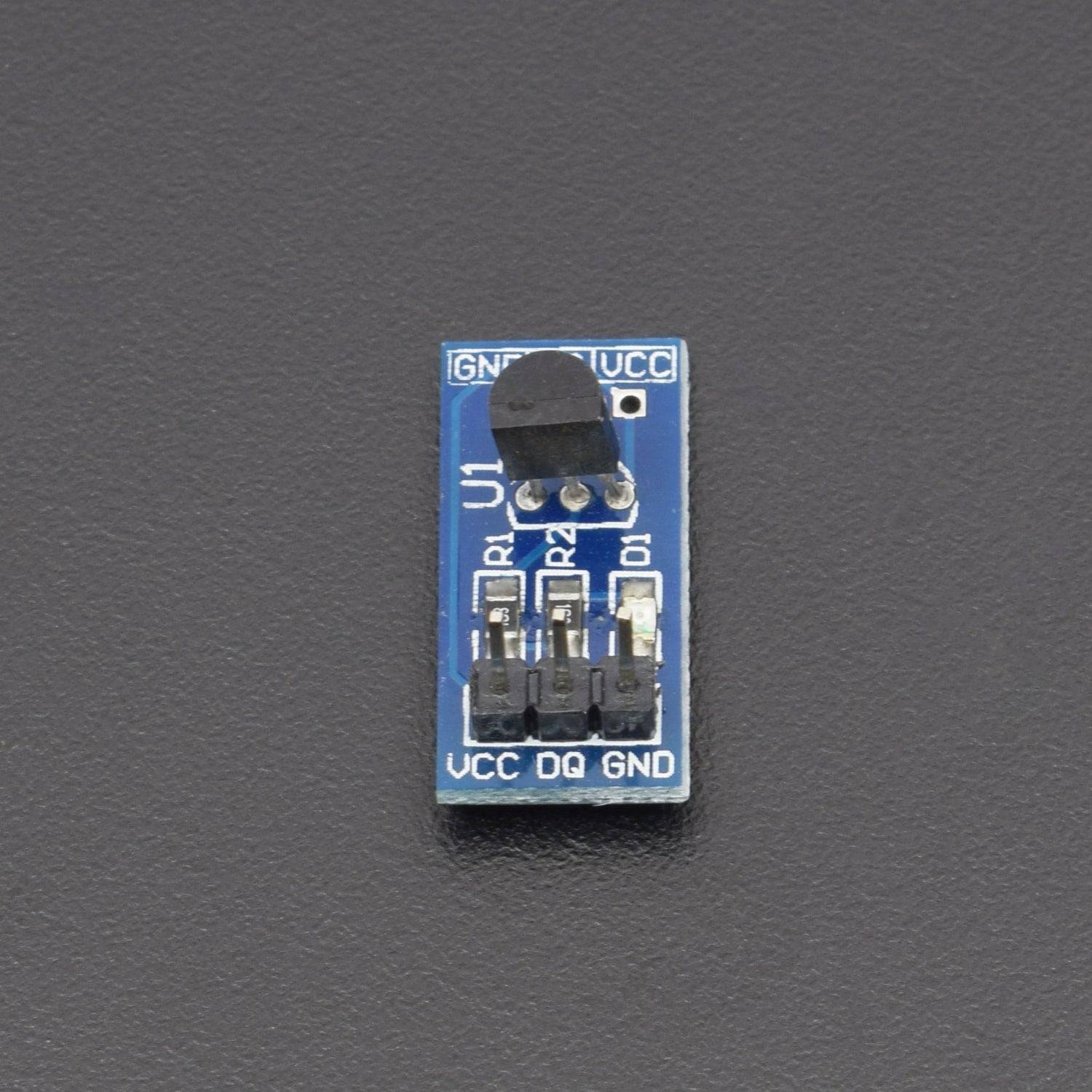

DS18B20 Digital Temperature Sensor Module For Arduino - AB032

DS18B20 Digital Temperature Sensor Module For Arduino - AB032

SKU:AB032

25 in stock

Regular price Rs. 120.00
Regular price Sale price Rs. 120.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description :

The DS18B20 Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device. Information is sent to/from the DS18B20 over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor to a DS18B20. If you don't already have the OneWire library then you will need to copy that folder into the libraries folder also. Now, before we get to the programming part, lets wire up our temperature sensor. The DS18B20 can be powered by between 3.0V and 5.5V so you can simply connect its GND pin to 0V and the VDD pin to +5V from the Arduino. However, the DS18B20 can also extract its power from the data line which means we only effectively need two wires to connect it up. This makes it great for use as an external sensor

Specifications:

  • Resolution adjustment range: 9-12
  • With mounting holes for easy installation, Aperture: 2.5
  • Temperature measuring range: -55 ~ +125
  • Temperature measurement accuracy: 0.5
  • Working voltage: DC 5V

How to Use:

Measure the temperature using DS18B20 Temperature Module

Package Included:

1 x DS 18B20 Digital Temperature Sensor Module
