DS18B20 1M Waterproof Temperature Probe Thermometer with Heat Resistance Thermal Cable -SR038

DS18B20 1M Waterproof Temperature Probe Thermometer with Heat Resistance Thermal Cable -SR038

SKU:SR038

205 in stock

Regular price Rs. 70.00
Regular price Sale price Rs. 70.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Supply Voltage: 3V~5.5V
  • Temperature Range: -55 ~ +125 °C
  • Probe Diameter: 6mm
  • Probe Length: 30mm

Description :

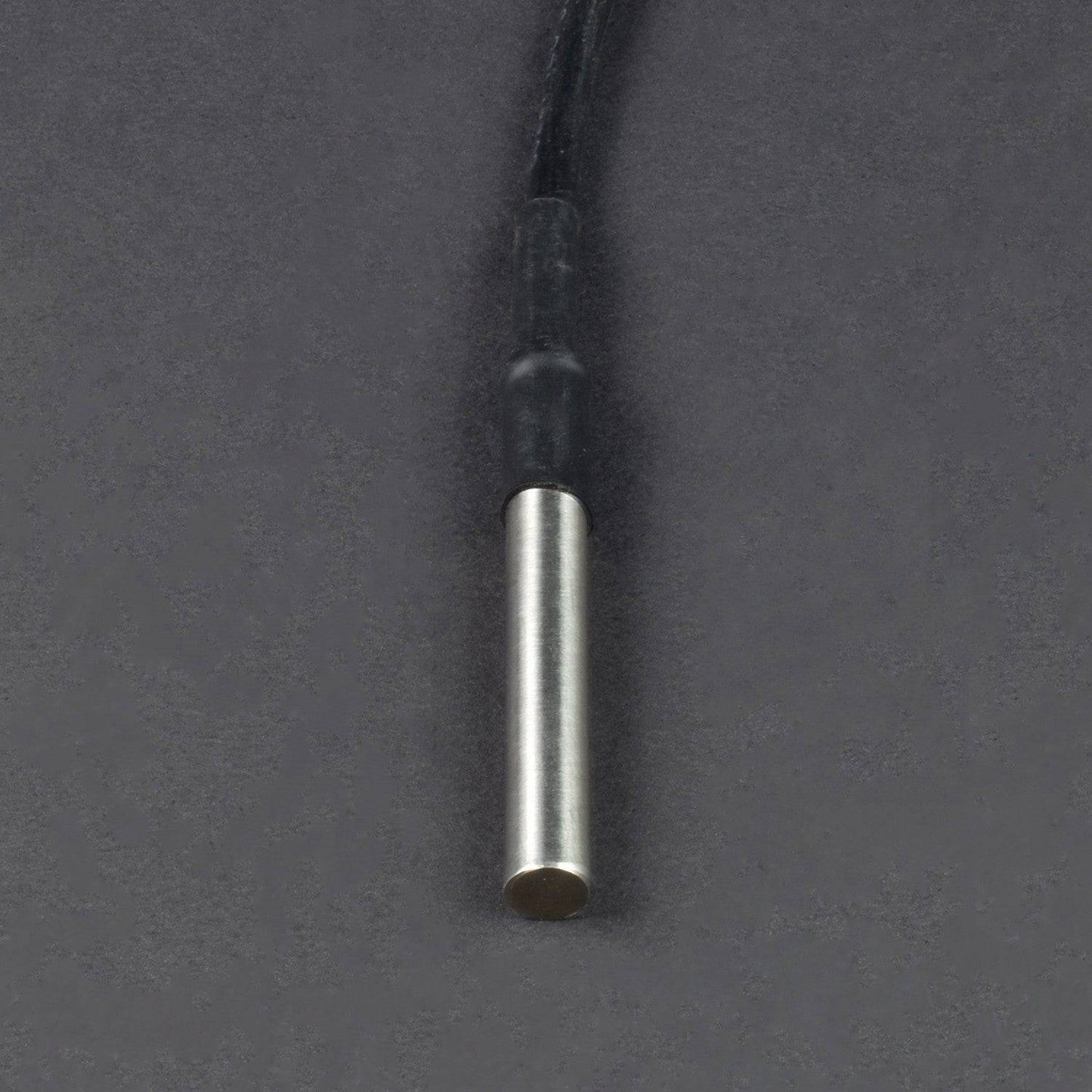

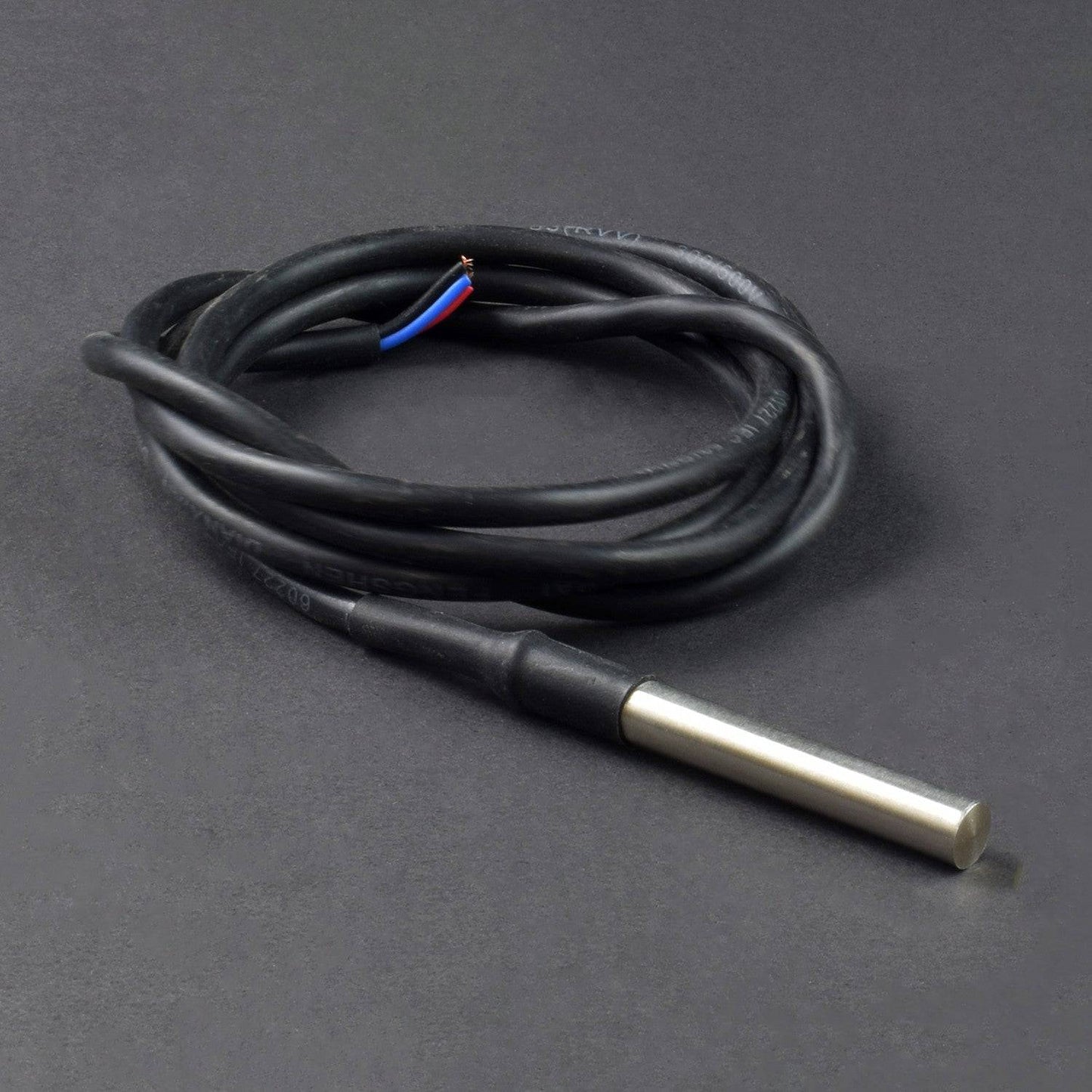

This is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Because they are digital, you don't get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analogue converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.

Specification:

  • Supply Voltage: 3V~5.5V
  • Temperature Range: -55 ~ +125 °C
  • Probe Diameter: 6mm
  • Probe Length: 30mm
  • Resolution: 9~12 bit
  • Query Time: 750msec

Features:

  • Each pin uses a heat-shrinkable tube to prevent short circuits and internal sealing glue.
  • Stainless steel tube encapsulation waterproof moistureproof prevents rust.
  • Stainless steel tube 6mm diameter by 30mm long.
  • Contains a DS18B20 temperature sensor.
  • Uses 1-Wire interface- requires only one digital pin for communication.
  • Unique 64 bit ID burned into the chip.
  • Multiple sensors can share one pin.
  • Temperature-limit alarm system.
  • Without the external components, the unique single bus.

Wire Description:

  • Red:VCC/VDD
  • Yellow:DATA
  • Black:GND

Package Included:

1 x Waterproof DS18B20 Temperature Probe Thermometer
