DS0138 STM32 200 KHz Digital Oscilloscope DIY Kit And Probe Unsoldered Workshop - RS184

DS0138 STM32 200 KHz Digital Oscilloscope DIY Kit And Probe Unsoldered Workshop - RS184

SKU:RS184

37 in stock

Regular price Rs. 1,400.00
Regular price Sale price Rs. 1,400.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Supply Voltage: 9V DC
  • Input Impedance: 1M OHM
  • Maximum Real-time Sampling Rate: Msps
  • Sampling Buffer Depth: 1024 Bytes

Description:

This is DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. This boost converter is a great match for DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.

Specification:

Supply Voltage

9V DC

Input Impedance

1MΩ

Maximum Real-time Sampling Rate

1Msps

Sampling Buffer Depth

1024 bytes

Analog Bandwidth

0-200KHz

Vertical Sensitivity

10mV / Div – 5V / Div (1-2-5 progressive manner)

Accuracy

12Bit

Coupling Modes

DC / AC / GND

The Horizontal Time Base Range

10μs / Div – 50s / Div (1-2-5 progressive manner)

Features:

  • This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as the ARM test development board.
  • Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
  • Adjustable vertical displacement, and with instructions.
  • With automatic, regular and one-shot modes, easy to capture the moment waveform.
  • Available rising or falling edge trigger.
  • Observable previous trigger waveform (negative delay).
  • Can freeze at any time waveform display (the HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.
  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Product Documents and firmware:

Package Included:

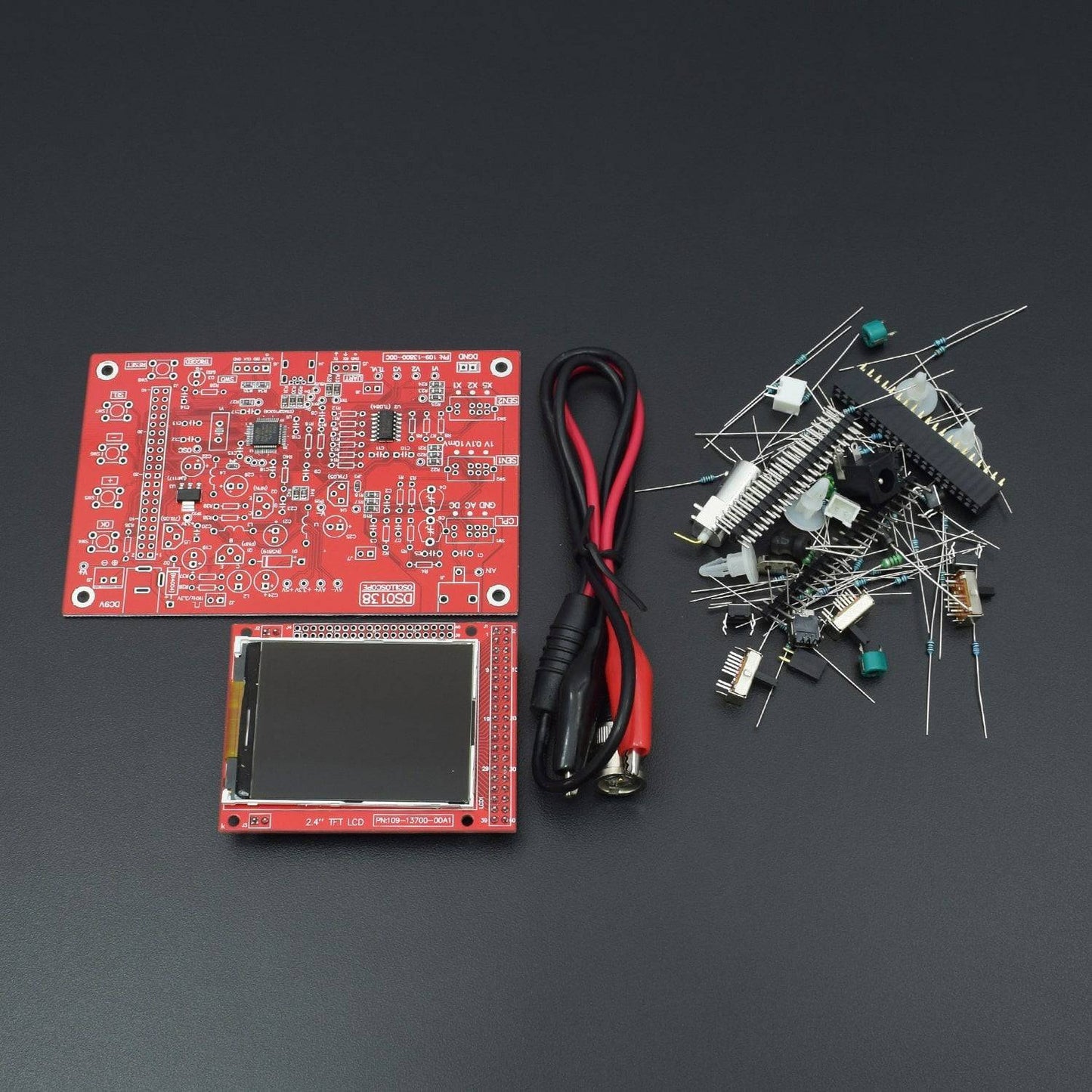

  • 1 x DIY Digital Oscilloscope Kit
  • 1 x Probe
