Description:
Want to lock a door, drawer or any other moving part then this solenoid lock is perfect for you. You can interface this electromagnetic lock to any microcontroller, Arduino or even Raspberry Pi using a simple relay if you want you can directly use a one-channel relay driver module.

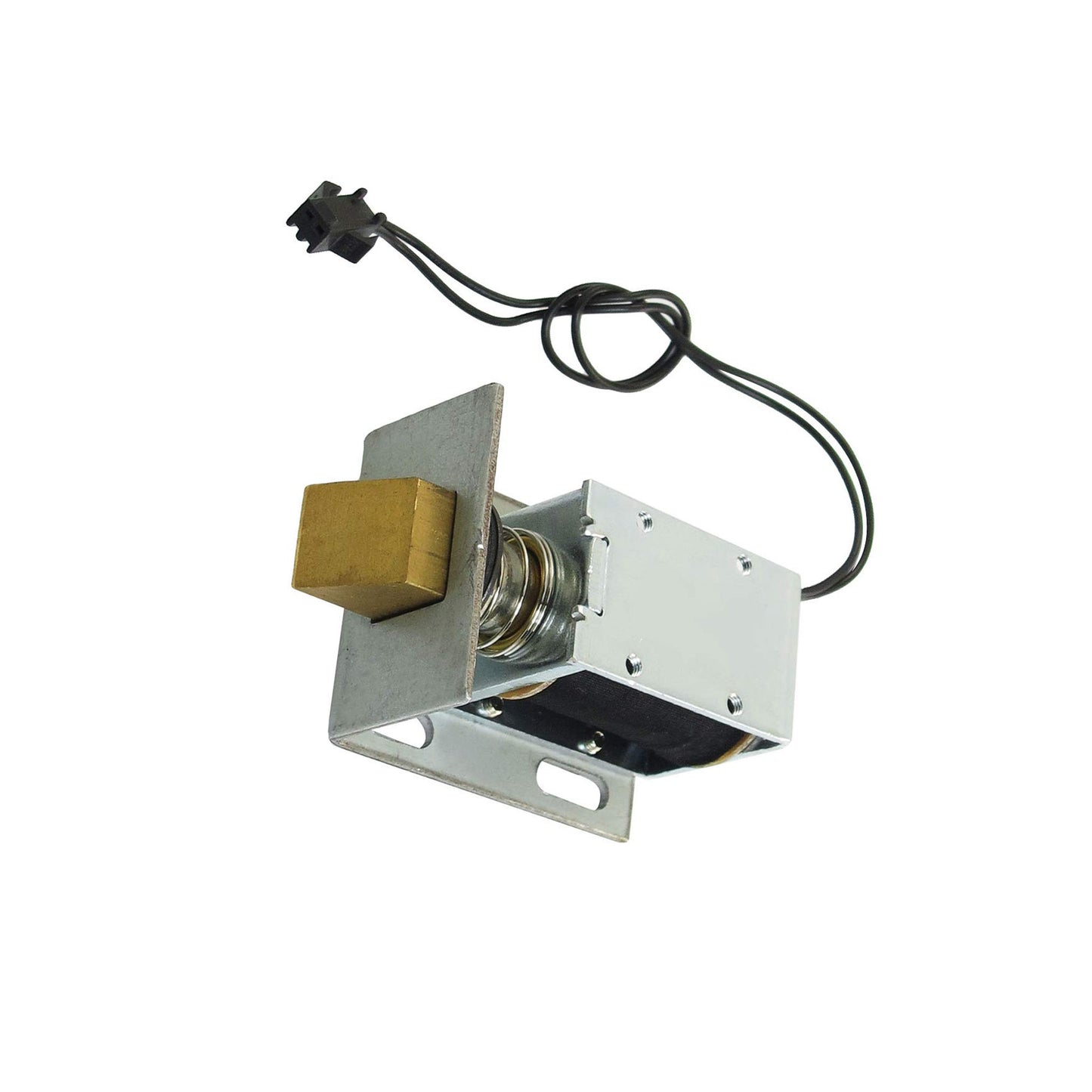

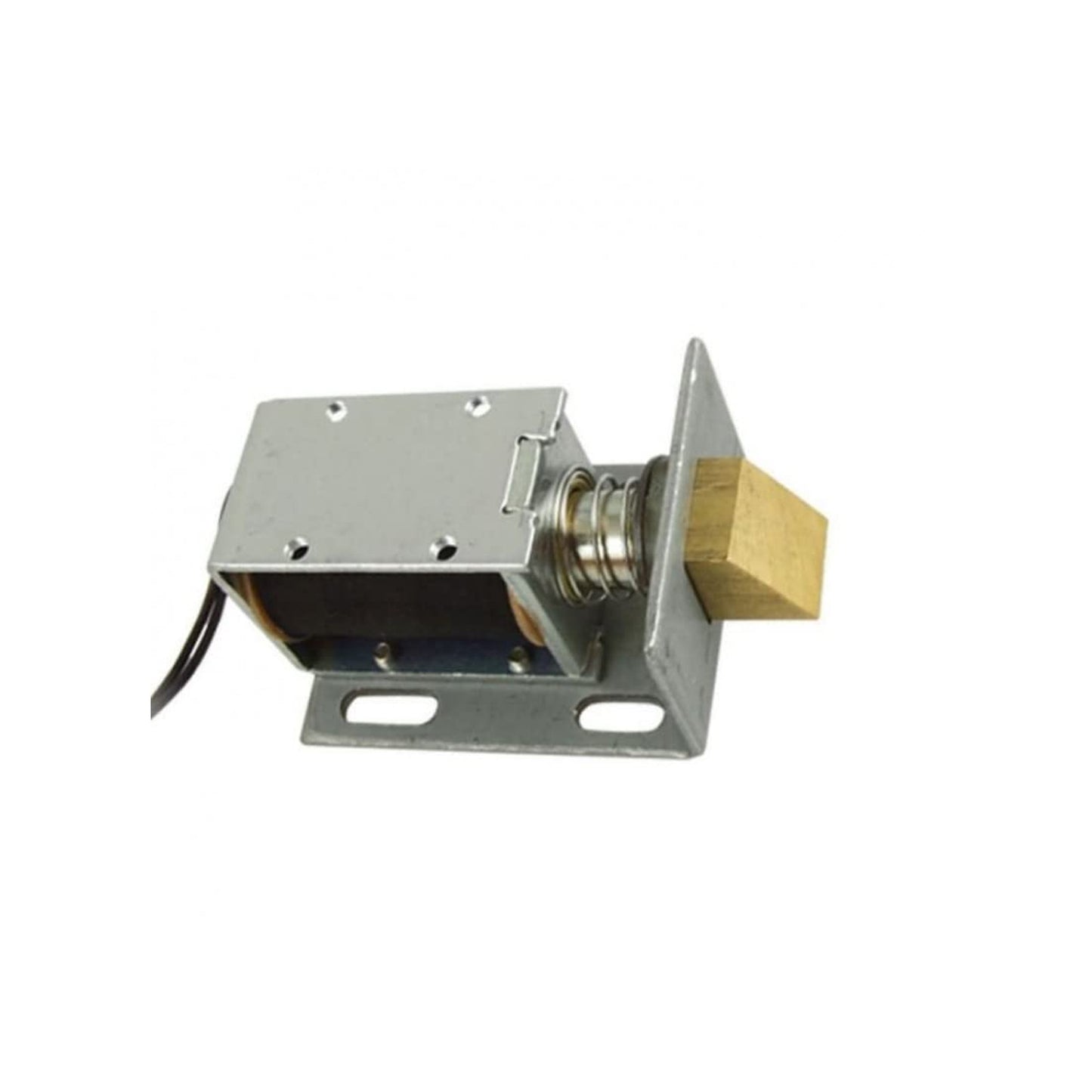

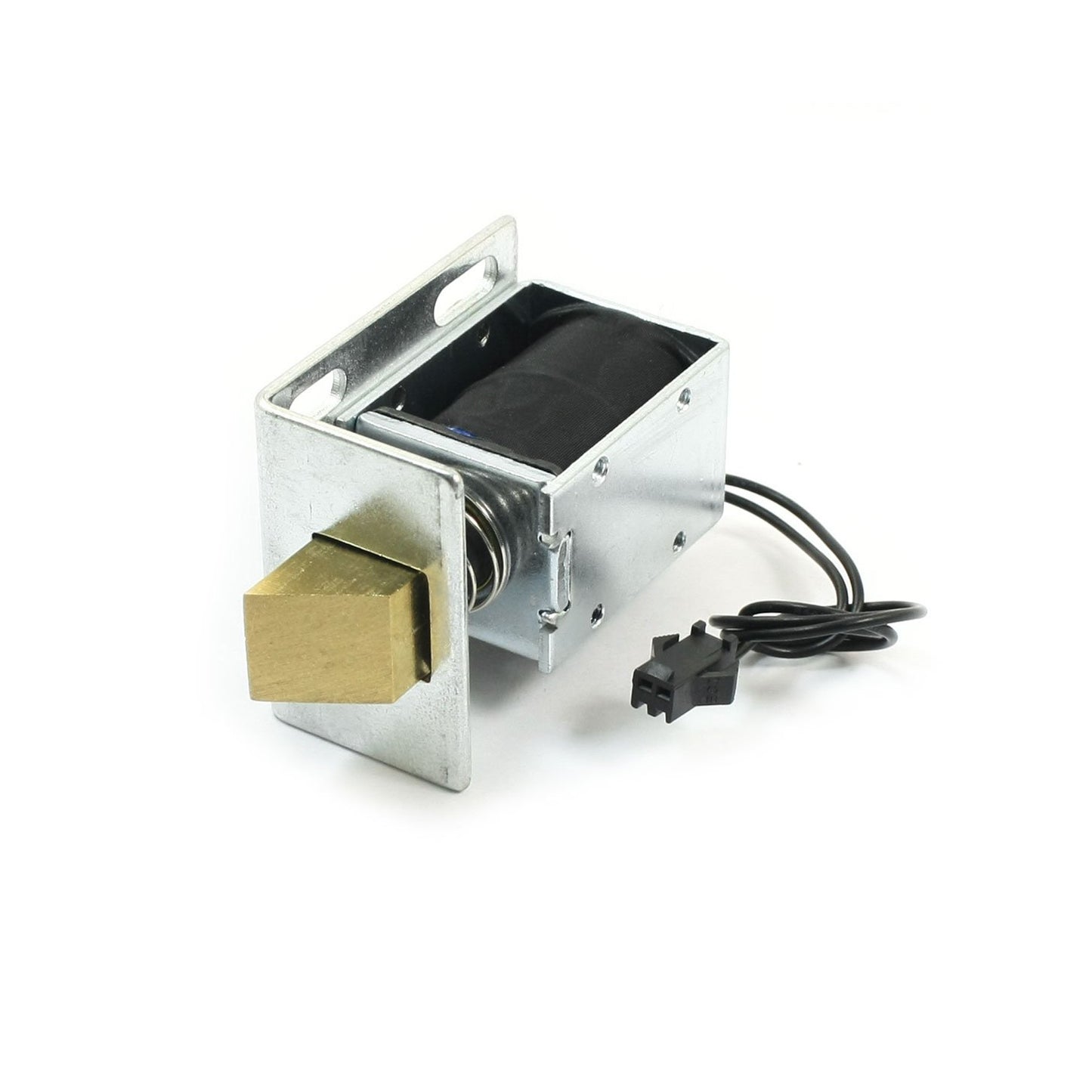

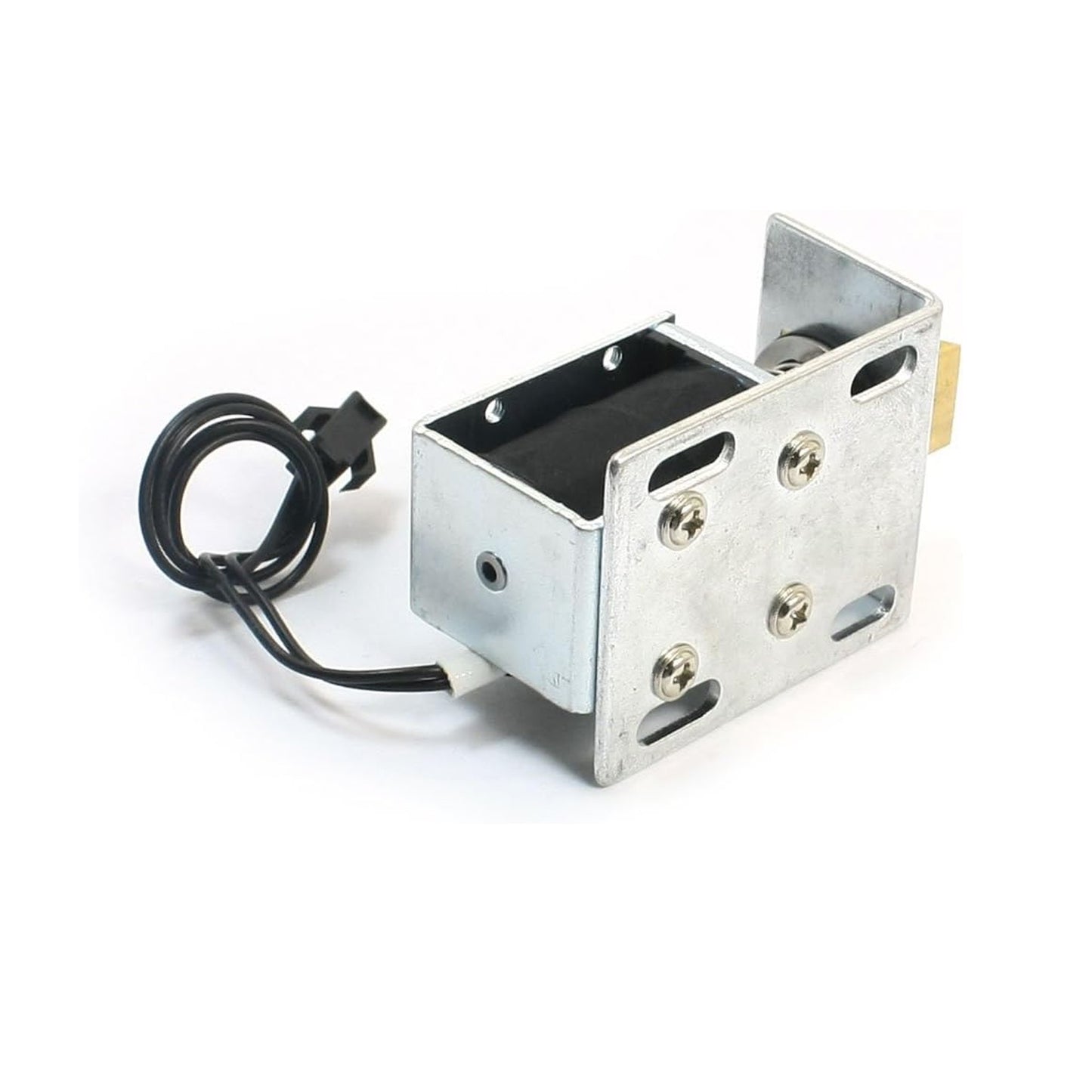

Door Lock Solenoids are electromagnets they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the centre of the coil. This makes the solenoid able to pull from one end. This solenoid, in particular, is nice and strong and has a slug with a slanted cut and a good mounting bracket.
It's an electronic lock, designed for a basic cabinet or safe or door. Normally the lock is active so you can't open the door because the solenoid slug is in the way. It does not use any power in this state. When 9-12 Volt DC is applied, the slug pulls in so it doesn't stick out anymore and the door can be opened.
Specifications:
- Rated Voltage: DC12V
- Rated Current: 1.7A
- Body Material: Iron
- Item colour: Golden tone
- Power: 20.6 Watt
- Holding force: 1 kg
- Energized forms: intermittent
- Unlocking time: 1S
Features:
- Door Lock Solenoid High quality ultra-compact electric lock.
- Rustproof, durable, safe, and convenient to use.
- Suction tightly sucks the iron, thus locking the door.
- Applicable for being installed in the escape door or fire door electronic controlled system.
- Adopts the principle of electric magnetism, when the current is through the silicon, the electromagnetic lock will achieve a strong.
Package Included:
1 x1240-12V Door Lock Solenoid DC 12V 1.7A 20.6W 1kg Holding Solenoid For Electric Door Lock
