Description:
This Door Lock Solenoid 1240 12V DC 0.6A 7.5W Solenoid for Electric Door Lock assembly can be used for locking a sell-machine, storage shelf, file cabinet etc. The lock works as the circuit disconnects, and it will unlock as the instant power-on. It is steady, durable, and energy-saving and has a long lifespan.
The Door Lock Solenoid is better than other kinds of locks. After connecting the wires and when the current is available, the Door Lock Solenoid can control the door’s opening and closing.
Want to lock a door, drawer or any other moving part then this Door Lock Solenoid is perfect for you. You can interface this electromagnetic lock to any microcontroller, Arduino or even Raspberry Pi using a simple relay if you want you can directly use a one-channel relay driver module.
Door Lock Solenoid are electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the centre of the coil. This makes the solenoid able to pull from one end. This Door Lock Solenoid, in particular, is nice and strong and has a slug with a slanted cut and a good mounting bracket.
Door Lock Solenoid is an electronic lock, designed for a basic cabinet or safe or door. Normally the lock is active so you can't open the door because the solenoid slug is in the way. Door Lock Solenoid does not use any power in this state. When 12 Volt DC is applied, the slug pulls in so it doesn't stick out anymore and the door can be opened.
Specifications:
- Rated Voltage: DC 12V
- Rated Current: 0.6A
- Rated Power: 7.5 Watt
- Body Material: Iron
- Item Color: Golden tone
- Energized Forms: intermittent
- Unlocking Time: 1S
Features:
- High-quality ultra-compact electric lock.
- Rustproof, durable, safe, and convenient to use.
- Suction which tightly sucks the iron, thus locking the door.
- Applicable for being installed in the escape door or fire door electronic controlled system.
- Adopts the principle of electric magnetism, when the current is through the silicon, the electromagnetic lock will achieve a strong.
Package Included:

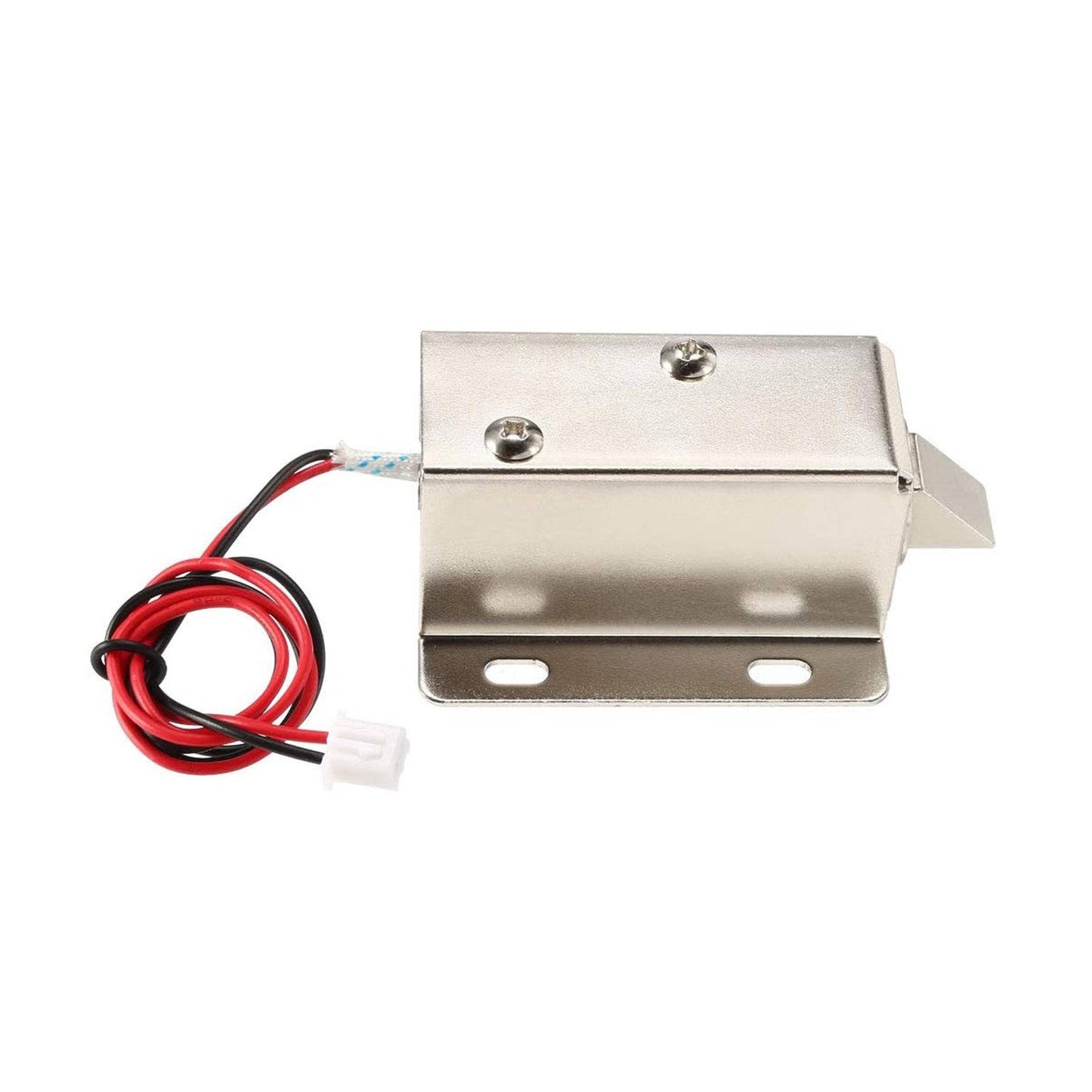

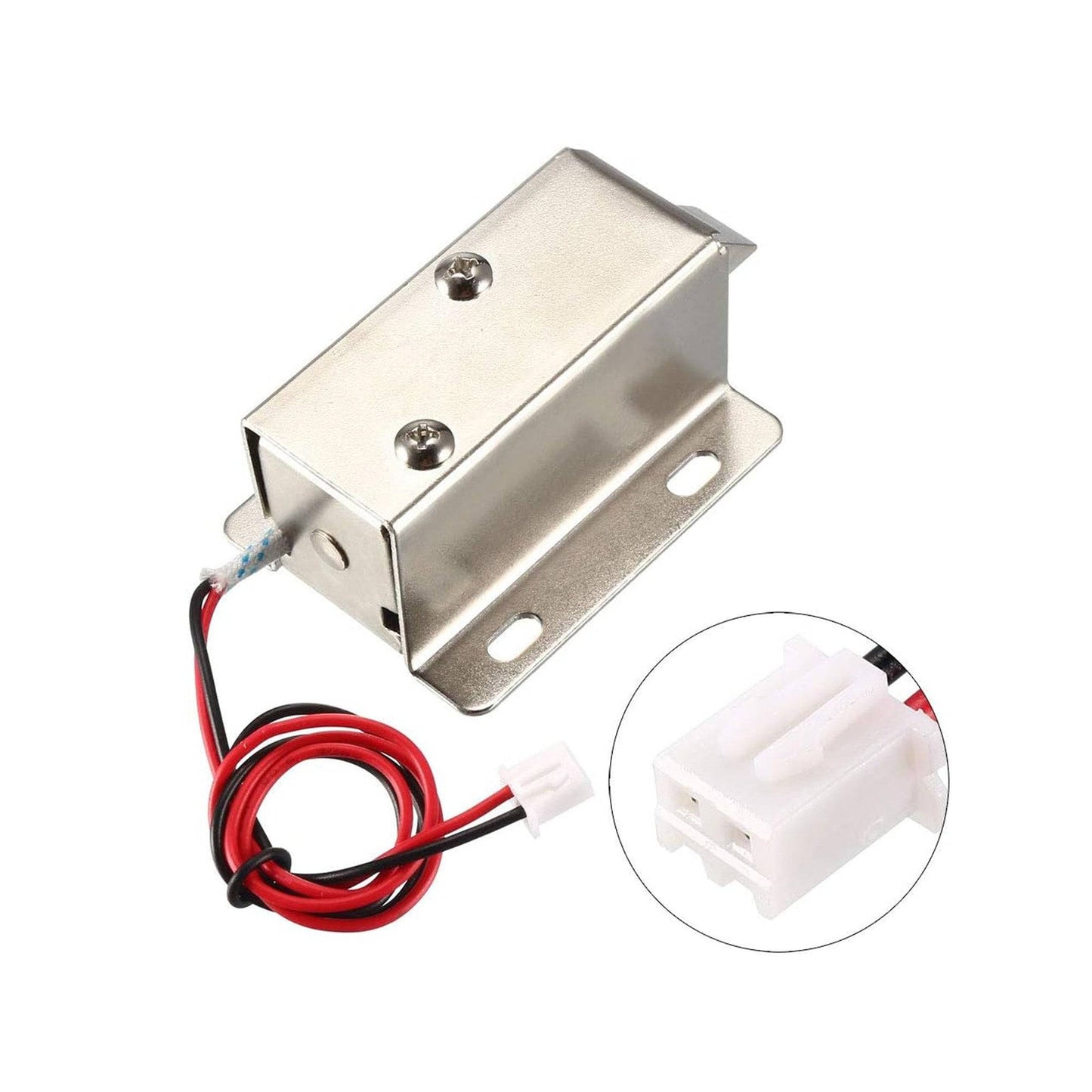

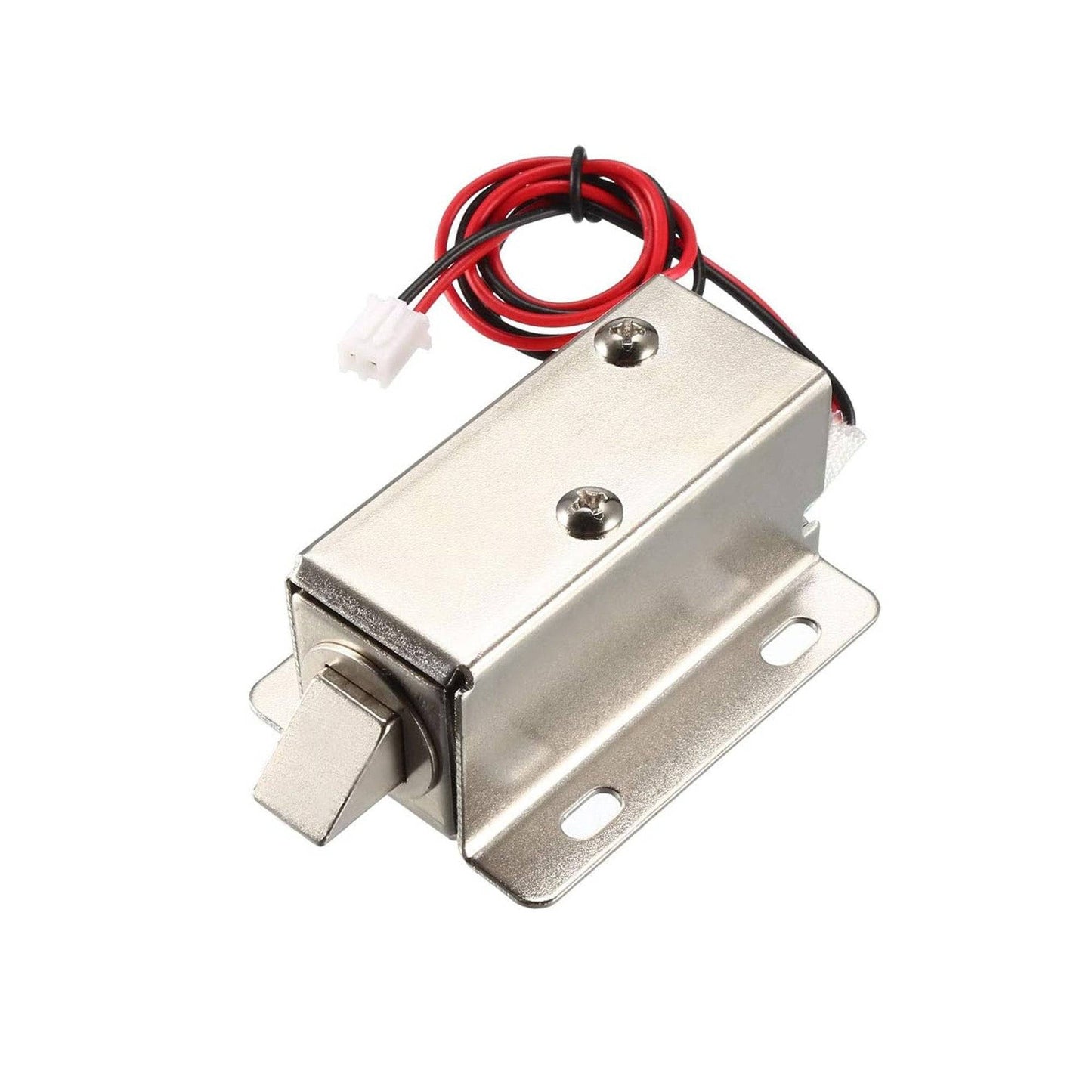

1 x Solenoid Lock 1240 12V DC 0.6A 7.5W Solenoid for Electric Door Lock
