Description:
A Stepper Motor Driver that anticipates your needs. The DM542T isn't just a driver; it's an intelligent digital control system, meticulously crafted with a cutting-edge DSP algorithm. Experience a new echelon of smoothness, where vibrations are minimized and torque is consistently powerful across the entire speed range, banishing frustrating mid-range instability. Setting up your NEMA 17 or 23 motor becomes effortless thanks to its ingenious auto-identification and parameter auto-configuration, swiftly dialing in the perfect settings. Unlike conventional analogue drives, the DM542T empowers your stepper motor to operate with remarkably reduced noise and heat, delivering noticeably smoother motion. For applications demanding peak performance and unwavering reliability, the DM542T stands out as the ideal solution.
Specifications:
- Item Type: DM Series Motor Driver
- Voltage Rating: 24 to 60
- Current Rating: 0.01 to 0.02A
- Power Supply: DC 24- 60V
- Max Current: 4.5A
- Output Phase Current: 1.5A-4.5A
- Input Current: 0.01 to 0.02A
- Input Signal: Optical Isolation
- Current DIP Switch: Adjustable
Features:
- 20 KHz chopping frequency
- Optical isolation signal input
- The output current DIP switch is adjustable
- Bipolar constant current chopping method
- TTL input signal compatible, while accepting differential signal input
- 57 series 4.5A or less (including 4.5A), two-phase four-wire, six-wire, eight-wire stepper motor can also be used
- The drive uses a discrete component structure that supports two-phase 4-wire, 6-wire, and 8-wire, as long as there is no overvoltage or wiring.
Package Included:

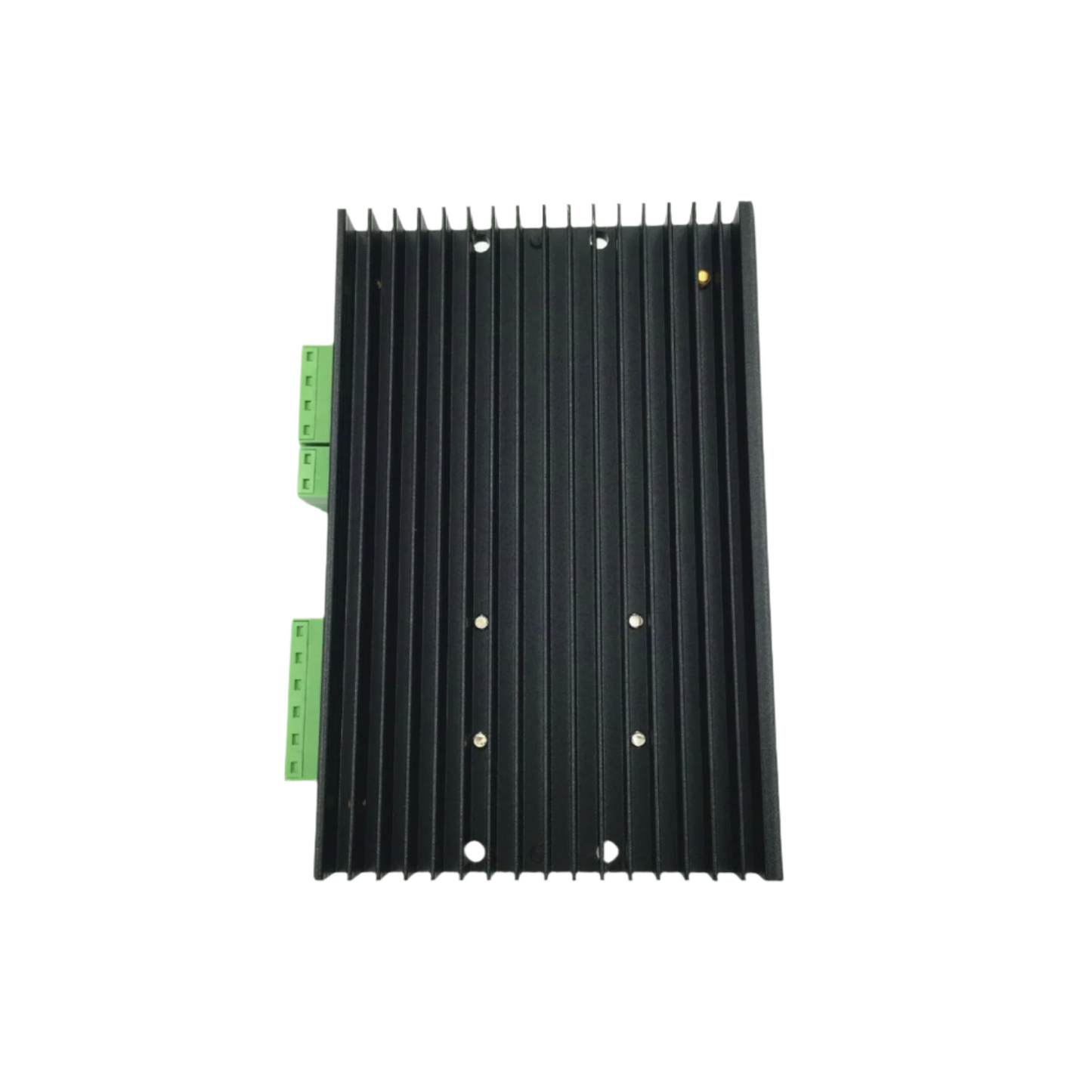

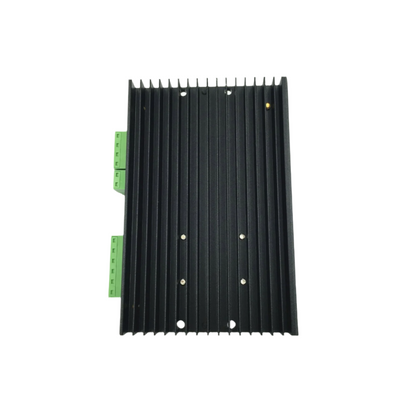

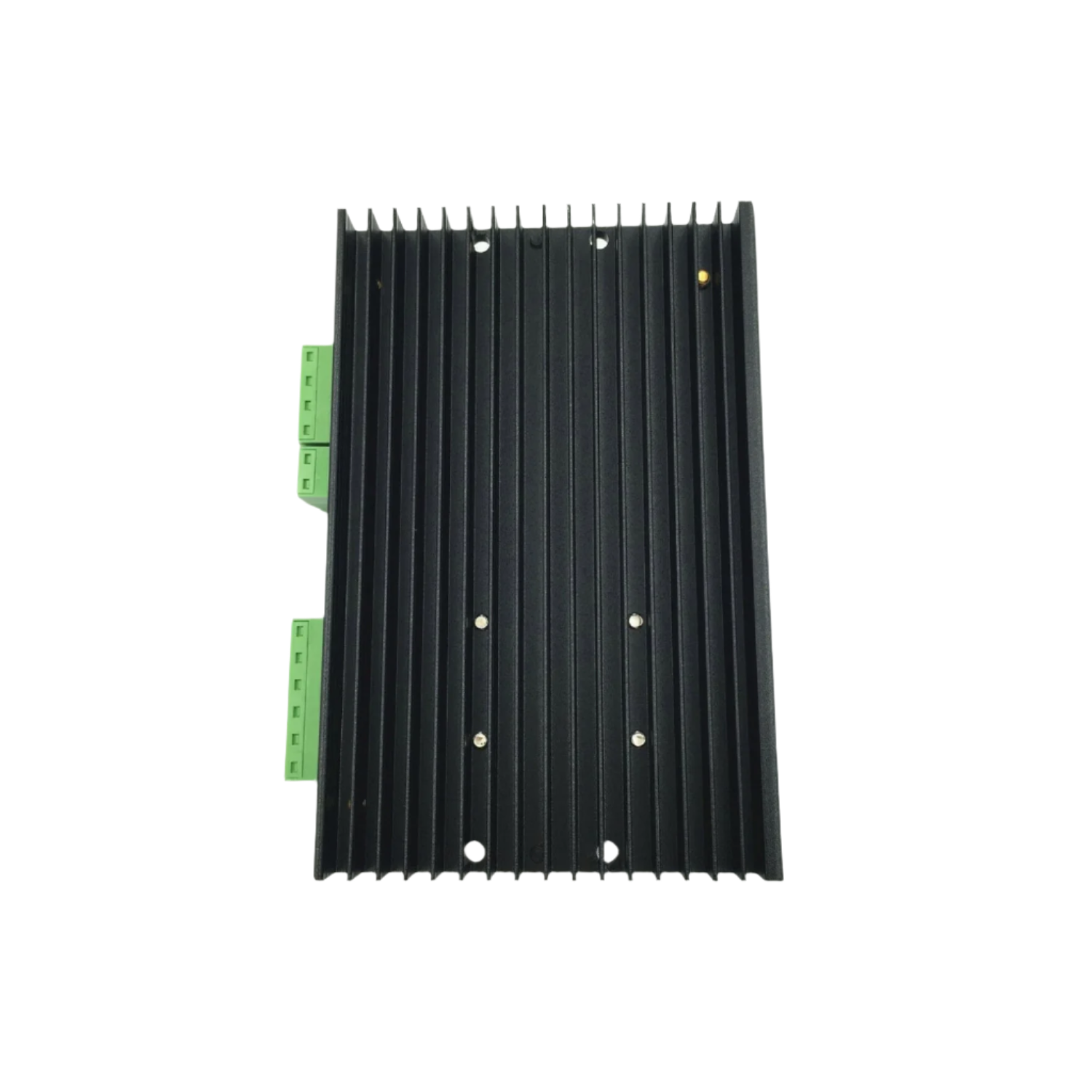

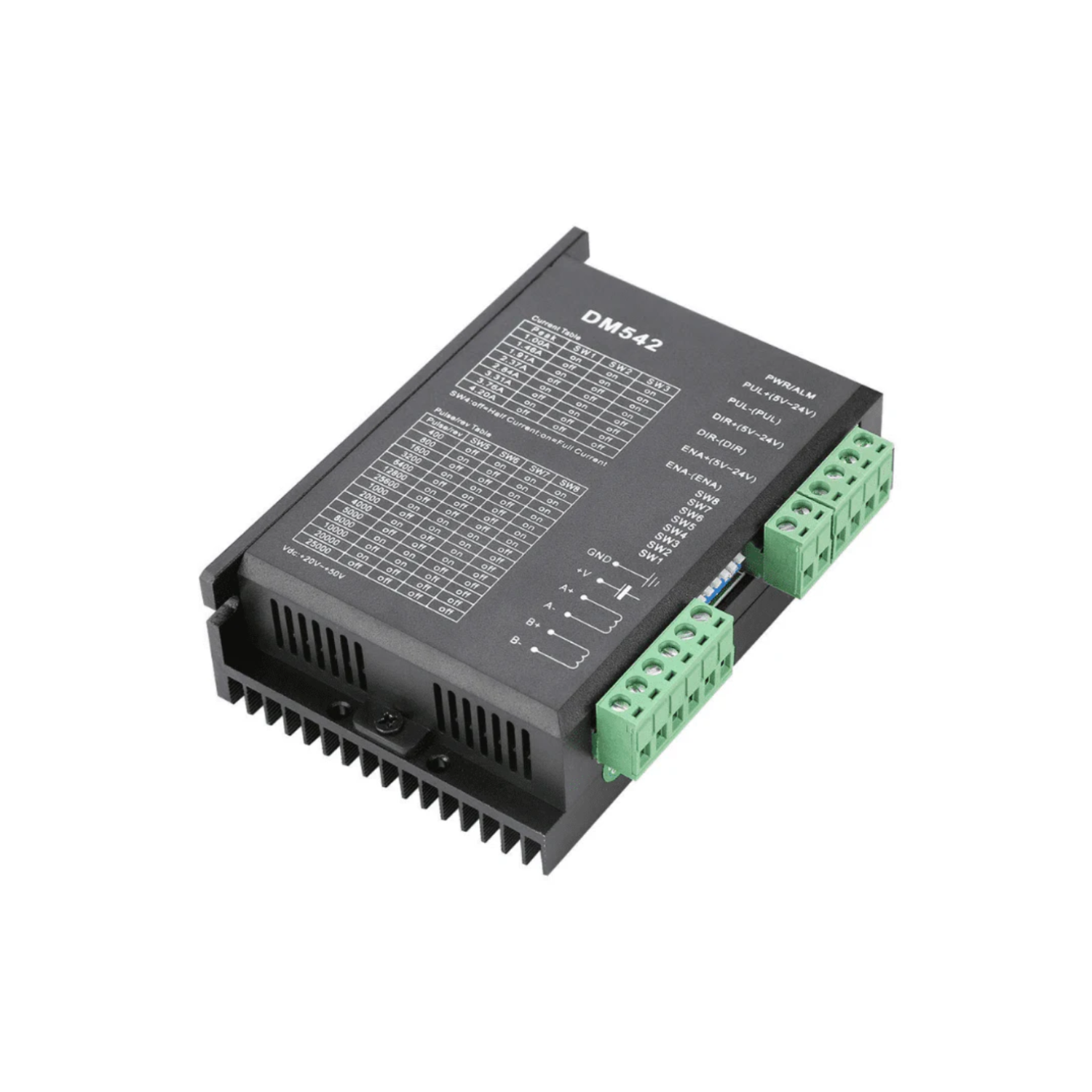

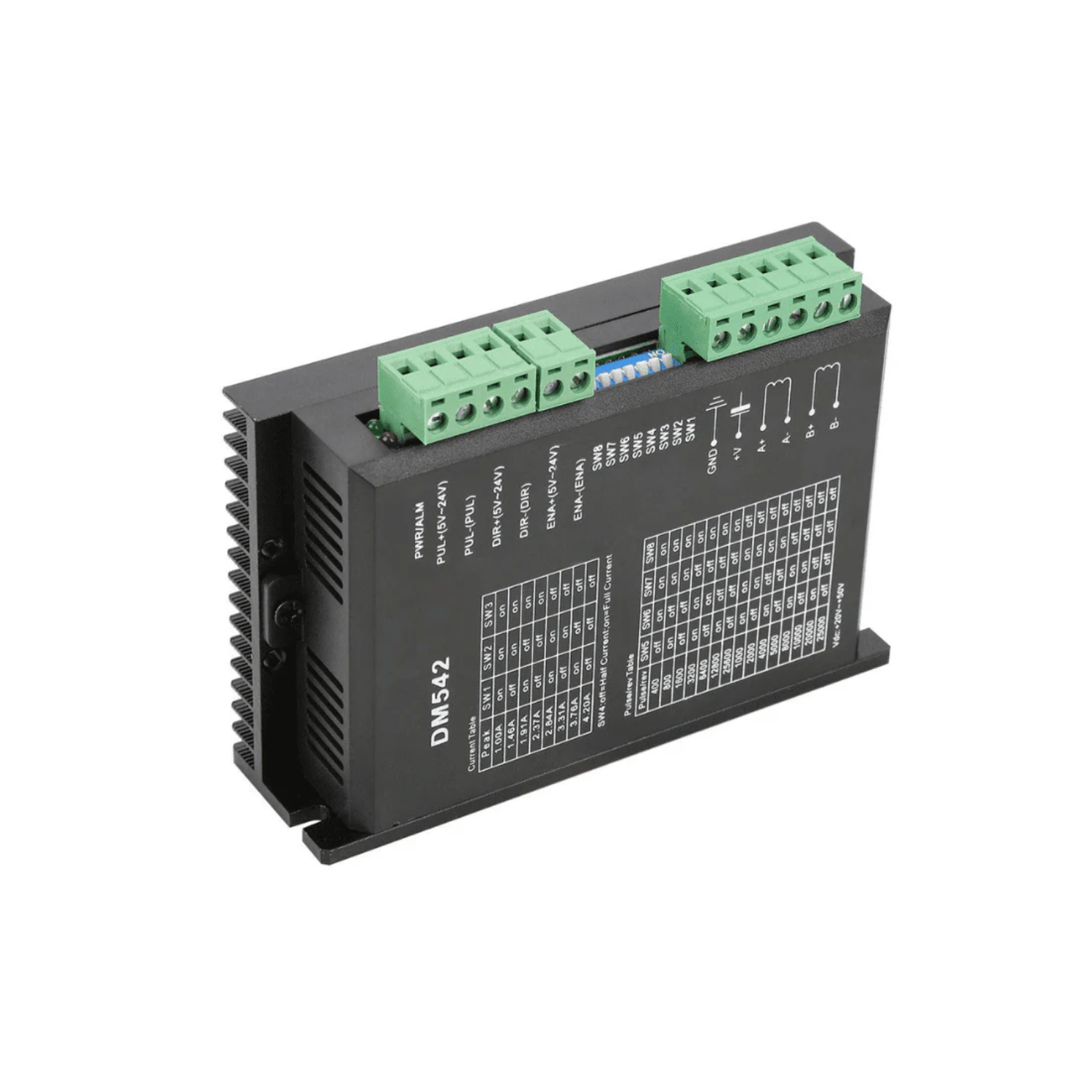

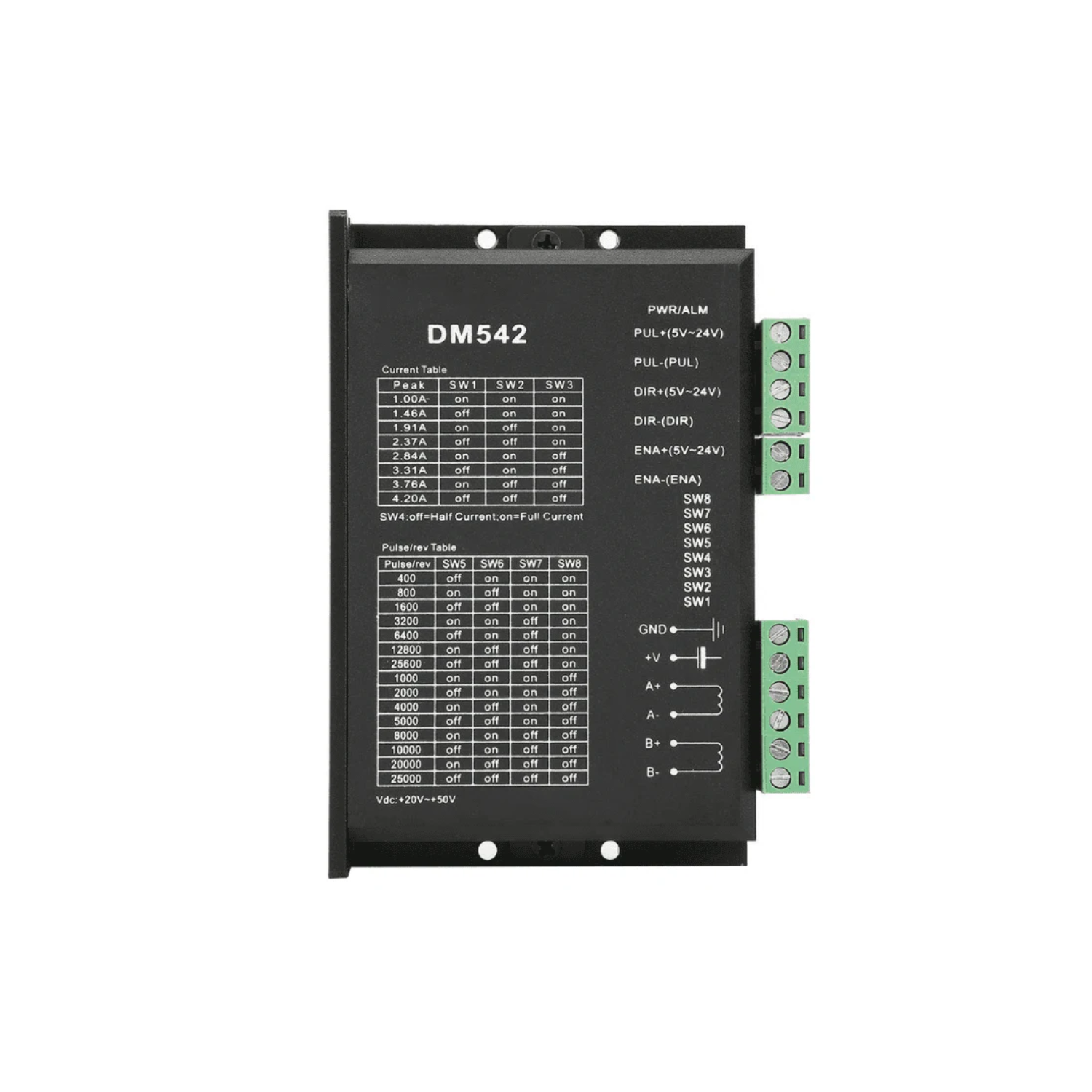

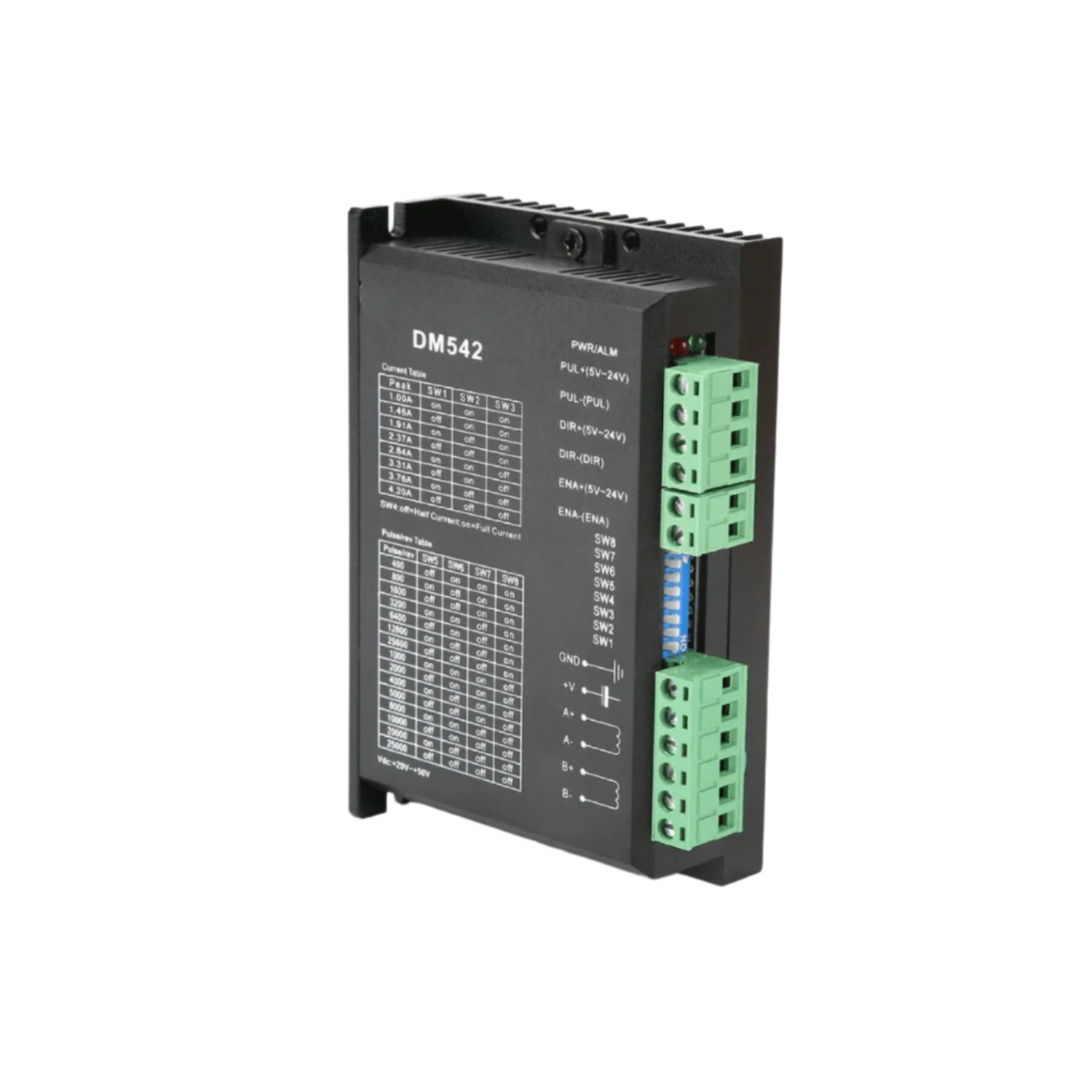

1 x DM542 Digital Stepper Motor Driver
