Description:

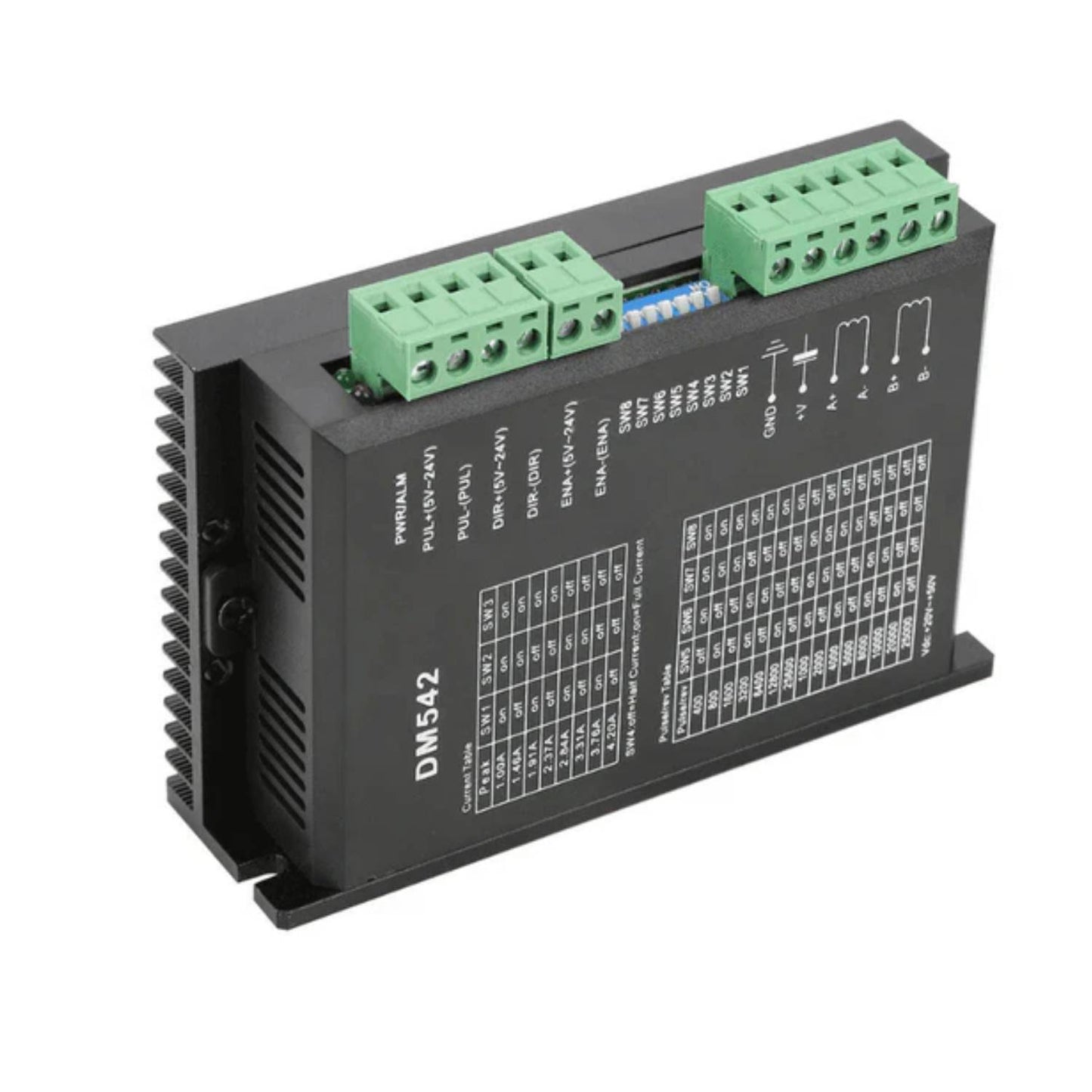

This Leadshine DM542T is an advanced motor driver controller, it uses the most advanced DSP control algorithm. Compared with other traditional stepper motor drivers, it has less noise, less thermal power and smoother drive process.
Specifications:
- Model: DM542
- Input Supply Voltage: 50V DC
- Max. Output Current: 4.2 Amp
- Pulse Frequency: 300 KHz
- Operating Temperature: -10 to 50C
Features:
- DM542 Stepper Motor Controller is extremely cost-effective
- Good high-speed performance
- Automatic idle-current reduction
- 3-state current control technology
- DM542 Stepper Motor Controller has self-adjustment technology
- Pure-sinusoidal current control technology
- TTL-compatible and optically isolated input
- 15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
- Suitable for 2-phase and 4-phase motors
- DIP switch current setting with 8 different values
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current protection
Package Included:
1 x DM542 Stepper Motor Controller DM542 Digital Stepper Motor Driver For CNC Drivers Controller 3D Printer Accessories
