Description:

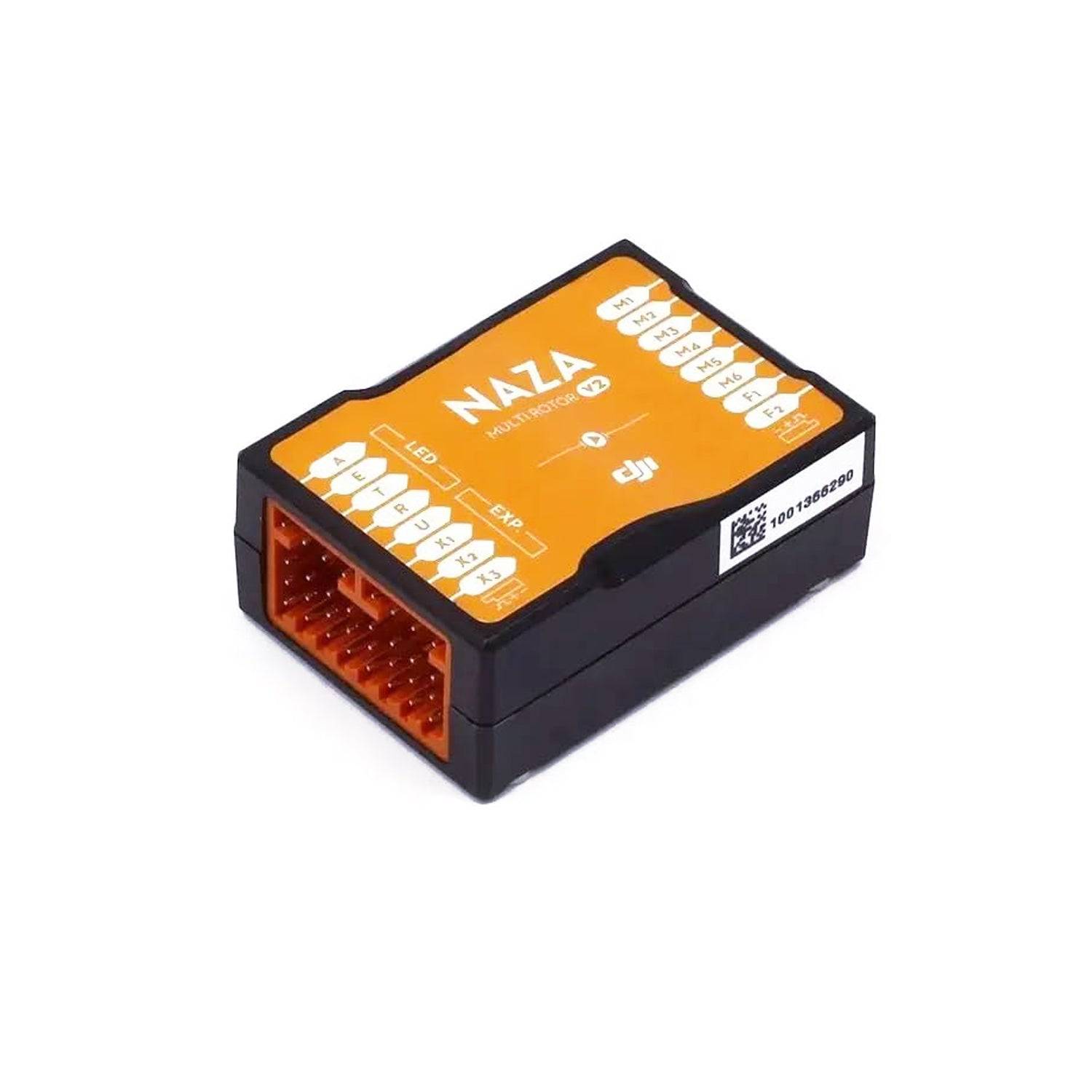

DJI Naza-M V2 provides better flight performance. The innovative All-in-one design simplifies installation and saves space and weight. It contains inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and small Main Controller. It can measure flying altitude and attitude and therefore can be used for autopilot/automatic control.
Specifications:
- Model: DJI NAZA-M V2

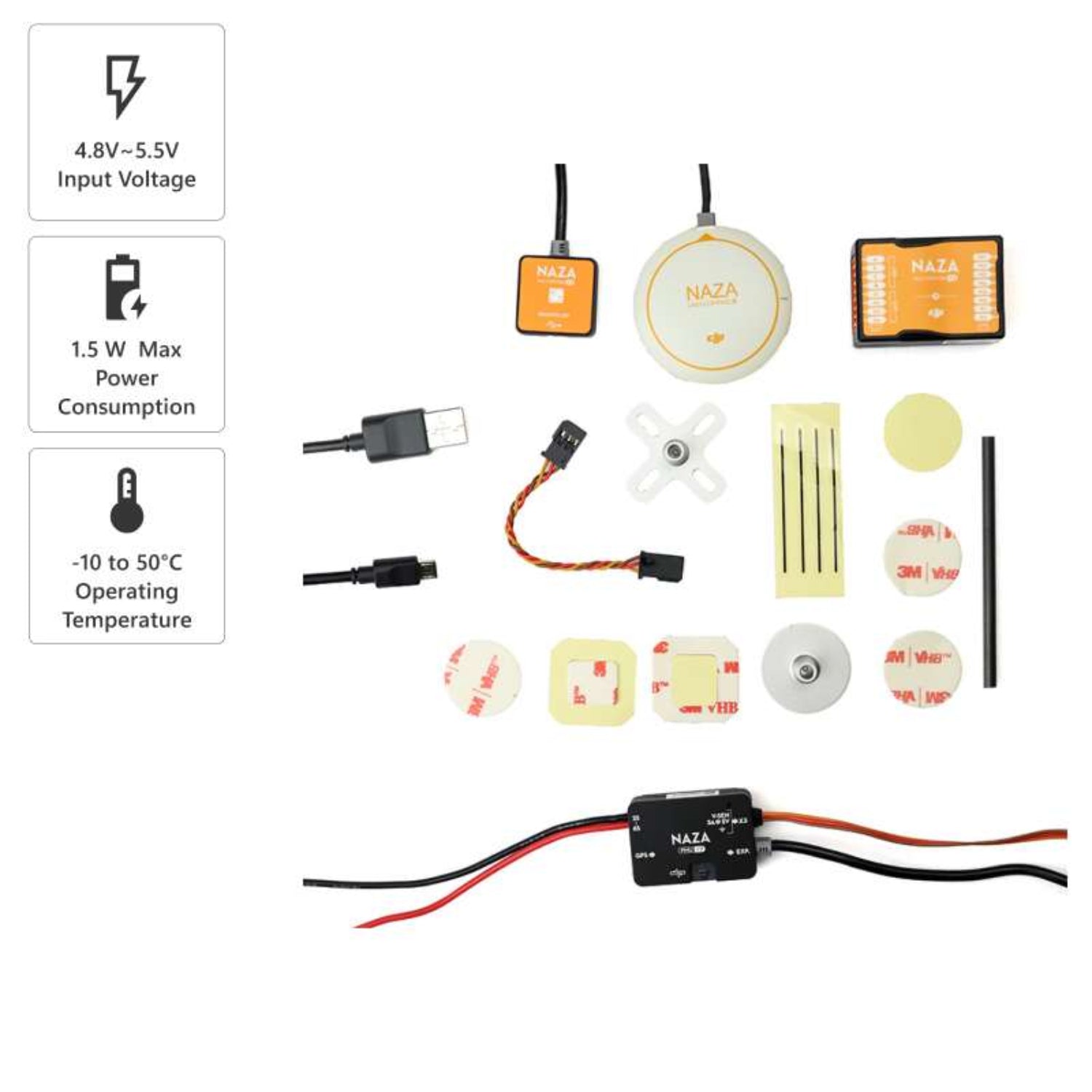

- Input Voltage: MC: 4.8 to 5.5 V VU: 7.4 to 26.0 V (2S to 6S LiPo recommended)
- Power Consumption: 1.5W
- Operating Temperature Range: -10 to 50°C
- Firmware: NAZAM V2
Features:
- DJI NAZA M V2 Flight Controller is an all-In-One Compact Multi-Rotor Autopilot System
- New Assistant Software for Smartphones
- Supported Multi-rotors Quad-rotor: I4, X4
- Hex-rotor: I6, X6, IY6, Y6
- Octo-rotor I8, V8, X8
- Free Ground Station
- DJI NAZA M V2 Flight Controller has a take-Off Assistance
- Multiple Flight Control Modes and Intelligent Switching
- GPS Module Available for Accurate Position Stabilization
- Intelligent Orientation Control (IOC)
- DJI NAZA M V2 Flight Controller supports General, PPM, and S-Bus Receivers
- Arm/Disarm Modes for Safe Motor Starting
- 2-Axis Gimbal Stabilization
- Two Levels of Low Voltage Warnings and Protection
- DJI NAZA M V2 Flight Controller supports Remote Gain Adjustment from the Transmitter
- Single Motor Failure Protection
- Supported ESC Output 400 Hz refresh frequency
- Supported Transmitters PCM or 2.4 GHz radio with at least 4 channels
- DJI NAZA M V2 Flight Controller has enhanced Failsafe Features, Including Auto Return-to-Home.
- Compatible with DJI Video Downlink, iOSD, Ground Station, ZH4-3D/H3-3D Gimbals, and Future Products.
- DJI NAZA M V2 Flight Controller supports 9 Different Multi-Rotor Configurations, Ideal for DJI F450/F550 and E Series Tuned Propulsion Systems.
Difference Between NAZA-M Lite/ NAZA-M V1/ NAZA-M V2:
|
Product |
Target Customer |
Hardware |
Software |
Function Extension Ability |
Major Components |
| NAZA-M Lite | AP/RC entry level | Based on the NAZA V1 platform; no extension ability | NAZA lite Independent assistant software and firmware; |
1. GPS (Optional) 2.No extended function (does not support NAZAV2-PMU, Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD) |
MC GPS（optional） BEC/LED（Will have independent BEC and LED in the future） |
| NAZA-M V1 | AP/RC hobbyist | Can be connected to the NAZA V2-PMU, and will have the NAZA-M V2 expansion function; | Share the same NAZAM V2 assistant software and firmware; |
1. GPS (Optional) 2. Function extension through NAZAV2-PMU: such as Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD/Ground Station |
MC GPS（optional） BEC/LED |
| DJI NAZA M V2 Flight Controller | AP/RC hobbyist |
Optimized hardware structure; Independent PMU module with amazing function extension ability; Independent LED module; |
Amazing function extension: such as Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD/Ground Station |
MC GPS NAZAPMU V2 LED |
System Requirements:
- Assistant Software Windows: 8, 7, XP SP3
- OS X: 10.6 or later
- Mobile: iPhone 4s, iPhone 5, iPod touch 5, iPad mini, iPad 4
Flight Performance:
- Hovering Accuracy (GPS Mode) Vertical: ±2.6′ / ±0.8 m
- Horizontal: ±8.2′ / ±2.5 m
- Max Angular Speed 200°/s
- Max Tilt Angle 35°
- Ascent/Descent Ascent: 19.7 ft/s / 6 m/s
- Descent: 14.8 ft/s / 4.5 m/s
Useful Link:
DJI NAZA M V2 Flight Controller User Manual

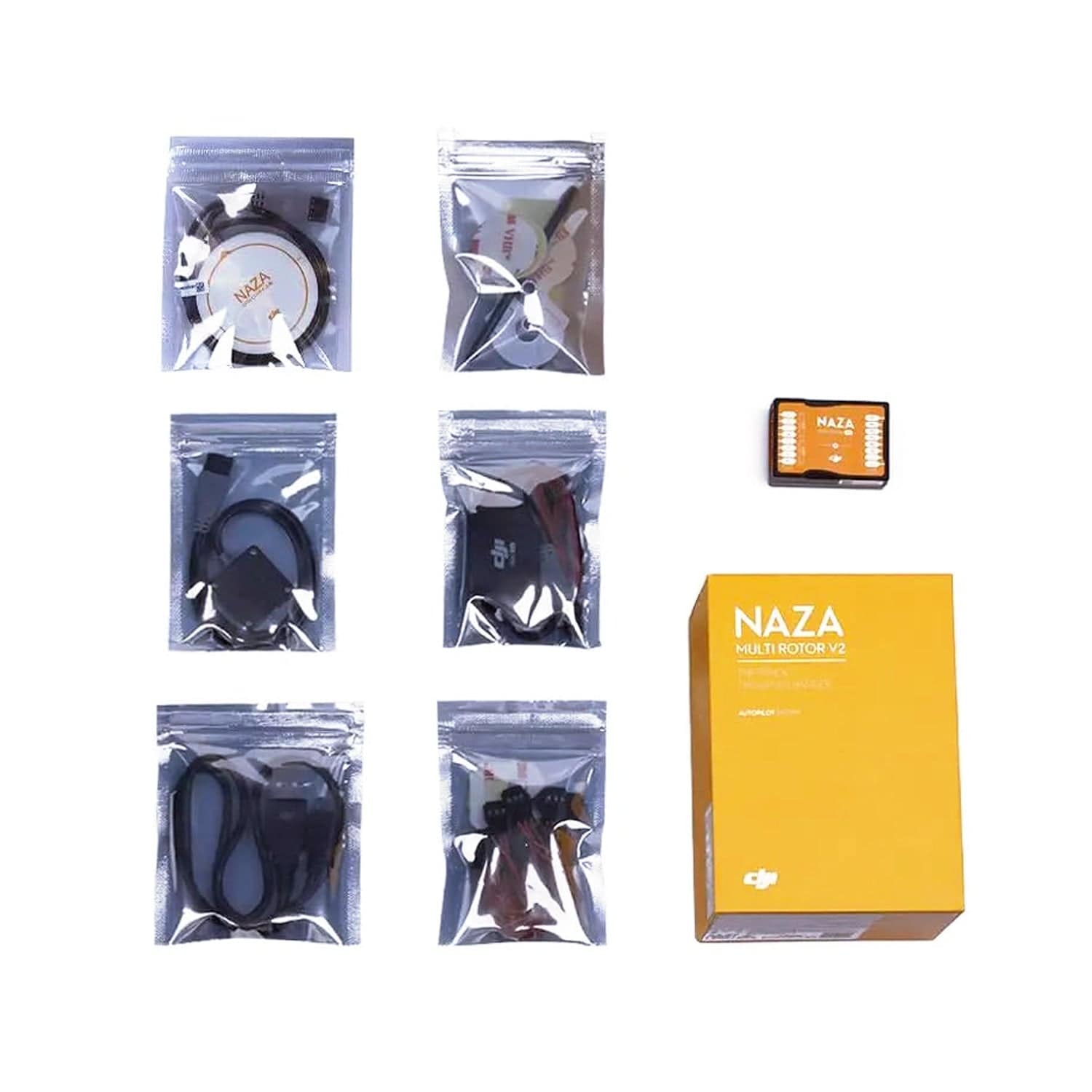

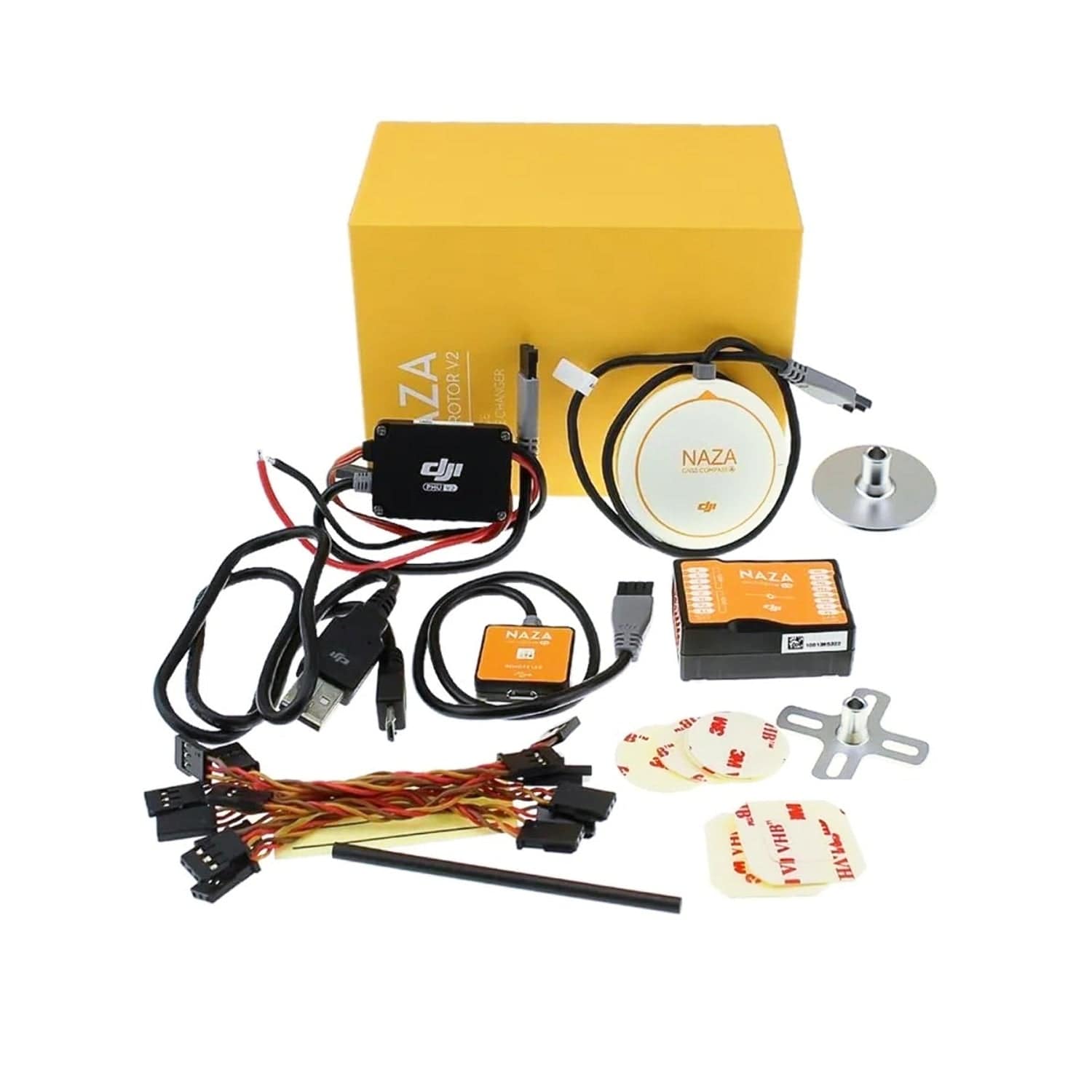

Package Included:
- 1 x DJI NAZA M V2 Flight Controller

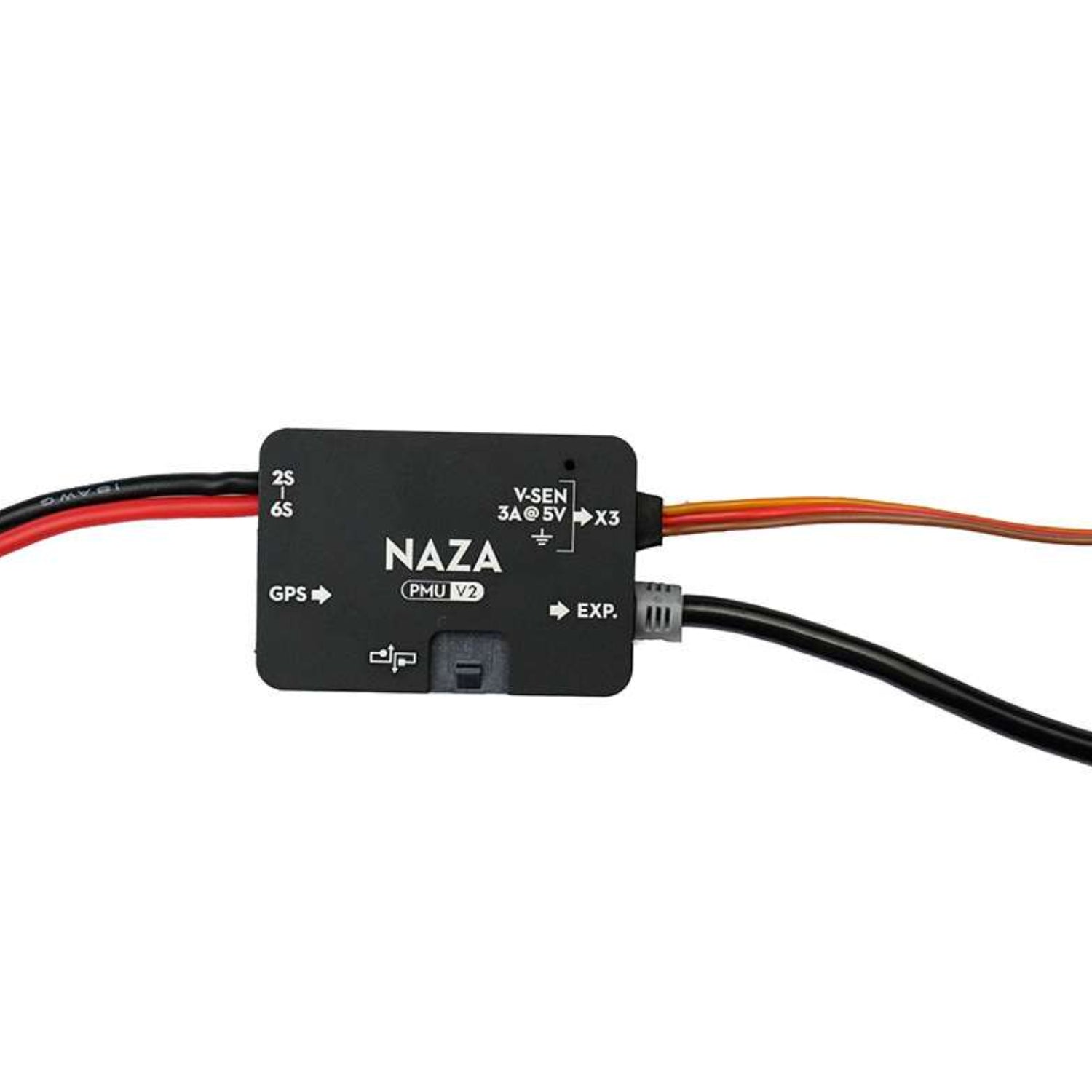

- 1 x Power Management Unit
- 8 x Servo Cable
- 1 x LED Module
- 1 x Micro USB Cable
- 2 x Adhesive Tape

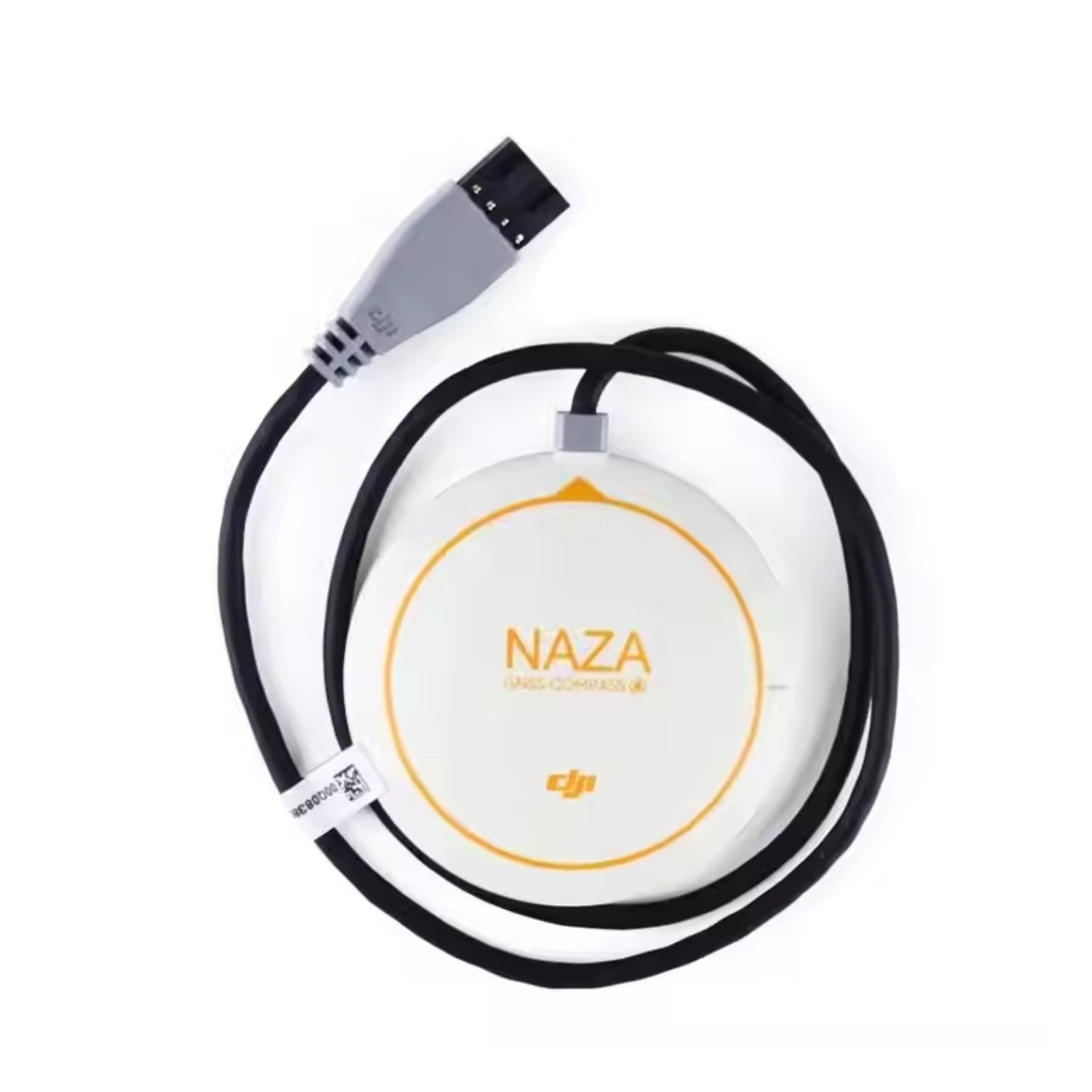

- 1 x GPS Module
