- Model: DJI Naza-M Lite
- Input Voltage: MC: 4.8V~5.5V, VU Input: 7.2V~26.0V (recommended 2S~6S Lipoly)
- Power Consumption: MAX: 1.5W (0.3A @ 5V), Normal: 0.6W (0.12A @ 5V)
- Operating Temperature: -10C ~ 50C
Description:
For entry-level enthusiasts, now brings out the most cost-effective solution, the DJI Naza-M Lite Multi-Rotor Flight Controller system. As the simplified version of NAZA-M, it inherits the high reliability and stability of NAZA-M. The innovative All-in-one design simplifies installation and saves space and weight. It contains inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and small Main Controller. It can measure flying altitude, attitude and therefore can be used for autopilot/automatic control.
The advanced attitude stabilization algorithm not only inherits the outstanding flight stability of DJI products but also provides excellent manoeuvrability. It is more flexible and stable and gives the hobbyists a wonderful flight experience.
Specification:
- Model: DJI Naza-M Lite
- Input Voltage: MC: 4.8V~5.5V, VU Input: 7.2V~26.0V (recommended 2S~6S Lipoly)
- Power Consumption: MAX: 1.5W (0.3A @ 5V), Normal: 0.6W (0.12A @ 5V)
- Operating Temperature: -10C ~ 50C
- Firmware: DJI NAZA
- Sensors: 3-Axis Gyrometer, Accelerometer, Compass & Barometer, Magnetometer
Features:
- All-in-One Design
- Accurate Position Hold for GPS
- Low Voltage Protection
- 6 Supported Multi-rotor Types
- Advanced Attitude Stabilize Algorithm
- Intelligent Orientation Control (IOC)
- Motor Arm and Motor Dis-arm
- Built-in Gimbal Stabilization Function
- Multiple Flight Control Mode/Intelligent Switching
- Failsafe Mode
- Support Futaba S-Bus and PPM Receiver
- Remote Adjustment
- Supported Multi-Rotor: Quad-rotor I4, X4, Hex-rotor I6, X6, IY6, Y6
- Supported ESC Output: 400Hz refresh frequency
- Recommended Transmitter: PCM or 2.4GHz with a minimum of 4 channels
- Assistant Software System Requirement: Windows XP sp3/Windows 7/Windows 8
Flight Performance:
- Hovering Accuracy (GPS Mode): Vertical: +/-0.8m, Horizontal: +/-2.5m
- Max Yaw Angular Velocity: 200/s
- Max Tilt Angle: 45
- Ascent/Descent: +/-6m/s
Package Included:
- 1 x DJI Naza Controller Unit

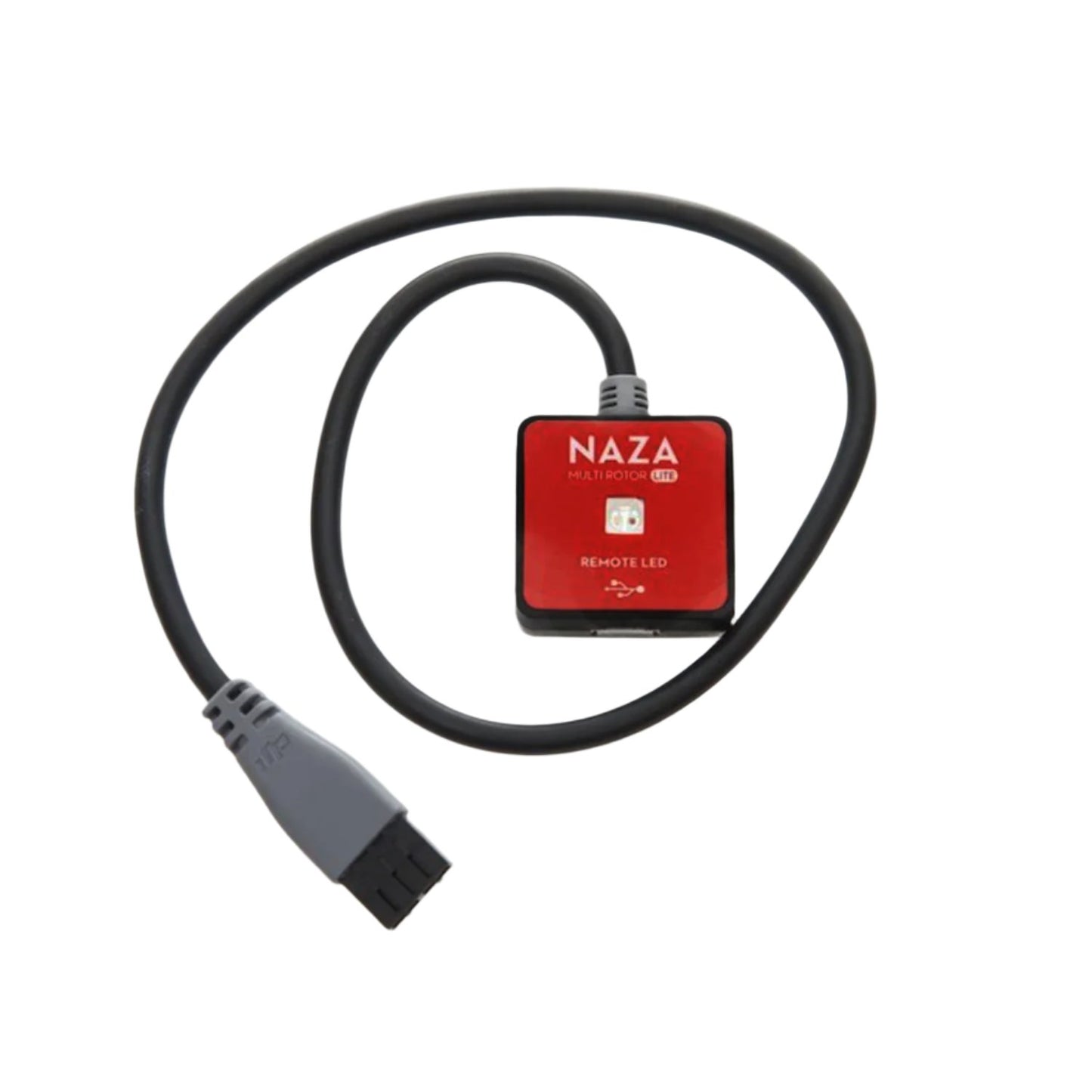

- 1 x DJI Remote LED module for Coding and Interfacing with PC

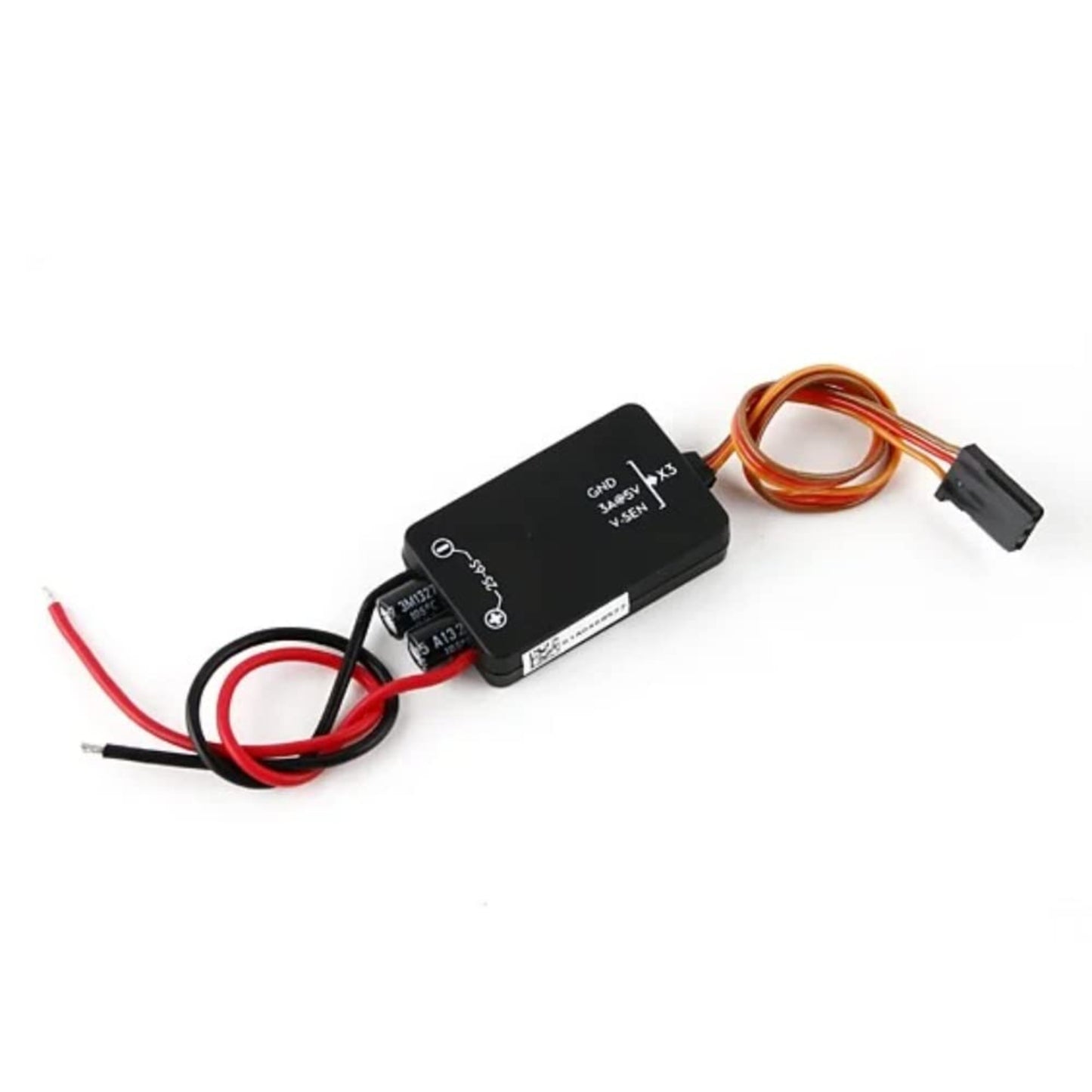

- 1x DJI Power Module
- 1 x DJI USB to Micro USB Cable (18 inches)
- 8 x Servo Cables (5 Inches Each)
