Description:

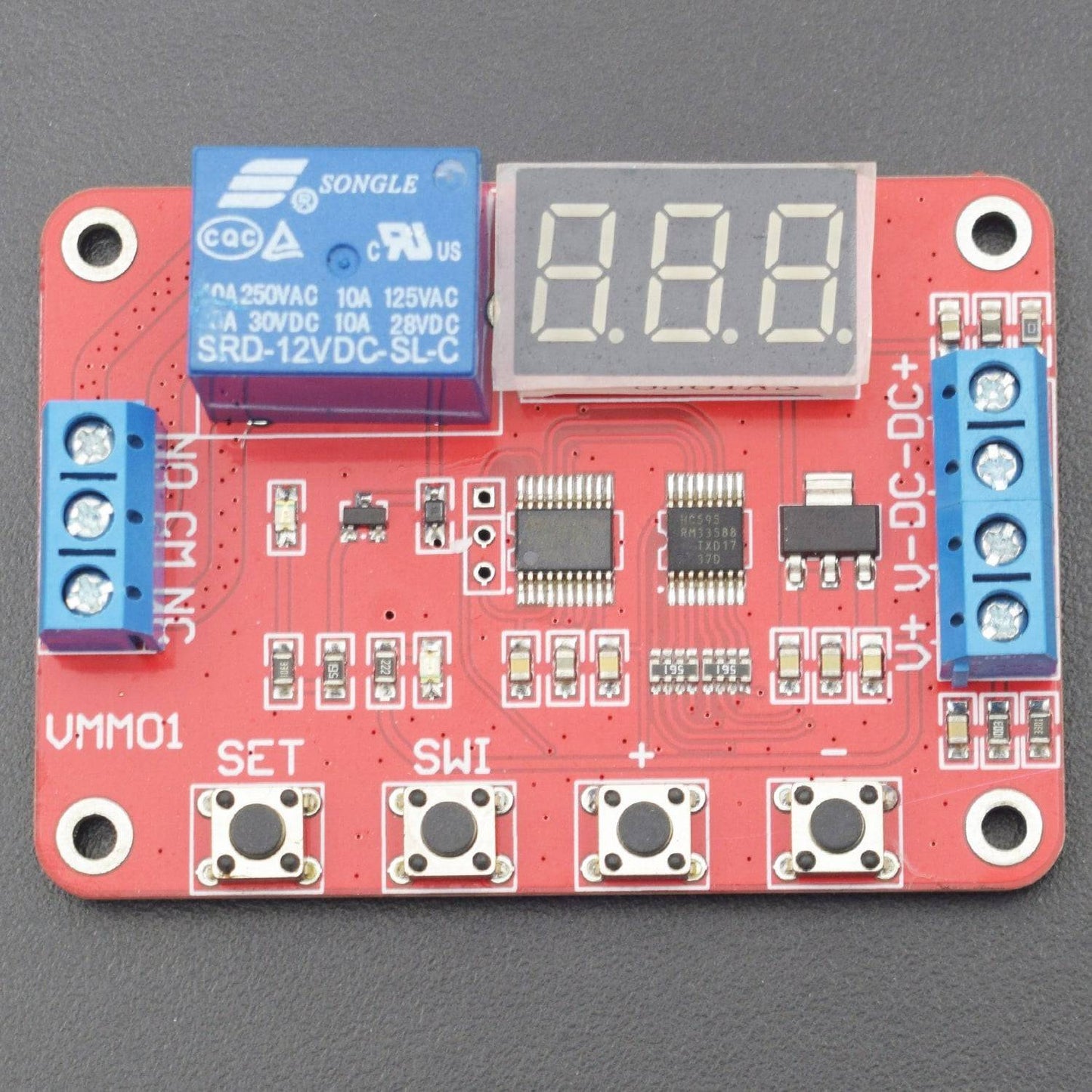

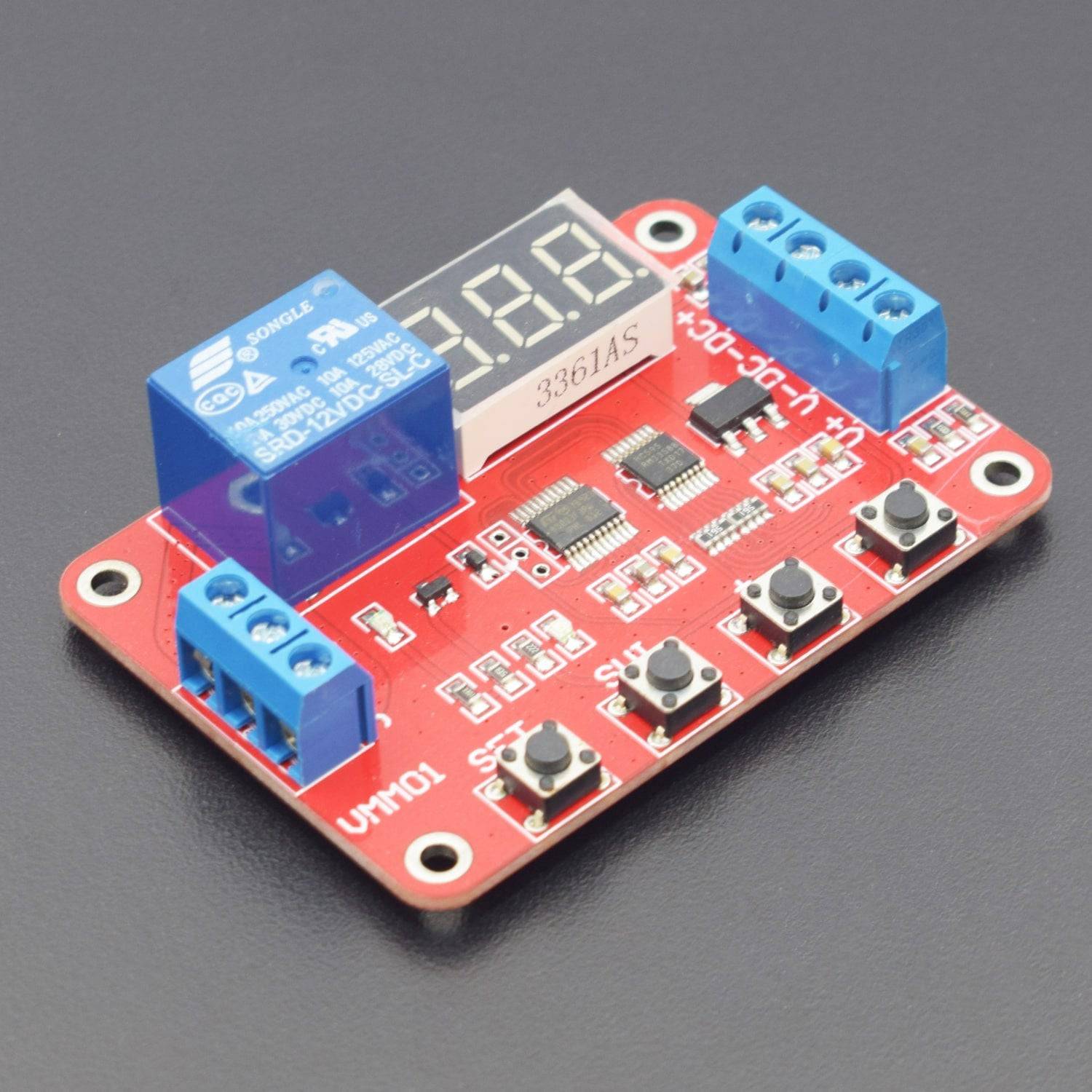

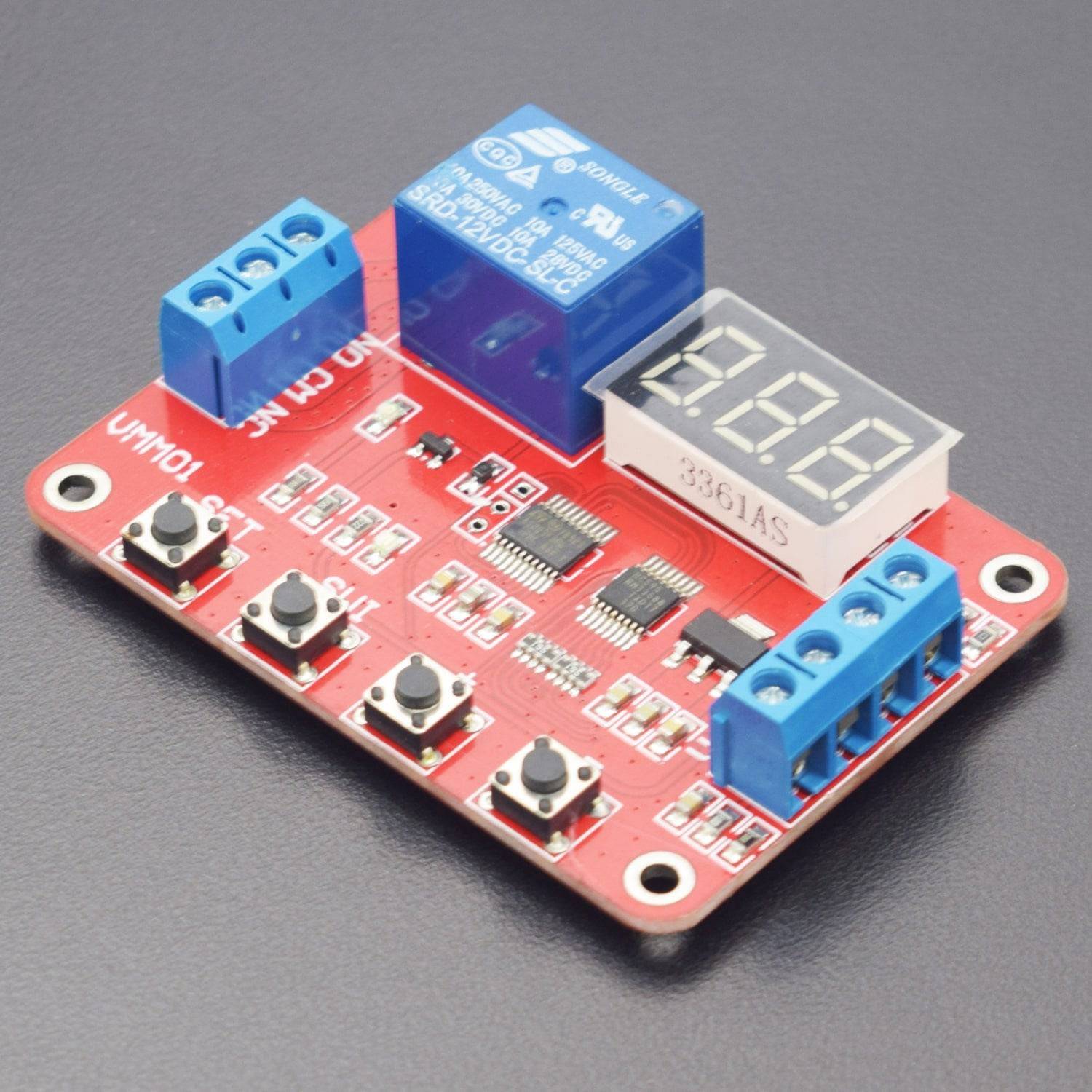

The DVB01 Multifunctional Voltage module is a monitoring controller that takes an industrial microcontroller as the main control unit, which has a wide measurement range and high accuracy. The controller has 5 different functions and can customize and add other functions according to user needs.
The module is made of original high-quality components has stable operation and can be widely used in various cases of voltage measurement.
Pin Description:
- DC +: Cathode DC
- DC-: DC power supply anode
- V +: positive voltage measurement
- V-: negative voltage measurement
Relay load output:
- NO: the relay is usually an open interface before the relay will pull off, and pull with COM short connection.
- COM: relay common interface.
- NC: relay normally closed interface, before and after the relay with COM short pull, pull left rear Six module.
Package Included:
1 x Digital Voltage Comparator 0-100V Voltage Measurement Control Voltage Measuring/Charge Discharge Protection 12V
