Digital Sensor TTP223B Module Capacitive Touch Switch for Arduino Development Board - NA061

Digital Sensor TTP223B Module Capacitive Touch Switch for Arduino Development Board - NA061

NA061

In stock

Rs. 70.00
Rs. 70.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description :

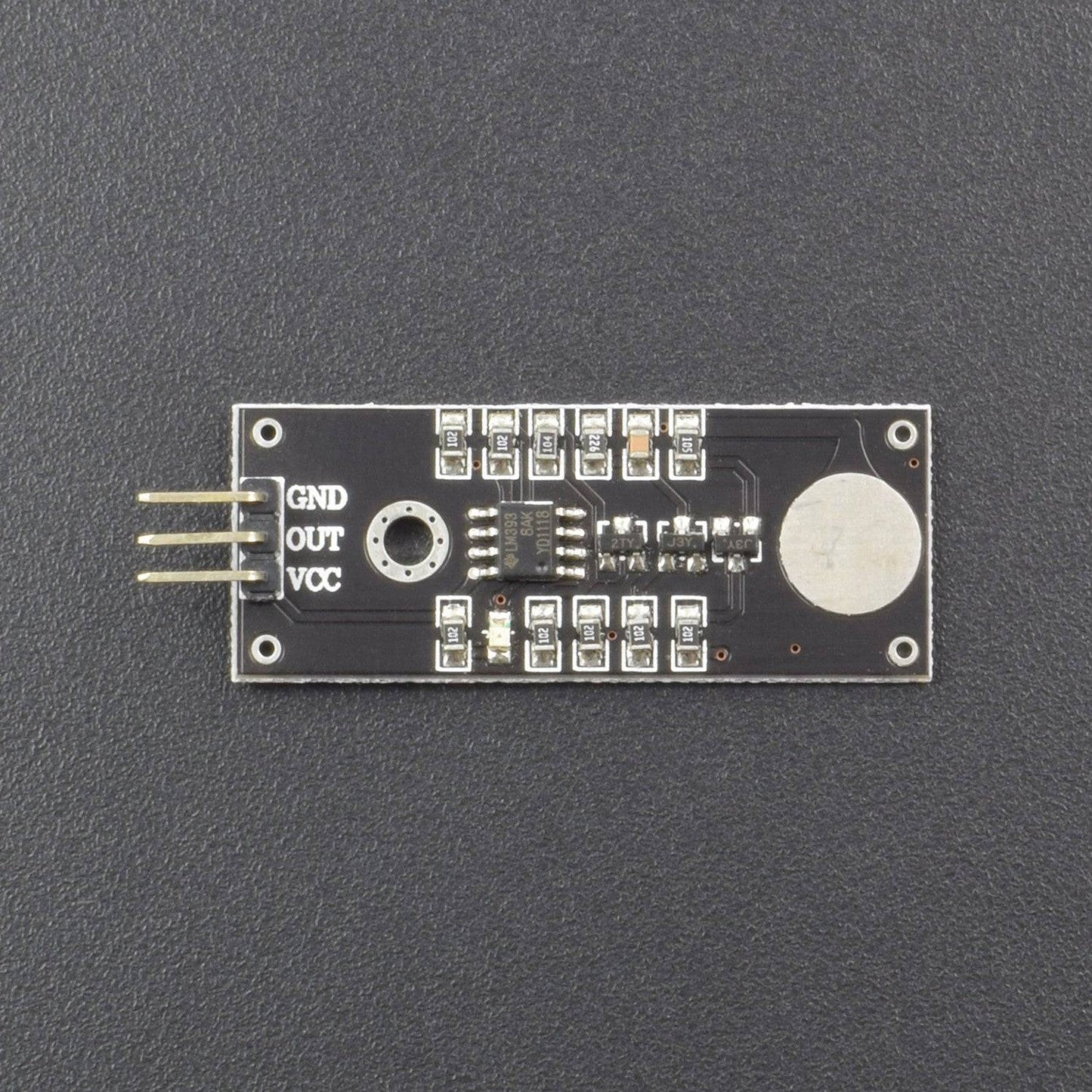

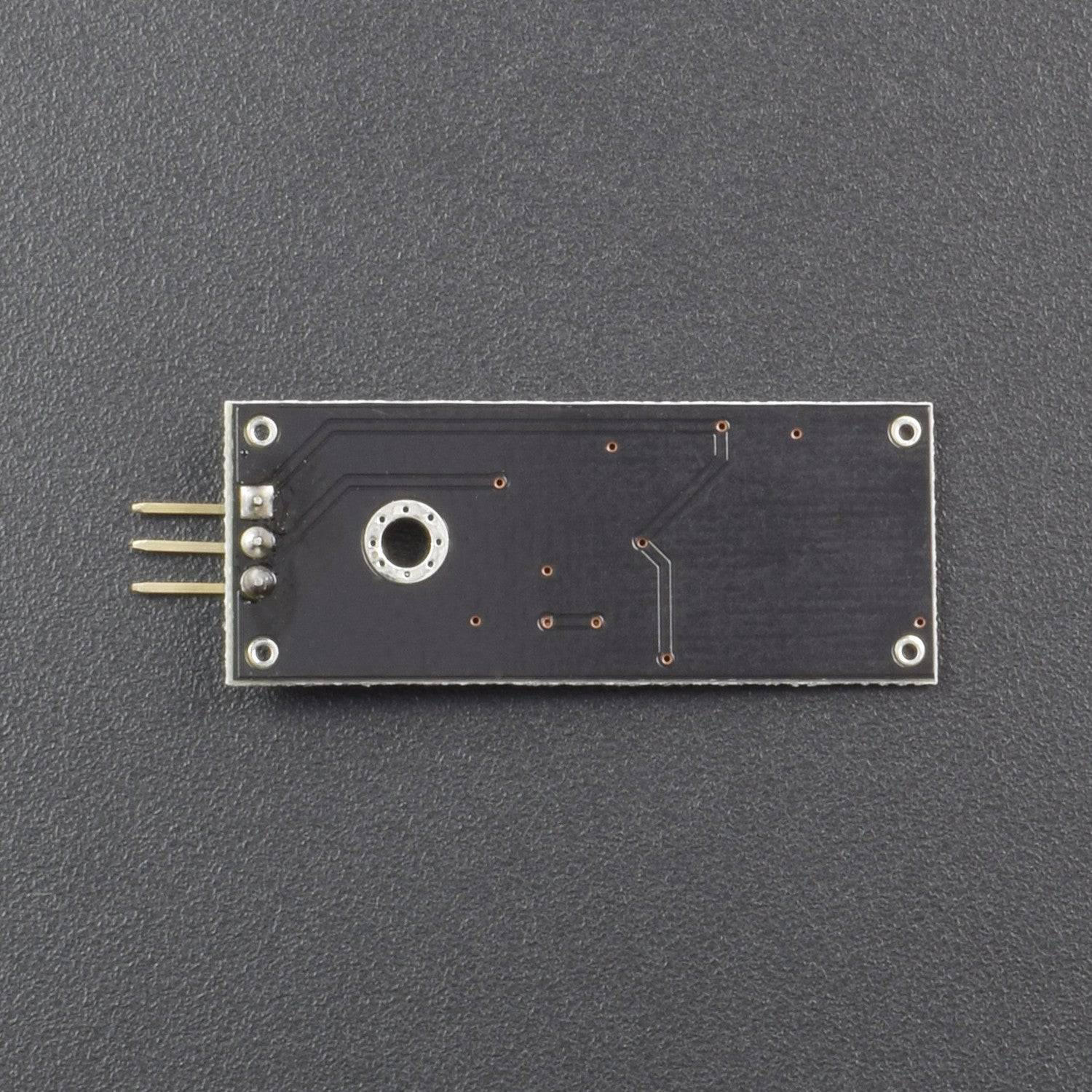

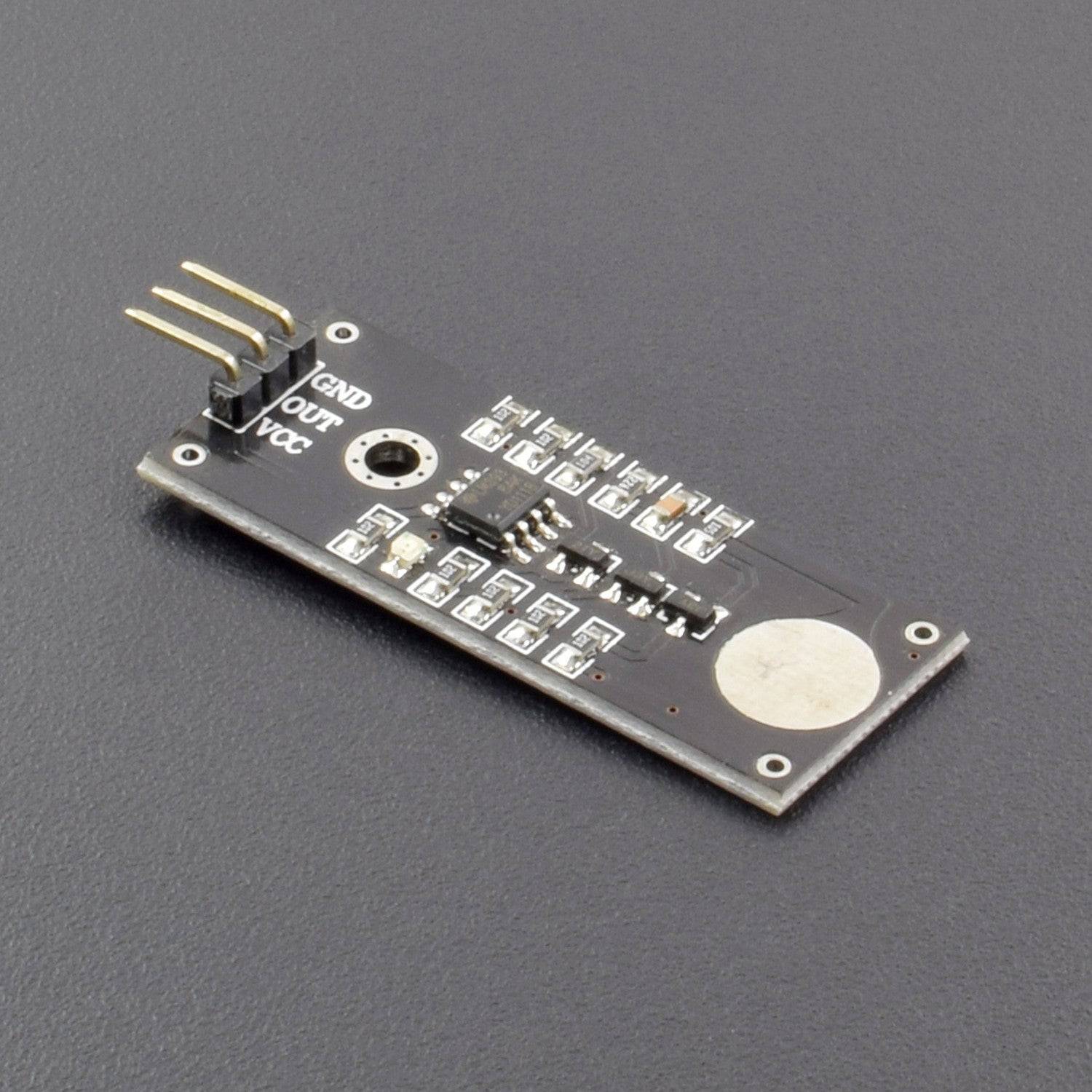

Digital Sensor TTP223B Module Capacitive Touch Switch for Arduino Development Board.

Specification:

  • Operating voltage: DC 3-5V
  • Low power consumption
  • Can replace the traditional touch of a button
  • Four M2 screws positioning holes for easy installation
  • Control Interface: A total of three pins (GND, VCC, SIG), GND to Ground, VCC is the power supply, SIG digital signal output pin; -Power Indicator: Green LED, power on the right that is shiny
  • Dimensions: length 45mmX the wide 18mmX high 5mm

Features :

  • With the directions of the output TTL level signals.
  • Can be connected directly to a microcontroller input IO port.
  • anti-interference ability
  • Connected to the microcontroller, touch switch function
  • A relay module can be controlled separately
  • Long life and continuous work
  • The standard 2.54mm pin input and output connections.
  • Surrounded by a fixed mounting hole.

Package Included:

1 x Digital Sensor TTP223B Module
