- Display: max. reading 1999 counts
- Measuring DC Voltage Range: 200mV/2/20/200V ± 0.5%, 1,000V±0.8%
- Measuring AC Voltage Range: 2V/20V/200V±0.8%, 750V±1.2%
- Measuring DC Current Range: 2uA/200uA/20mA/-±0.8%, 200mA±1.5%, 10A±2.0%
- Measuring AC Current Range: 200uA ±1.0% 20mA/200mA ± 1.8%, 10A±1.0%
- Measuring Resistance Range: 200/2K/20K/2Mohm ± 0.8%, 20Mohm/200ohm ± 1.0%
Description:

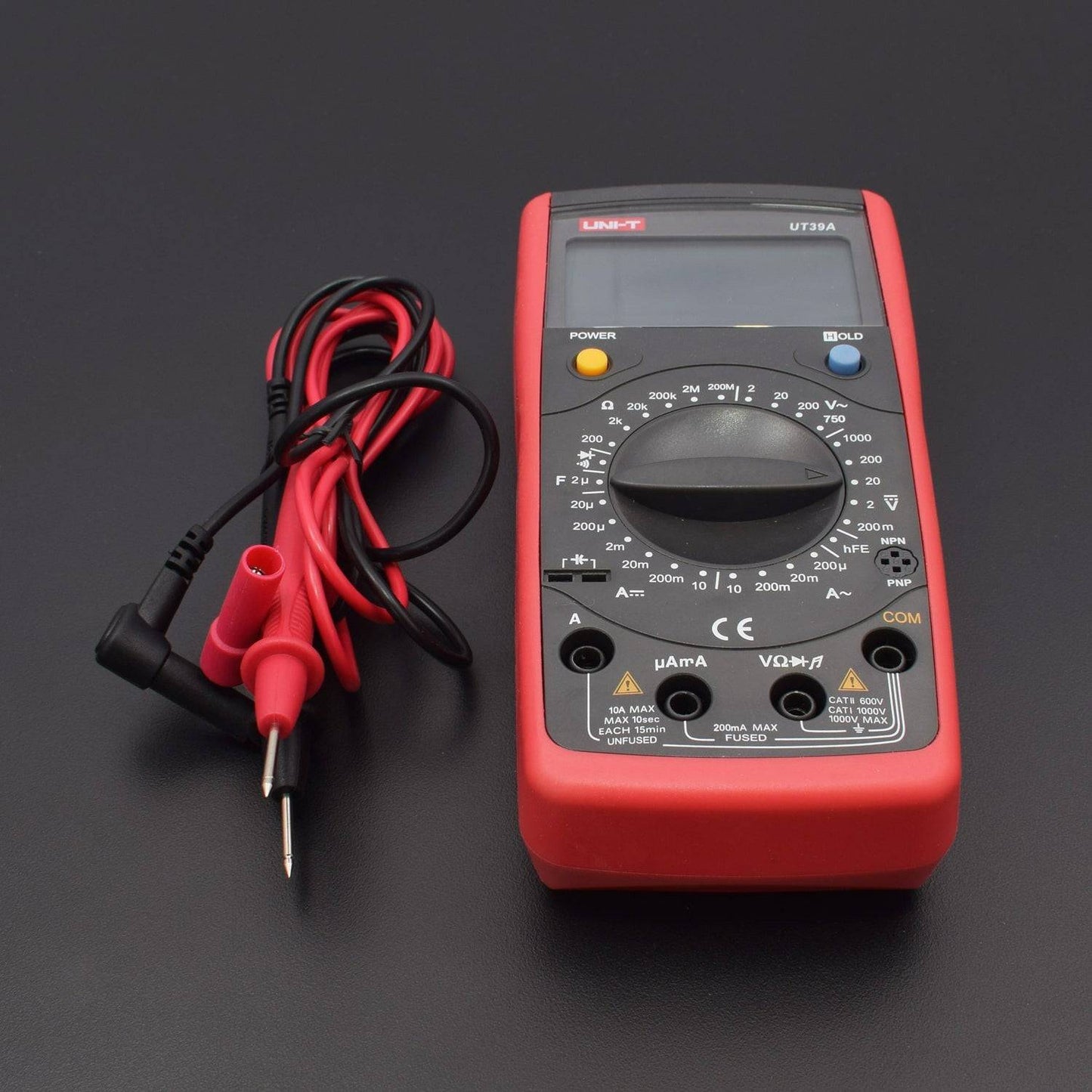

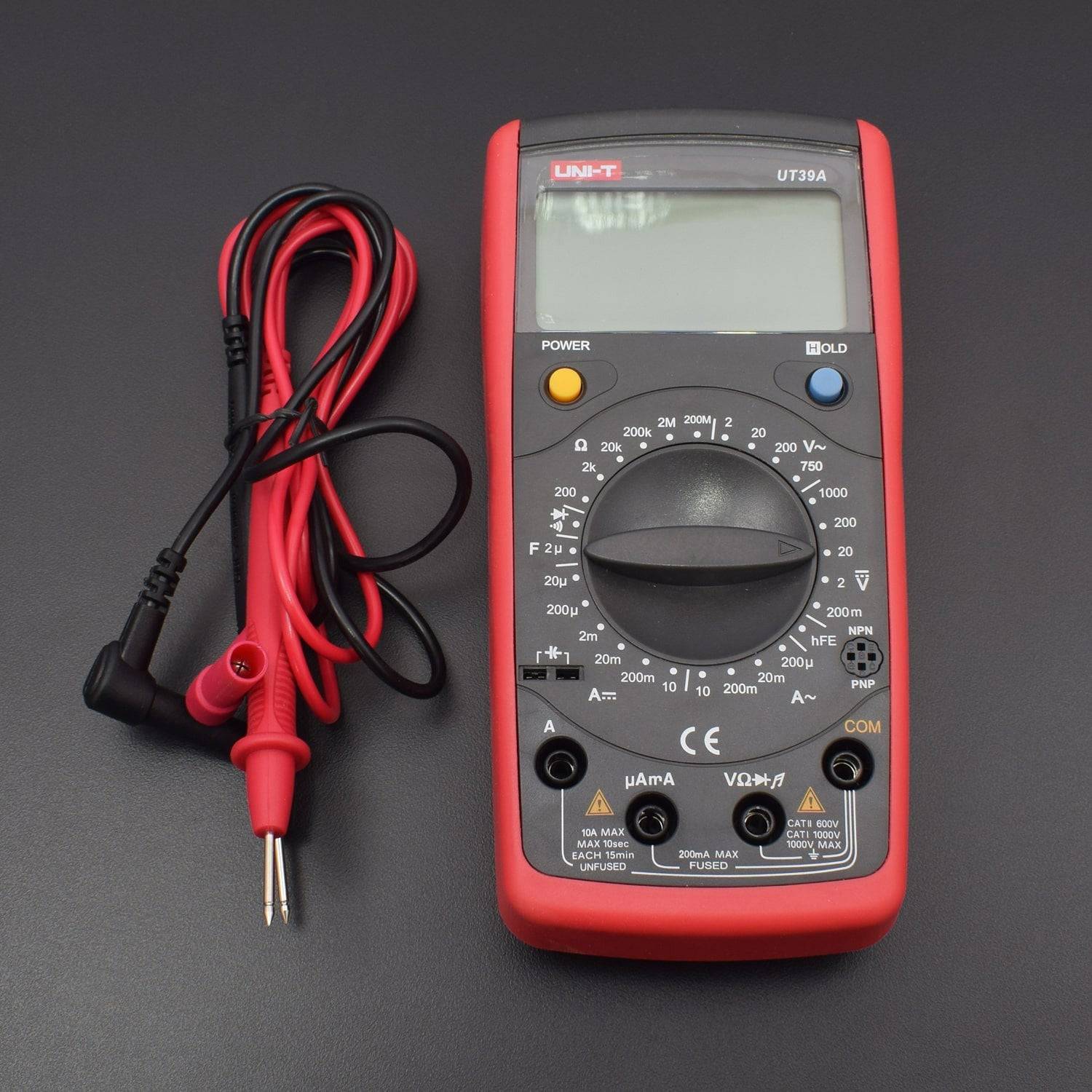

The UT39A is a digital Multimeter with high precision and accuracy. It comes with a large LCD display with a maximum reading of 1,999, easy to read even in the dark. It has many nice features such as Auto power-off, Data hold, Tilt back stand and etc. UT39A voltmeter is a digital multimeter not only good for AC/DC voltage testing, but also excellent in AC/DC current, resistance, capacitance, temperature, transistor, frequency, diodes and continuity testing. Besides, UT39A voltmeter has data hold and sleep mode features.
Specification:
- Display: max. reading 1999 counts
- Measuring DC Voltage Range: 200mV/2/20/200V ± 0.5%, 1,000V±0.8%
- Measuring AC Voltage Range: 2V/20V/200V±0.8%, 750V±1.2%
- Measuring DC Current Range: 2uA/200uA/20mA/-±0.8%, 200mA±1.5%, 10A±2.0%
- Measuring AC Current Range: 200uA ±1.0% 20mA/200mA ± 1.8%, 10A±1.0%
- Measuring Resistance Range: 200/2K/20K/2Mohm ± 0.8%, 20Mohm/200ohm ± 1.0%
- Measuring Capacitance Range: 2n/200n/2uF ± 4.0%
- Continuity checking with buzzer (when resistance is less than 10 ohms)
- Diode check
- hFE: 1 - 1000
- Power source: 6F22 (9V) x 1
Features:
- UT39A voltmeter is with on-off warning function to indicate you the situation of the tool.
- The output current is operated at low-frequency square wave to prevent the acoustic resonance.
- UT39A voltmeter with hint for low battery to avoid data losing caused by auto power off without reserving.
- 4 Resistance of UT39A voltmeter voltage input reaches to 10MW.
Package Included:
1 x Digital Multimeters Uni-T Ut39A /Standard Digital Multimeter
