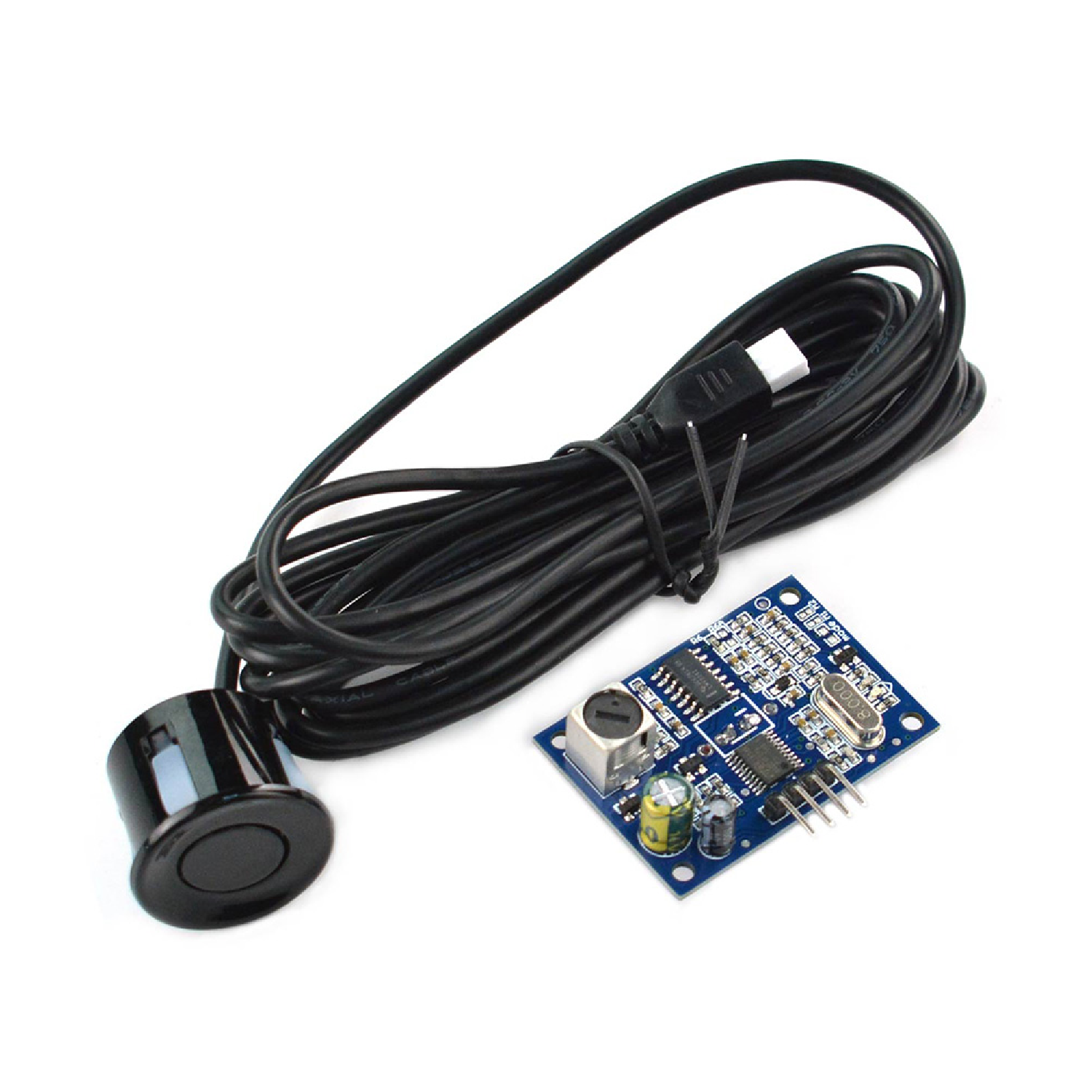

DFRobot Waterproof Ultrasonic Sensor: Distance Sensor Separate Probe 20cm to 6m For Easy Installation

DFRobot Waterproof Ultrasonic Sensor: Distance Sensor Separate Probe 20cm to 6m For Easy Installation

In stock

Rs. 1,949.00
Rs. 1,949.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Most ultrasonic distance sensors aren't waterproof, which can be a problem if you need your project to withstand the elements outdoors. No need to worry anymore! We have developed waterproof & ultrasonic distance sensors with a waterproof sealed emitter. This sensor is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc. What will you make?

Note: SR04T can only work at 5 V, and it comes with only one working mode. Version 2.0 can work at 3.3-5V, providing several modes to choose from.

Specifications:

  • Operating voltage: DC3.0-5.5V
  • Static current: >8mA
  • Operating current: 30mA
  • Operating range: 20cm ~ 6m
  • Resolution: 1mm
  • Detecting Angle: < 75°
  • Operating Temperature: -20 ~ 70°C
  • Cable Length: 2.5m

Features:

  • Small size, easy to use.
  • Plug-and-play device
  • Low voltage, low power consumption.
  • High accuracy.
  • Strong anti-jamming.

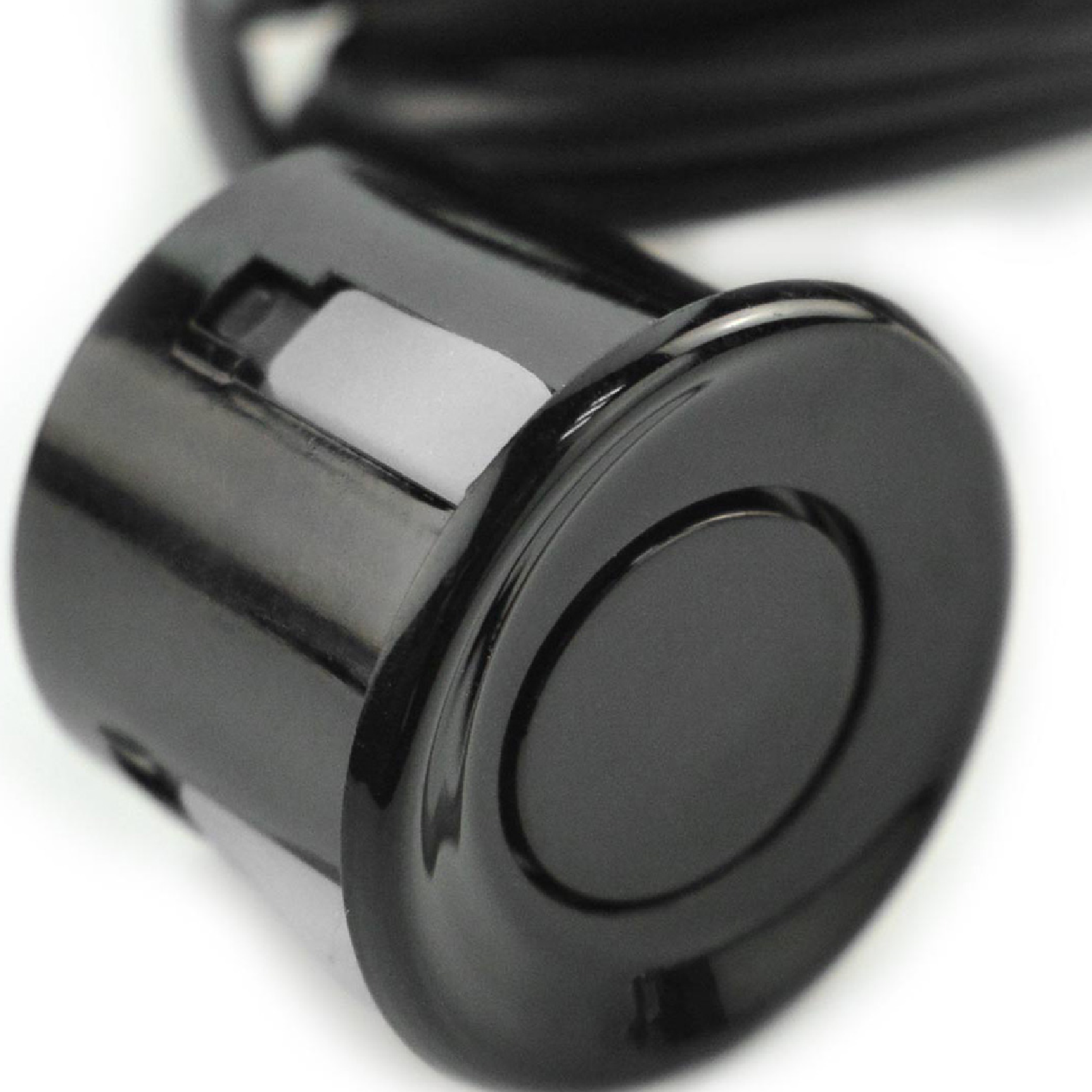

  • Integrated with the wire-enclosed waterproof probe, it is suitable for wet, harsh measurement occasions.

Useful Links:

Package Included:

1 x Waterproof Ultrasonic Sensor with a Separate Probe
