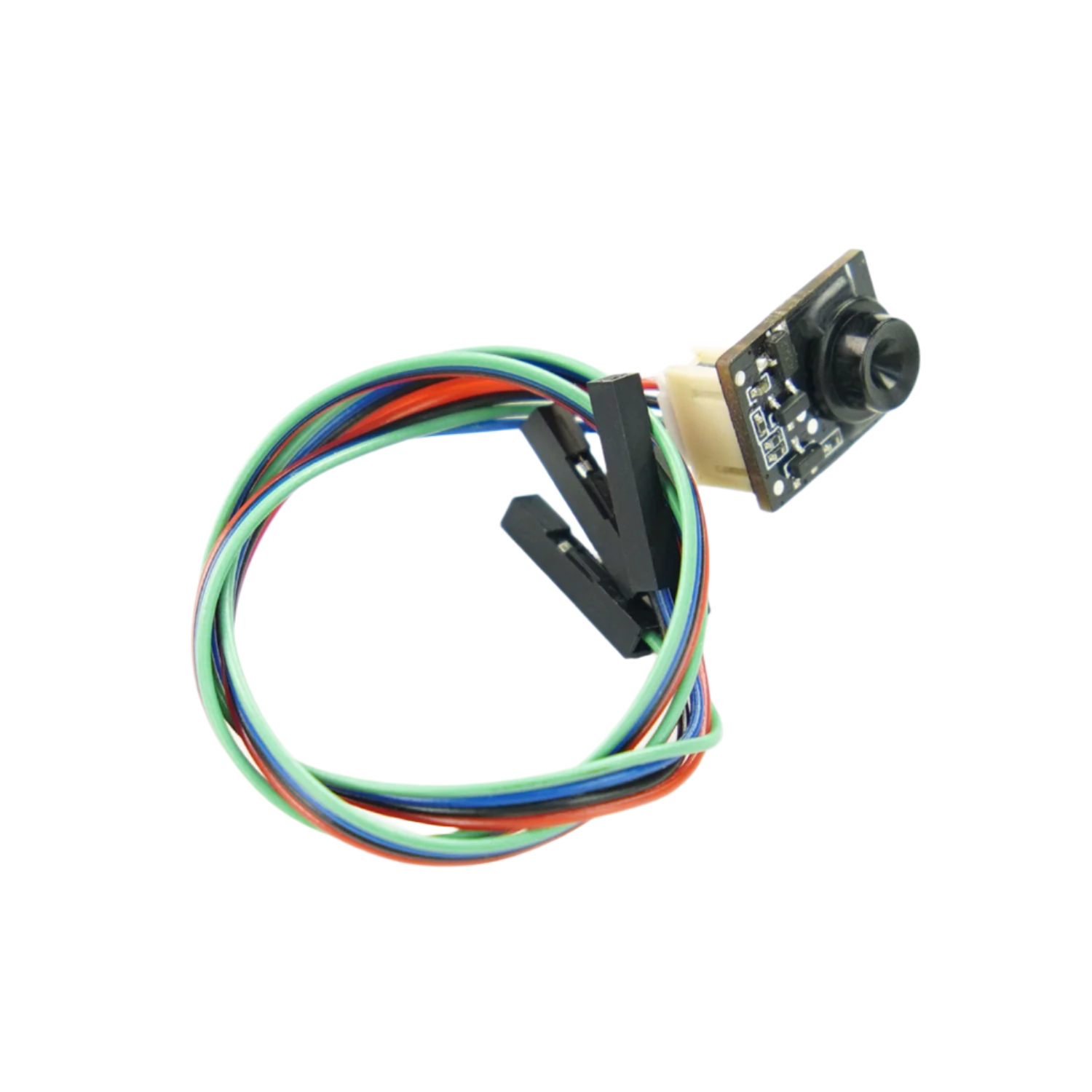

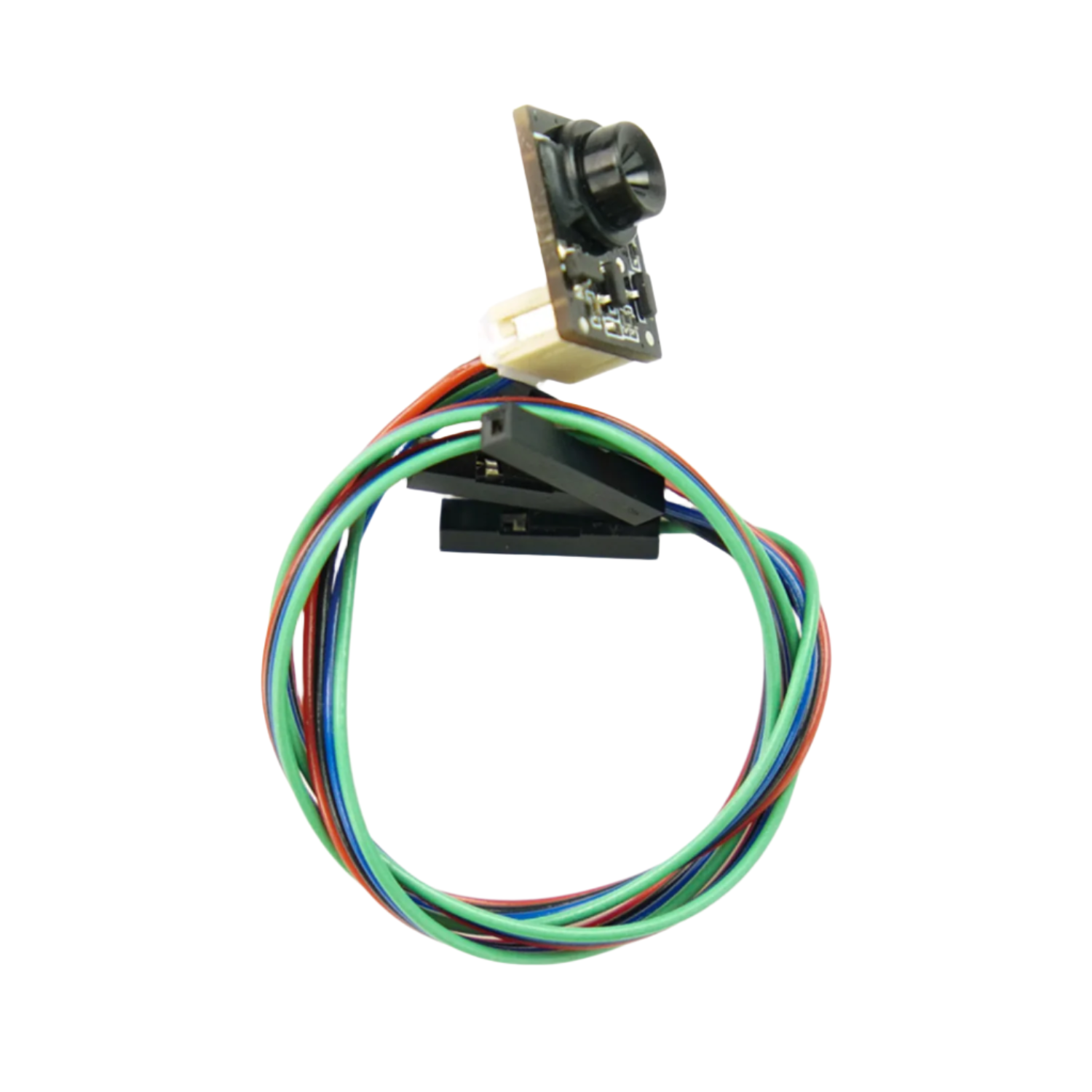

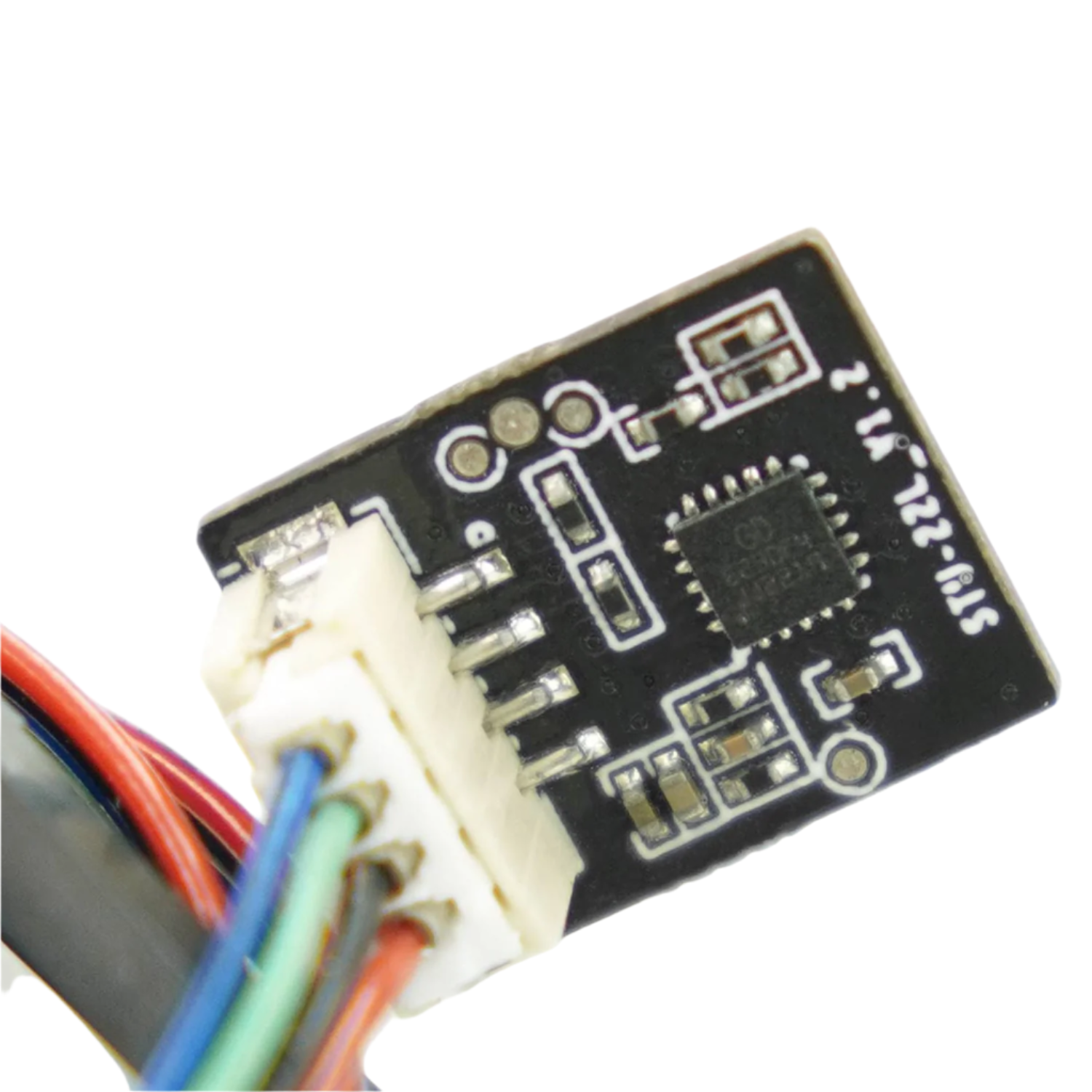

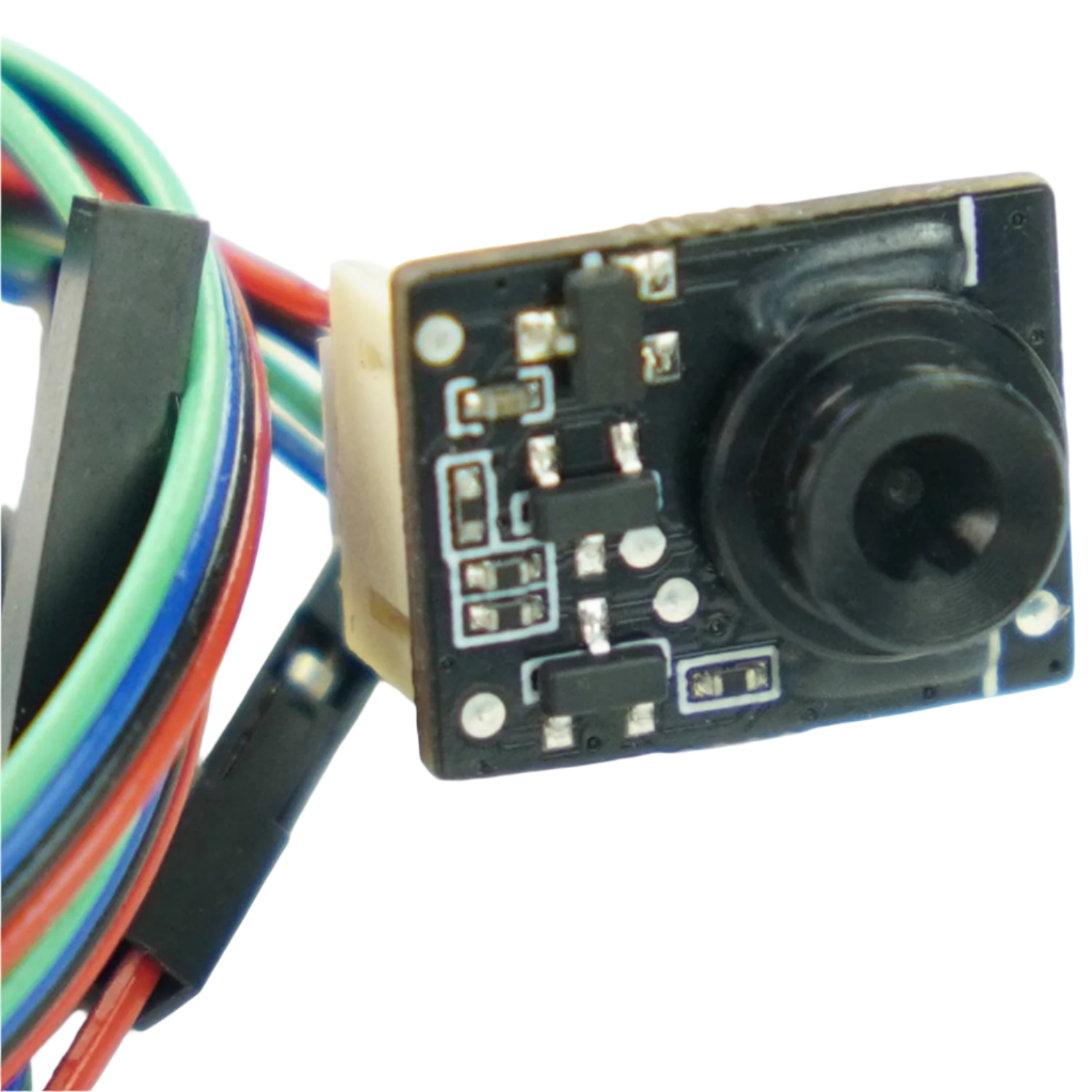

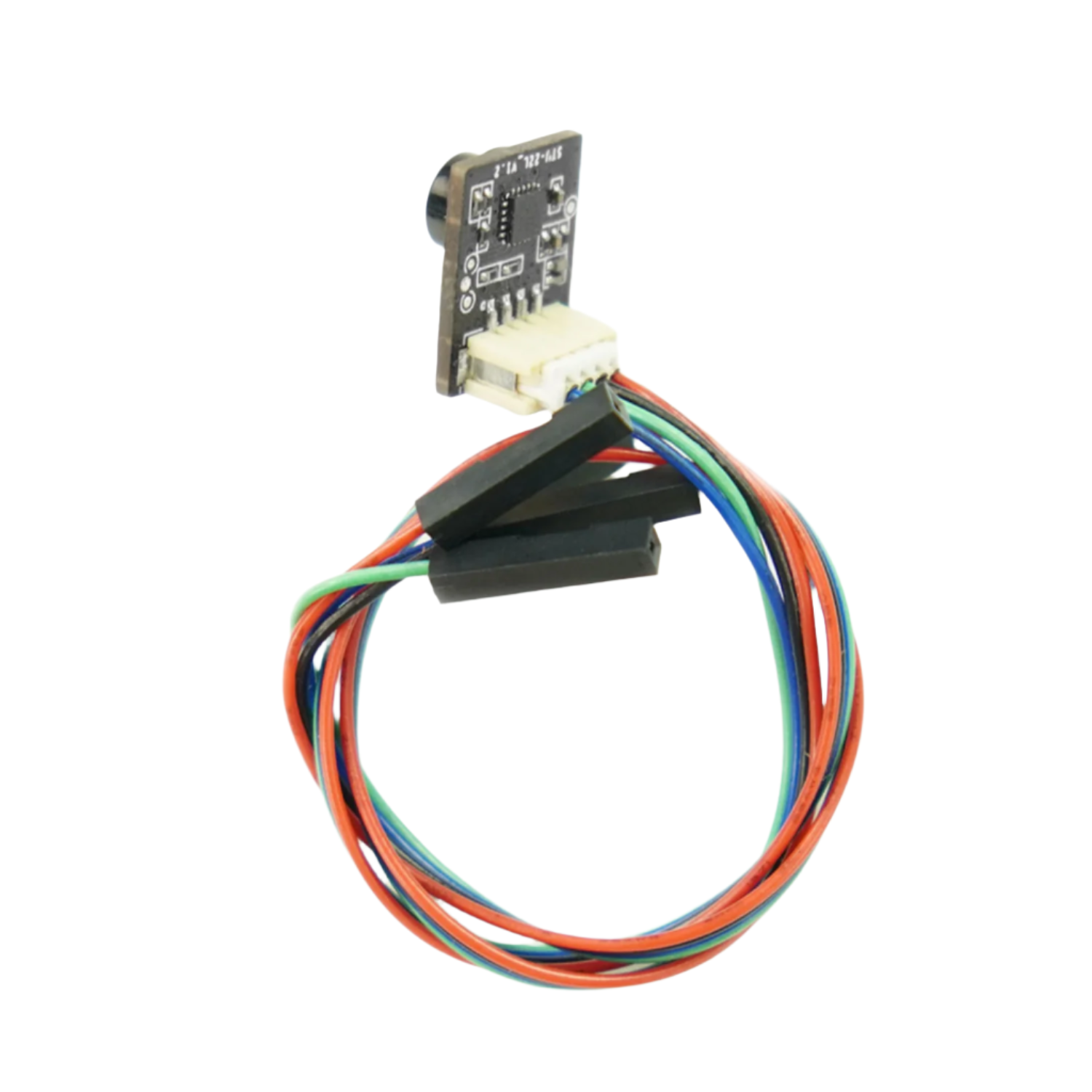

DFRobot Ultrasonic ToF Material Detection Sensor 2-10cm Ultrasonic Material Detection With Digital And Serial Communication

DFRobot Ultrasonic ToF Material Detection Sensor 2-10cm Ultrasonic Material Detection With Digital And Serial Communication

In stock

Rs. 1,151.00
Rs. 1,151.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Ultrasonic Time-of-Flight Material Detection Sensor represents a sophisticated yet compact solution for near-field material identification. Operating on the principle of ultrasonic time-of-flight, this ultra-low-power device excels at distinguishing between hard and soft materials within a 2 to 10 centimeter sensing zone.

Its core innovation lies in its ability to analyze minute variations in echo energy, providing a reliable means of differentiating surface characteristics. Featuring a 45° field of view for broad coverage and versatile UART/IO communication for easy interfacing, this sensor is engineered for seamless incorporation into embedded systems. Its IP54-rated enclosure ensures durability, while its lightweight design minimizes integration overhead. This sensor delivers dependable and intelligent material recognition for a wide range of applications.

Specifications:

  • Input Voltage: 3.3V
  • Start-up Current: 50mA
  • Operating Current: 8mA
  • Driving Frequency: 175KHz
  • Detection Range: 2 to 10cm
  • Detection Frequency: 100Hz
  • FOV: 45°
  • Operating Temperature：-10 to 50℃
  • Storage Temperature: -30 to 70℃
  • Lifetime: 3000h
  • EDS Protection Level: 15 kV
  • Protection Level: IP54
  • Communication Mode: UART/IO
  • Weight: 1.0g (wires not included)

Features:

  • Miniature design with minimal weight for easy integration.
  • Effectively identifies materials across a 2–10 cm span.
  • Wide 45° FOV ensures comprehensive material scanning.
  • Engineered for consistent and reliable material detection.
  • Utilizes precise ultrasonic echoes for material differentiation.
  • Ideal for battery-operated and space-constrained applications.
  • Designed for straightforward incorporation into various systems.

Applications:

  • Intelligent Cleaning

Documents:

Package Included:

1 x DFRobot Ultrasonic ToF Material Detection Sensor
