Description:

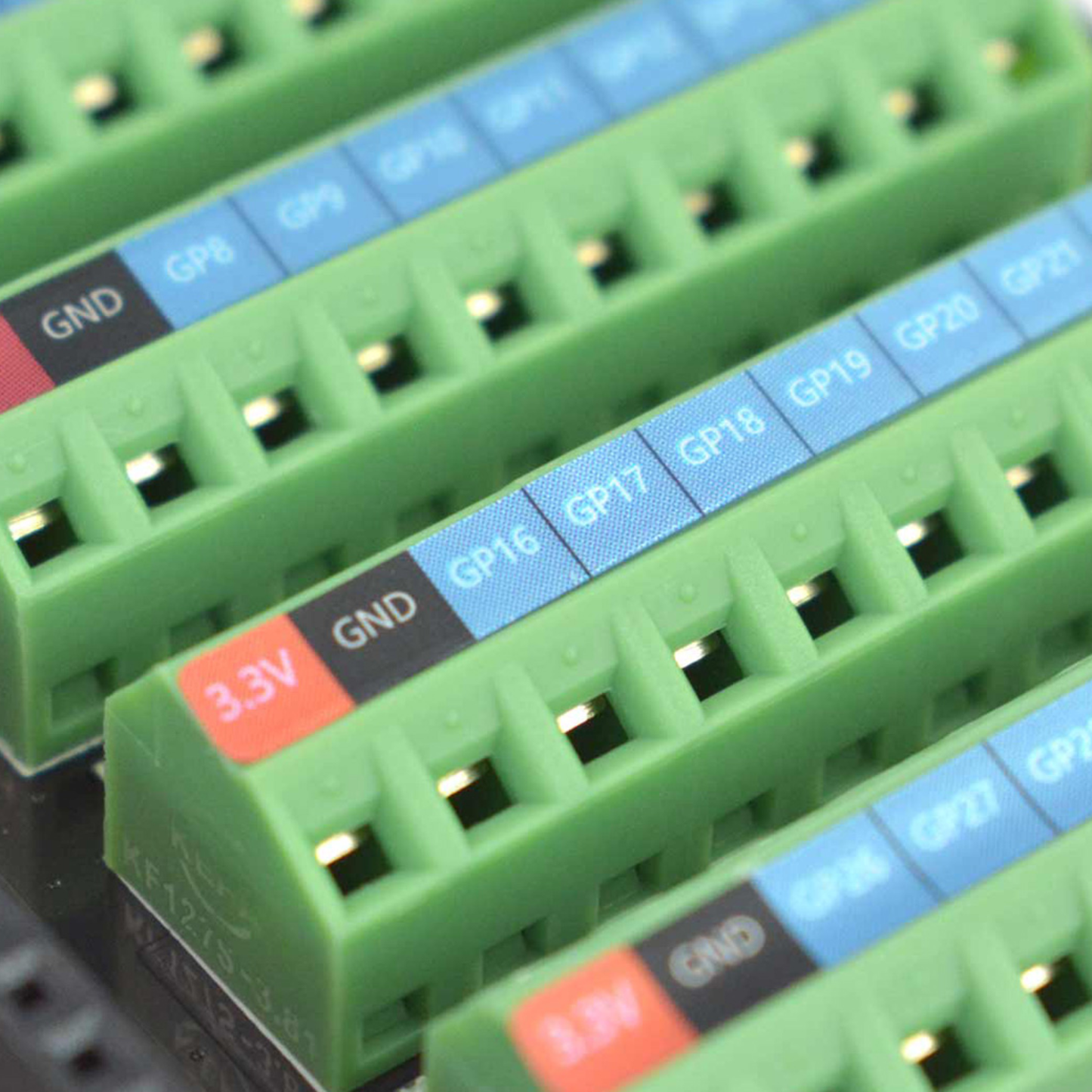

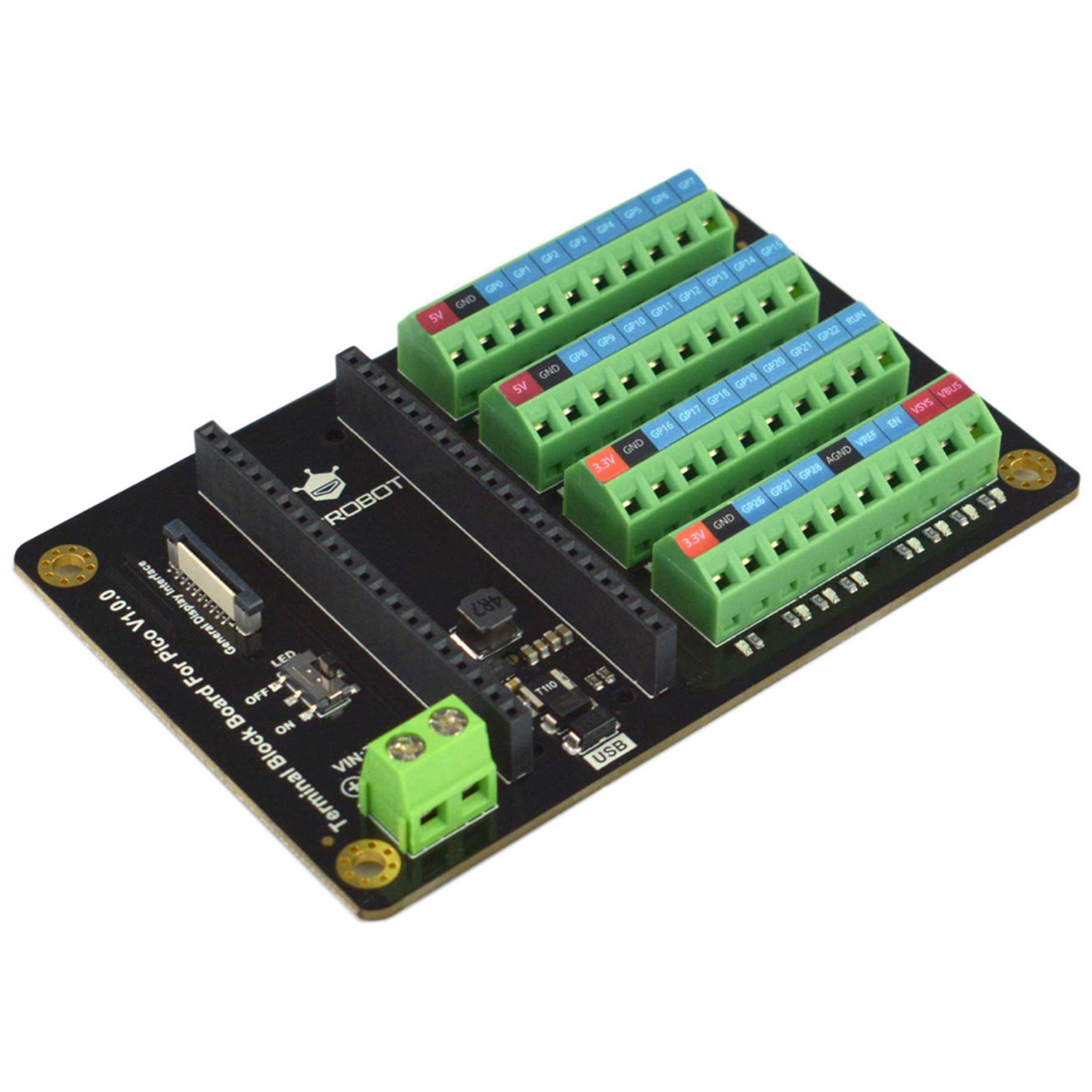

This robust Raspberry Pi Pico/Pico 2 terminal expansion board is designed for makers and engineers who prioritize secure and organized wiring. It significantly simplifies project development by breaking out every pin of the Pico into readily accessible terminal blocks, eliminating the need for soldering or complex jumper wire setups.
This expansion board is ideal for anyone looking to create projects that require a lot of external connections. The terminal blocks make it easy to attach wires, sensors, actuators, and other components, and the LED indicators make it easy to see what's going on. The wide input voltage range makes it easy to power your project from a variety of sources.
Specifications:
- External Voltage Input: 7~24V

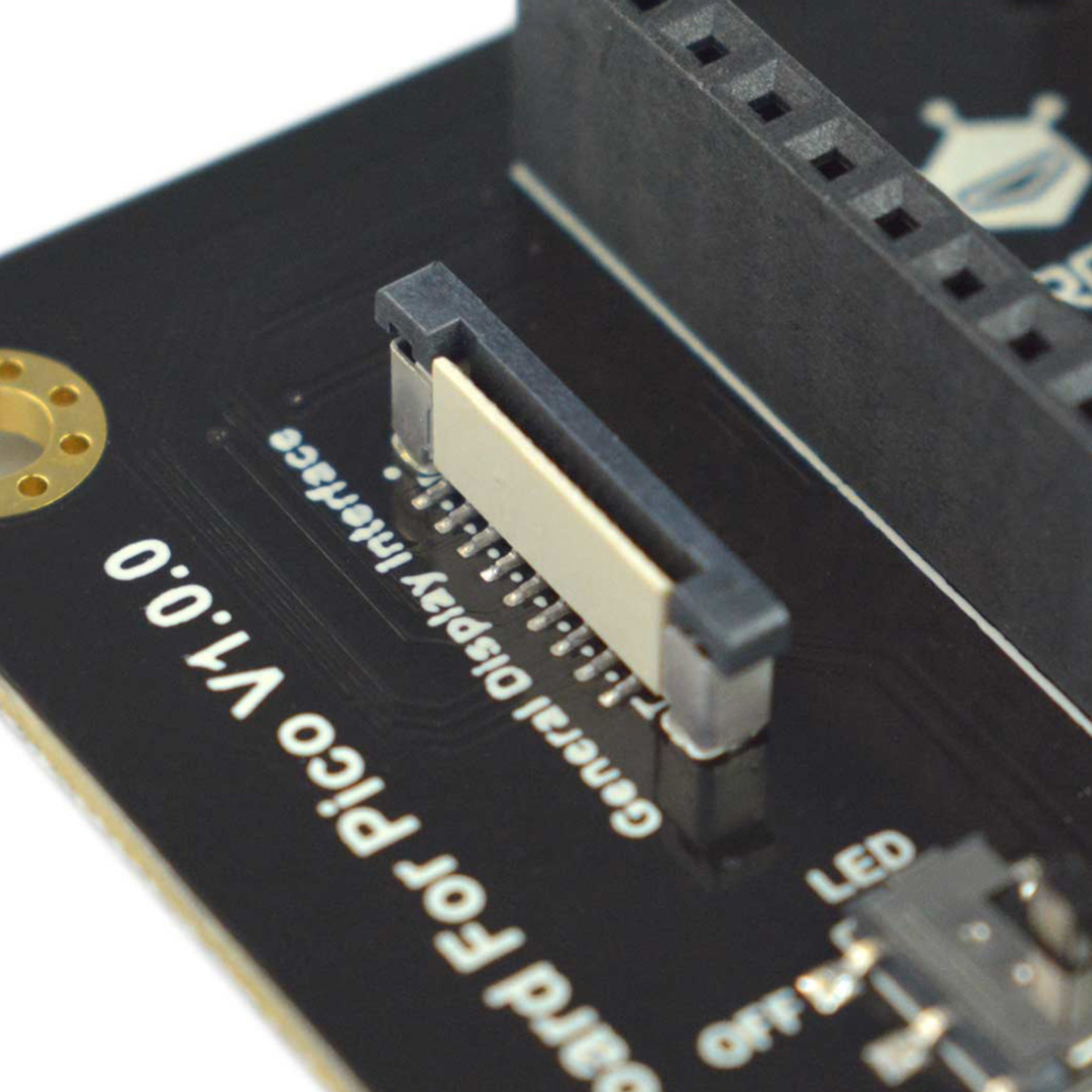

- Screen Interface: GDI
- GPIO x27
- GND x5
- 5V Port x2
- 3.3V Port x2
- Port LED Indicator x35
- Port LED Indicator Color: Blue
- Default ON Port Indicator: 3.3V, 5V, VSYS, VBUS, VREF
Features:
- Ensures stable and reliable wiring.
- Access to all main board pins.
- Accepts 7-24V external power.
- Clear labeling for quick identification.
- Direct connection for displays.
- Visual indication of terminal activity.
- On/off switch for the status indicator.

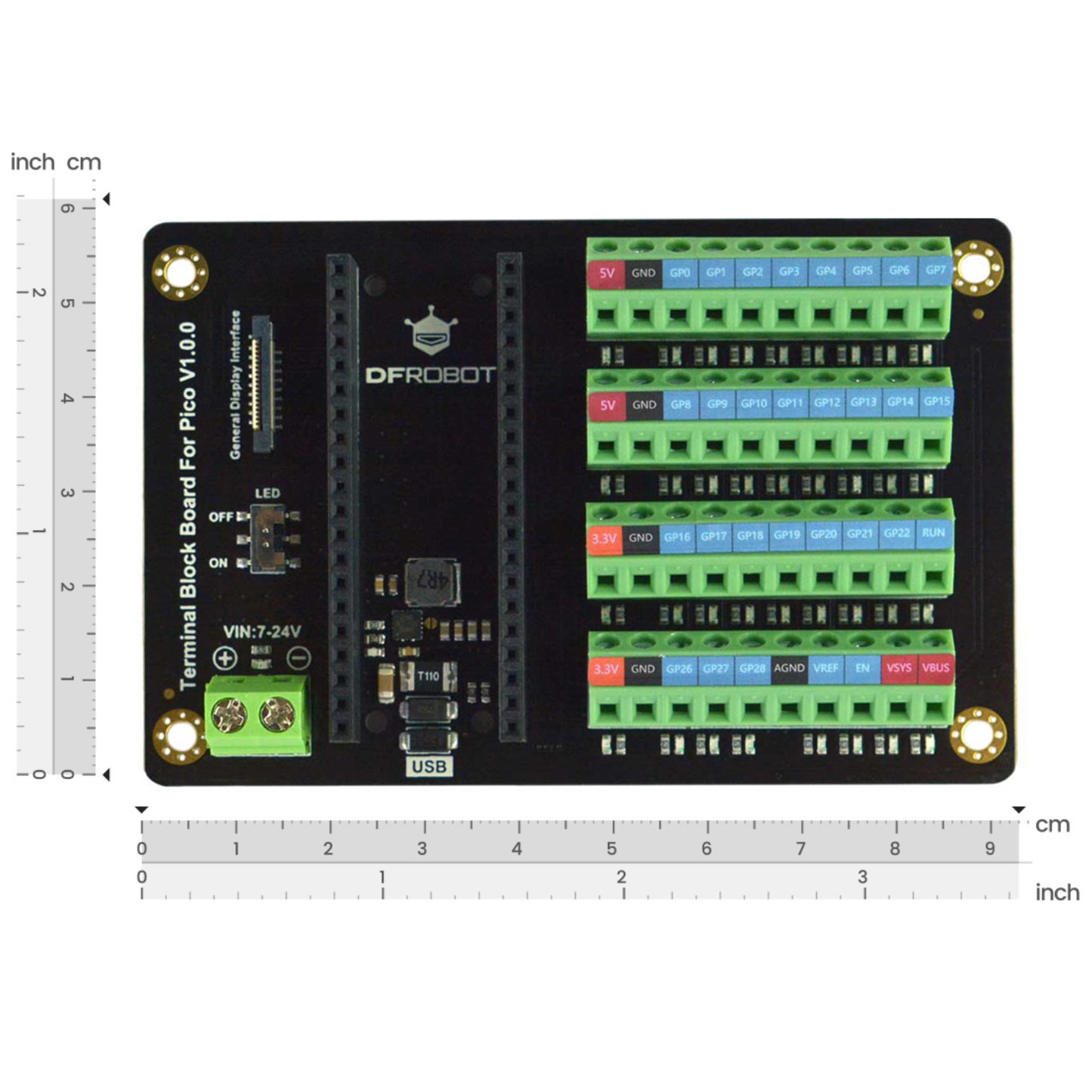

Product Interface:
Documents:
Package Included:
1 x DFRobot Terminal Block Board
