Description:

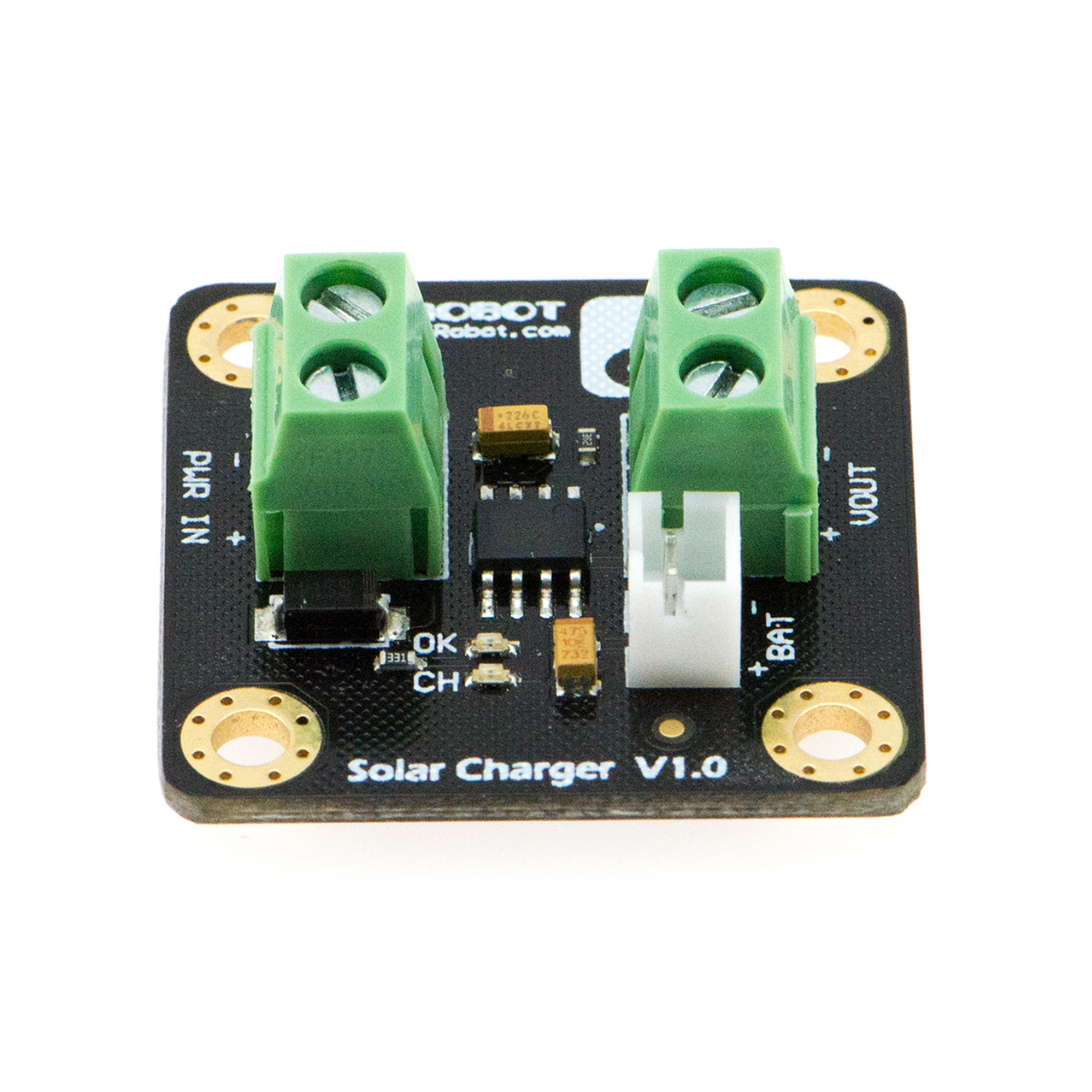

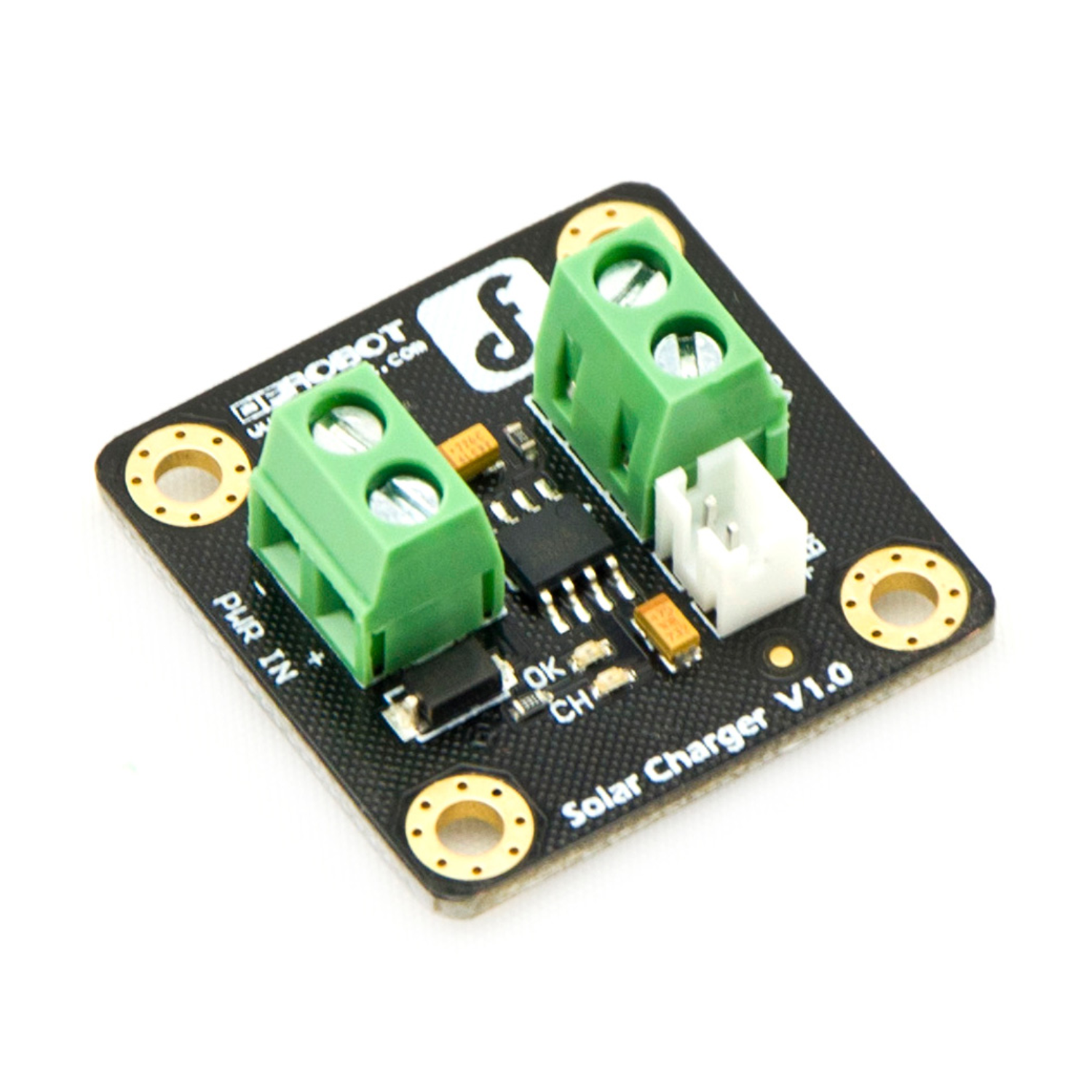

This compact and intelligent Solar Lipo Charger offers a streamlined solution for powering your projects with sustainable energy. Specifically engineered for single-cell 3.7V Lithium-ion batteries, it ensures safe and efficient charging with built-in input reverse polarity protection, safeguarding your components from accidental miswiring. Delivering a maximum charging current of 500mA, this charger strikes a balance between speed and battery longevity. Its user-friendly design allows for quick and straightforward integration into your circuits.
Imagine the possibilities: by pairing this charger with a solar panel and a lithium battery, you can effortlessly create a self-sustaining solar power system, perfectly aligned with the growing demand for green energy solutions in both fixed and portable applications. Accelerate your project development and achieve energy independence by incorporating solar power.
To further enhance your stand-alone embedded applications, consider complementing this solar charger with our curated selection of cutting-edge wireless communication modules and data streaming technologies. Imagine seamlessly transmitting sensor readings or monitoring data from even the most remote locations, powered entirely by the sun. Unlock a new era of autonomous and environmentally conscious projects with this versatile solar lipo charger and our premium selection of supporting components.
Specifications:
- Input Voltage: 4.4 ~ 6V
- Charging Current: 500mA Max (Depending on the solar battery supply capability)
- Charging Cutoff Voltage: 4.2V
- Operating Temperature: -40 ~ 85℃

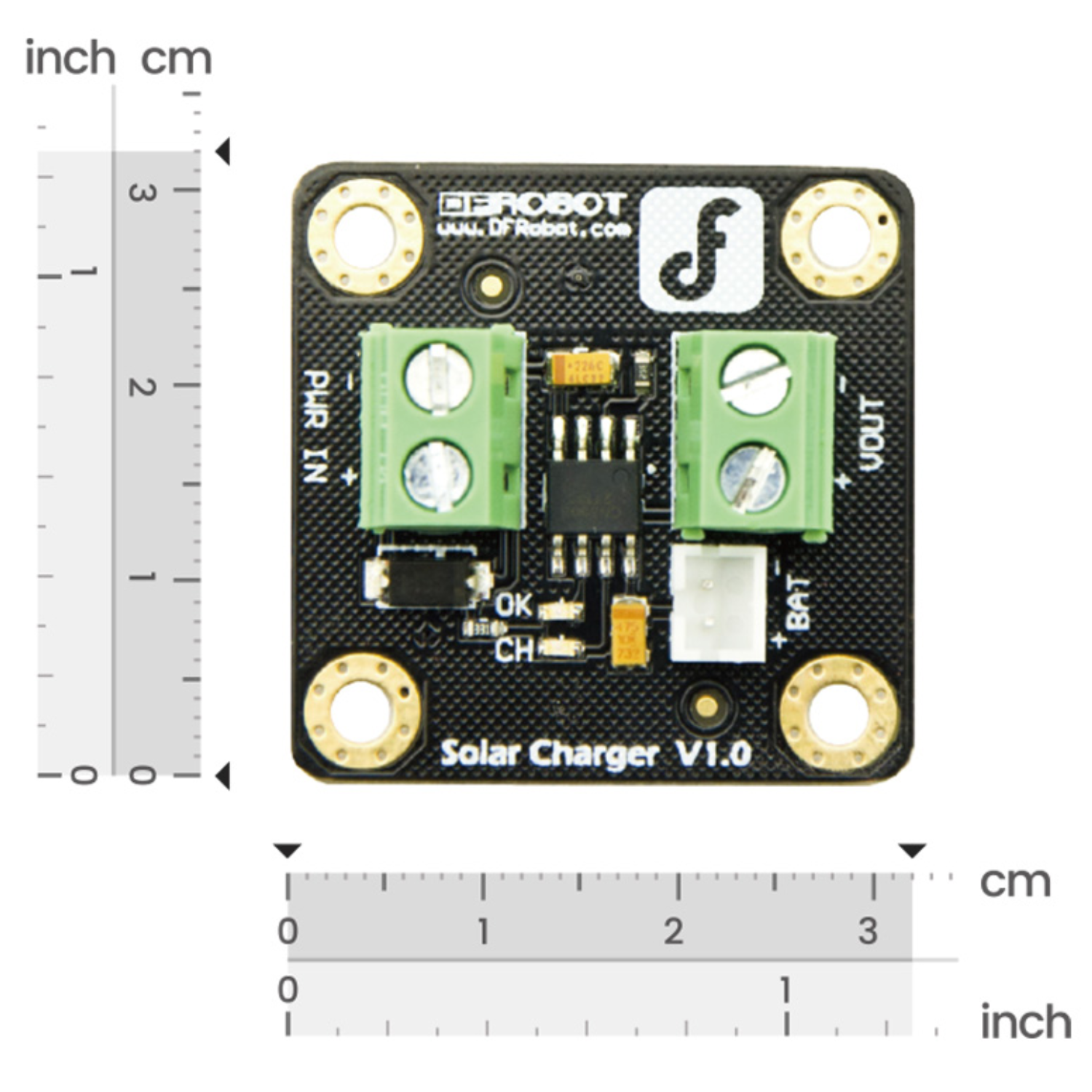

- Module Size: 33mm * 33mm * 12mm(1.30"*1.30"*0.47")
- Requisite battery: 3.7V lithium battery (Please note the maximum permissible charging current of the lithium battery)
- Charging Indicator:
No Battery: Red LED Flashing
Charging: Red LED
Done: Green LED
Features:
- Powers single-cell 3.7V Lithium Polymer (LiPo) batteries efficiently using solar energy.
- Red LED flashes, indicating no battery is detected.
- Solid Red LED illuminates while the battery is being charged.
- Solid Green LED signals that the battery is fully charged.
- Delivers up to 500mA charging current, adapting to the solar panel's output for safe and effective battery charging (note: charging current is limited by the solar panel's capability).
- Specifically designed for 3.7V lithium-ion and lithium polymer batteries. (Important: Ensure your battery can safely handle the charging current.)
Applications:
- Simple solar charger.
- Solar power system, Green energy.
Documents:
Projects:
Project 1: ESP32 Solar Weather Station
Package Included:
1 x DFRobot Solar Lipo Charger 3.7V
