Description:

This module integrates high-precision gyroscopes, an accelerometer, the microprocessor of high-performance and advanced dynamics solves, and Kalman filter algorithms that aim to quickly solve the current real-time movement of the module attitude. The use of advanced digital filtering technology can effectively reduce measurement noise and improve accuracy.

The module comes with a built-in gesture solver that can get an accurate attitude in a dynamic environment combined with a dynamic Kalman filter algorithm. Its static measurement accuracy is up to 0.05 degrees (dynamic 0.1) with high stability, which could bring better performance even than some professional Inclinometers!

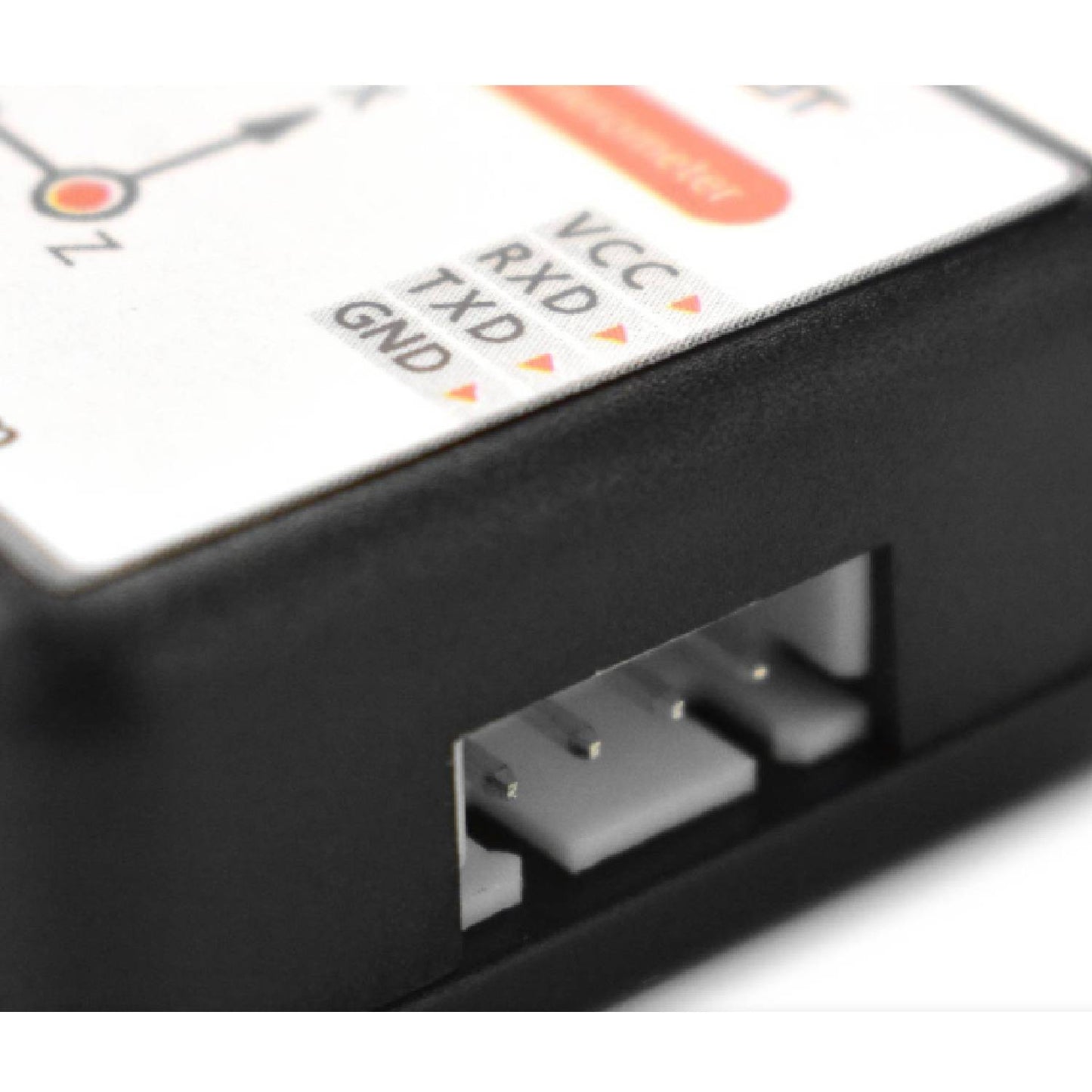

There is a voltage stabilizer circuit inside the module. The product should be operated at 3.3~5V and its pin level is compatible with 3.3/5V embedded systems. It employs a TTL interface for connection. In addition, the module supports 0.1Hz~200Hz data output.

Specifications:

  • Voltage: 3.3V~5V
  • Current: <40mA

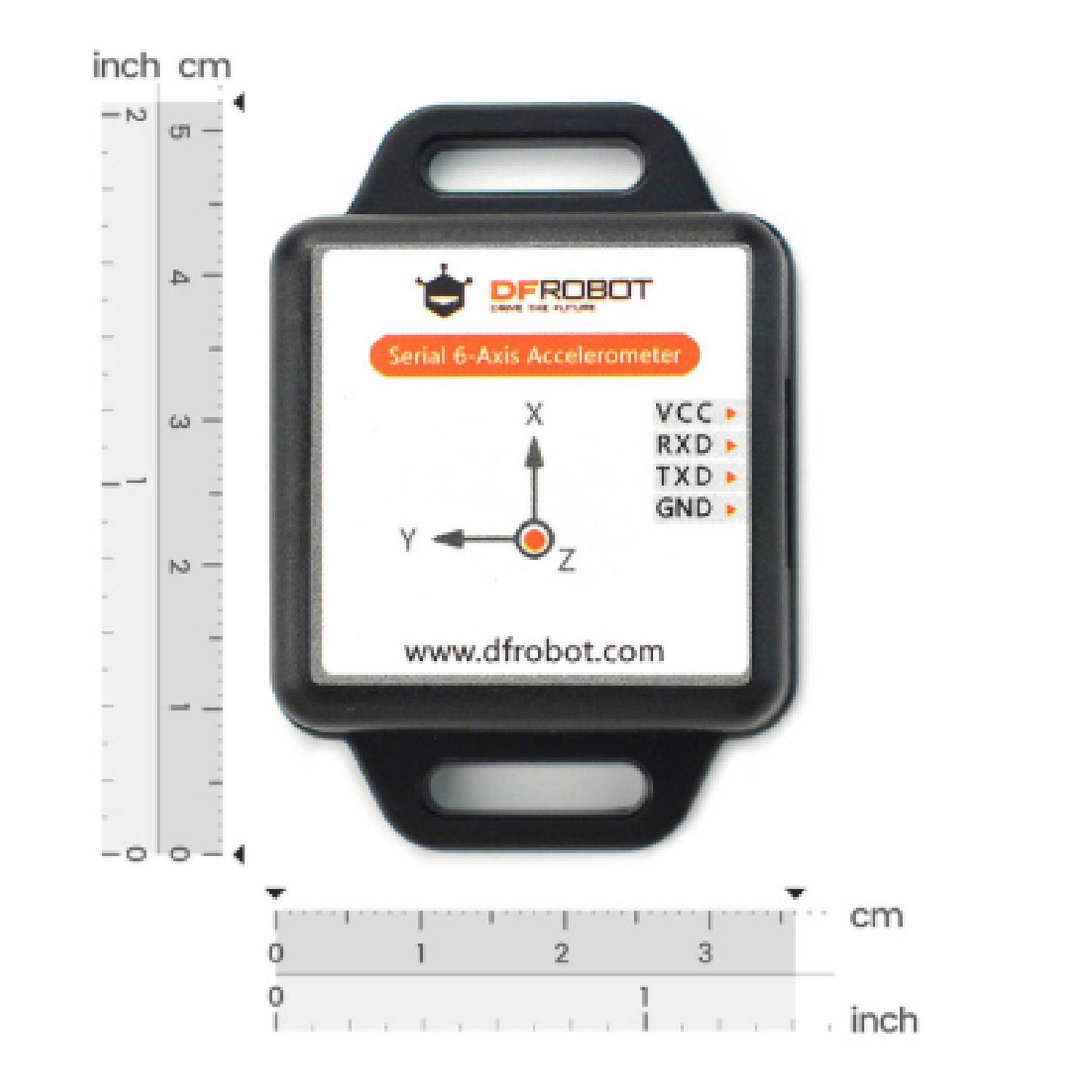

  • Size: 51.3*36*10mm
  • Measuring Dimension: acceleration: 3D; angular velocity: 3D; attitude angle: 3D
  • Range: acceleration: ±2/4/8/16g(optional); angular velocity: ±250/500/1000/2000°/s (Optional); attitude angle: ±180°

Useful Link:

 6-Axis Accelerometer

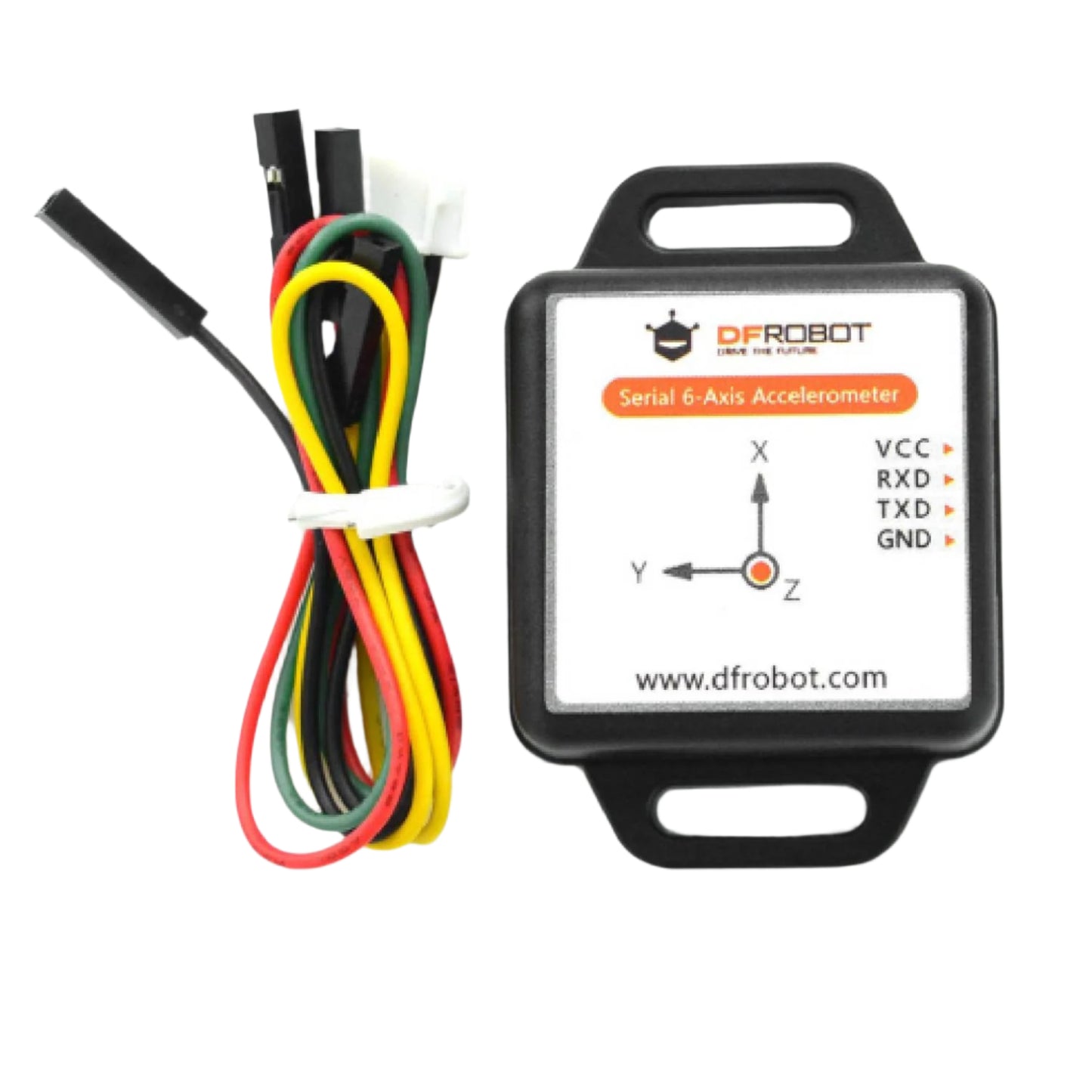

Package Included:

  • 1 x Serial 6-Axis Accelerometer
  • 1 x Wire
