Description:

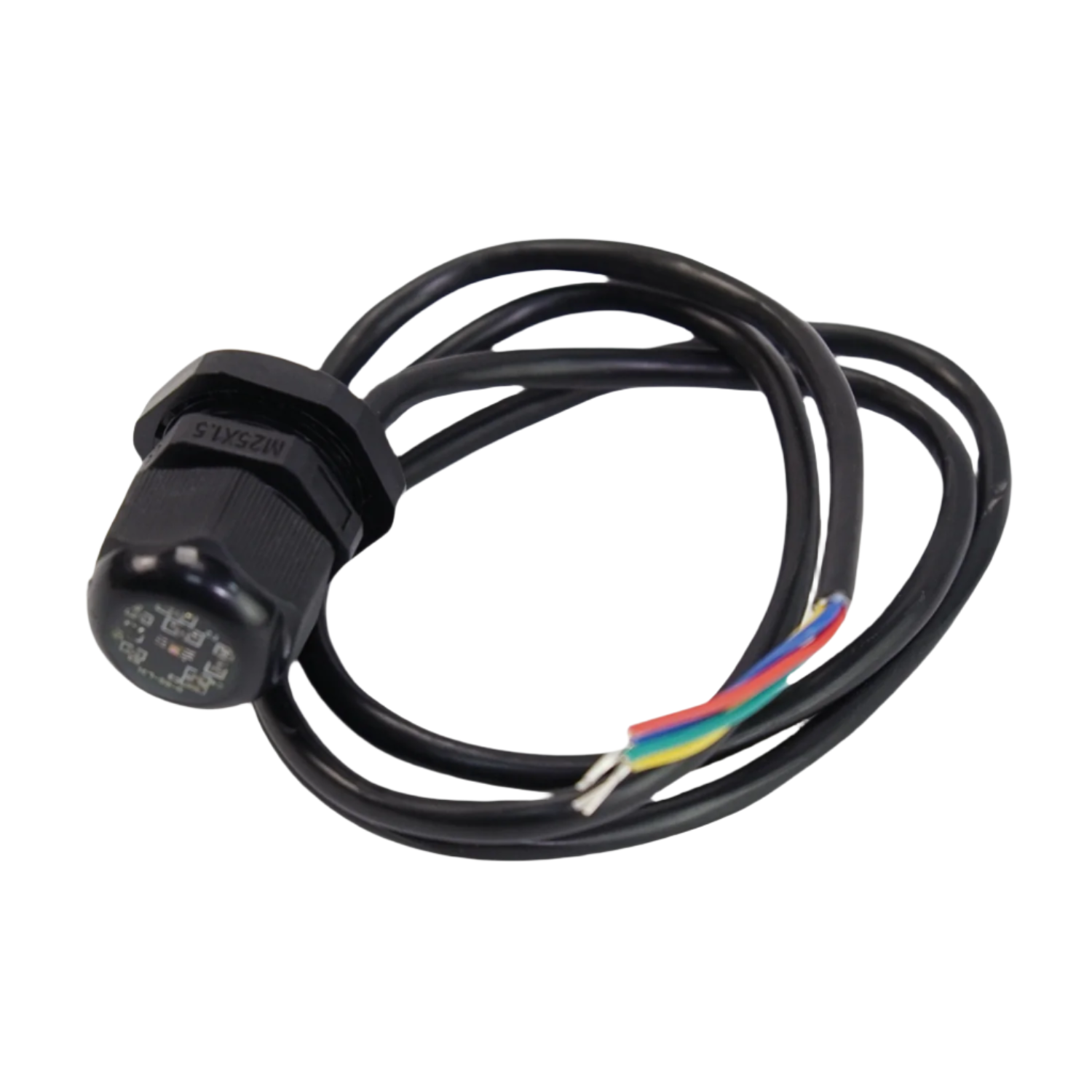

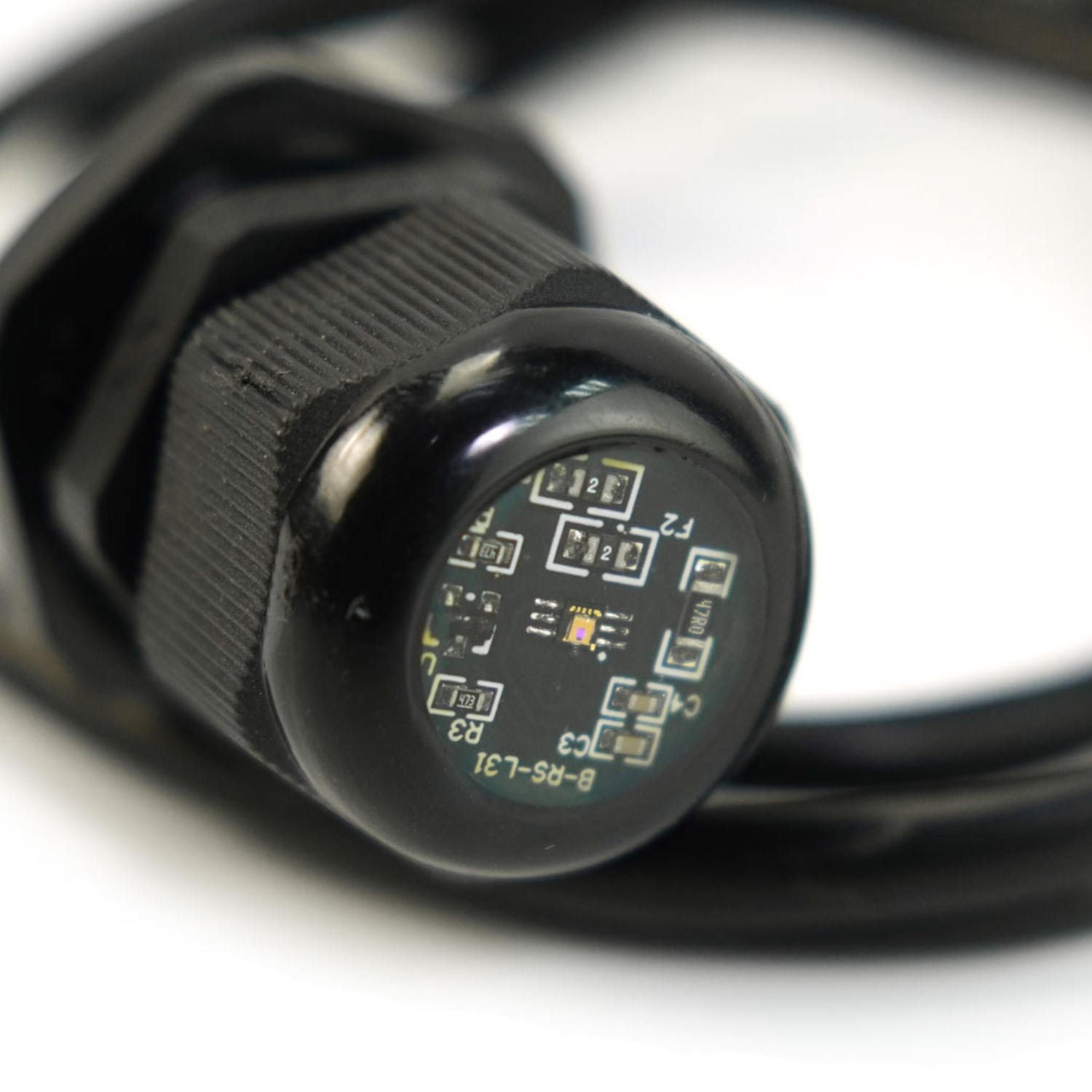

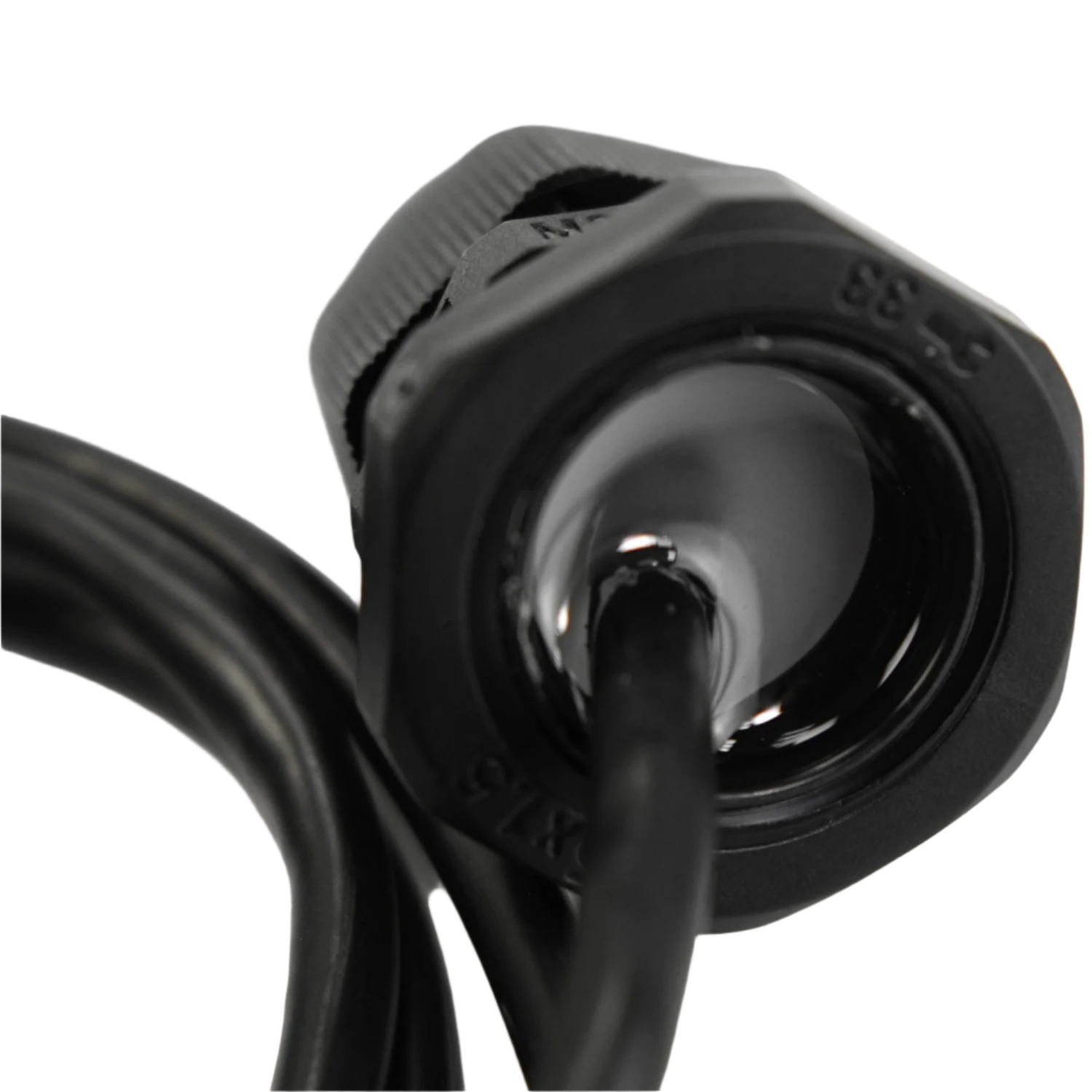

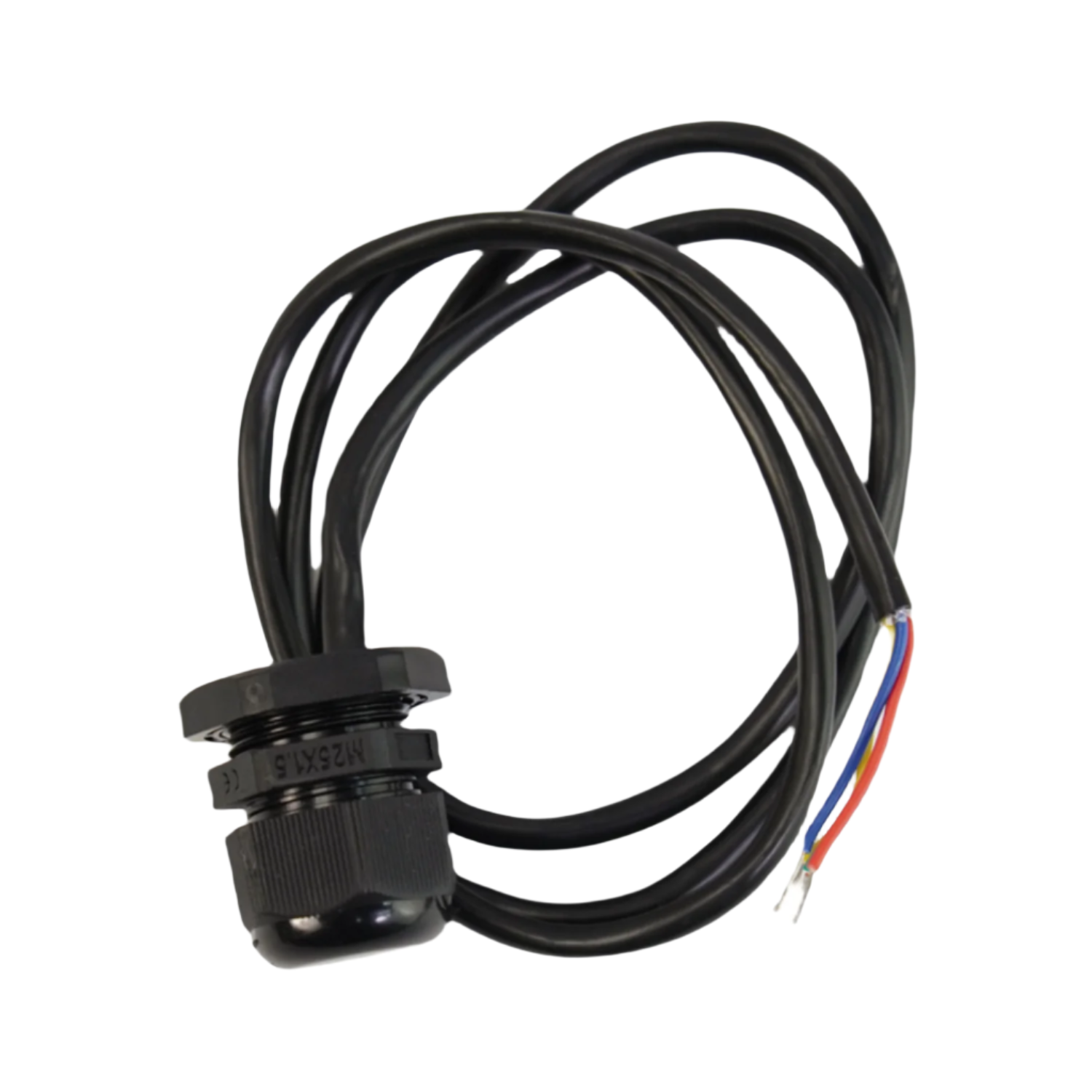

The DFRobot RS485 Waterproof Ambient Light Sensor offers a robust and precise solution for measuring light intensity across a broad 0 to 200,000 Lux range. Its digital design boasts ±5% accuracy and a fine 0.01 Lux resolution, ensuring reliable readings in diverse lighting conditions. Utilizing Modbus-RTU 485 communication, it guarantees stable data transmission over long distances, powered by a flexible 5- 32V DC input. The sensor's IP68 waterproof rating is ideal for demanding outdoor, agricultural (greenhouses), and industrial applications. Compatibility with Arduino and other platforms via TTL/Gravity RS485 adapters simplifies integration into automated lighting, smart agriculture, and environmental monitoring systems where accurate ambient light data is critical.
Specifications:
- Power supply voltage: DC 5- 32V
- Working current: <10mA
- Output mode: RS-485
- Measurement range: 0-200,000 Lux
- Resolution: 0.01 Lux
- Accuracy: ±5%
- Working temperature: -40°C~+80°C
- Protection level: IP68
- Thread length: 10mm
- Opening size: 25mm
- Wrench size: 33mm
- Cable diameter: 4-10mm
- Line length: 1m
Features:
- IP68 waterproofing ensures durability in harsh environments.
- Accurately senses light from 0 to 200,000 Lux.
- Detects minute light variations with 0.01 Lux resolution.
- Delivers light readings within ±5% precision.
- Uses Modbus-RTU for stable data exchange.
- Operates on a broad 5–32V DC voltage range.
- Easily interfaces with Arduino and microcontrollers.
- Consumes minimal energy (<10mA).
Applications:
- Weather Stations: Monitor ambient light for accurate weather data collection.
- Greenhouses: Optimize plant growth by measuring light intensity in vegetable and flower cultivation.
- Outdoor Lighting: Automate streetlights or garden lighting based on ambient light levels.
- Automotive Smart Lights: Enhance vehicle safety with adaptive lighting systems.
- Factory Lighting: Ensure optimal lighting conditions in industrial workshops.
Documents:
Package Included:
1 x DFRobot RS485 Waterproof Ambient Light Sensor (0-200,000 Lux)
