Description:

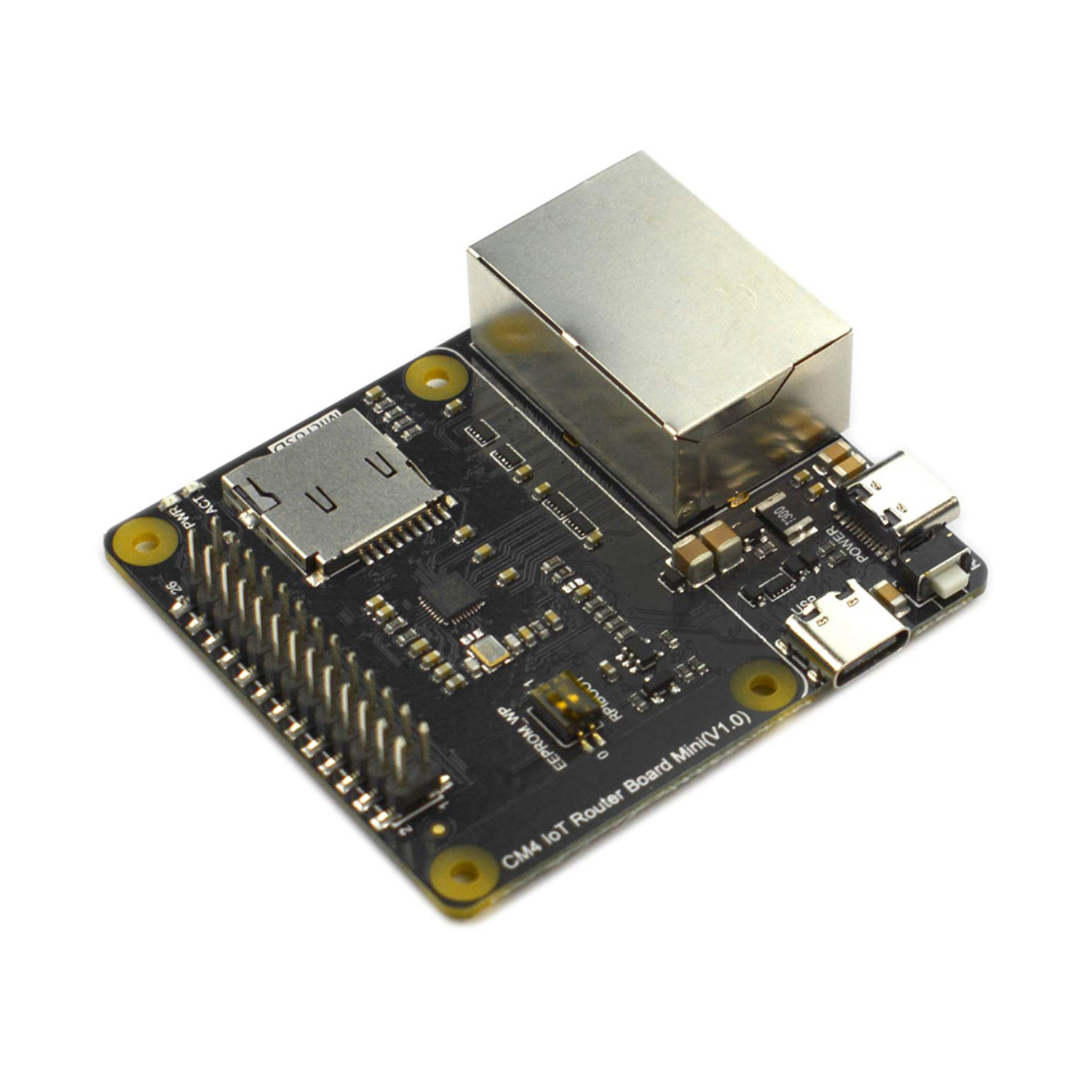

Empower your IoT and networking solutions with the Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini. This compact yet robust internet expansion board is specifically designed for the Raspberry Pi Compute Module 4, transforming it into a high-performance router and versatile IoT gateway. Leveraging a direct PCIe interface for its dual full-speed Gigabit Ethernet ports, this carrier board delivers superior network throughput, reduced CPU overhead, and enhanced long-term stability compared to USB-based network solutions. Despite its miniature 55x62mm footprint, it retains the familiar and highly adaptable Raspberry Pi GPIO header, enabling seamless integration with a wide array of actuators, sensors, and intelligent cooling systems.
A convenient USB 2.0 port further expands its capabilities, allowing connectivity for external storage (mini-NAS), printers, Wi-Fi and LTE modules, and other peripherals. Pre-loaded with the open-source OpenWRT router system for easy setup, it also boasts compatibility with Raspberry Pi OS, Ubuntu Server, and other Raspberry Pi operating systems. The powerful quad-core BCM2711 processor and extensive software support from the Raspberry Pi community provide a solid foundation for building advanced gateways, smart routers, and comprehensive home IoT platforms. Its versatility extends to applications as a mini-NAS, wireless network bridge, or LTE-enabled internet terminal.

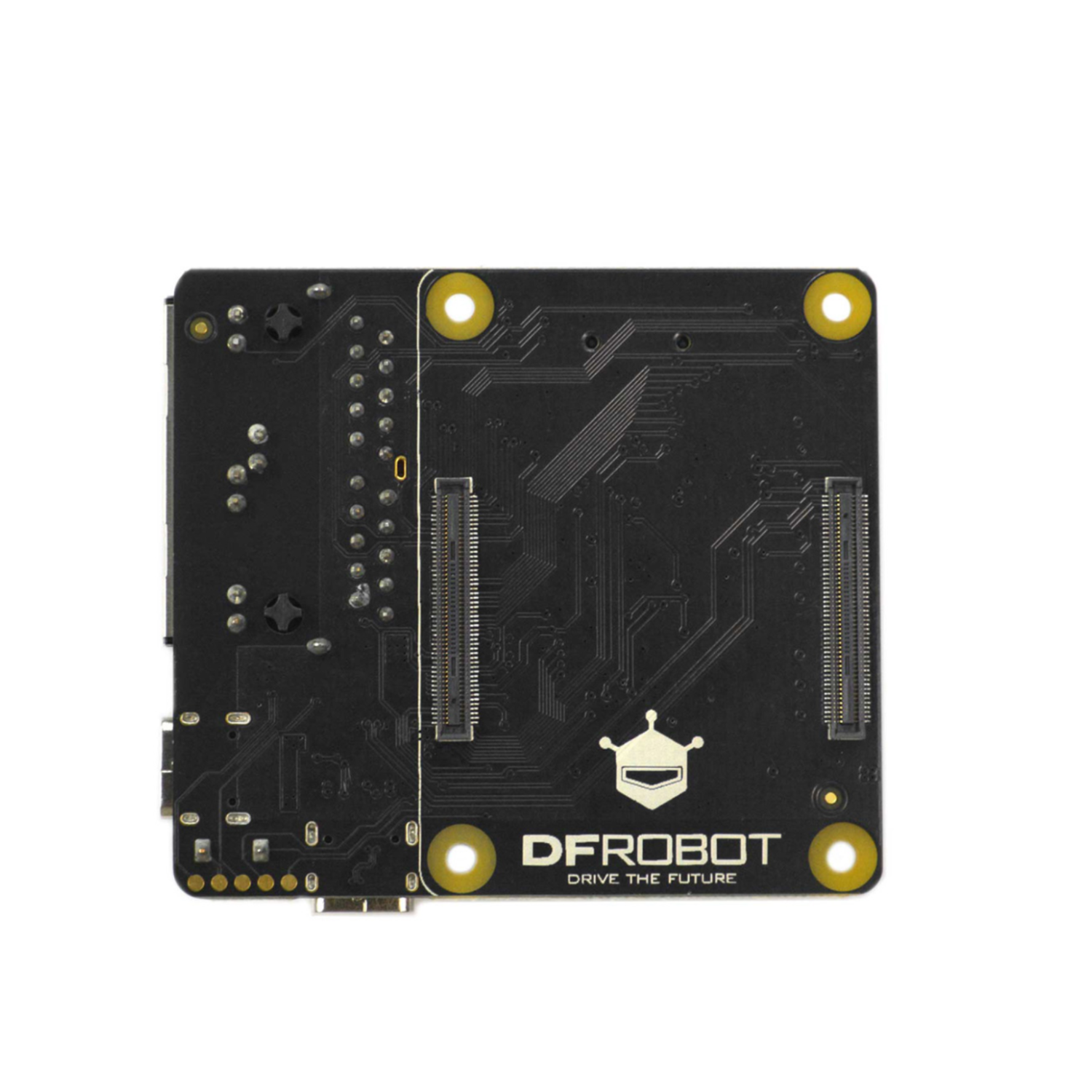

Important Note: The CM4 board socket is delicate; ensure correct alignment before gently pressing down. Repeated plugging and unplugging of the CM4 module is not recommended. Always verify the CM4 installation direction before powering on.
Specifications:
- Compatible Module: Raspberry Pi Compute Module 4 series

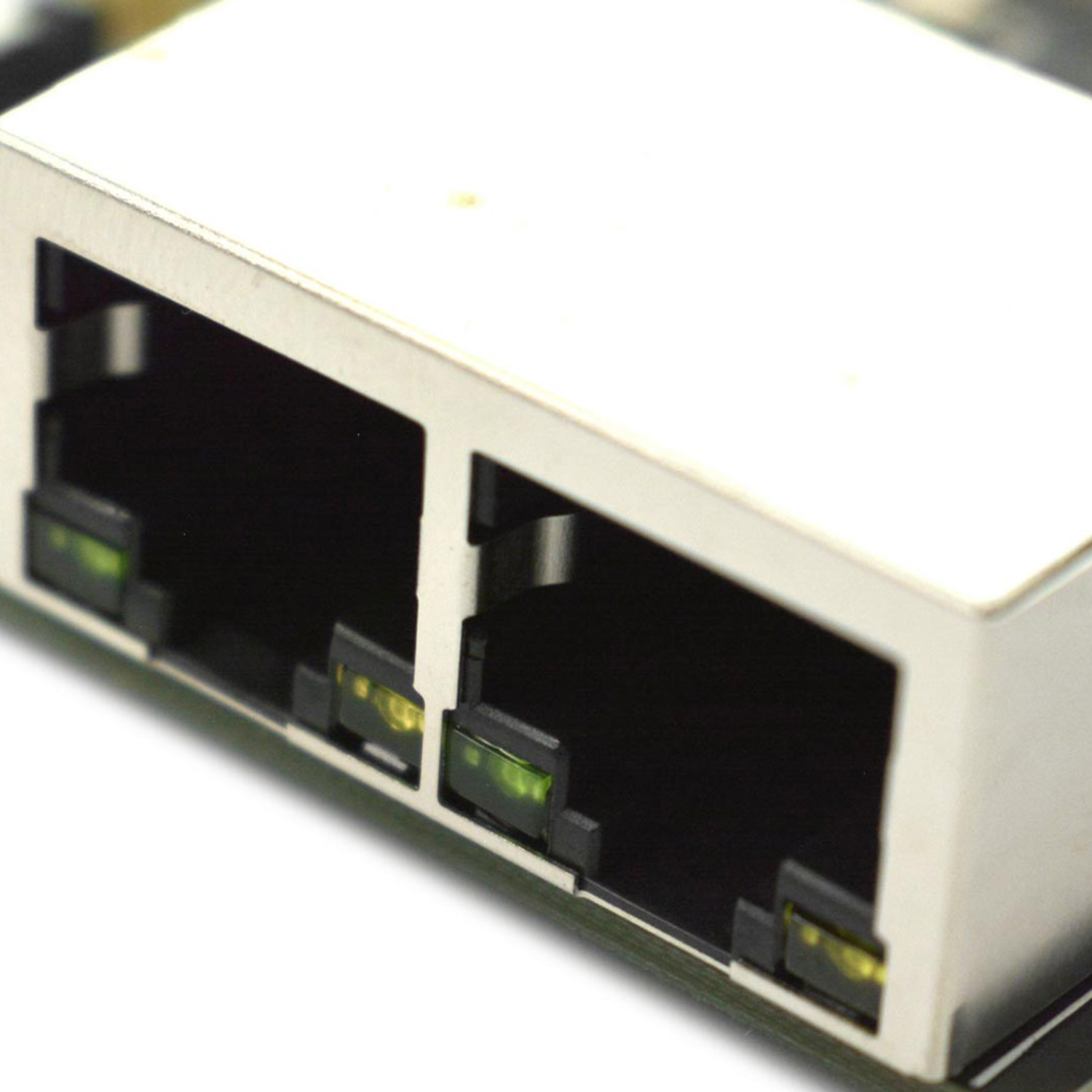

- Ethernet:
ETH1: Compute Module 4 Built-In
ETH2: PCI Express 1000BASE-T NIC
- USB:

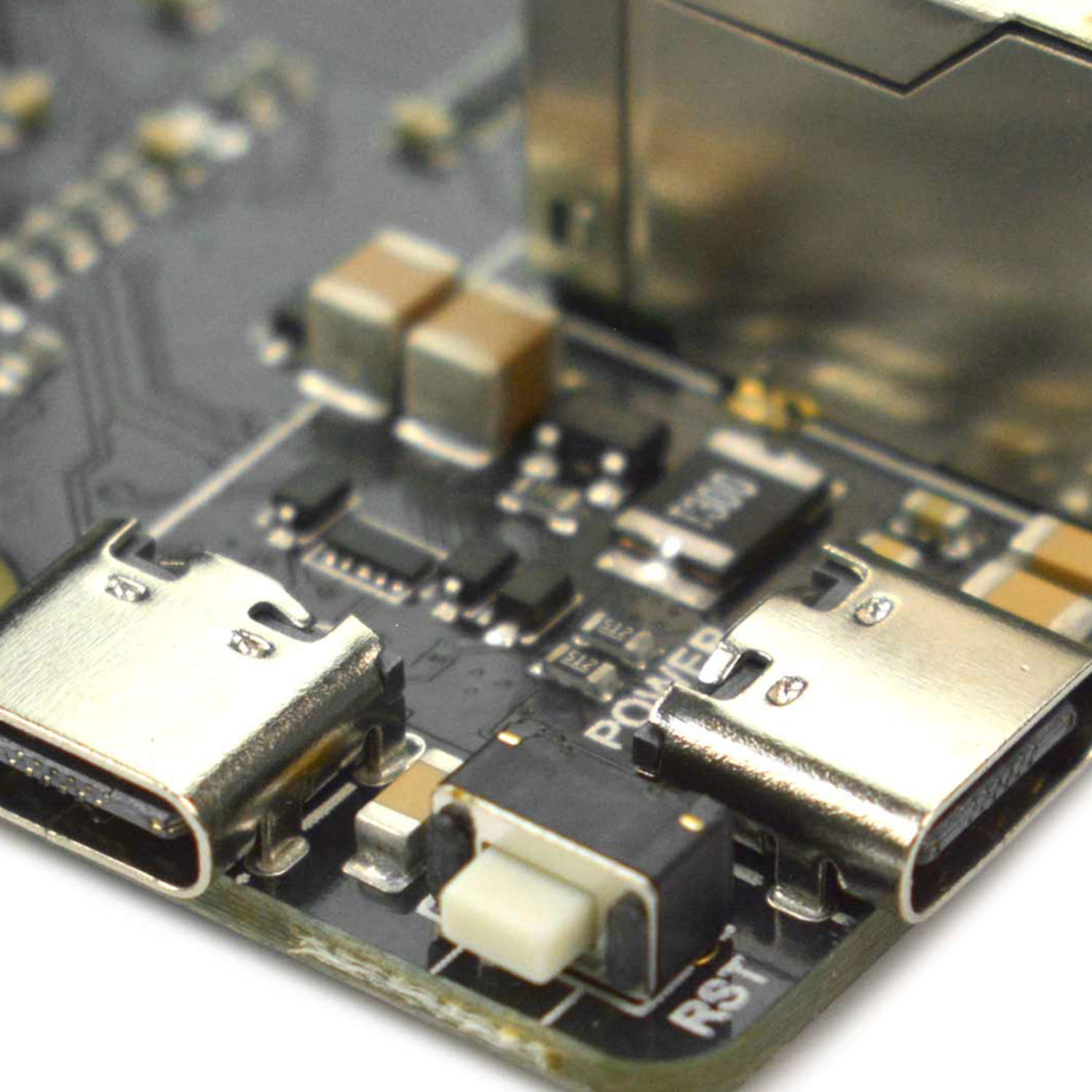

1x USB-C: Power only
1x USB-C: USB 2.0 High Speed
- Storage Card: microSD slot (Only modules without eMMC supported)
- GPIO: 26-pin GPIO compatible with Raspberry Pi
- Power Supply: USB-C 5V/3A
- Operating Temperature: 0℃~80℃

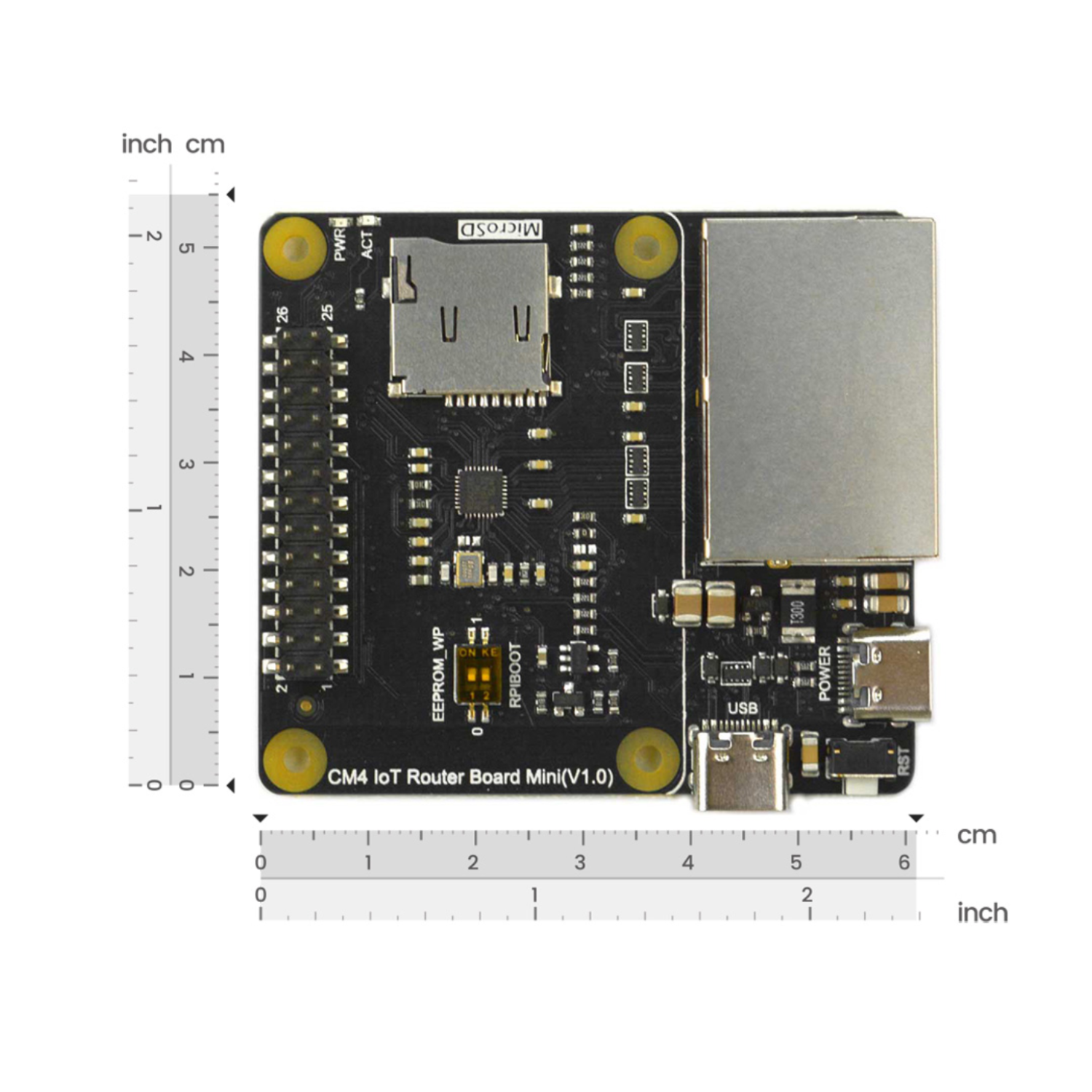

- Dimension: 55x62mm/2.17x2.44
Features:
- Instantly deploy as a customizable, open-source router.
- Designed for seamless integration with all Raspberry Pi Compute Module 4 variants.
- Low power consumption for continuous operation.
- True plug-and-play functionality.
- Perfect for building custom networking and IoT projects.
Projects:
Project 1: Raspberry Pi Firewall and Router with DFRobot Dual NIC
Project 2: Building a Better Raspberry Pi Router // RPi Compute Module 4, OpenWrt, DFRobot Carrier Board
Package Included:
1 x DFRobot Raspberry Pi Compute Module Mini 4 IoT Router Carrier Board
