DFRobot Raspberry Pi Compute Module Mini 4 IoT Router Carrier Board For Embedded Networking
DFRobot Raspberry Pi Compute Module Mini 4 IoT Router Carrier Board For Embedded Networking
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Empower your IoT and networking solutions with the Raspberry Pi Compute Module 4 IoT Router Carrier Board Mini. This compact yet robust internet expansion board is specifically designed for the Raspberry Pi Compute Module 4, transforming it into a high-performance router and versatile IoT gateway. Leveraging a direct PCIe interface for its dual full-speed Gigabit Ethernet ports, this carrier board delivers superior network throughput, reduced CPU overhead, and enhanced long-term stability compared to USB-based network solutions. Despite its miniature 55x62mm footprint, it retains the familiar and highly adaptable Raspberry Pi GPIO header, enabling seamless integration with a wide array of actuators, sensors, and intelligent cooling systems.
A convenient USB 2.0 port further expands its capabilities, allowing connectivity for external storage (mini-NAS), printers, Wi-Fi and LTE modules, and other peripherals. Pre-loaded with the open-source OpenWRT router system for easy setup, it also boasts compatibility with Raspberry Pi OS, Ubuntu Server, and other Raspberry Pi operating systems. The powerful quad-core BCM2711 processor and extensive software support from the Raspberry Pi community provide a solid foundation for building advanced gateways, smart routers, and comprehensive home IoT platforms. Its versatility extends to applications as a mini-NAS, wireless network bridge, or LTE-enabled internet terminal.
Important Note: The CM4 board socket is delicate; ensure correct alignment before gently pressing down. Repeated plugging and unplugging of the CM4 module is not recommended. Always verify the CM4 installation direction before powering on.
Specifications:
- Compatible Module: Raspberry Pi Compute Module 4 series
- Ethernet:
ETH1: Compute Module 4 Built-In
ETH2: PCI Express 1000BASE-T NIC
- USB:
1x USB-C: Power only
1x USB-C: USB 2.0 High Speed
- Storage Card: microSD slot (Only modules without eMMC supported)
- GPIO: 26-pin GPIO compatible with Raspberry Pi
- Power Supply: USB-C 5V/3A
- Operating Temperature: 0℃~80℃

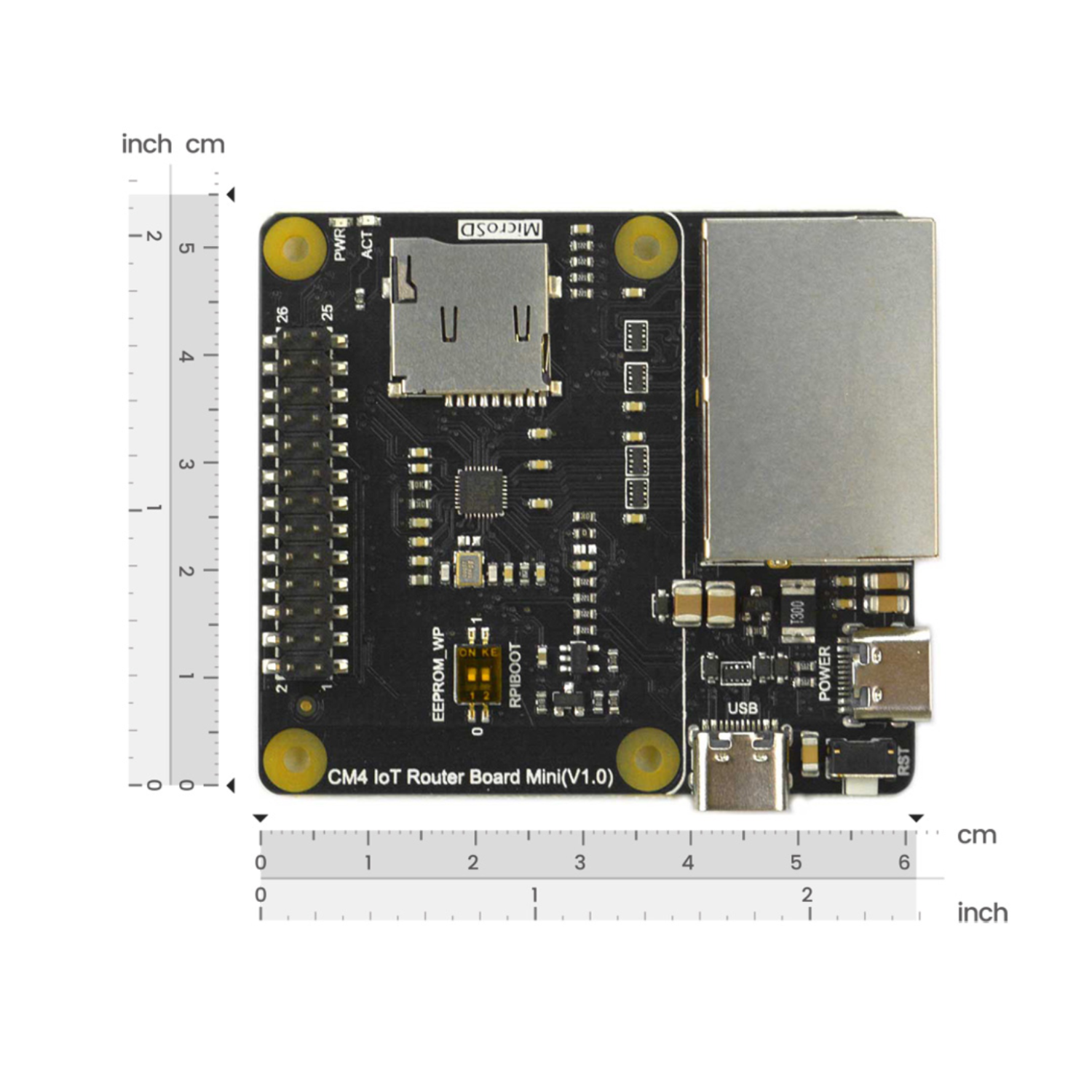

- Dimension: 55x62mm/2.17x2.44
Features:
- Instantly deploy as a customizable, open-source router.
- Designed for seamless integration with all Raspberry Pi Compute Module 4 variants.
- Low power consumption for continuous operation.
- True plug-and-play functionality.
- Perfect for building custom networking and IoT projects.
Projects:
Project 1: Raspberry Pi Firewall and Router with DFRobot Dual NIC
Project 2: Building a Better Raspberry Pi Router // RPi Compute Module 4, OpenWrt, DFRobot Carrier Board
Package Included:
1 x DFRobot Raspberry Pi Compute Module Mini 4 IoT Router Carrier Board
