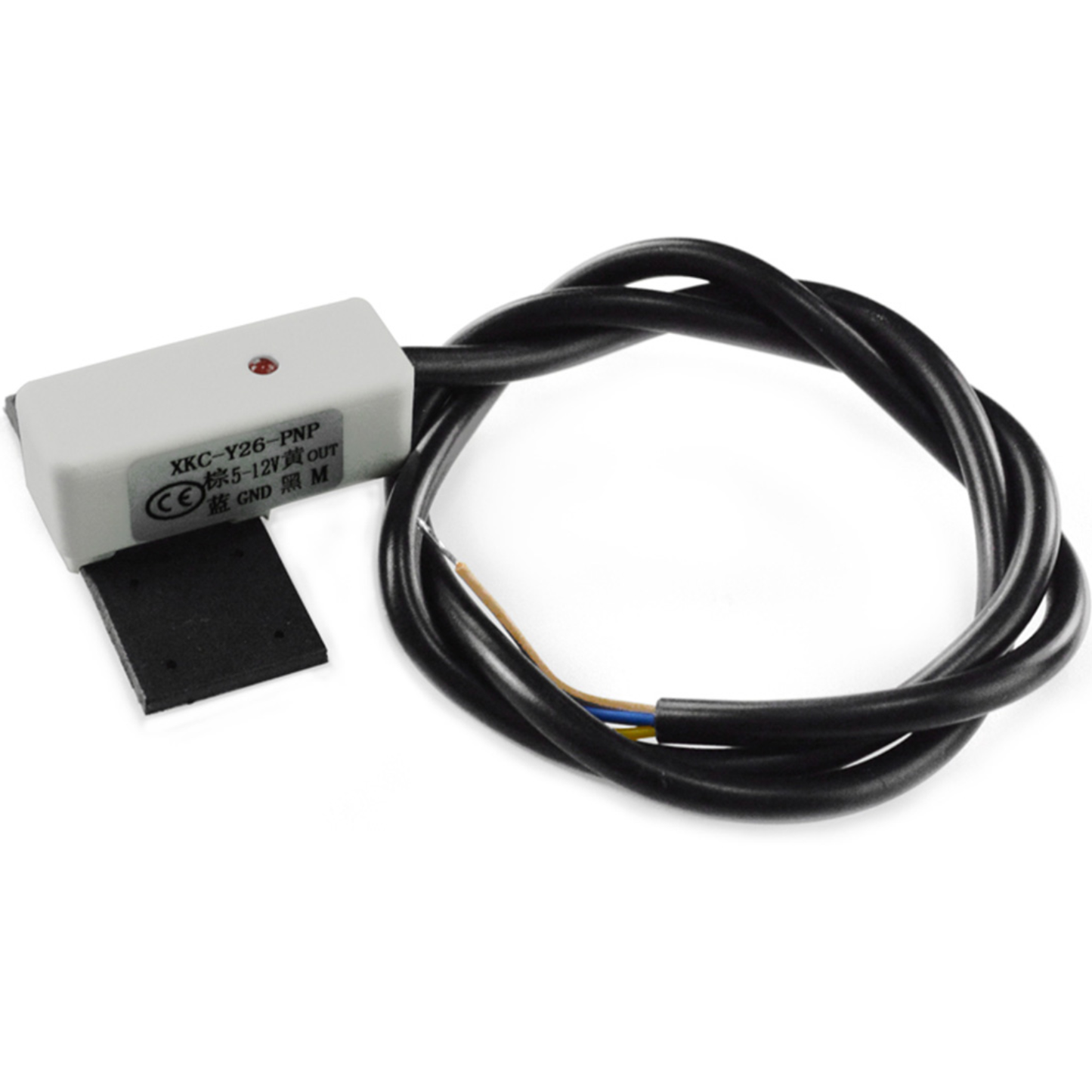

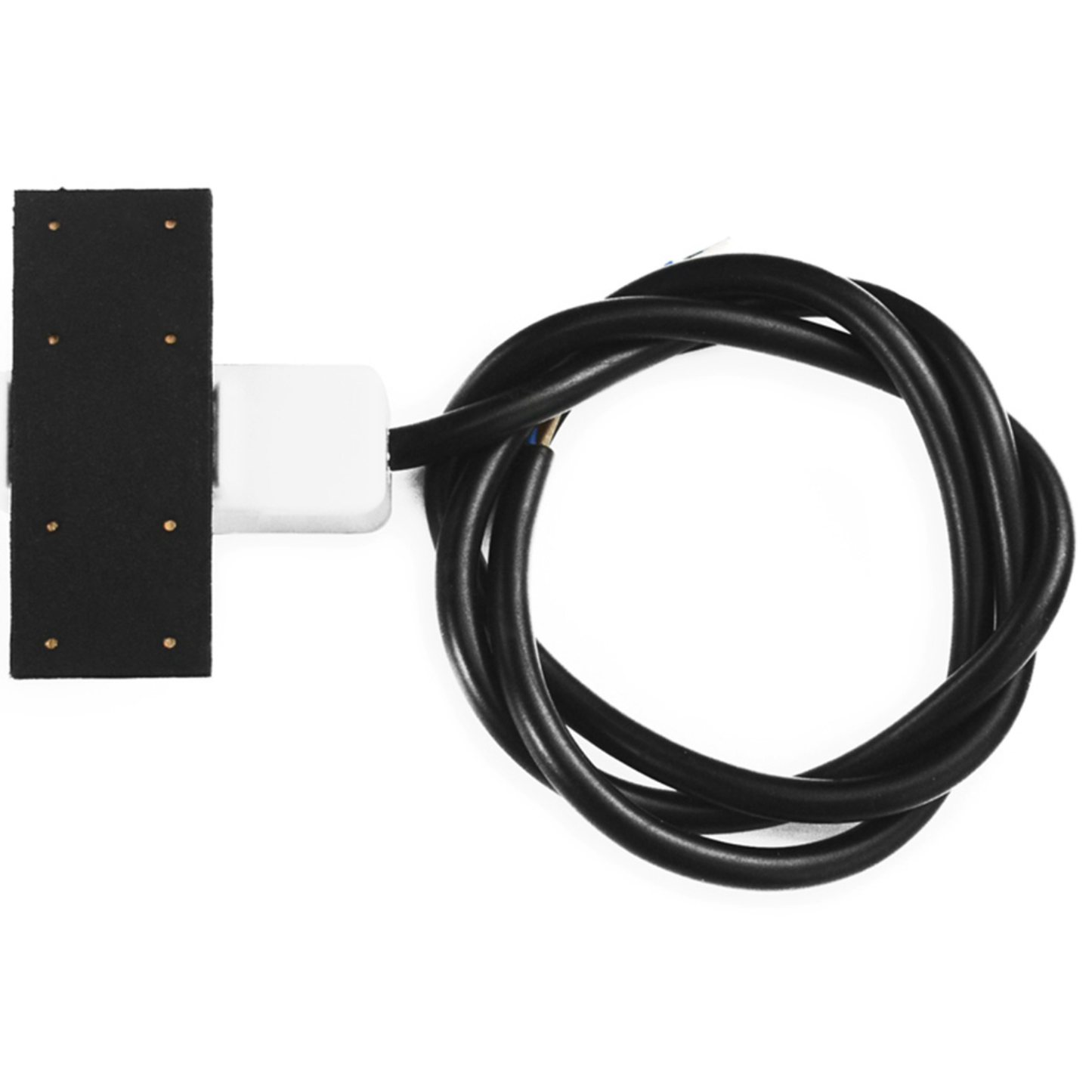

Description:
The DFRobot Non-contact Capacitive Liquid Level Sensor offers a reliable and versatile solution for detecting liquid levels without direct contact, eliminating the risk of contamination and corrosion. Utilizing capacitive sensing technology, this sensor accurately determines the presence or absence of liquids through non-metallic containers or pipes with an outer diameter exceeding 11mm.
This sensor is particularly advantageous in scenarios where maintaining liquid purity is paramount, or where traditional contact-based sensors are impractical. Its non-invasive nature and adjustable sensitivity make it a robust and adaptable tool for a wide array of fluid management applications.
Specifications:
- Power Supply: 5~12V
- Output Mode: switch quantity (high-level output)
- Response Time: 500ms
- Operating Temperature: -5~105°C
- Liquid Level Error: ±1.5mm
- Thickness Range(TR): ≤20mm
- Suitable Container OD: ≥11mm
- Response Time: 500ms
- Waterproof Performance: IP65
Features:
- High stability for consistent readings.
- Adjustable sensitivity for diverse materials.

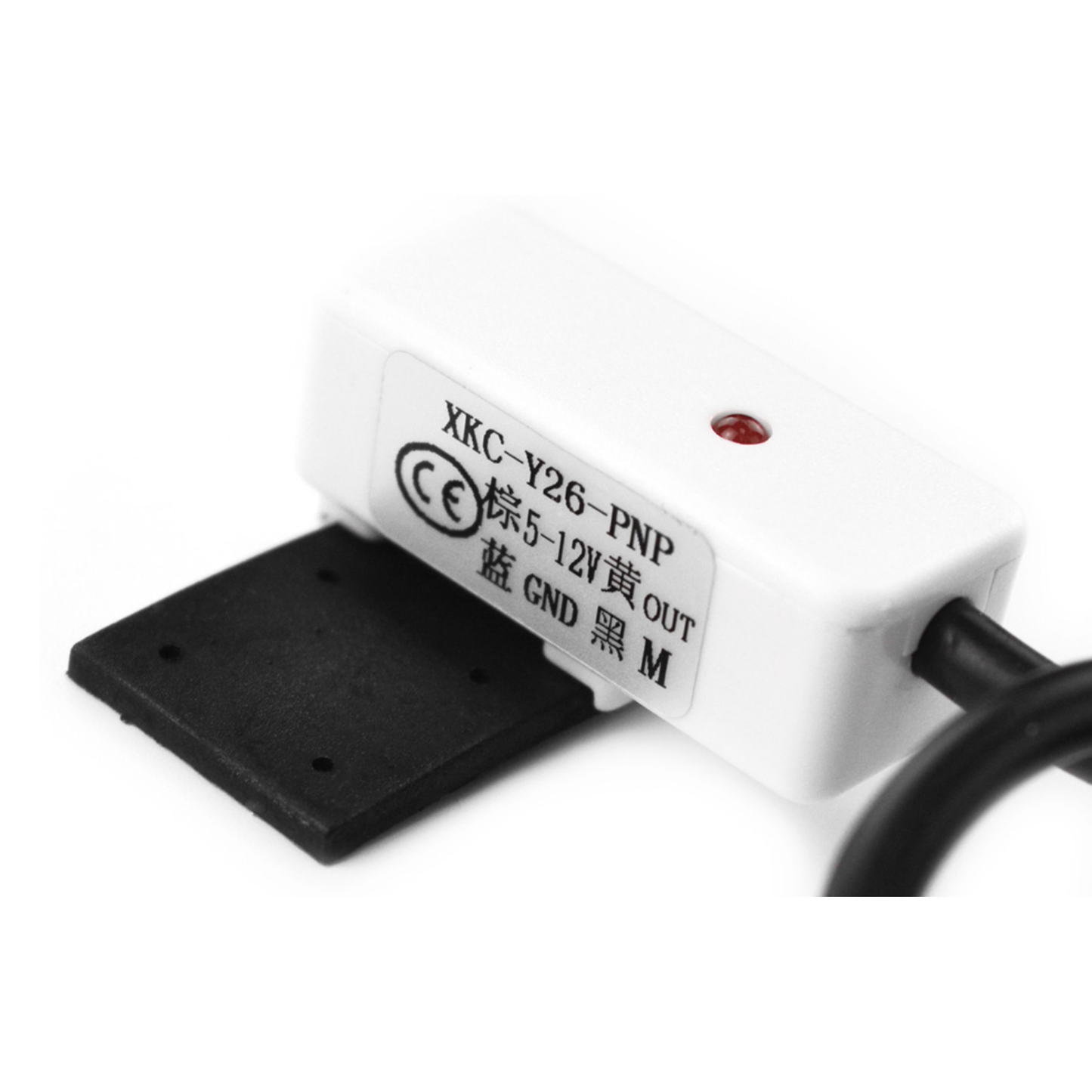

- Integrated status indicator for immediate monitoring.

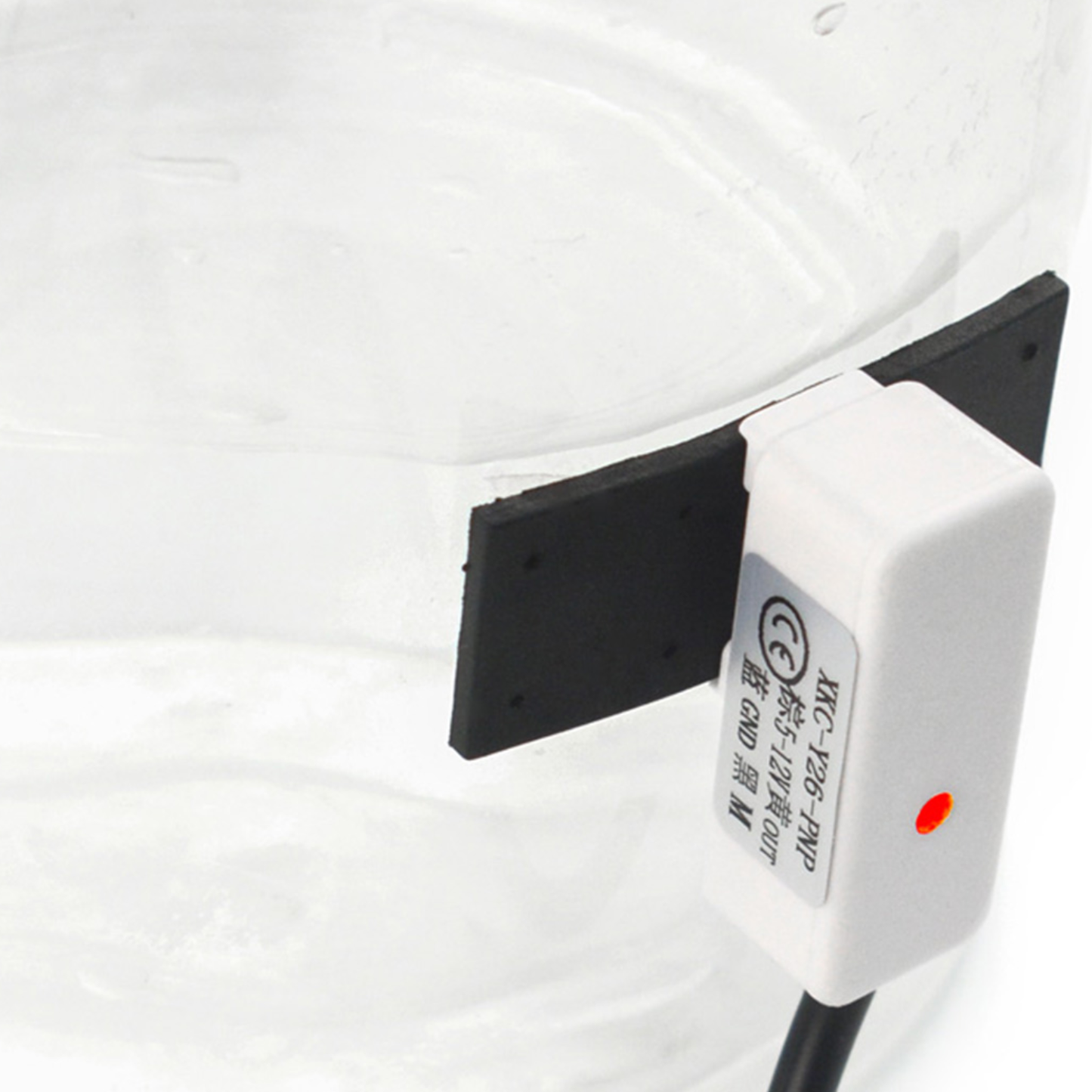

- Detects through non-metallic containers/pipes (>11mm OD), immune to corrosive liquids.
- Accurately detects even boiling water levels.
- Detects through pipe walls up to 20mm.
Documents:
Projects:
Saving Plants - DIY Plant Watering Device

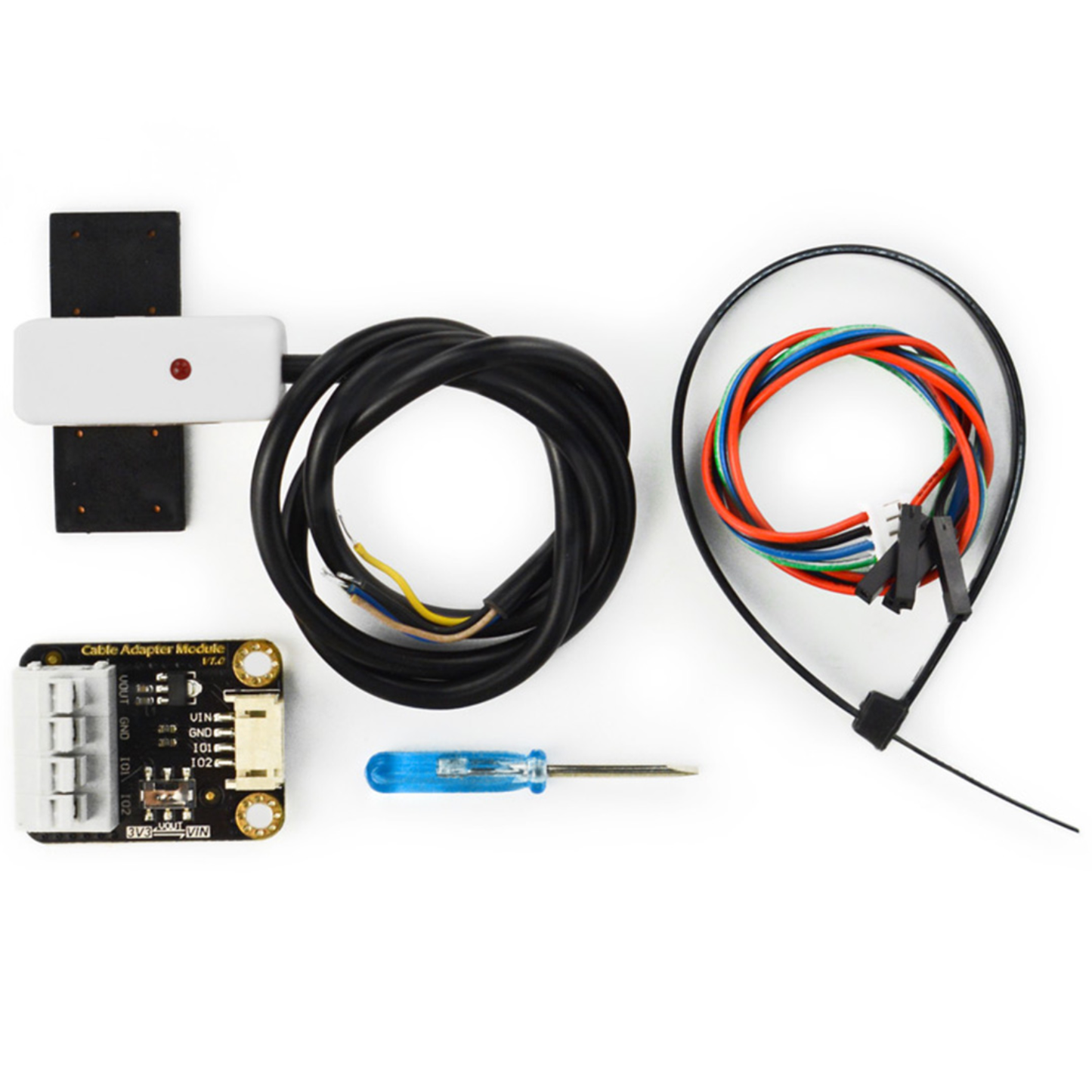

Package Included:
1 x DFRobot Non-contact Capacitive Liquid Level Sensor
