Description:

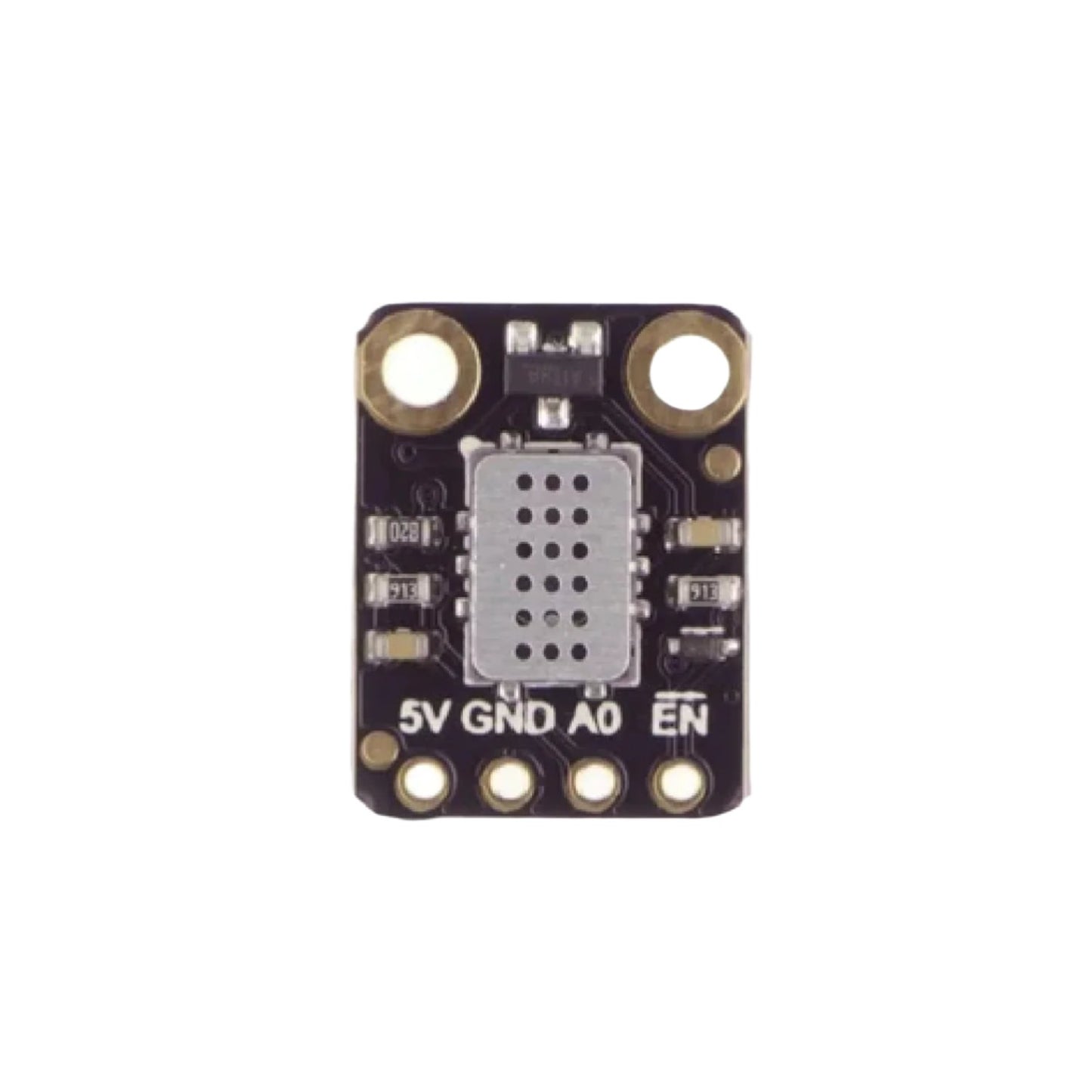

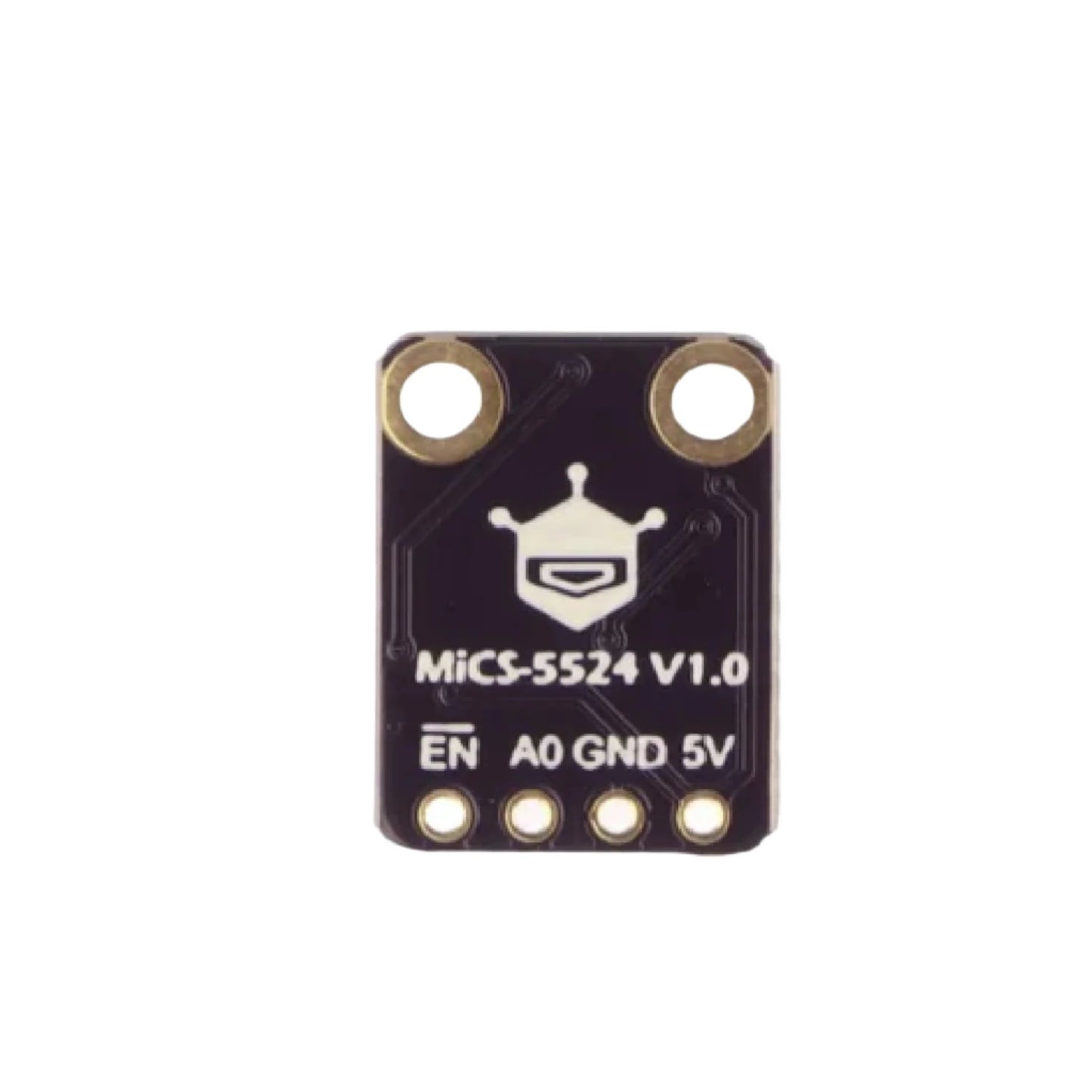

DFRobot MiCS-5524 Gas Sensor Module with integrated MiCS-5524 chip made in MEMS technology. Detects concentration and leakage of gases such as carbon monoxide (CO), methane (CH4), ethanol (C2H5OH), propane (C3H8), butane (C4H10), hydrogen (H2), hydrogen sulfide (H2S) and ammonia (NH3).
Gas Sensor only detects the concentration of gases in the air but does not distinguish between the types of gases. Using it, it is not possible to determine which gas has been detected. The module is intended for educational and hobby purposes. It is not guaranteed to work properly in medical, security or similar applications.
Specifications:
- Detection Of Physical Quantities: Gas Concentration Or Gas Leakage Of NO, NO2, H2
- Operating Voltage: 4.9-5.1 V DC
- Power Dissipation: 0.45 W
- Output Signal: Analog Quantity
- Lifespan: > 2 years ( in the air )
- Circuit Board Size: 12mmx16mm
- Mounting Hole Size: Inner Diameter 2mm/Outer Diameter 4mm
- Shipping Weight: 0.006 kg
- Shipping Dimensions: 6 x 5.5 x 2.5 cm
Features:
- Fermion MEMS Gas Sensor MiCS-5524 (Breakout)
- Supports a variety of harmful gas detection
- Integrates the calculation formulas of various gas concentration
- Low power consumption
- I2C digital output
- Compatible with the 3.3~5.5V master controller
Package Included:

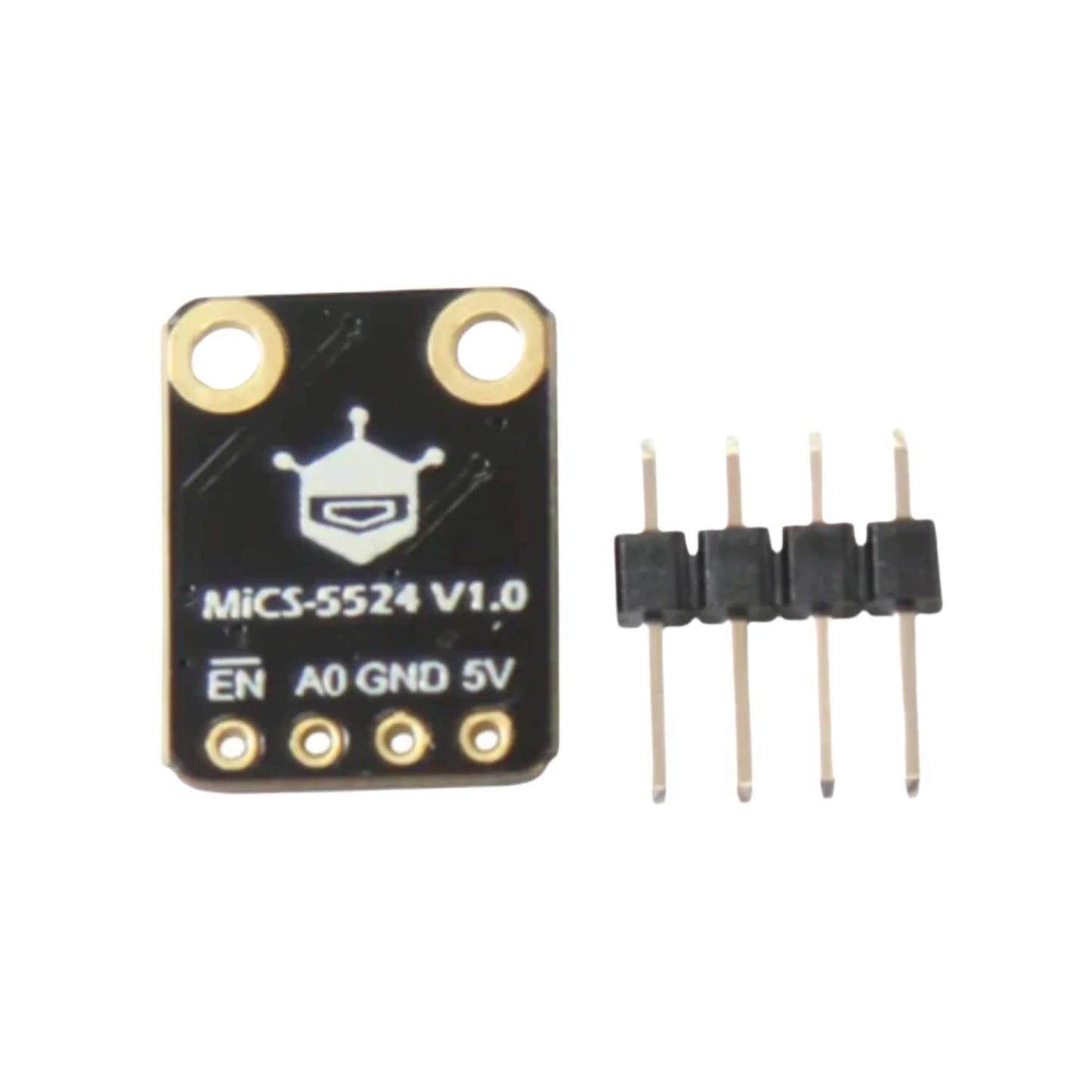

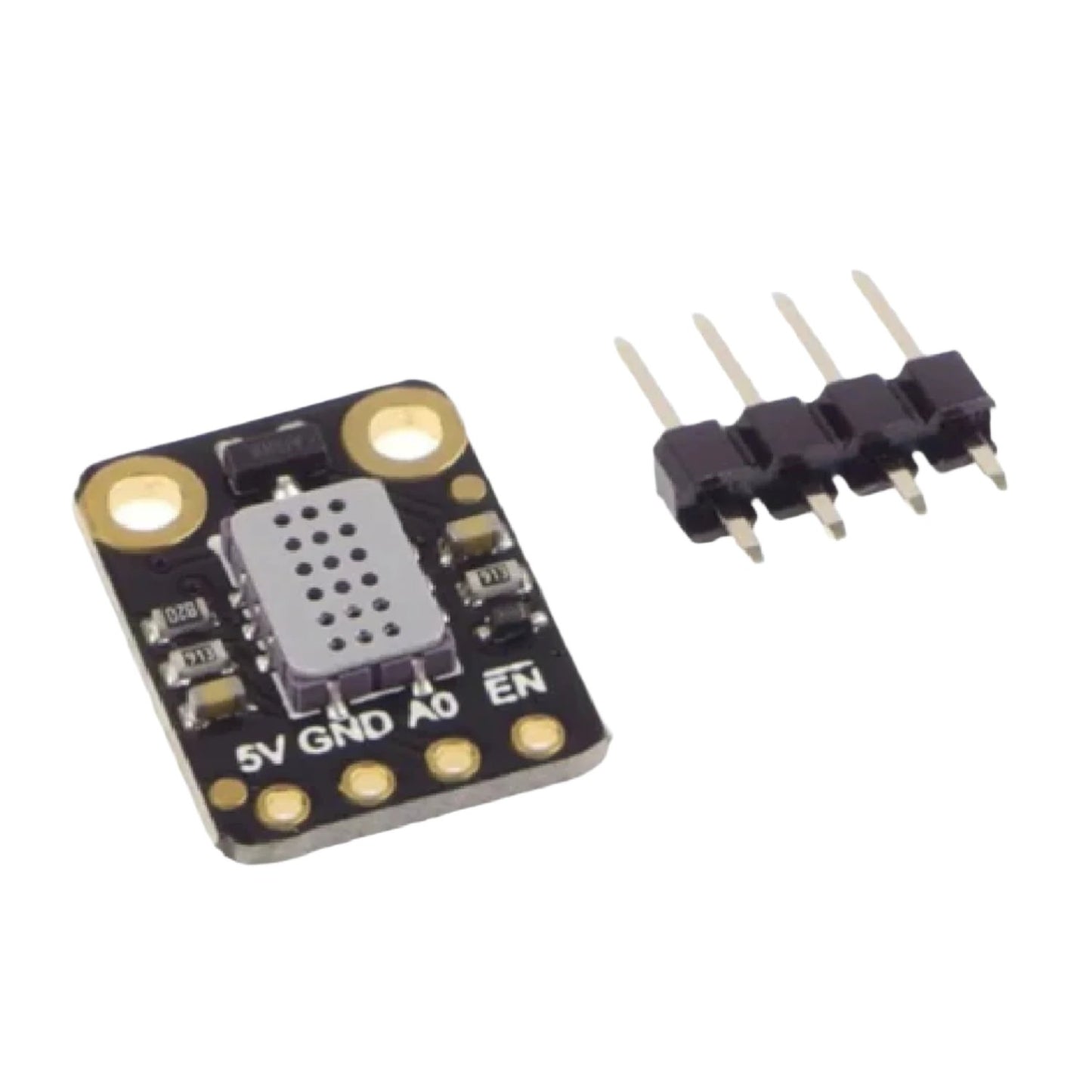

1 x DFRobot MiCS-5524 Gas Sensor Module Fermion MiCS-5524 MEMS Gas Sensor Breakout Board High-Sensitivity Gas Sensor Breakout Elevate Your Projects With DFRobot Fermion Gas Sensor
