Description:

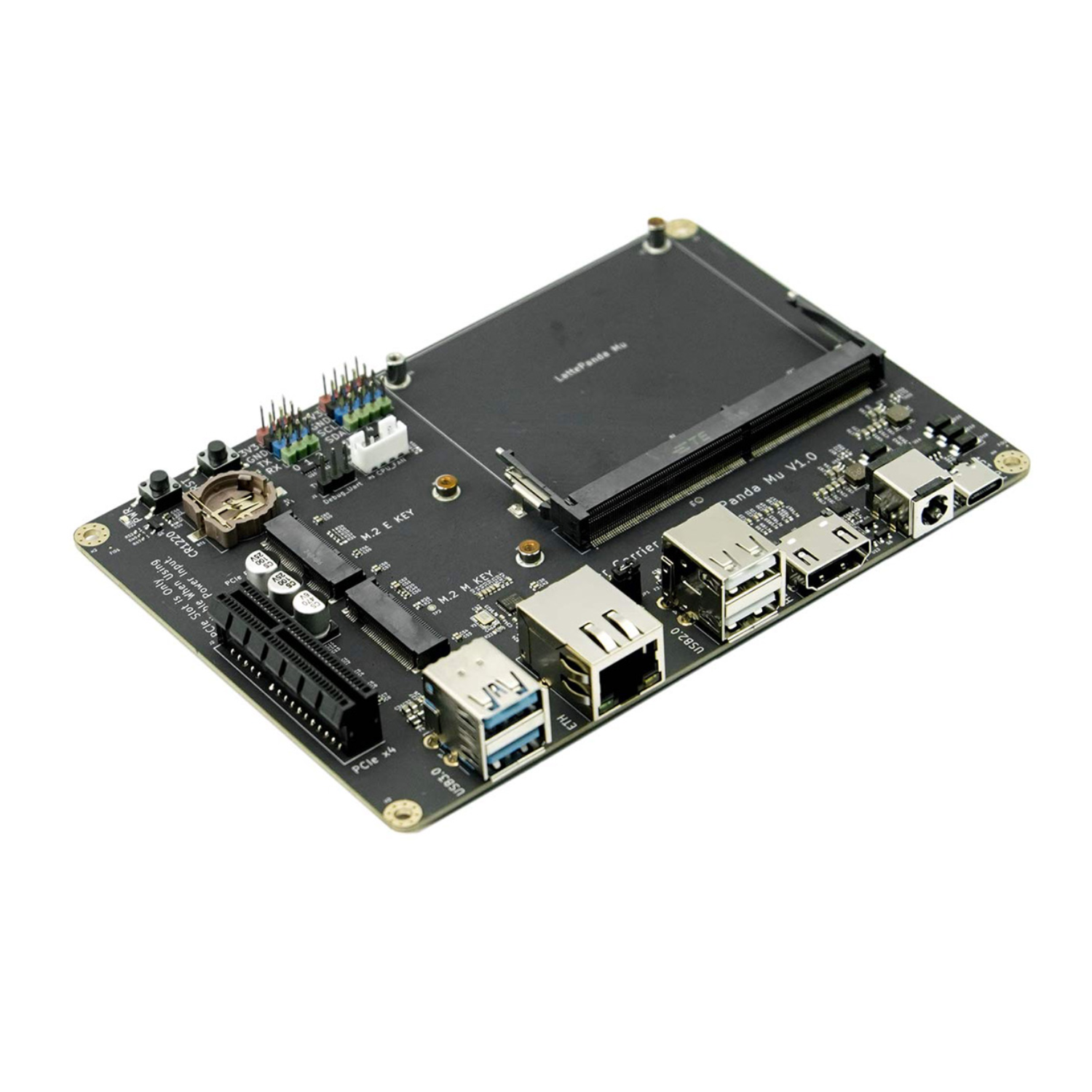

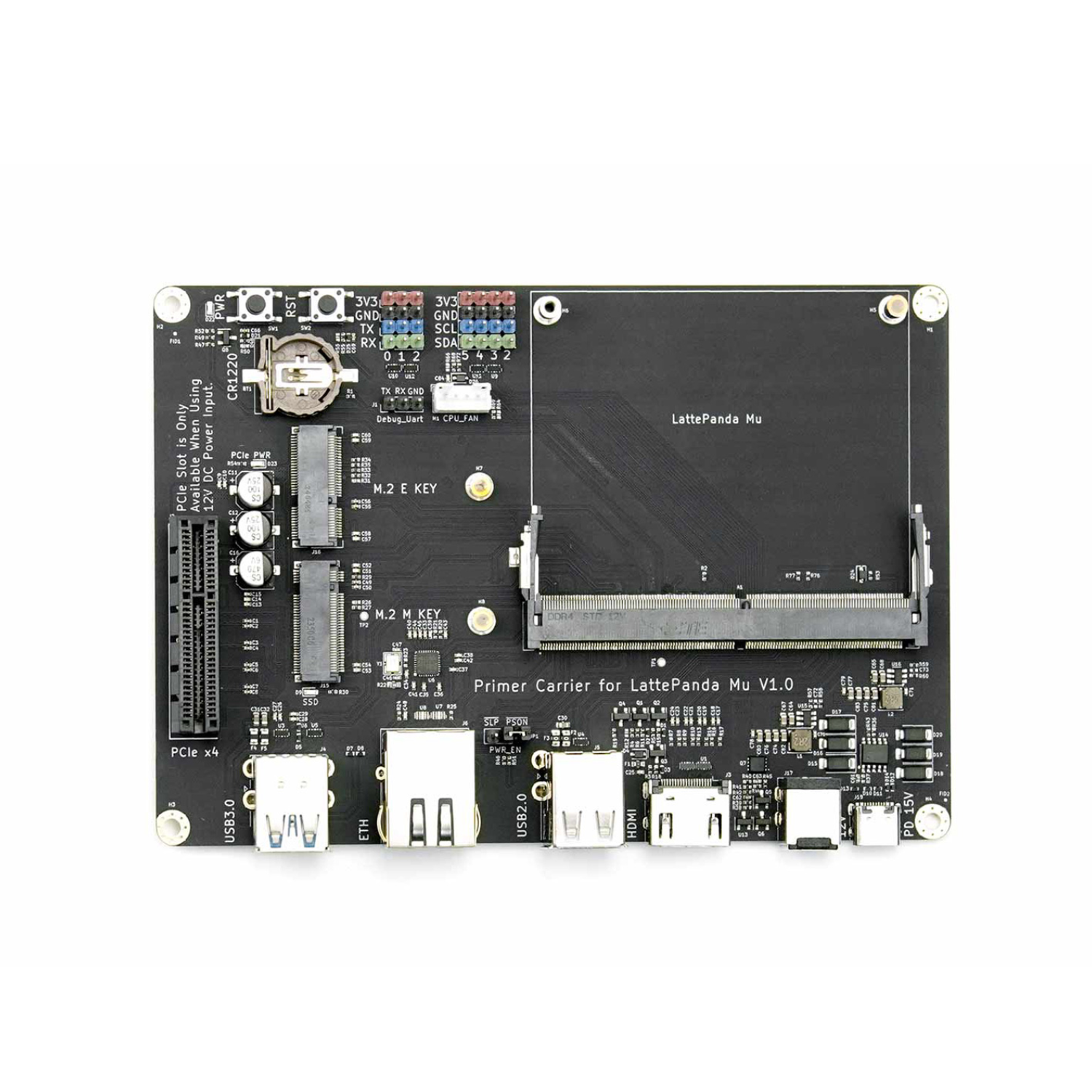

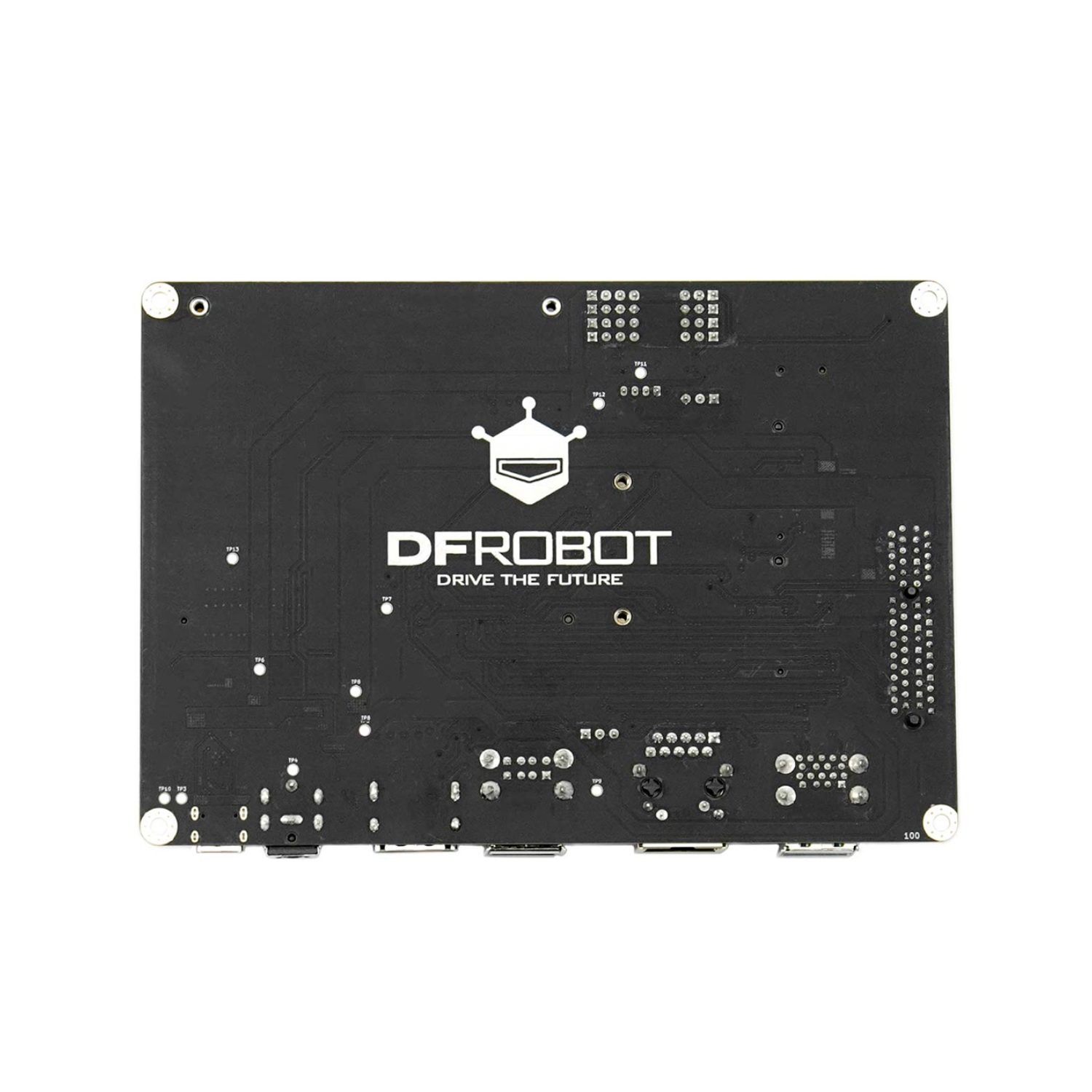

This meticulously engineered Lite carrier board, serving as a dedicated baseboard for the innovative LattePanda Mu computer-on-module, transforms the Mu into a versatile and powerful development platform, effectively functioning as a fully featured Single Board Computer (SBC). Designed with a keen understanding of developer needs, this carrier board thoughtfully integrates a comprehensive array of the most essential and frequently utilized interfaces.
These include high-speed USB 3.0 ports for seamless peripheral connectivity, a reliable Ethernet port for network integration, a high-bandwidth PCIe 3.0 connector for demanding expansion cards, versatile M.2 M key and E key slots supporting NVMe SSDs and wireless modules respectively, and an HDMI port for crisp display output. This rich selection of interfaces empowers developers to effortlessly connect and integrate a wide spectrum of external devices and modules.
Consequently, the carrier board facilitates rapid verification and thorough testing of diverse and complex design solutions, significantly accelerating the product development lifecycle and making it an indispensable tool for embedded system design endeavors.
Note:
1. It needs to be paired with the LattePanda Mu compute module to use.
2. Before plugging or unplugging LattePanda Mu, any cables, or internal interfaces, it is necessary to disconnect the power supply.
3. The PCIe slot of the Lite Carrier is available only when using a 12V power supply.
Specifications:
Power Input
- USB Type-C: 15V (Max 3A)
- DC 5.5x2.5mm: 12~20V (Max 10A)
Internal Interfaces
- PCIe 3.0 x4 slot (only available when using 12V power supply)
- M.2 M Key 2230 (PCIe 3.0 x1)

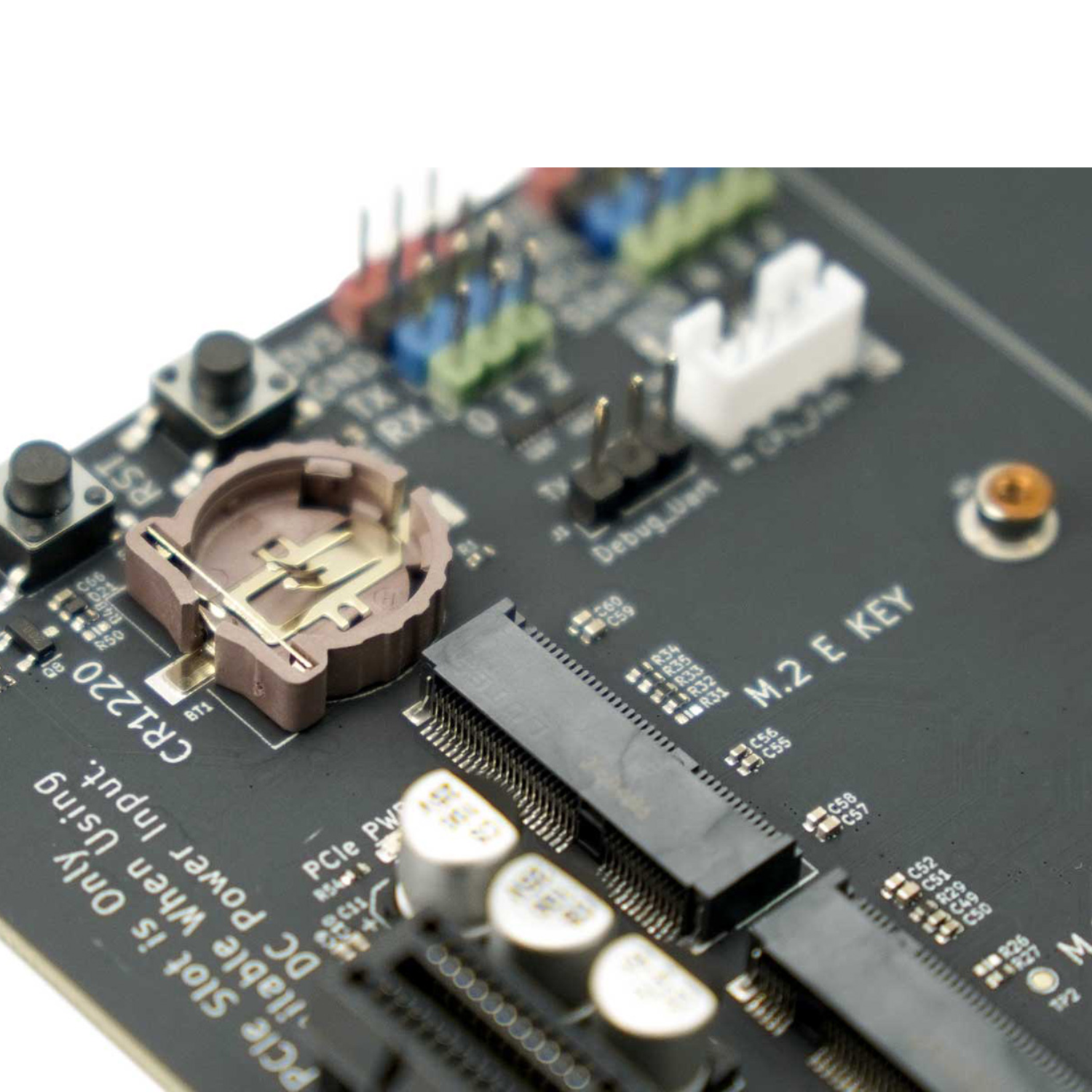

- M.2 E Key 2230 (PCIe 3.0 x1, USB 2.0)
- RTC battery socket (CR1220 3V)
- CPU fan socket
- Gravity-4P UART
- Gravity-4P I2C
External Interfaces

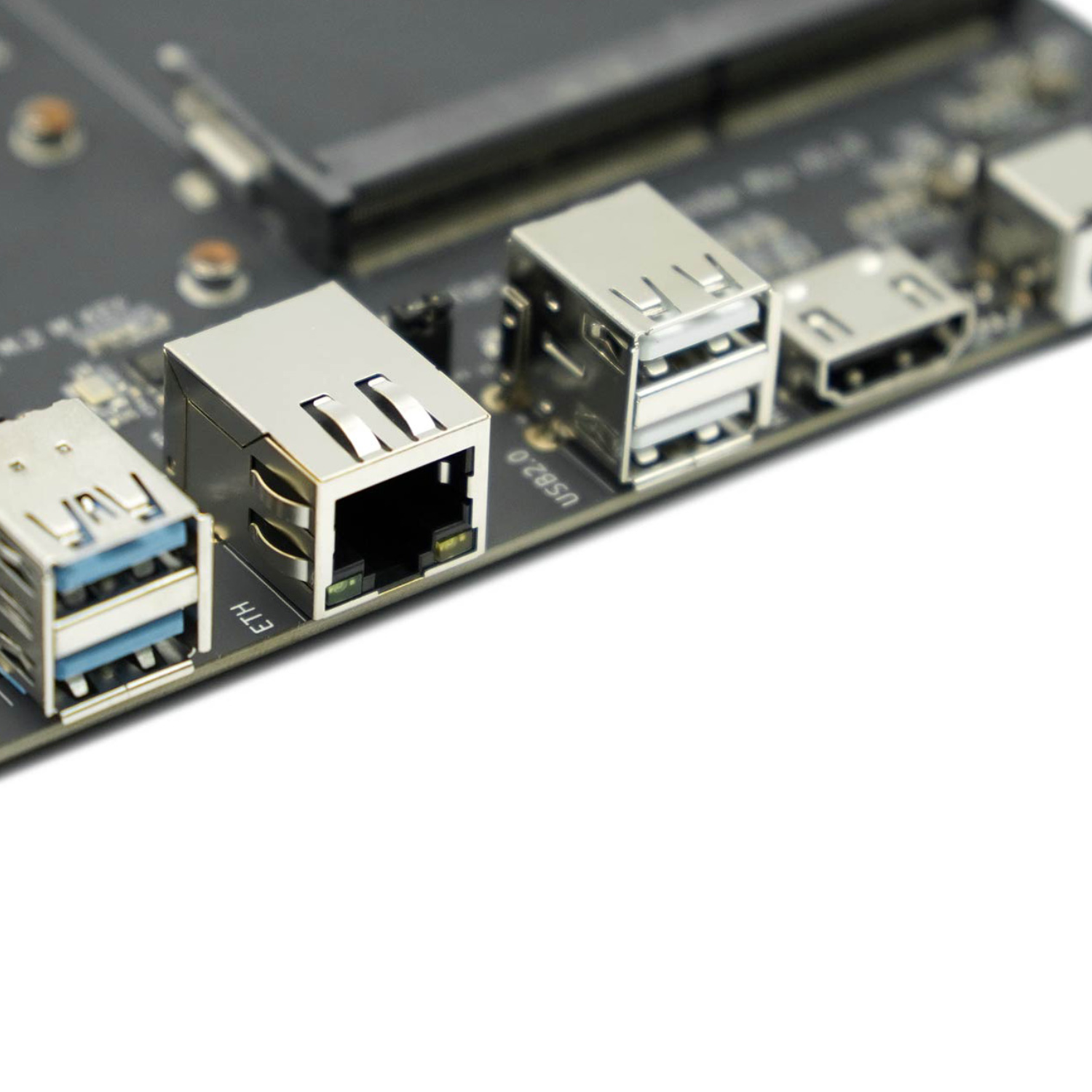

- USB 3.2 10 Gbps x2
- Gigabit Ethernet
- USB 2.0 x2
- HDMI 2.0
- USB Type-C (for power supply only)
- DC 5.5x2.5mm
- Size: 3.5 inches, 146mm×102mm
Features:
- Accepts a wide range of input voltages for diverse power environments.
- Features: Gigabit Ethernet for fast and reliable network connectivity.
- Includes 2 ultra-fast 10 Gbps USB 3.2 ports and 2 USB 2.0 ports for comprehensive peripheral support.
- HDMI 2.0 port enables high-resolution 4K video output.
- Offers a PCIe 3.0 x4 slot for adding powerful expansion cards.
- Provides both M.2 M-key (NVMe SSD) and E-key (Wireless) slots for flexible storage and connectivity options.
- Adheres to the industry-standard 3.5-inch embedded motherboard size for easy integration.
- Open-source design fosters customization and collaboration.
Documents:
Package Included:

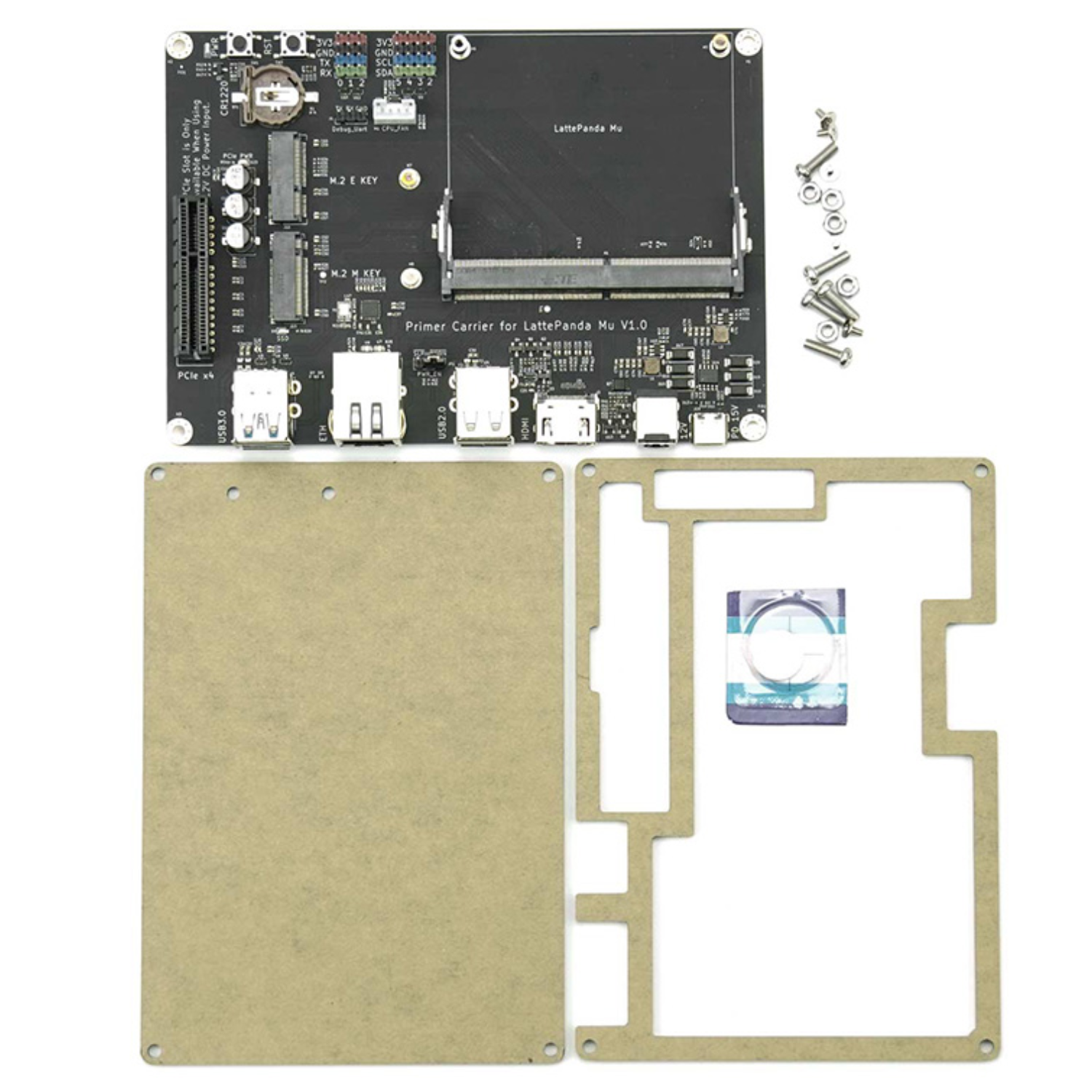

1 x DFRobot Lite Carrier Board For LattePanda Mu Compute Module (USB 3.0, Gigabit Ethernet, PCIe 3.0, M.2 NVMe, And HDMI)
