Description:
The ENS160 I2C Air Quality Sensor offers precise indoor environmental monitoring through ScioSense's advanced ENS160 sensor chip. It accurately detects TVOC, eCO2, and calculates AQI, leveraging innovative TrueVOC™ and MOX technologies for superior accuracy and rapid response. On-chip algorithms provide direct, easy-to-understand IAQ data. A brief 3-minute preheat is recommended for optimal performance, and the integrated automatic baseline correction ensures long-term stability.
Specifications:
- Supply Voltage: 3.3V~5V
- Operating Current: 29mA
- Preheat Time: ＜3 minutes
- Communication Mode: I2C
- I2C Address: 0x53
- Operating Temperature: -10℃~80℃
- Operating Humidity: 5%RH~95%RH (Non-condensing)
- eCO2 Detection Range: 400ppm~65000ppm
- TVOC Detection Range: 0ppb~65000ppb

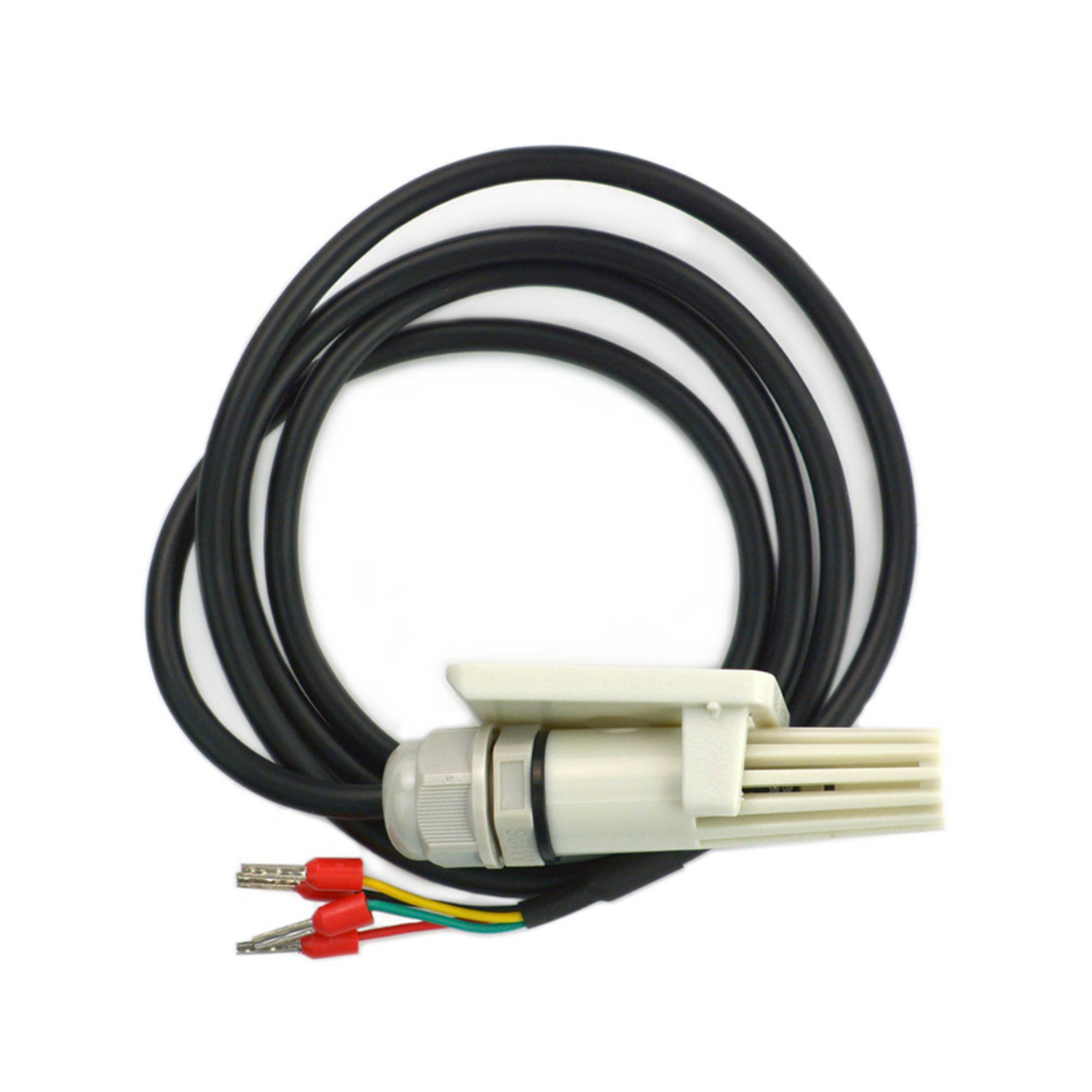

- Cable Length: 1m
Features:

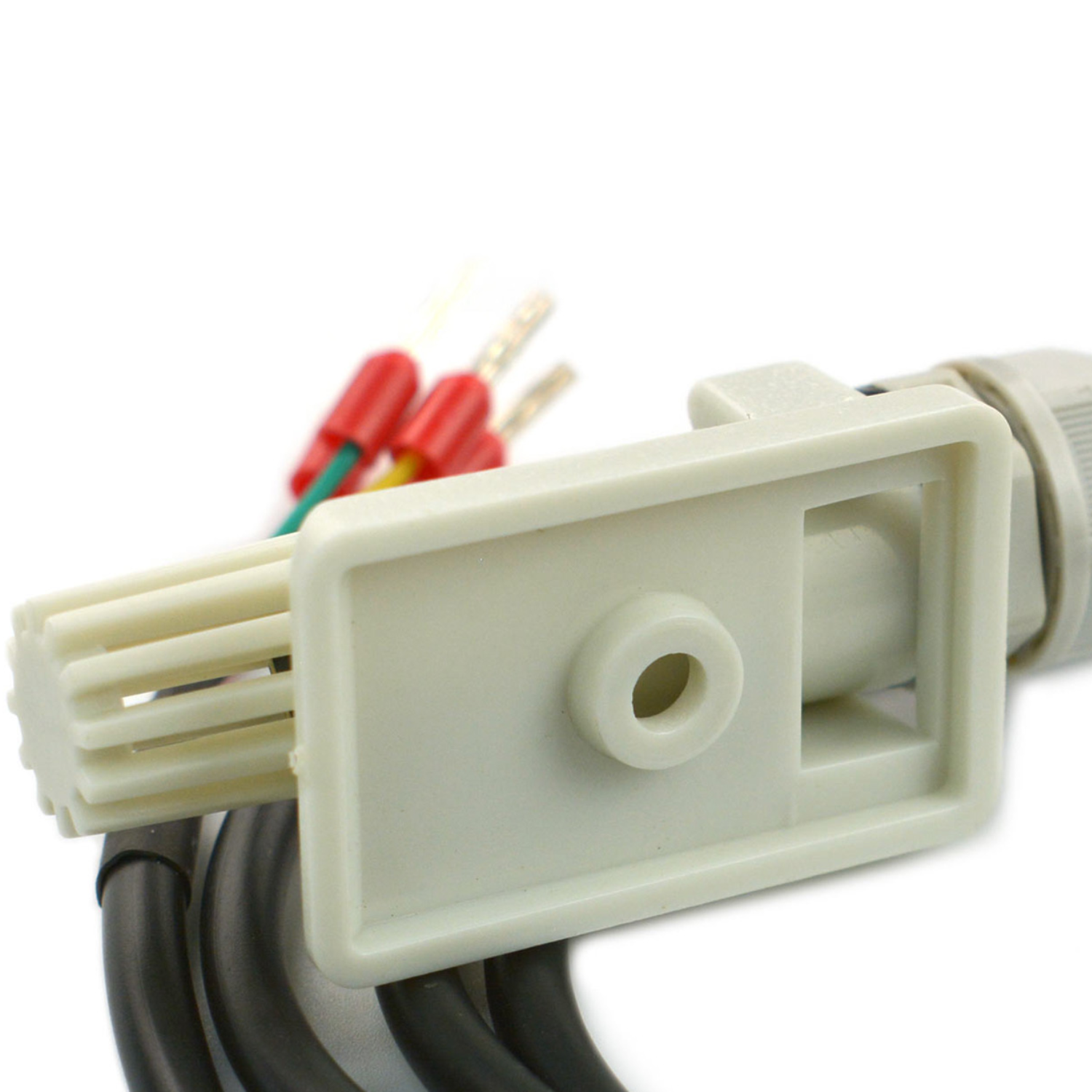

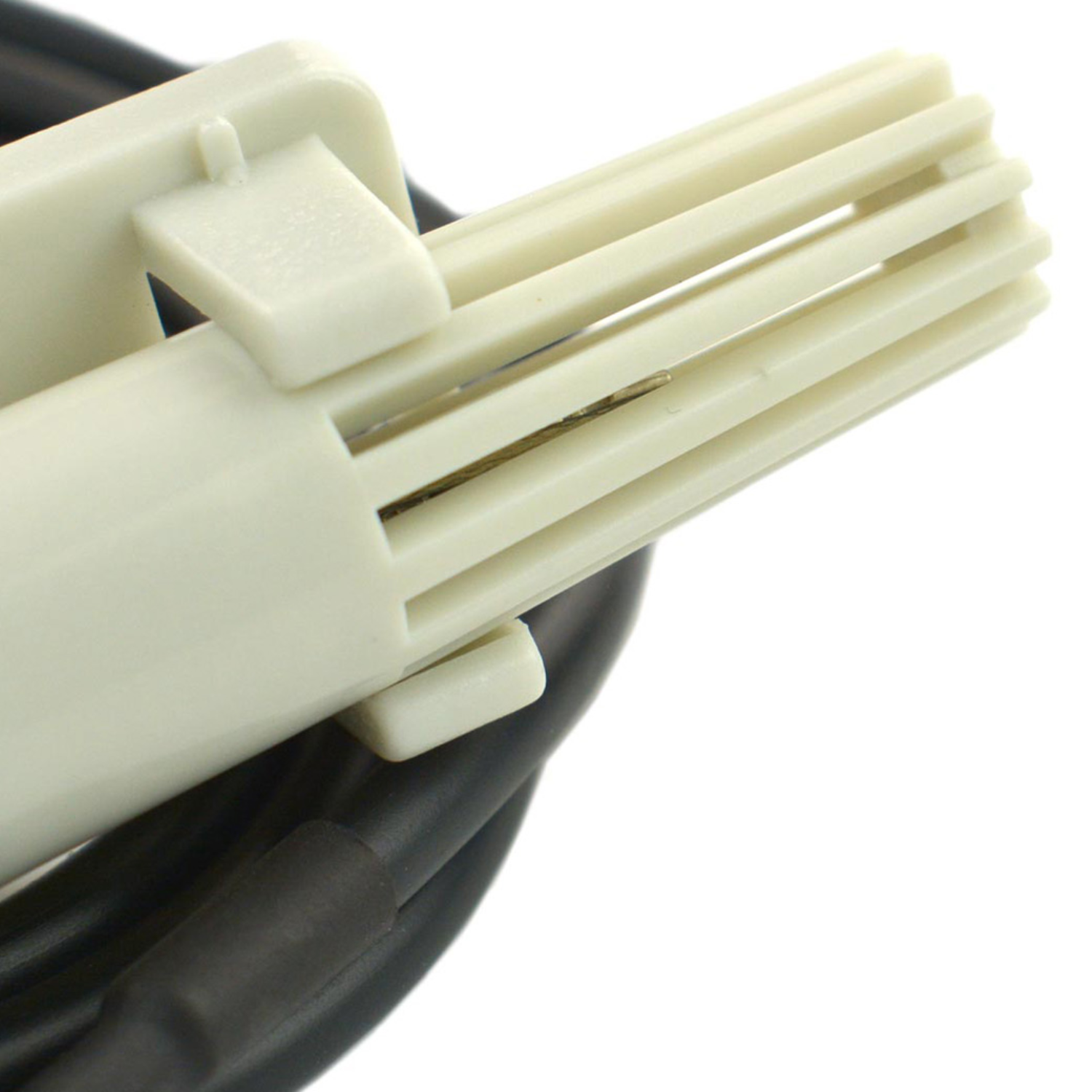

- Streamlined probe shape simplifies mounting.
- Provides TVOC, eCO2, AQI, and environmental readings.
- Ready in under 3 minutes for quick measurements.
- Integrated algorithm ensures precise output.
- Automatic baseline correction enhances reliability.
Applications:
- Air purification/home automation device
- Environmental pollution detection
- HVAC/Ventilation System
- Building Automation/Smart Thermostat
- Electrical Appliance/Range Hood
Documents:
Package Included:
1 x DFRobot Indoor ENS160 Air Quality Sensor With I2C Interface
