Description:

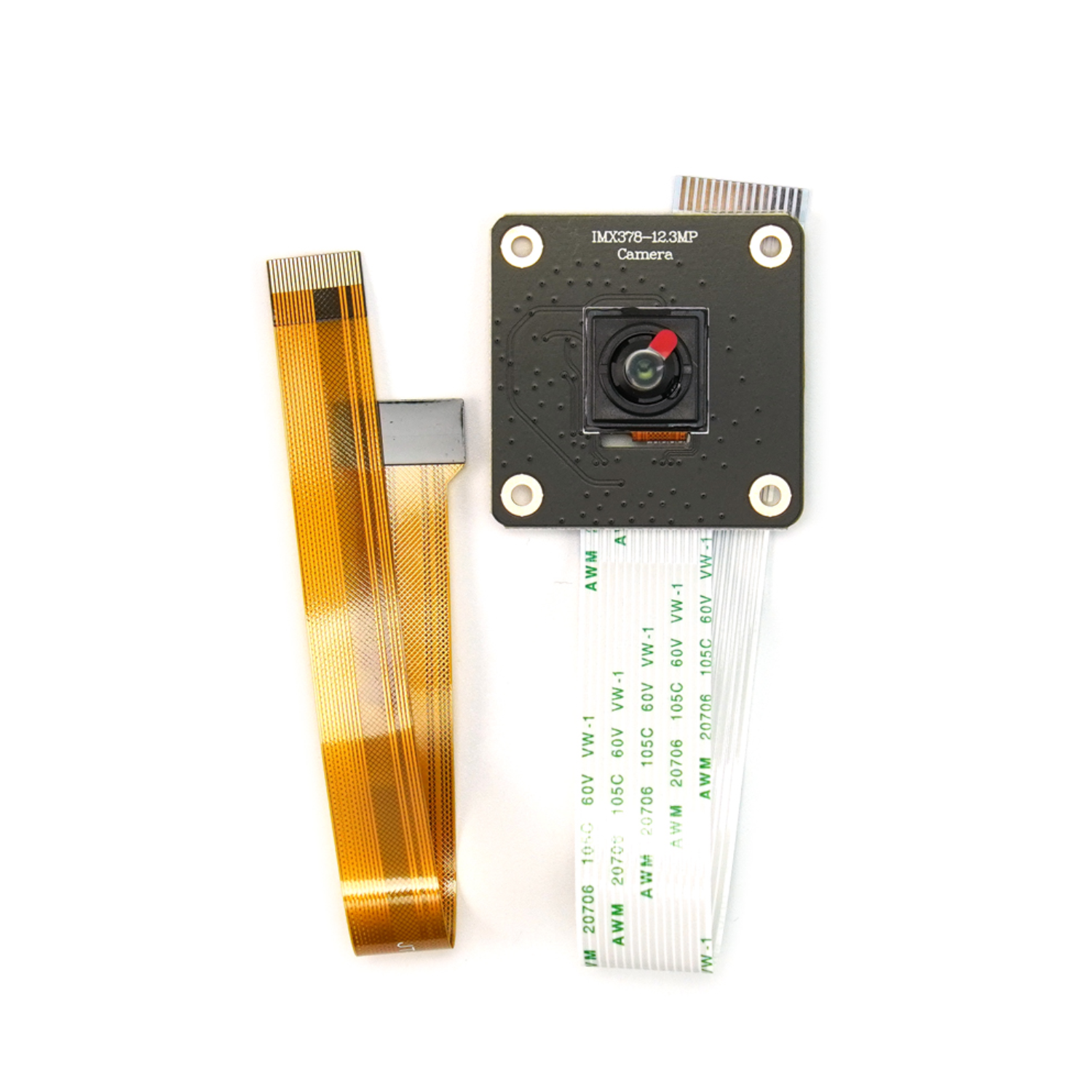

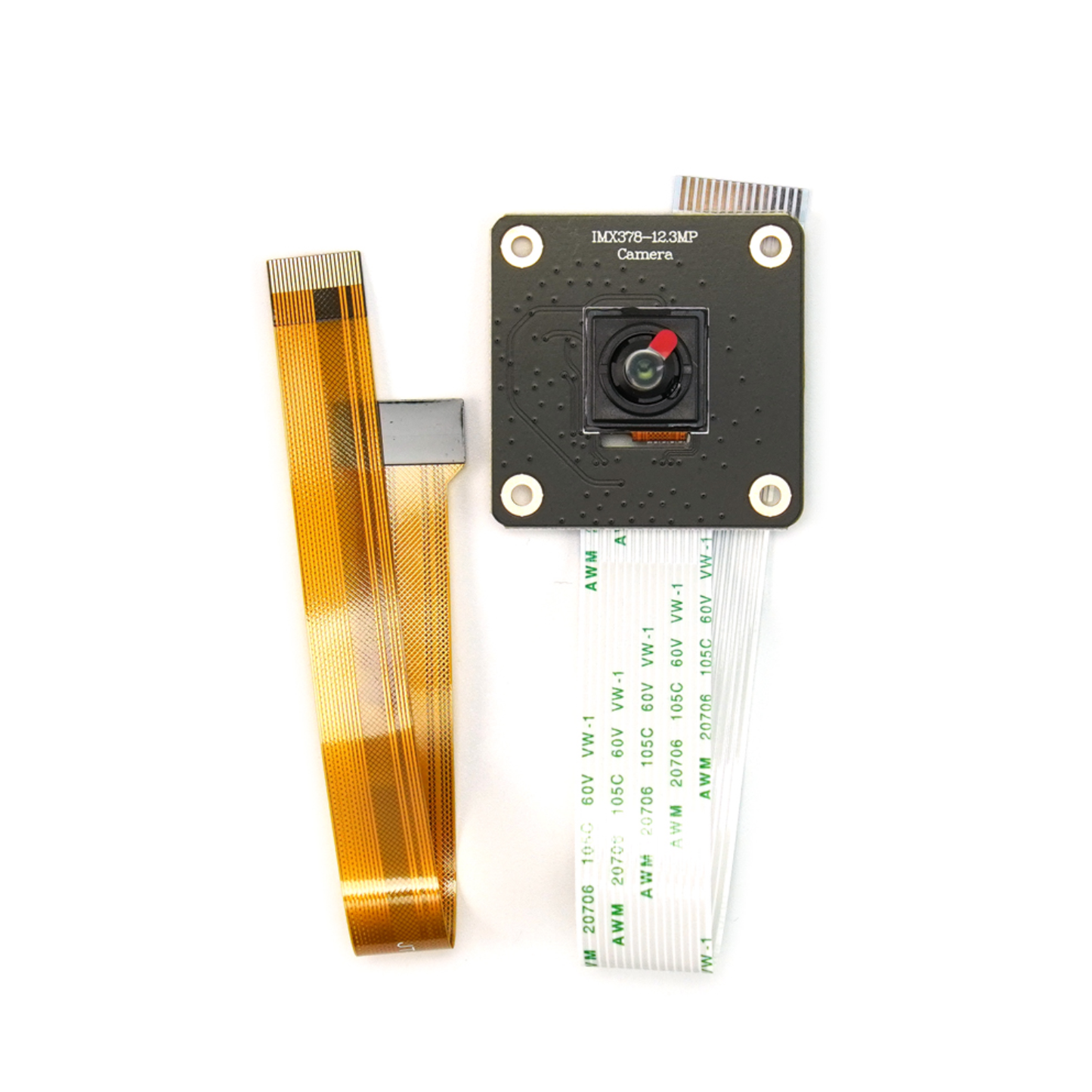

The DFRobot IMX378-79 is a high-performance 12.3MP camera module specifically engineered for seamless integration with Raspberry Pi 5, 4, and Zero. Powered by the acclaimed Sony IMX378 sensor, it captures exceptionally detailed images at up to 4056×3040 resolution. Its 79° field of view offers a balanced perspective optimal for close-range inspection, object recognition, and industrial automation. The integrated infrared filter ensures accurate color and high-fidelity output, while the rolling shutter provides clear imaging. Featuring a high-speed MIPI-CSI interface for efficient data transmission, the module includes both 15-pin to 15-pin and 15-pin to 22-pin FPC cables for quick setup. Designed for precision applications, the IMX378-79 boasts low distortion (<1.5%) and a fixed focus lens for consistently sharp imagery, making it an ideal choice for robotics, automation, and vision-based inspection systems seeking professional-grade performance in a compact form factor.
Specifications:
- Photosensitive chip: Sony IMX378
- Pixels: 12.3 million
- Chip pixel size: 1.55um x 1.55um
- Resolution: 4056x3040
- Camera type: color
- Shutter mode: rolling shutter
- Focus mode: fixed focus
- CMOS size: 1/2.3 inches
- Infrared filter: integrated
- Aperture: 1.79
- Focal length: 4.74mm
- Field of view: 79°
- Distortion: ＜1.5%
- Interface: MIPI-CSI-2Lane
- Lens size: M8.5
- PCB size: 38*38mm
Features:
- Captures highly detailed visuals.
- Delivers focused, accurate perspectives.
- Ensures excellent low-light performance.
- Provides reliable frame acquisition.
- Renders an accurate color representation.
- Guarantees accurate image geometry.
- Enables efficient image streaming.
- Works with Raspberry Pi 4/5/Zero.
Applications:
- Close-range inspections
- Object recognition
- Industrial automation
Documents:
Package Included:
1 x DFRobot IMX378-79 12.3MP Camera Module for Raspberry Pi (4056x3040 Resolution, FOV 79°)
