Description:

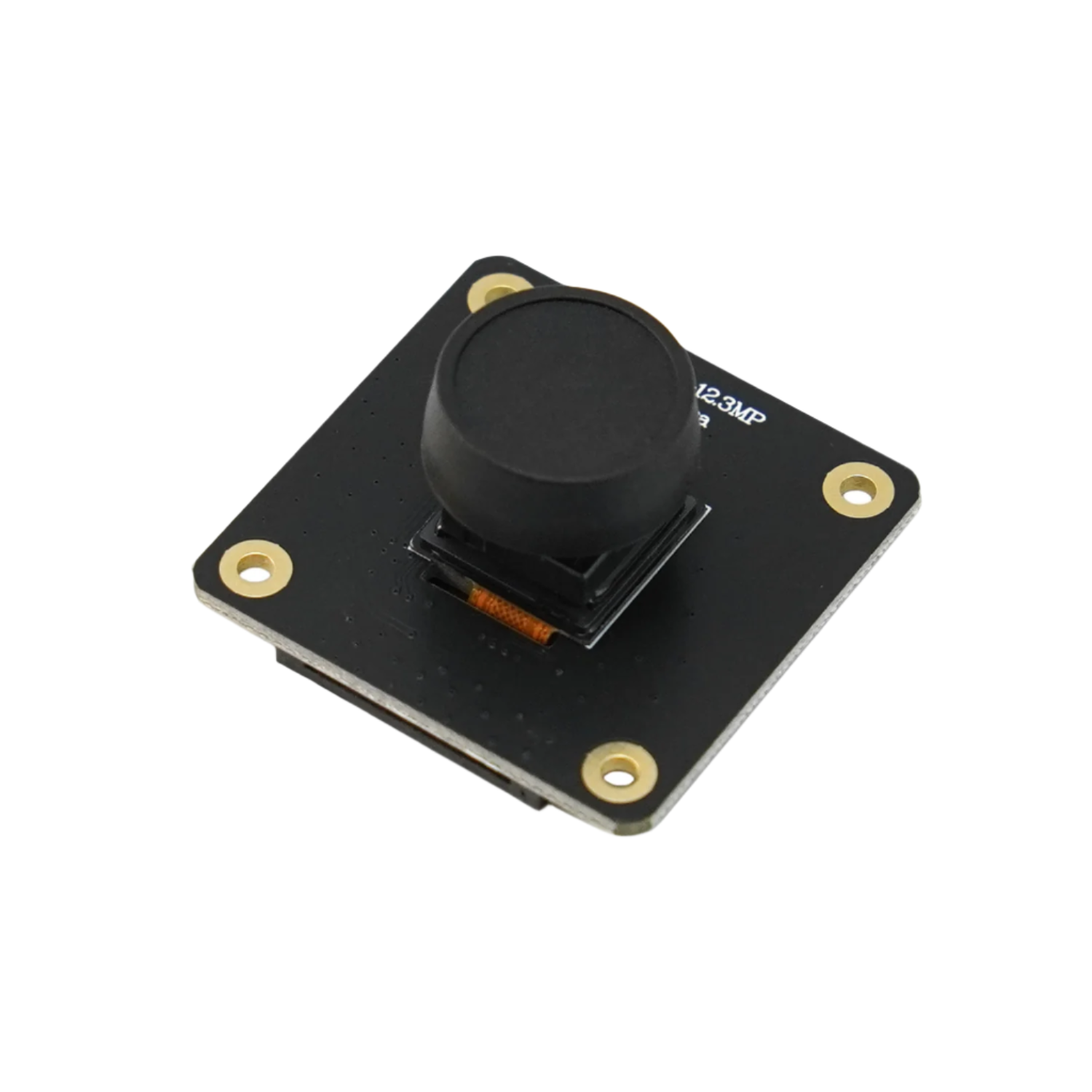

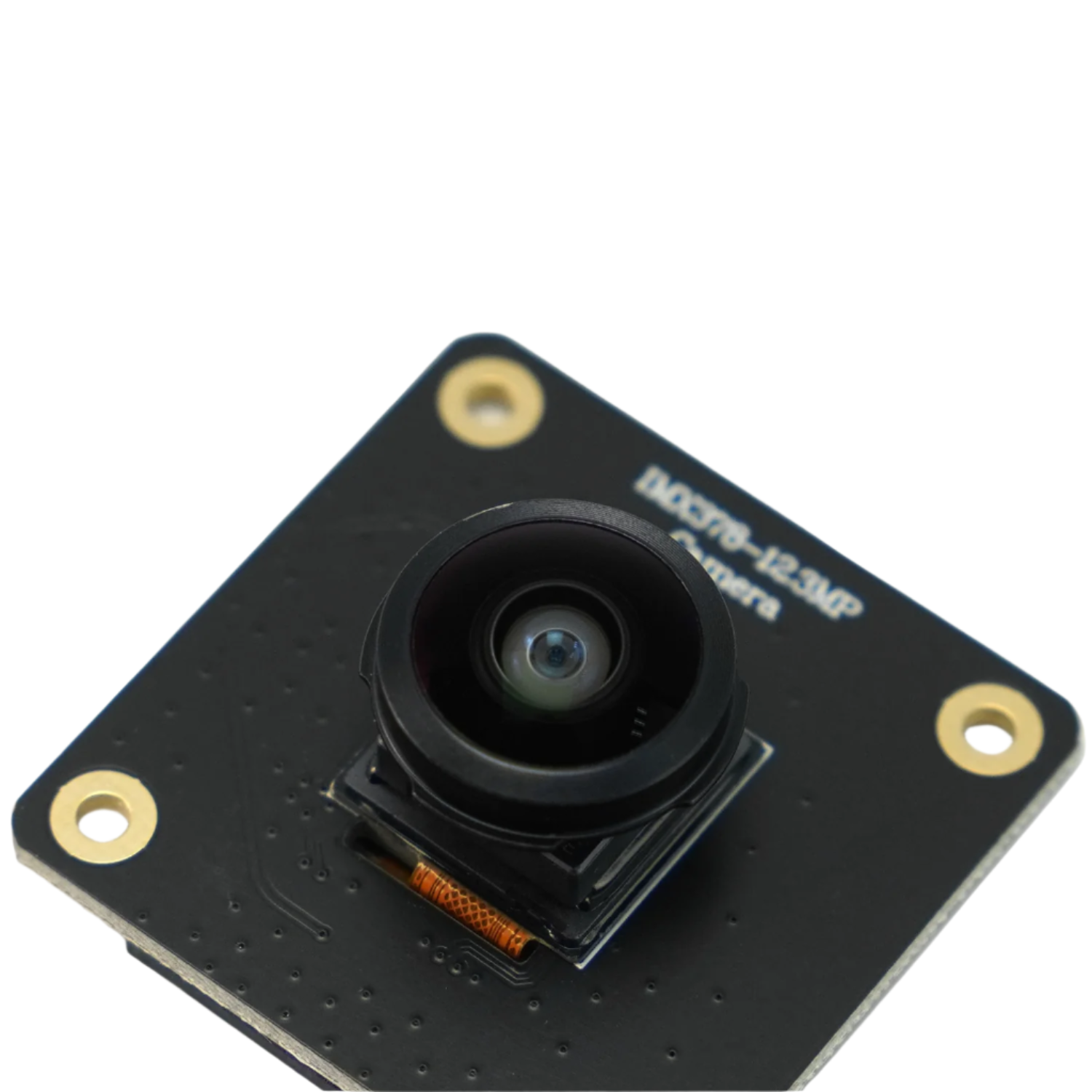

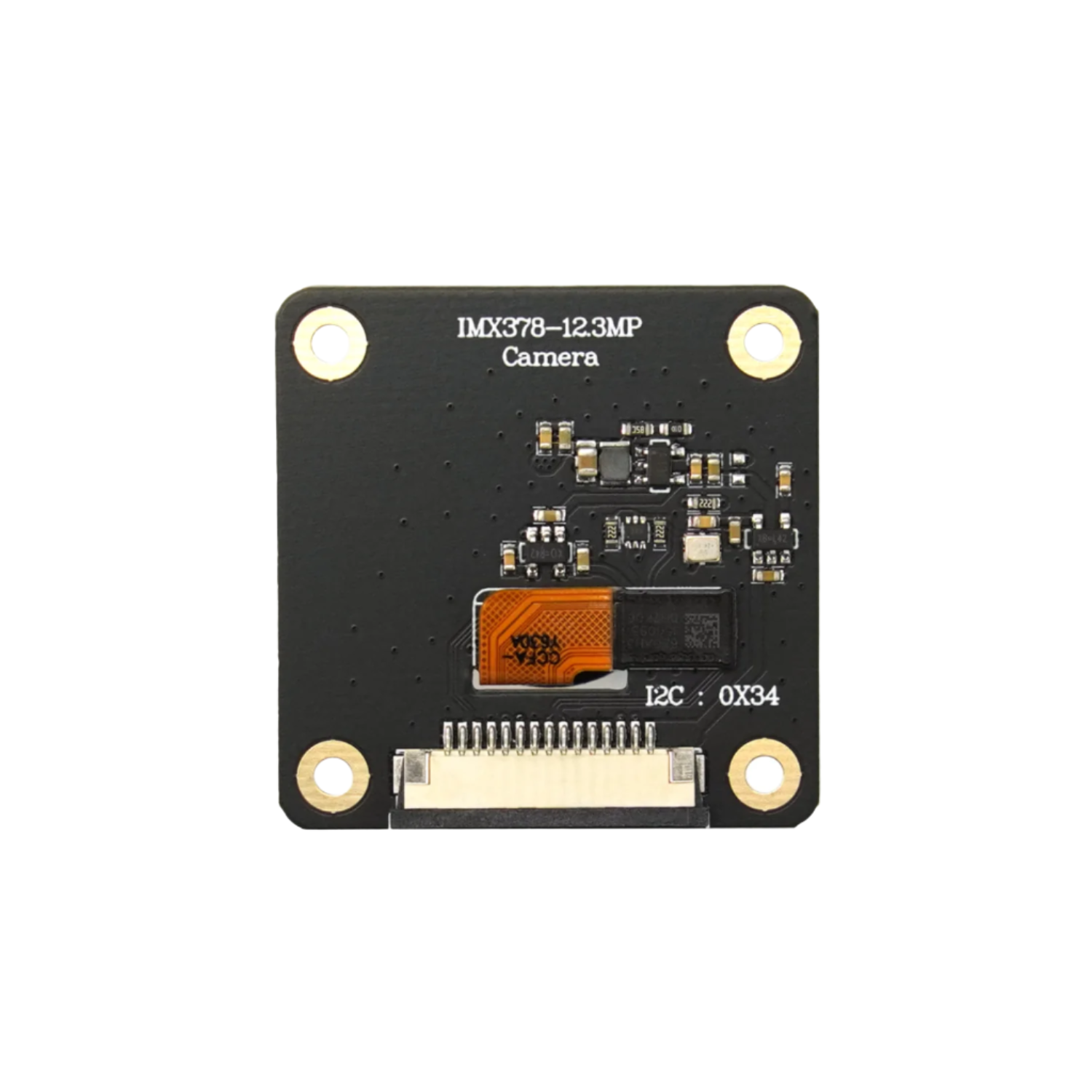

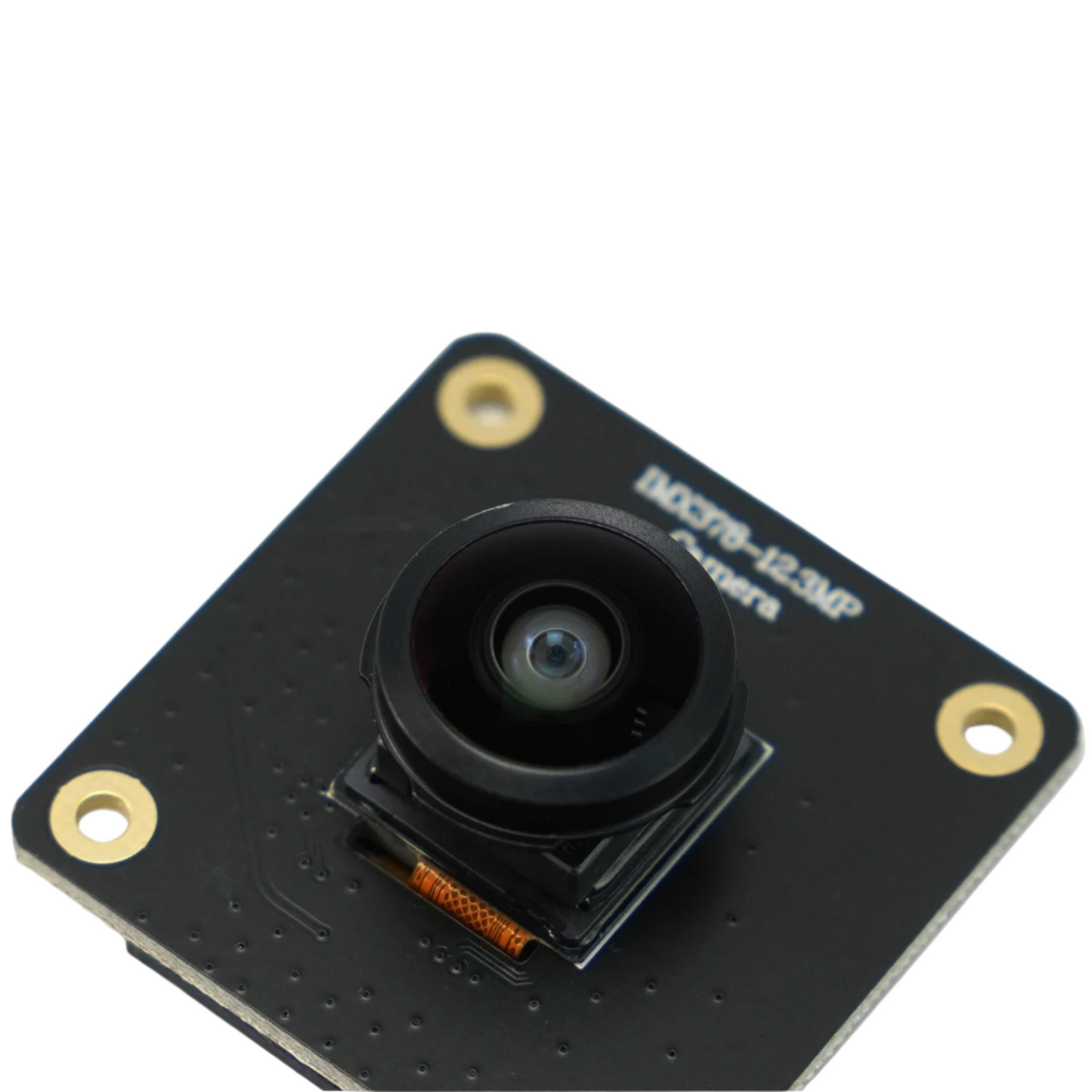

Expand the visual horizon of your Raspberry Pi projects with the DFRobot IMX378-190 Wide-Angle Camera Module. This high-resolution 12.3MP camera features a remarkable 190-degree fisheye lens, capturing exceptionally wide fields of view in crisp detail. Equipped with a global shutter, it excels at capturing fast-moving objects without distortion, making it perfect for dynamic applications. Compatible with Raspberry Pi 4B, 3 B+, and 3A+, the module offers straightforward integration via its 15-pin FFC cable and delivers consistently clear images thanks to its fixed focus lens. Ideal for projects requiring a broad perspective and high-speed image capture, the IMX378-190 boasts minimal distortion (<58%) for reliable and accurate visual data.
Specifications:
- Photosensitive chip: Sony IMX378
- Pixels: 12.3 million
- Chip pixel size: 1.55um x 1.55um
- Resolution: 4056x3040
- Camera type: color
- Shutter mode: rolling shutter
- Focus mode: fixed focus
- CMOS size: 1/2.3 inches
- Infrared filter: integrated
- Aperture: 2.4
- Focal length: 6.5mm
- Field of view: 190°
- Distortion: ＜58%
- Interface: MIPI-CSI-2Lane
- Lens size: M12

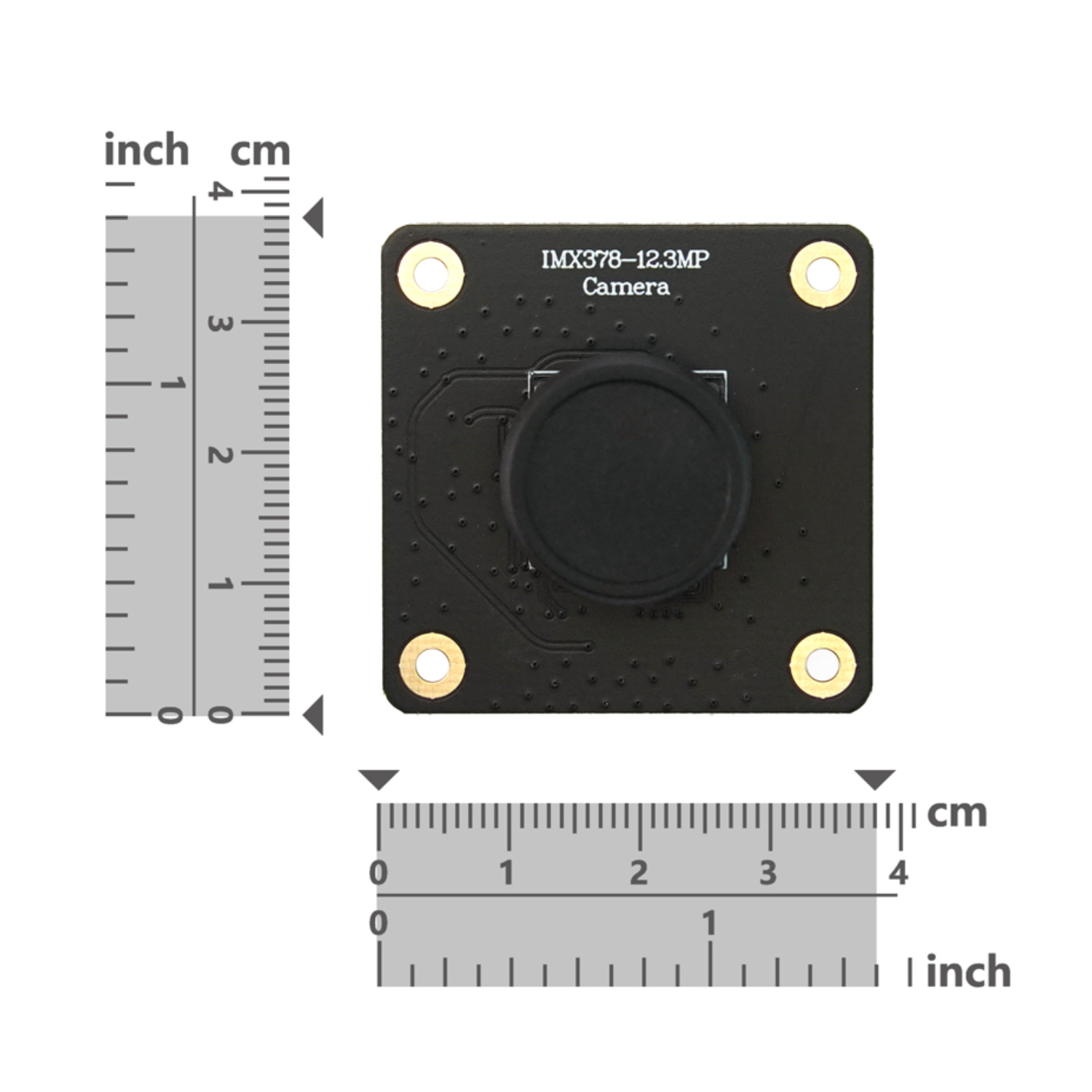

- PCB size: 38*38mm
Features:
- Captures crisp, detailed images.
- Provides an expansive, panoramic view.
- Perfect for capturing fast-moving subjects without distortion.
- Ensures clear and accurate image representation.
- Delivers consistently focused images at various distances.
- Works with 4B, 3 B+, 3A+, 3B, 2B, B+, A+.
- Includes a 15-pin cable for easy setup.
- Ideal for flexible project integration.
Applications:
- 360-degree surveillance
- Virtual reality
- Robotics
Documents:
Package Included:

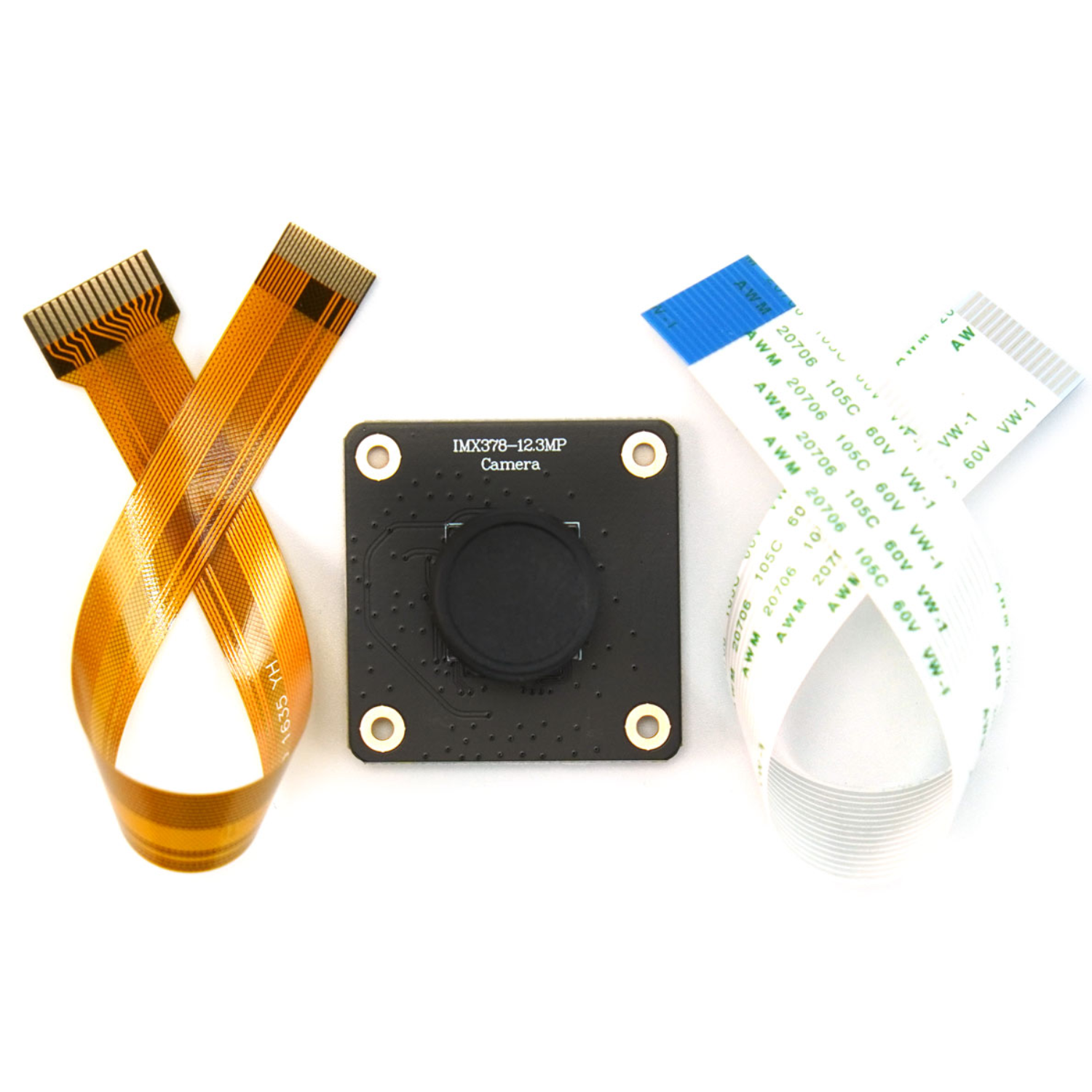

1 x DFRobot IMX378-190 12.3MP Wide-Angle Camera Module for Raspberry Pi 4B / 5 (4056×3040 Resolution, FOV190°)
