DFRobot IMX378-190 12.3MP Wide-Angle Camera Module High-Resolution 12.3MP Camera Module For Raspberry Pi 4B/5 With 190° Wide Field of View And 4056×3040 Resolution - RS8659

DFRobot IMX378-190 12.3MP Wide-Angle Camera Module High-Resolution 12.3MP Camera Module For Raspberry Pi 4B/5 With 190° Wide Field of View And 4056×3040 Resolution - RS8659

RS8659

Low stock: 2 left

Rs. 3,236.00
Rs. 3,236.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

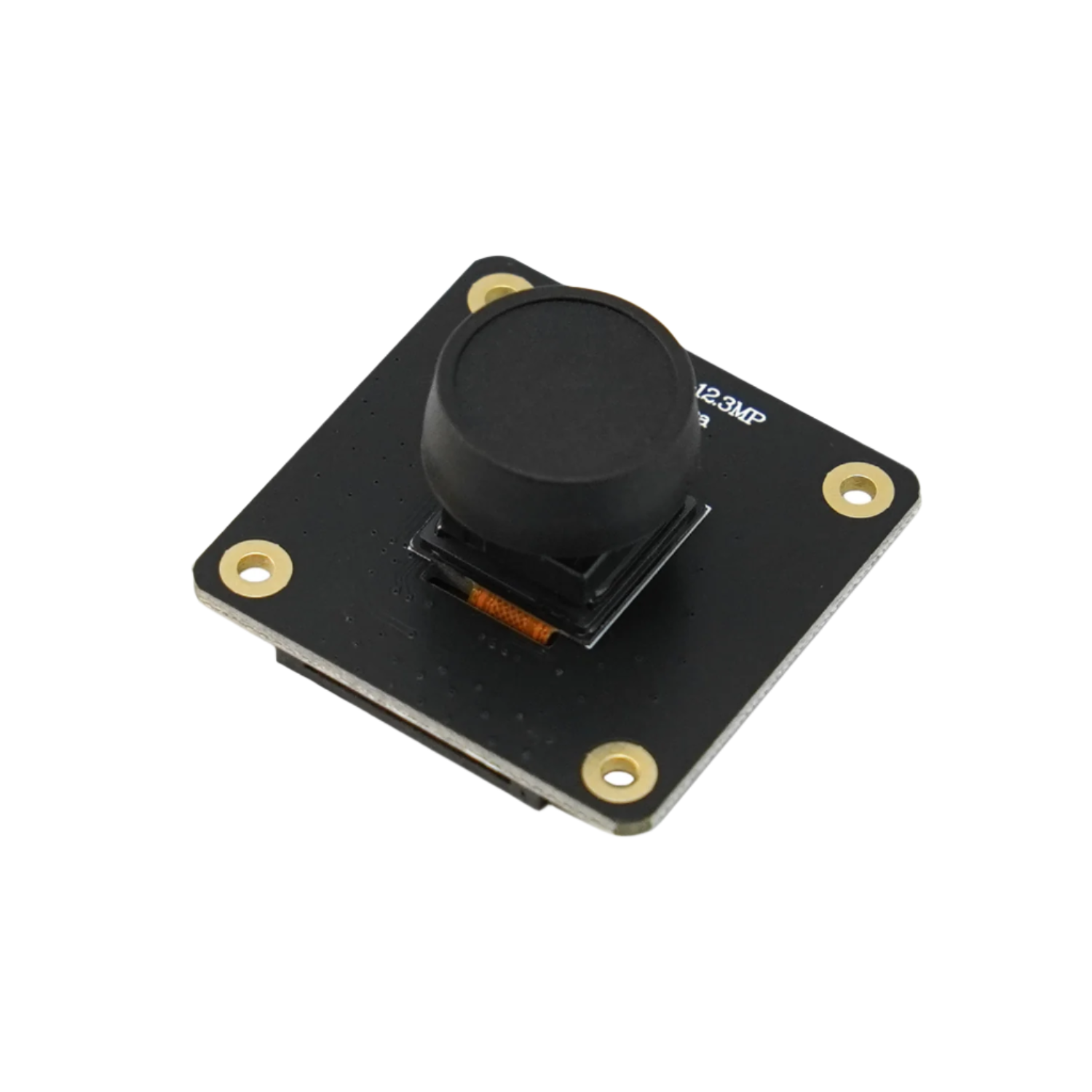

Expand the visual horizon of your Raspberry Pi projects with the DFRobot IMX378-190 Wide-Angle Camera Module. This high-resolution 12.3MP camera features a remarkable 190-degree fisheye lens, capturing exceptionally wide fields of view in crisp detail. Equipped with a global shutter, it excels at capturing fast-moving objects without distortion, making it perfect for dynamic applications. Compatible with Raspberry Pi 4B, 3 B+, and 3A+, the module offers straightforward integration via its 15-pin FFC cable and delivers consistently clear images thanks to its fixed focus lens. Ideal for projects requiring a broad perspective and high-speed image capture, the IMX378-190 boasts minimal distortion (<58%) for reliable and accurate visual data.

Specifications:

  • Photosensitive chip: Sony IMX378
  • Pixels: 12.3 million
  • Chip pixel size: 1.55um x 1.55um
  • Resolution: 4056x3040
  • Camera type: color
  • Shutter mode: rolling shutter
  • Focus mode: fixed focus
  • CMOS size: 1/2.3 inches
  • Infrared filter: integrated
  • Aperture: 2.4
  • Focal length: 6.5mm
  • Field of view: 190°
  • Distortion: ＜58%
  • Interface: MIPI-CSI-2Lane
  • Lens size: M12

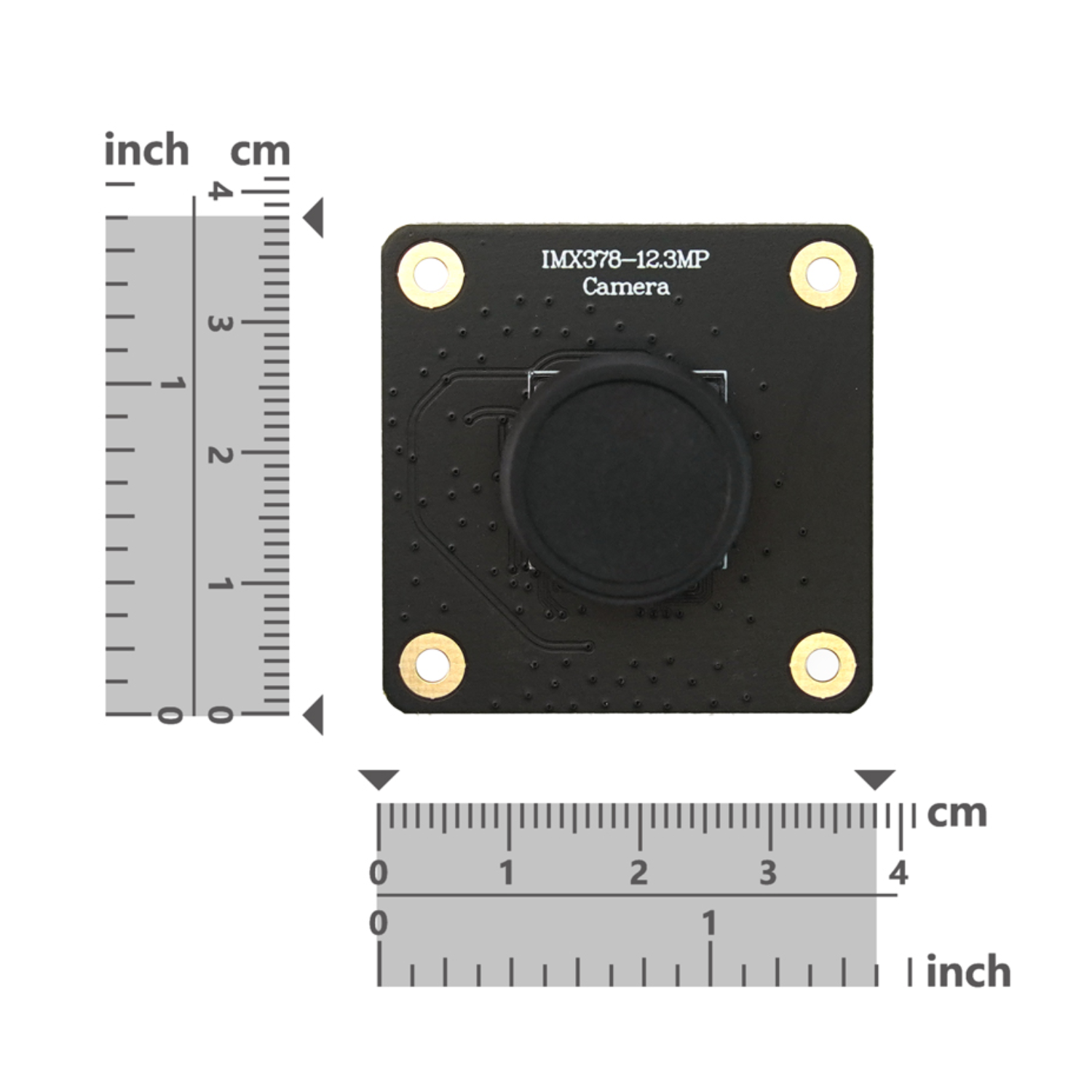

  • PCB size: 38*38mm

Features:

  • Captures crisp, detailed images.
  • Provides an expansive, panoramic view.
  •  Perfect for capturing fast-moving subjects without distortion.
  • Ensures clear and accurate image representation.
  • Delivers consistently focused images at various distances.
  • Works with 4B, 3 B+, 3A+, 3B, 2B, B+, A+.
  • Includes a 15-pin cable for easy setup.
  • Ideal for flexible project integration.

Applications:

  • 360-degree surveillance
  • Virtual reality
  • Robotics

Documents:

Package Included:

1 x  DFRobot IMX378-190 12.3MP Wide-Angle Camera Module for Raspberry Pi 4B / 5 (4056×3040 Resolution, FOV190°)
