Description:

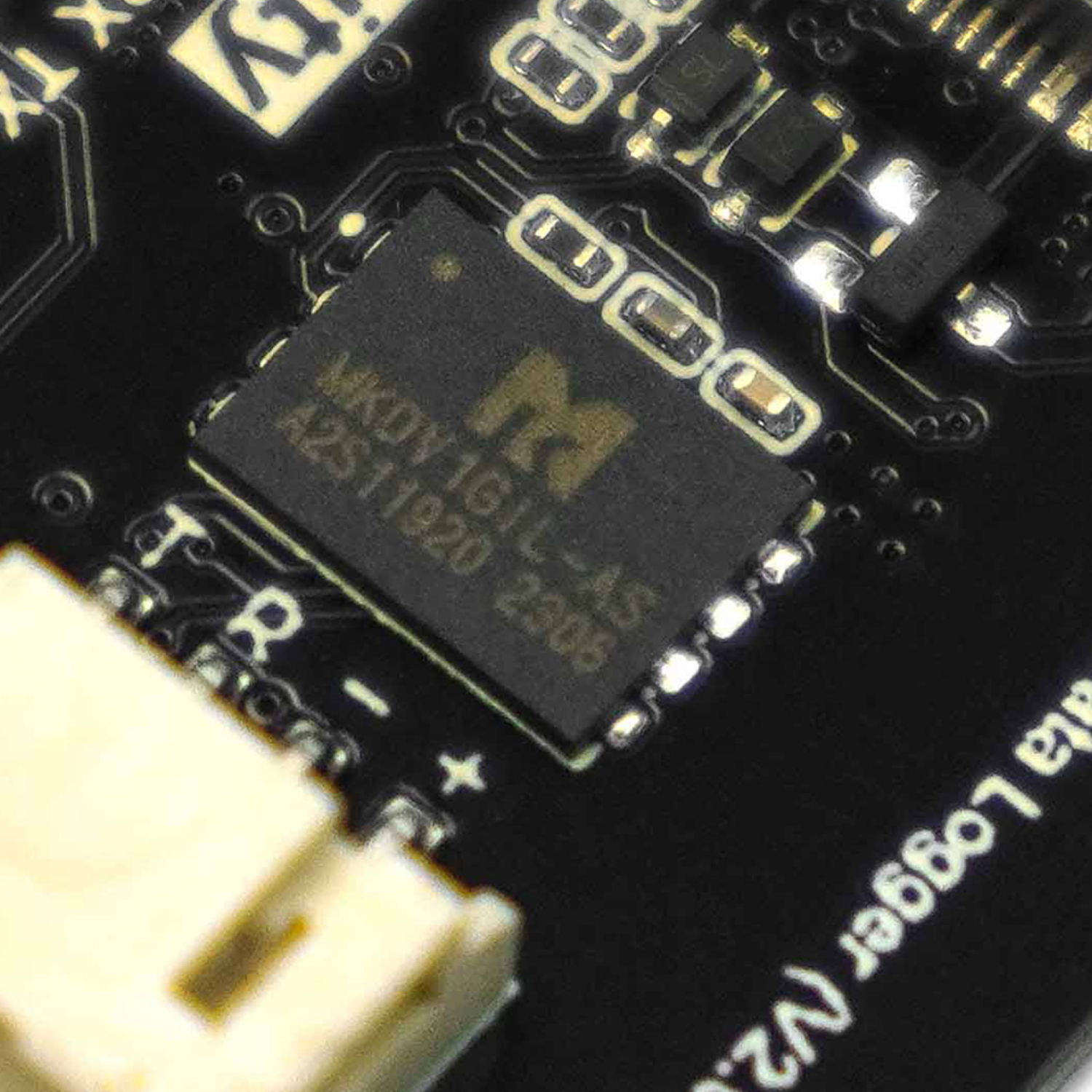

This enhanced Gravity: Serial Data Logger streamlines your data logging experience with significant improvements over previous MicroSD Card Modules. Forget the hassle of separate TF cards; this module boasts a generous onboard 128MB Flash memory, providing ample and integrated storage for your valuable data.
Data management becomes remarkably convenient with its direct data printing capability via the serial port, eliminating the need for extra coding. Furthermore, accessing your stored information is now effortless thanks to the integrated USB function. Simply connect the logger directly to your PC – no more fumbling for card readers!
Keeping an eye on your data logging process is intuitive with the onboard LED indicator, offering a clear visual representation of the data writing status. For organized data collection, the dedicated onboard SAVE key allows you to easily store data into distinct files, enhancing your workflow and data analysis.
The upgraded V2.0 version compared to V1.0 version:
- Supports storage in TXT and CSV file formats.
- Significantly improves startup time and runtime stability.
- Supports the scheduled creation of files for more flexible storage.
- Added a USB port to make reading files more convenient.
Specifications:
- Supply Voltage: 3.3V~5V
- Operating Current: 10mA
- USB Protocol: USB 2.0
- Operating Temperature Range: -20℃~65℃
- Operating Humidity Range: 5%RH~85%RH

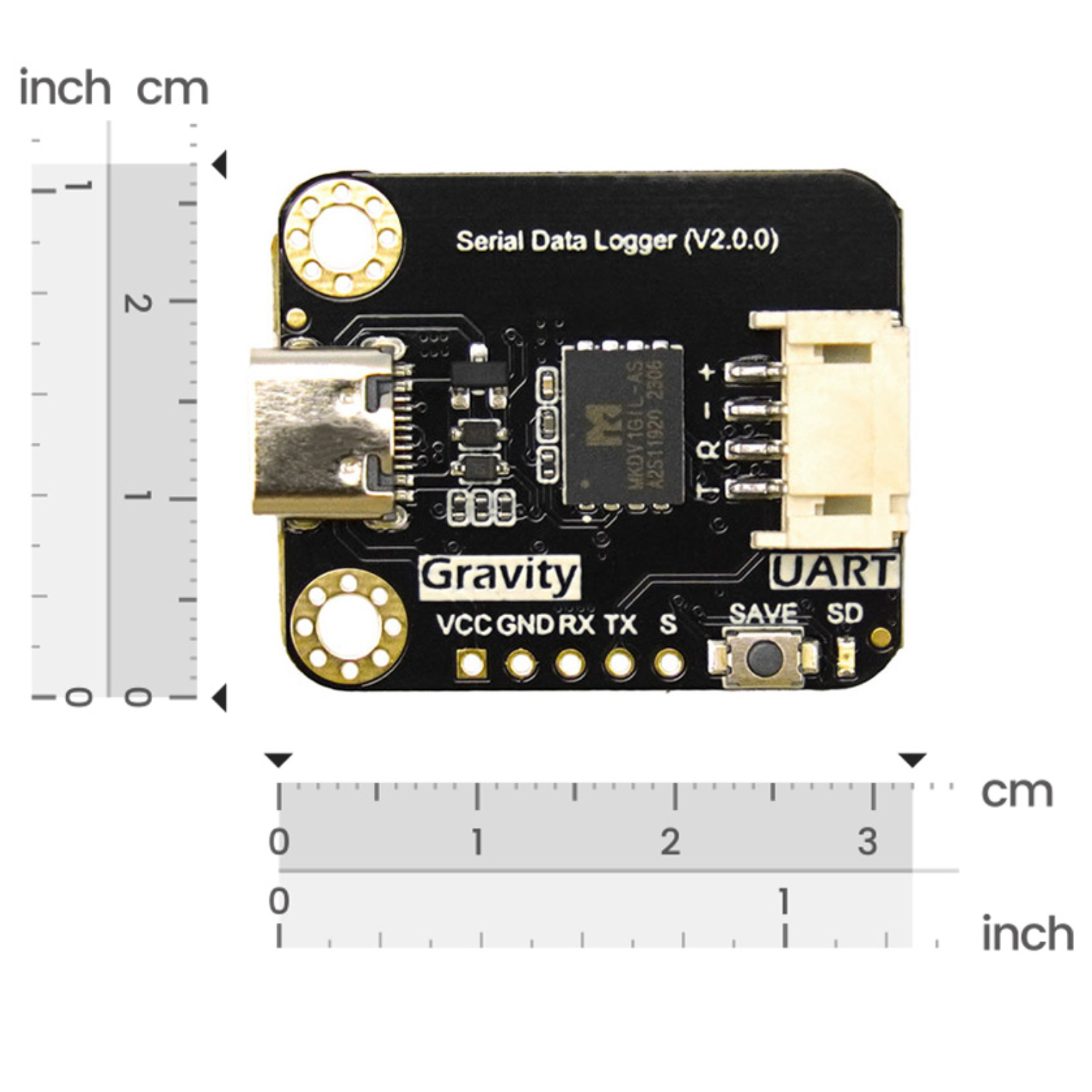

- Dimension: 32*27mm/1.26*1.06
Features:
- Read data directly on your PC – no card reader needed.
- Onboard memory eliminates the need for TF cards.
- Ensures compatibility with various systems.
- The onboard LED indicates data logging activity.
- Versatile storage in common data formats.
- Automate data organization with timed file generation.
Applications:
- Offline data collection
- Capture product log grab
- Robots and drones debug
Documents:

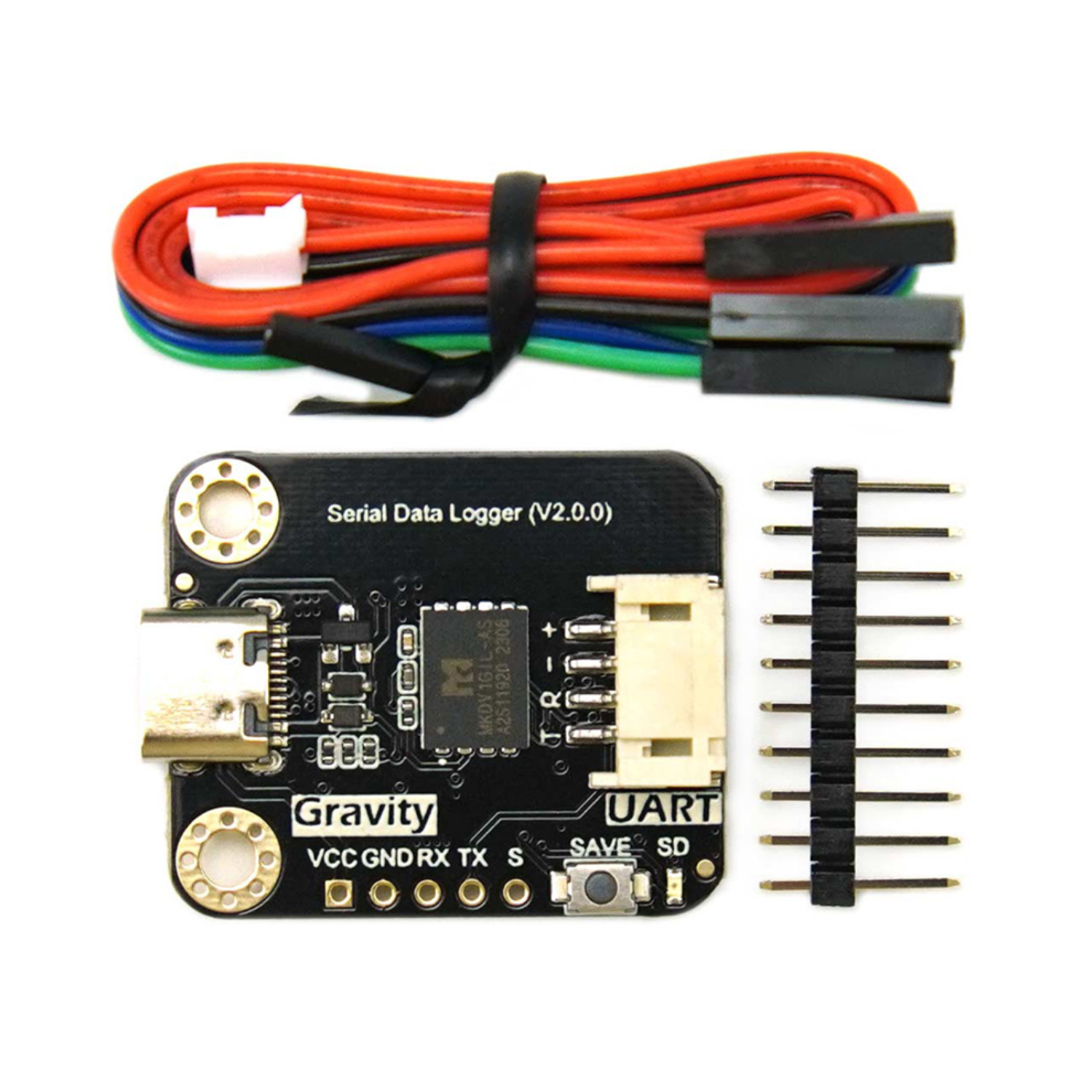

Package Included:
1 x DFRobot Gravity: Serial Data Logger V2.0 For Arduino
