Description:
DFRobot Gravity Analog AC Current Sensor: When you want to measure the AC, are you still having trouble cutting the wires, wiring, or soldering? Gravity: Analog AC Current Sensor comes to the rescue, eliminating the need to cut wires or reconnect circuits. Simply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC value. The analog output is designed to be compatible with a 3V3/5V microcontroller. It can be conveniently used for AC measurement to monitor AC motors, lighting equipment, air compressors, etc.
Specifications:

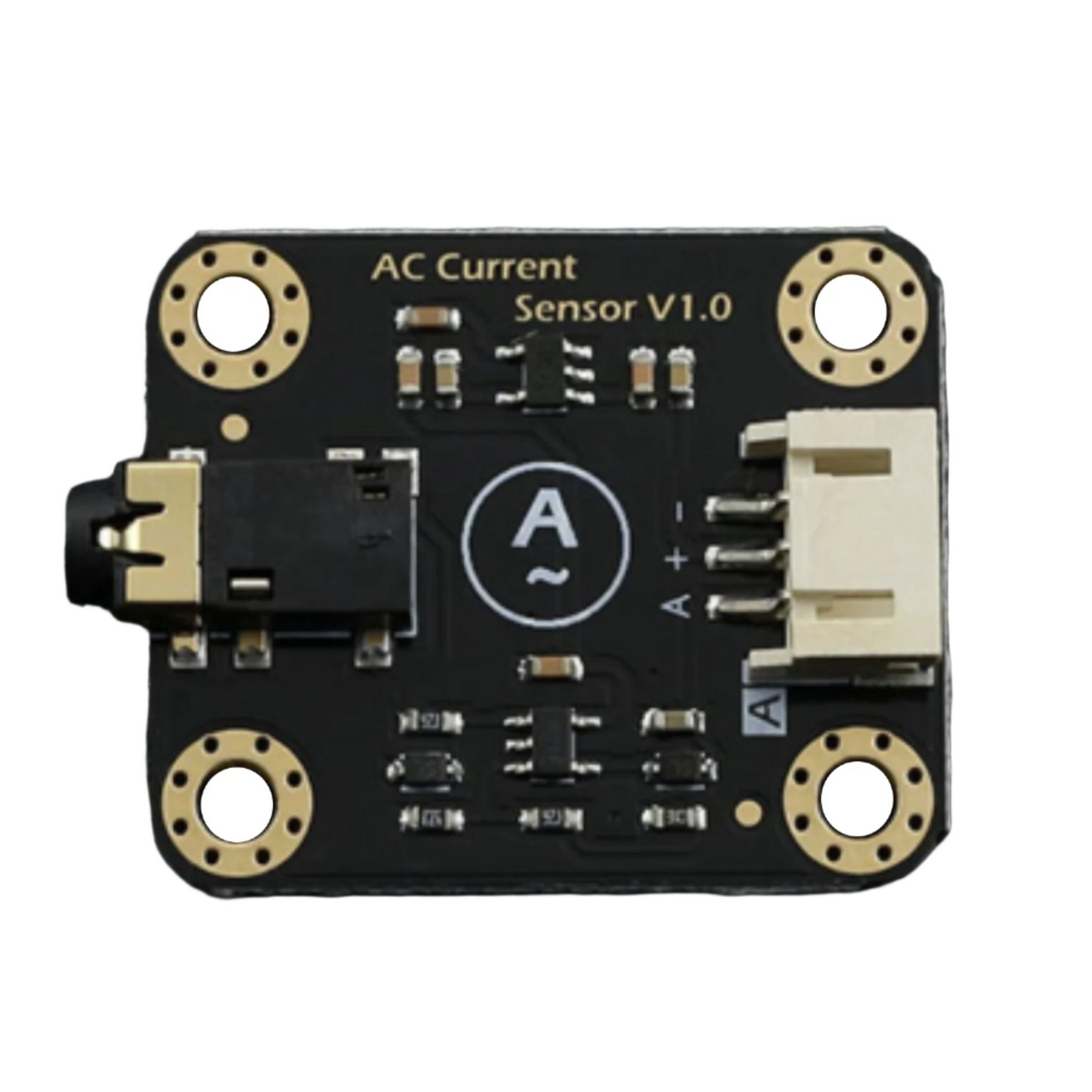

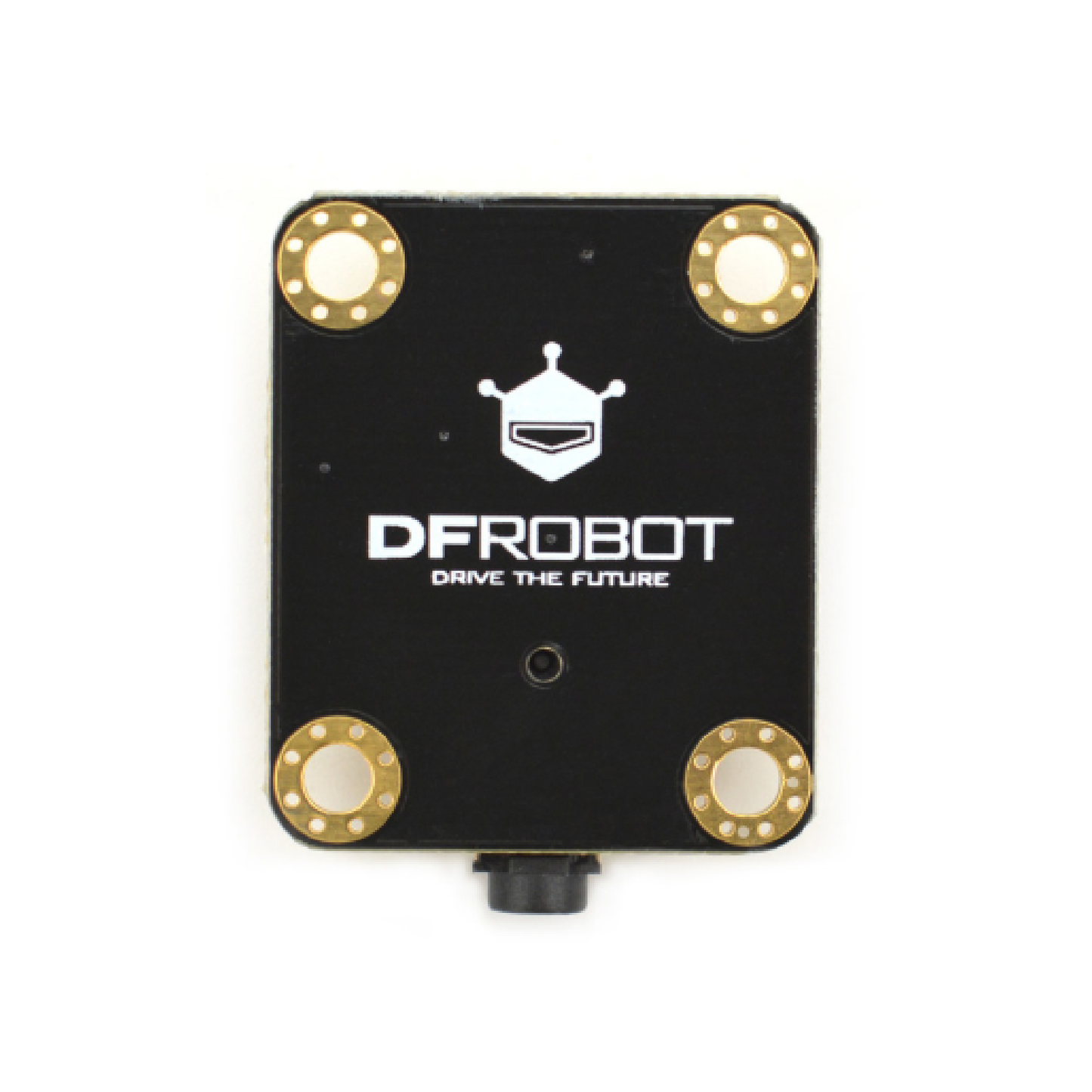

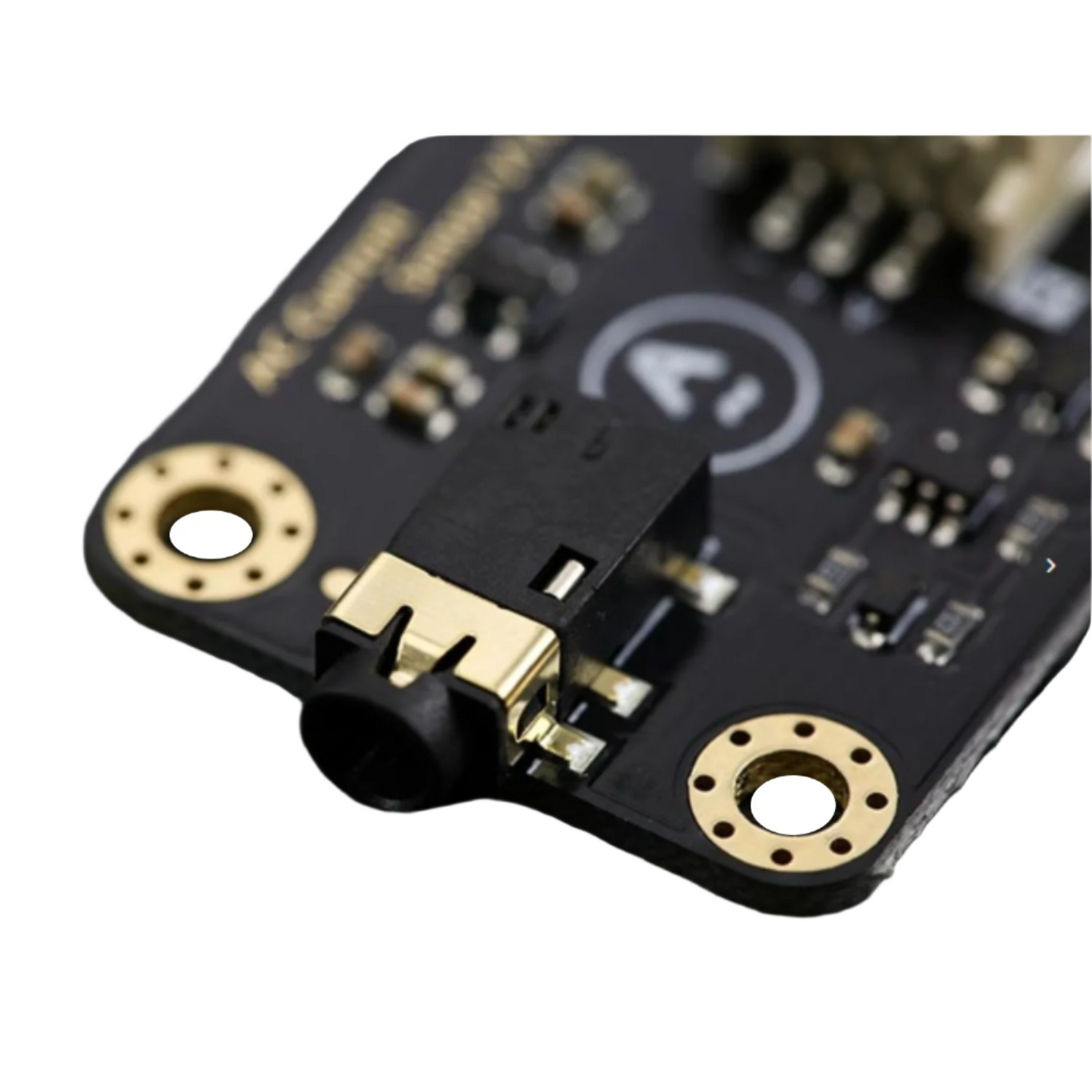

AC Current Signal Conversion Module
- Input Voltage (VCC): 3.3V-5.5V
- Interface: Gravity Analog (PH2.0-3P，analog voltage output 0.2-2.8V DC)
- AC Voltage Input Range: 0-1V (AC RMS)
- Relative Error: ±4%

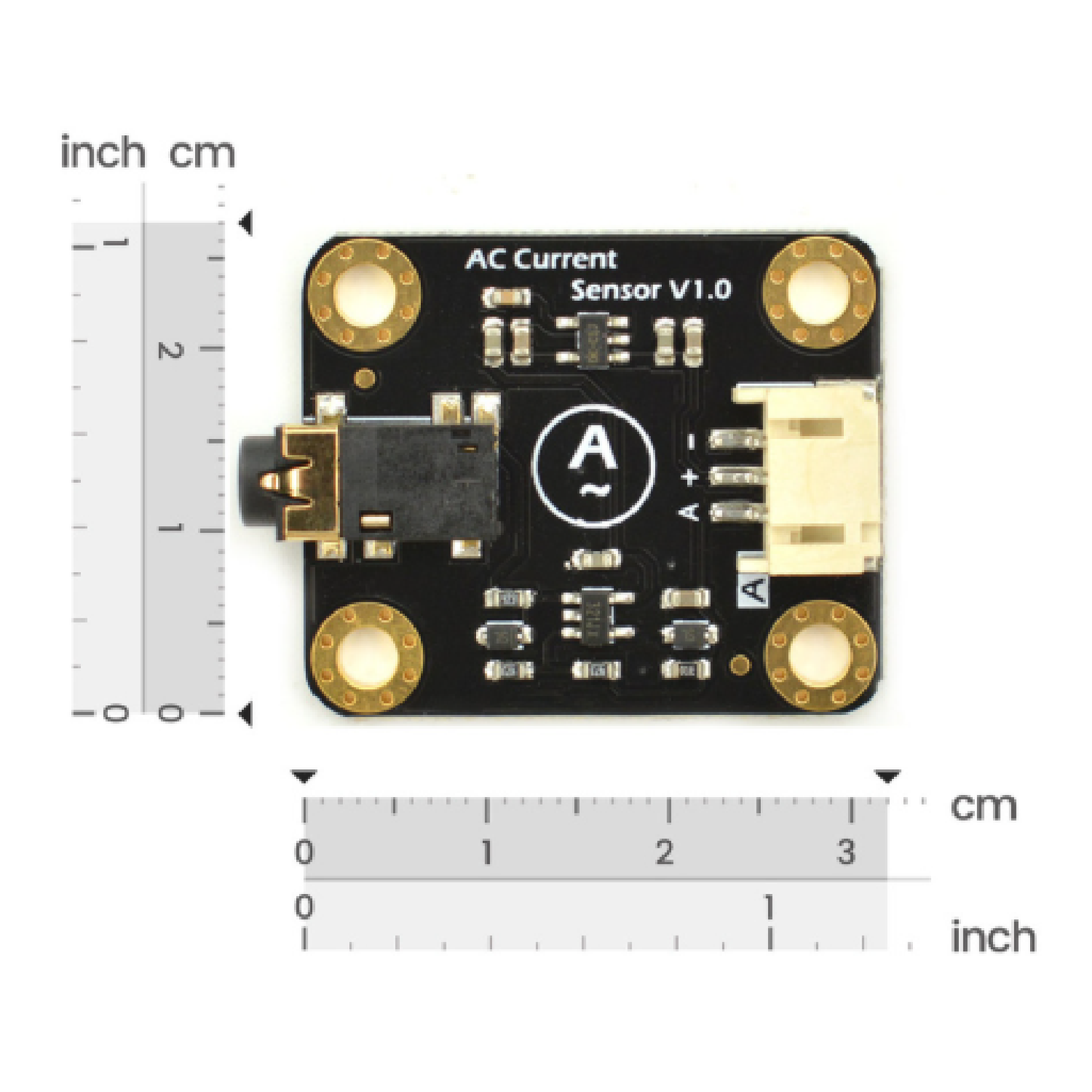

- Dimension: 32×27 mm /1.26×1.06 in
- Weight: 5g
Gravity-3P Analog Sensor Cable
- AC Current Range: 0-20A
- Signal Output (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range 0-20A
- Accuracy: ±1%
- Non-linearity: ≤±0.2%
- Frequency Range: 50Hz~1kHz
- Cable Length: 1m
- Working Temperature: -25 ℃~+70 ℃
- Opening Size: 13×13 mm / 0.51×0.51 in
- Weight: 50g
Features:
- Non-contact measurement, high safety
- Multiple ranges for various measurement scenarios
- Compatible with 3V3/5V micro-controller
Applications:
- AC motor automatic monitoring
- Lighting and electrical equipment measurement
Useful Link:
Package Included:
- 1 x AC Current Signal Conversion Module

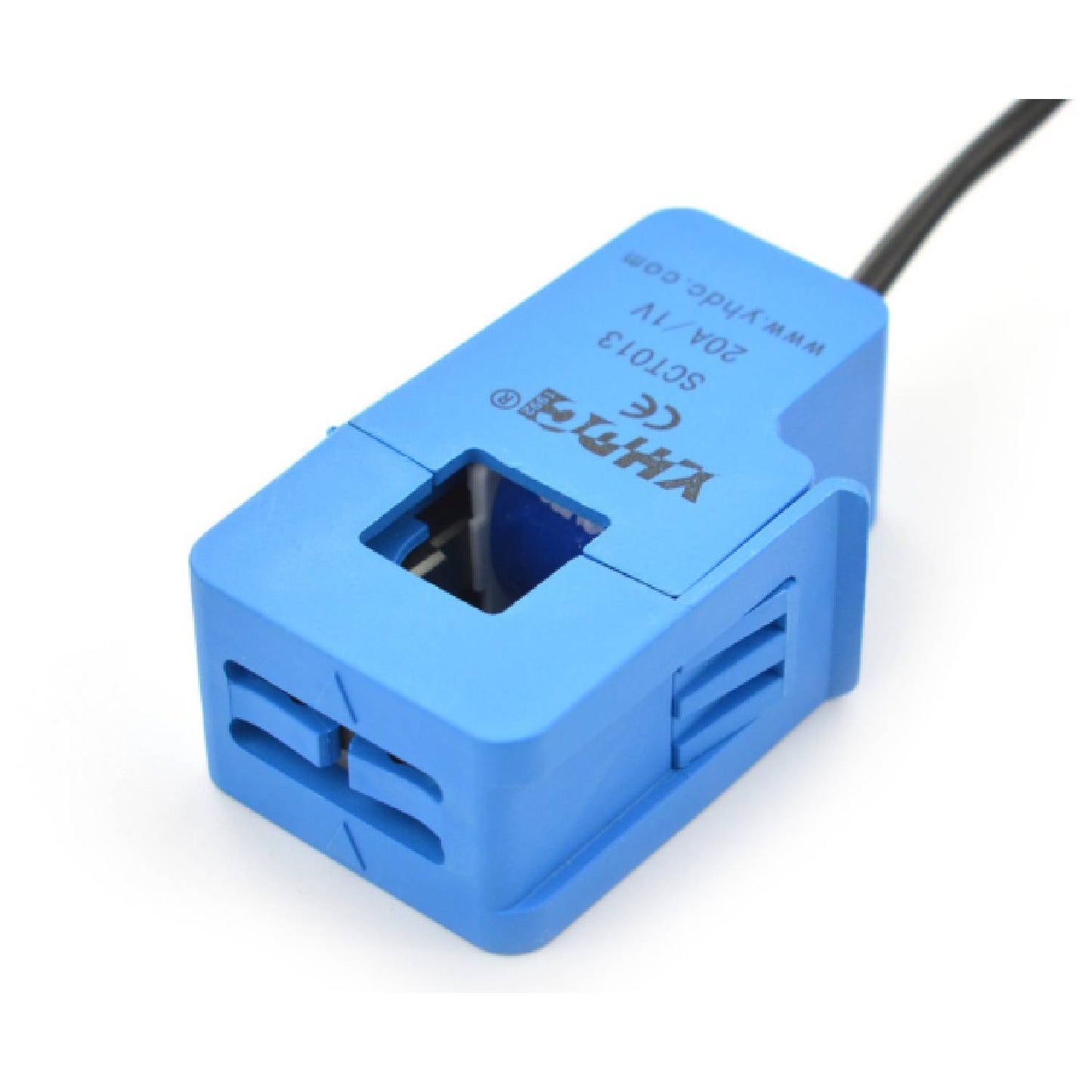

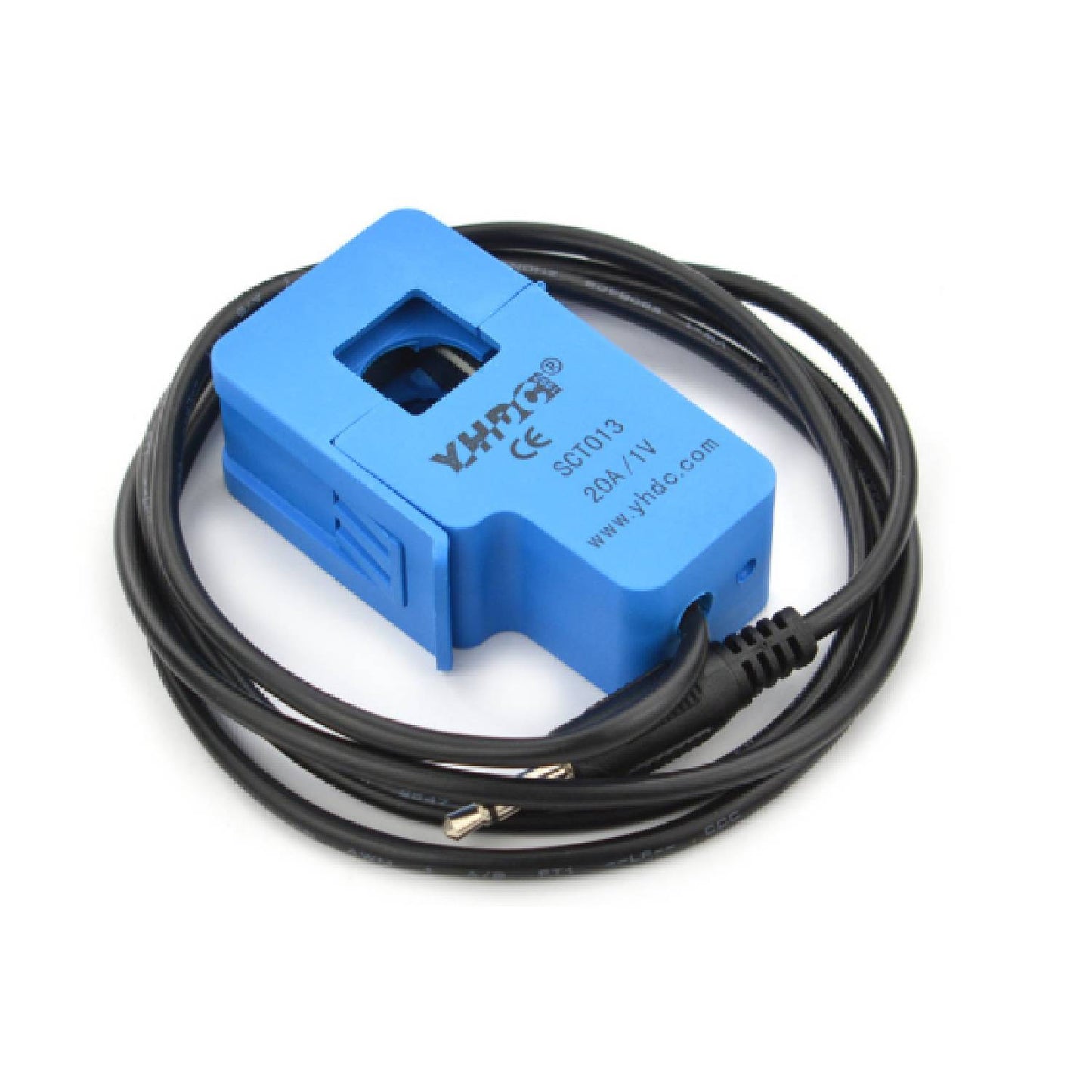

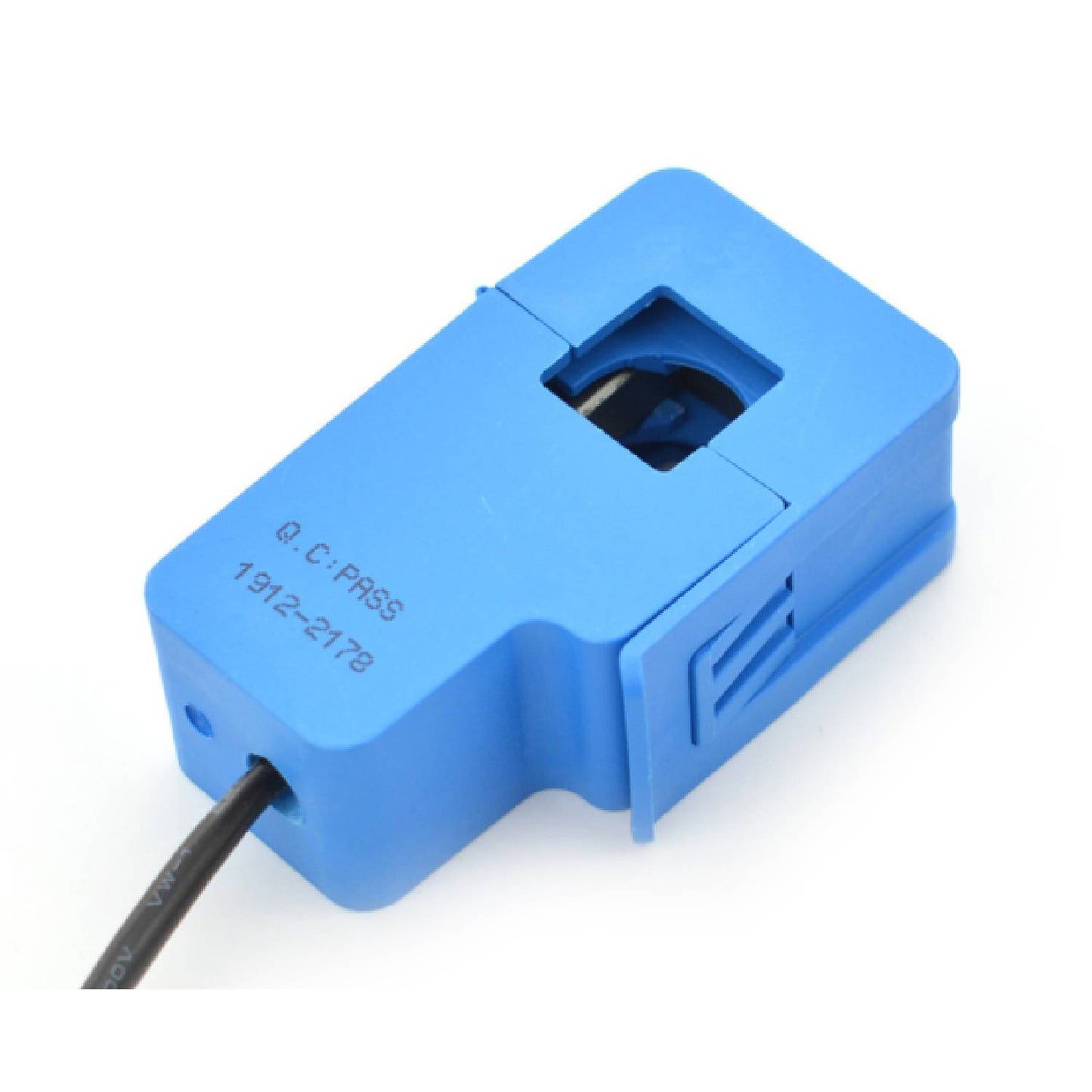

- 1 x Open Type AC Transformer Probe (20A)

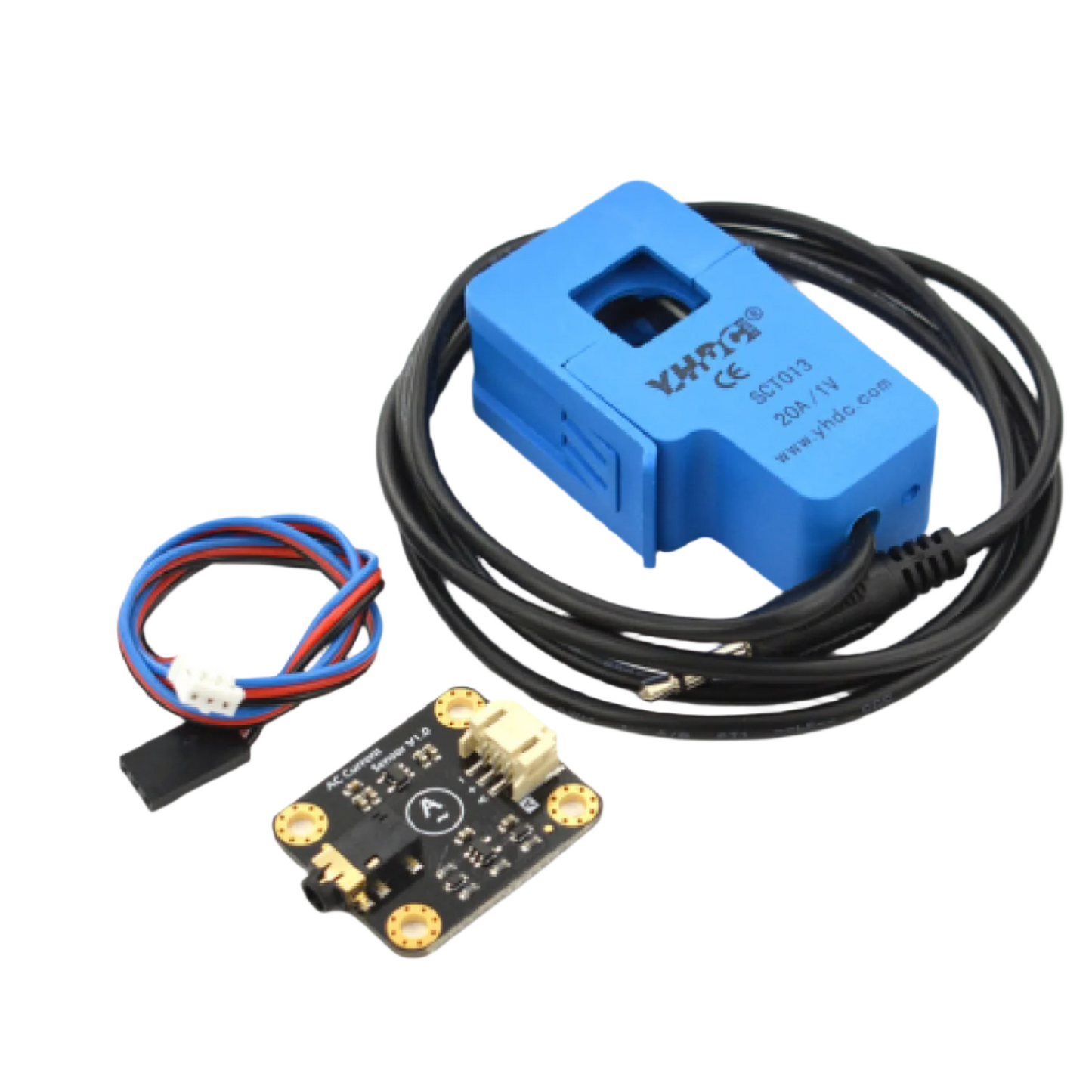

- 1 x Gravity-3P Analog Sensor Cable
