Description:

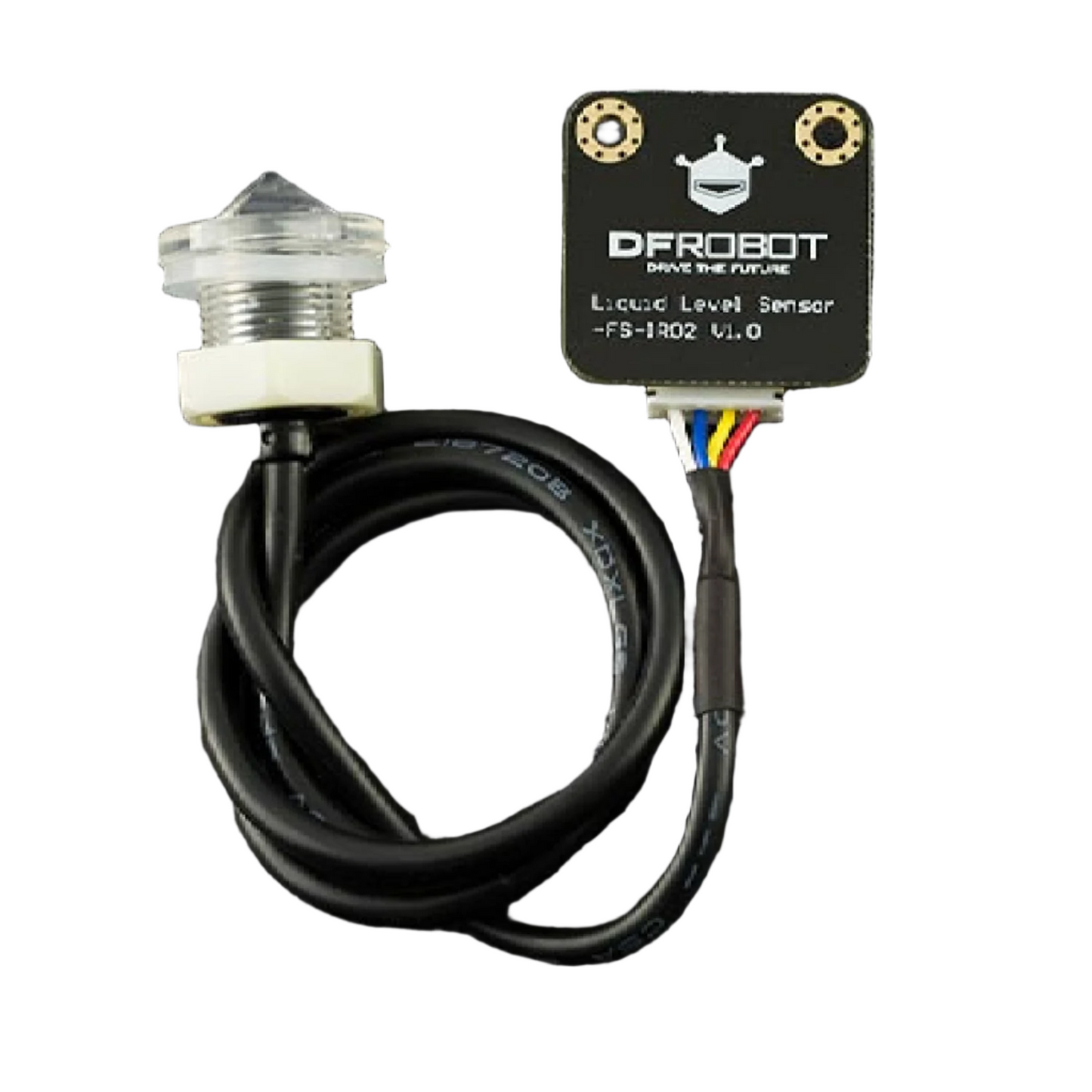

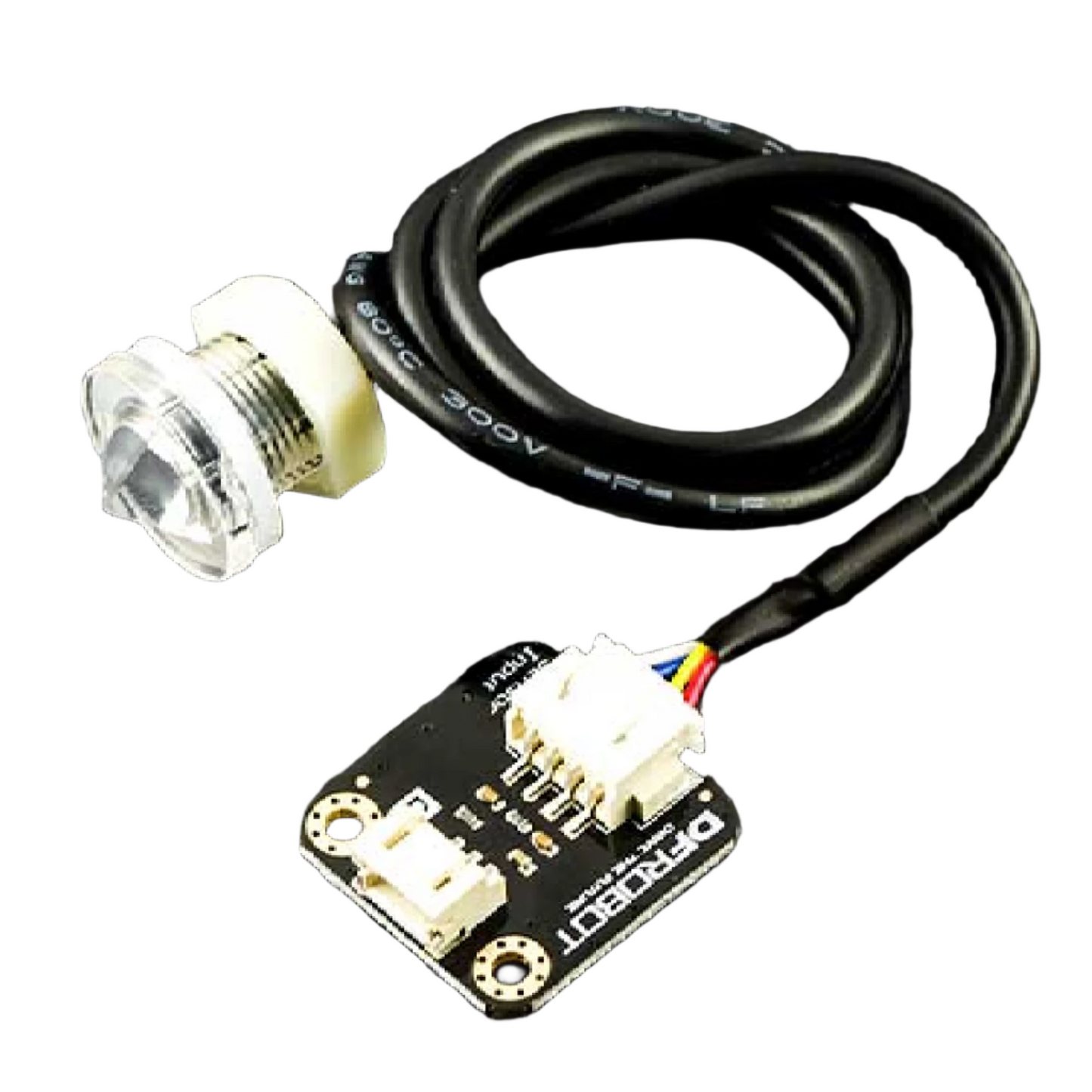

This is a photoelectric water liquid level sensor that operates using optical principles. The advantages of this photoelectric water liquid level sensor are good sensitivity and no need for mechanical parts - meaning less calibration! The corrosion-resistant probe is easily mounted and can handle high temperatures and high pressure.

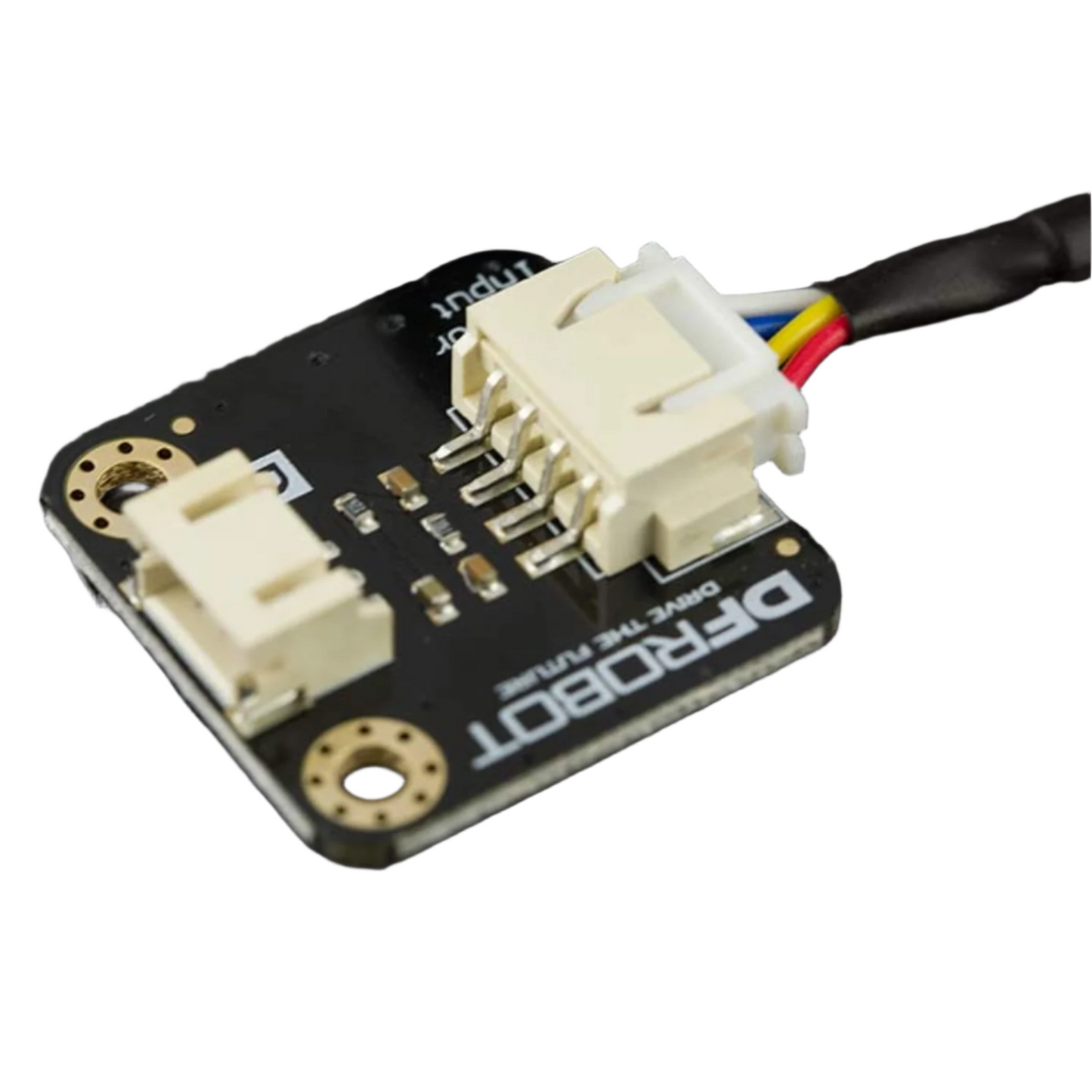

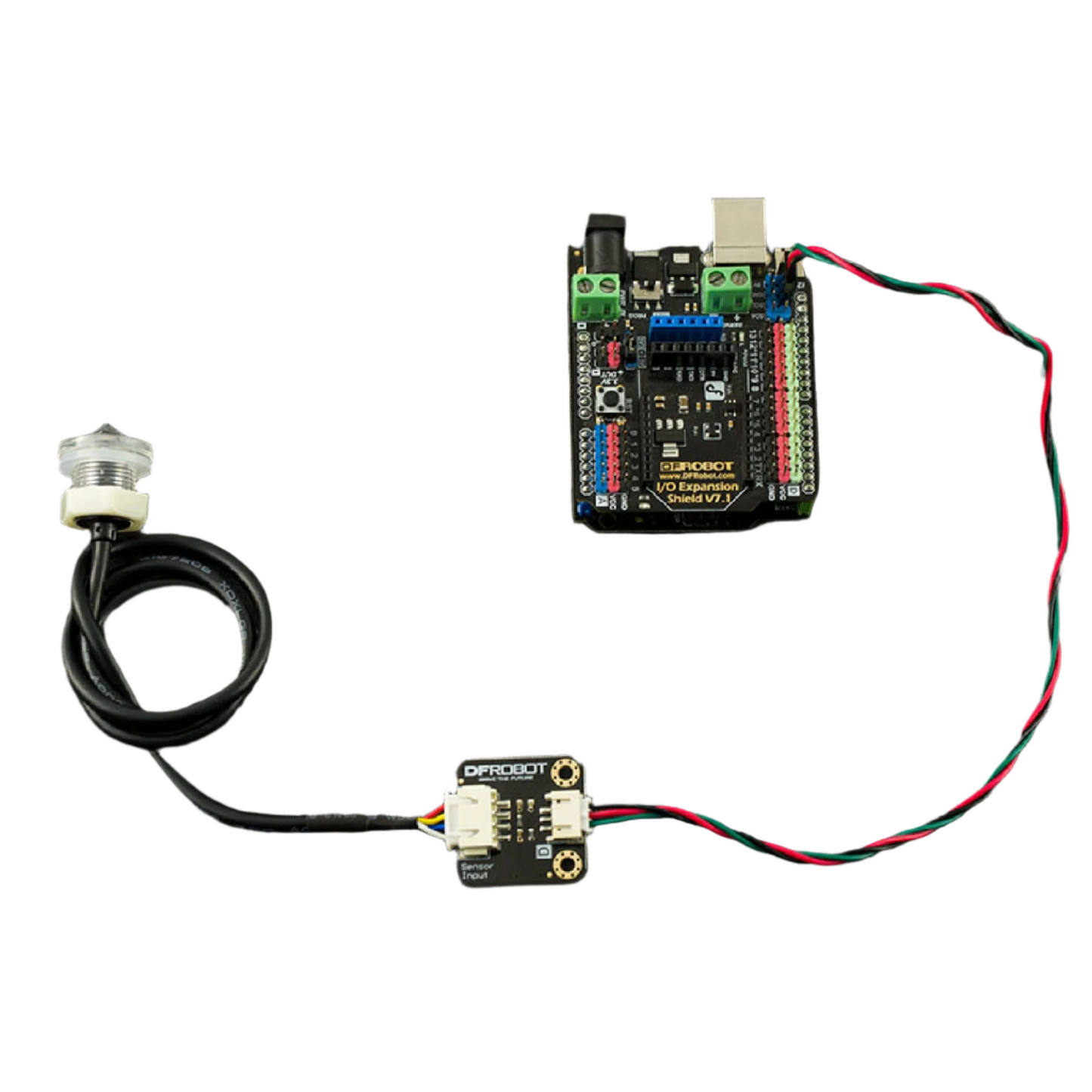

The Arduino liquid sensor is equipped with an interface adapter for compatibility with the DFRobot "Gravity" interface. To ease the difficulty of using this Arduino liquid sensor, a Gravity Interface is adapted to allow plug-and-play. The Arduino IO expansion shield is the best match for this sensor connecting to Arduino. This aThisliquid sensor can work at 3.3V, which makes it compatible with Raspberry Pi, Intel Edison, joul,e, and urine.
Note:
Avoid placing the sensor near bright lights or in direct sunlight, as these can cause interference.
Specifications:
- Model: FS-IR02
- Type: Photoelectric liquid level sensor
- Operating voltage: 5 VDC
- Output current: 12 mA
- Working temperature: - 25 ~ 105 ℃
- Low-level output: < 0.1 V
- High level output: > 4.6 V
- Liquid level detection accuracy: ±0.5 mm
- Material: PC
- Measuring range: No limit
- Life: 50,000 hours
- Dimension: 28 x 28 mm/ 1.1 x 1.1 inches
- Cable Length: 450mm
- Weight: 26g
Features:
- Equipped with an interface adapter for compatibility with the DFRobot “Gravity” interface
- High sensitivity
- Less calibration
- No need for mechanical parts
Useful Links:

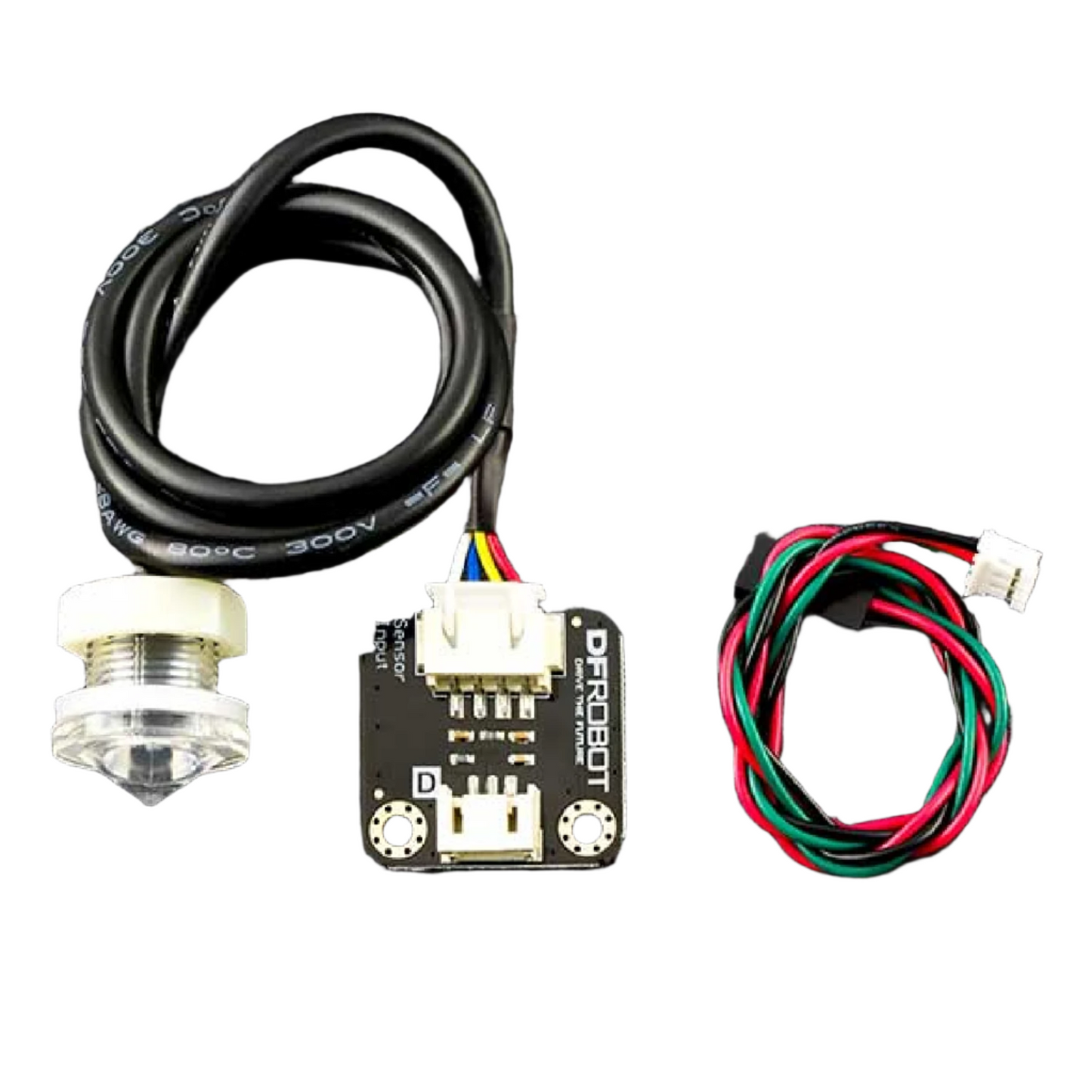

Package Included:
- 1 x Liquid Level Sensor-FS-IR02 probe
- 1 x Liquid Level Sensor convert board
- PH2.0-3P Cable
