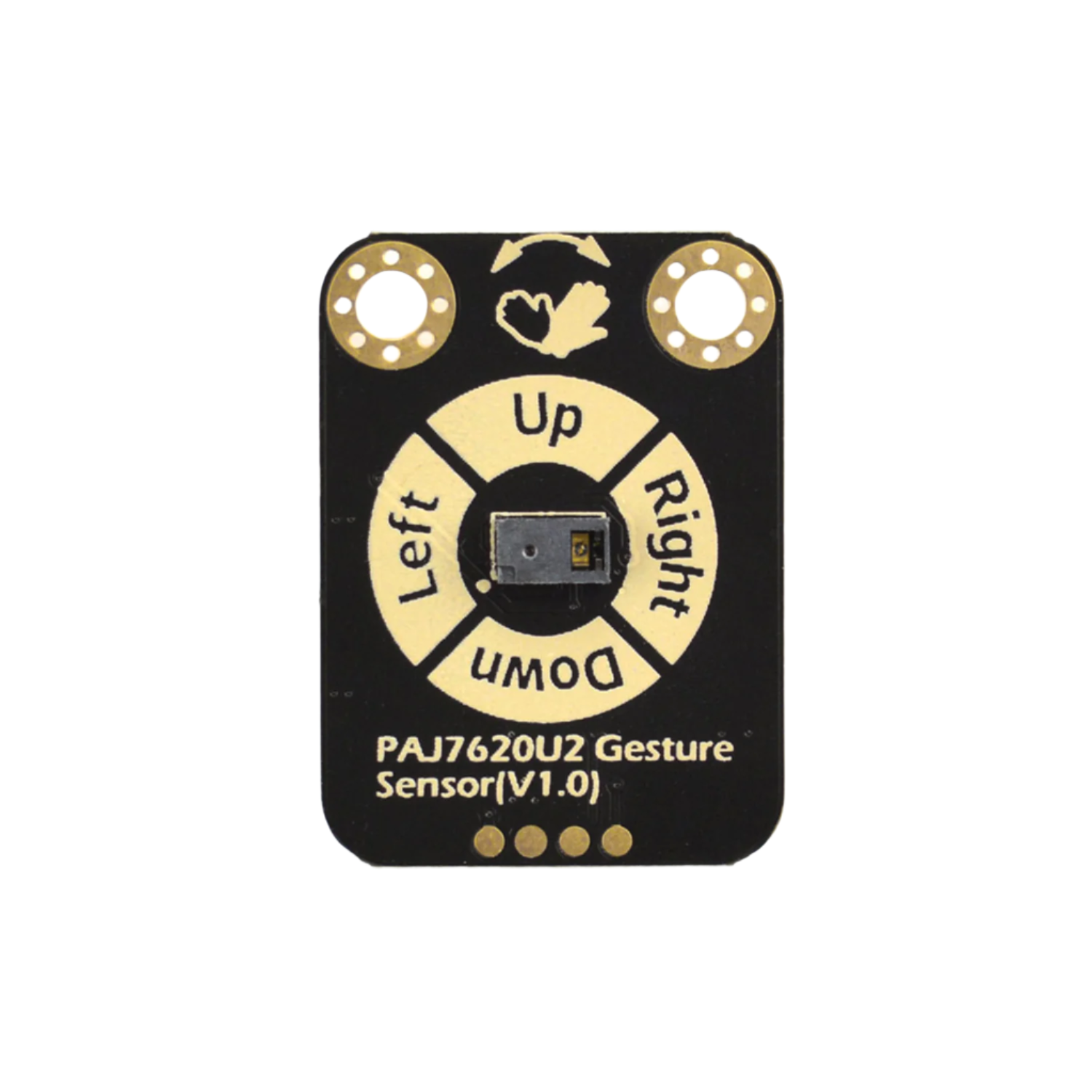

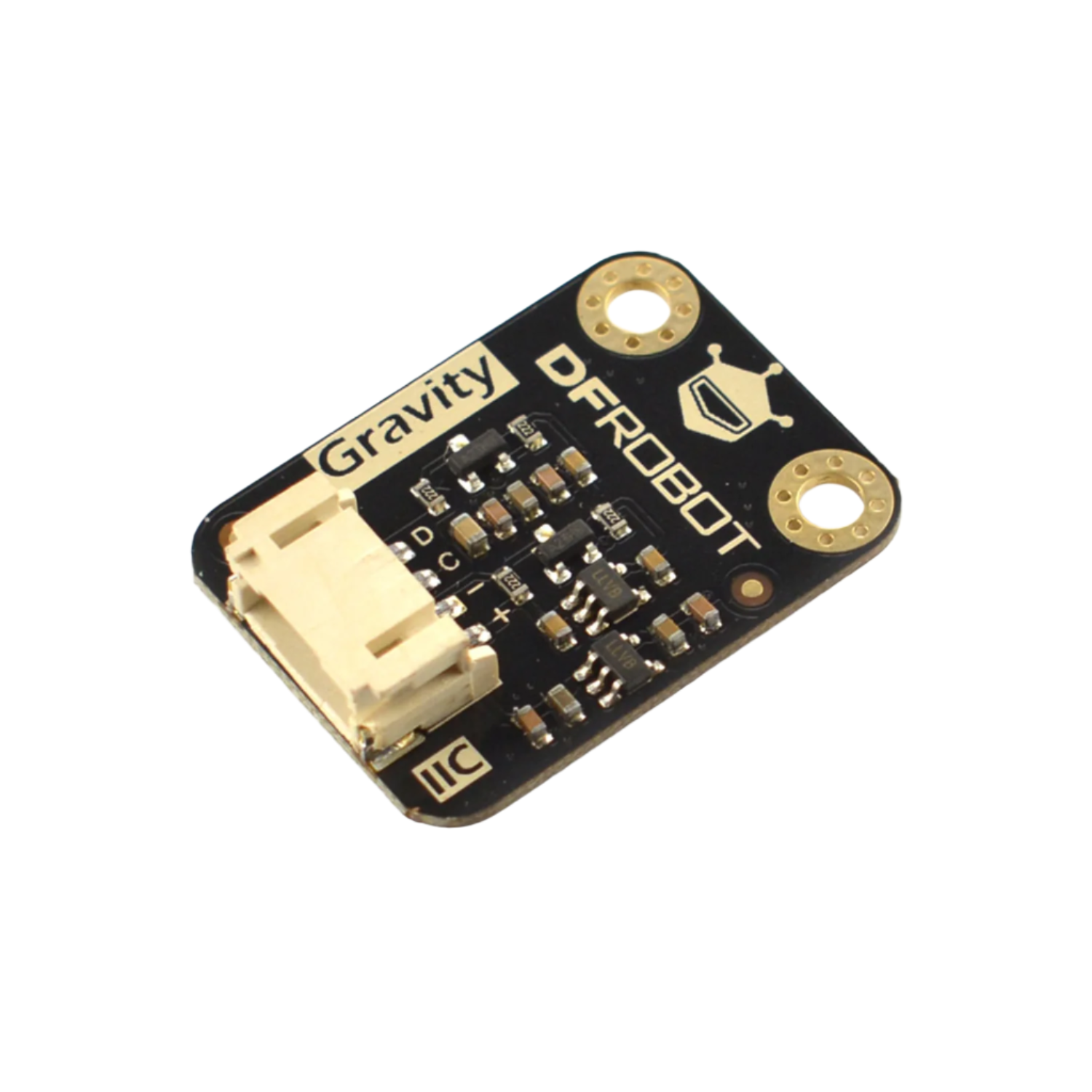

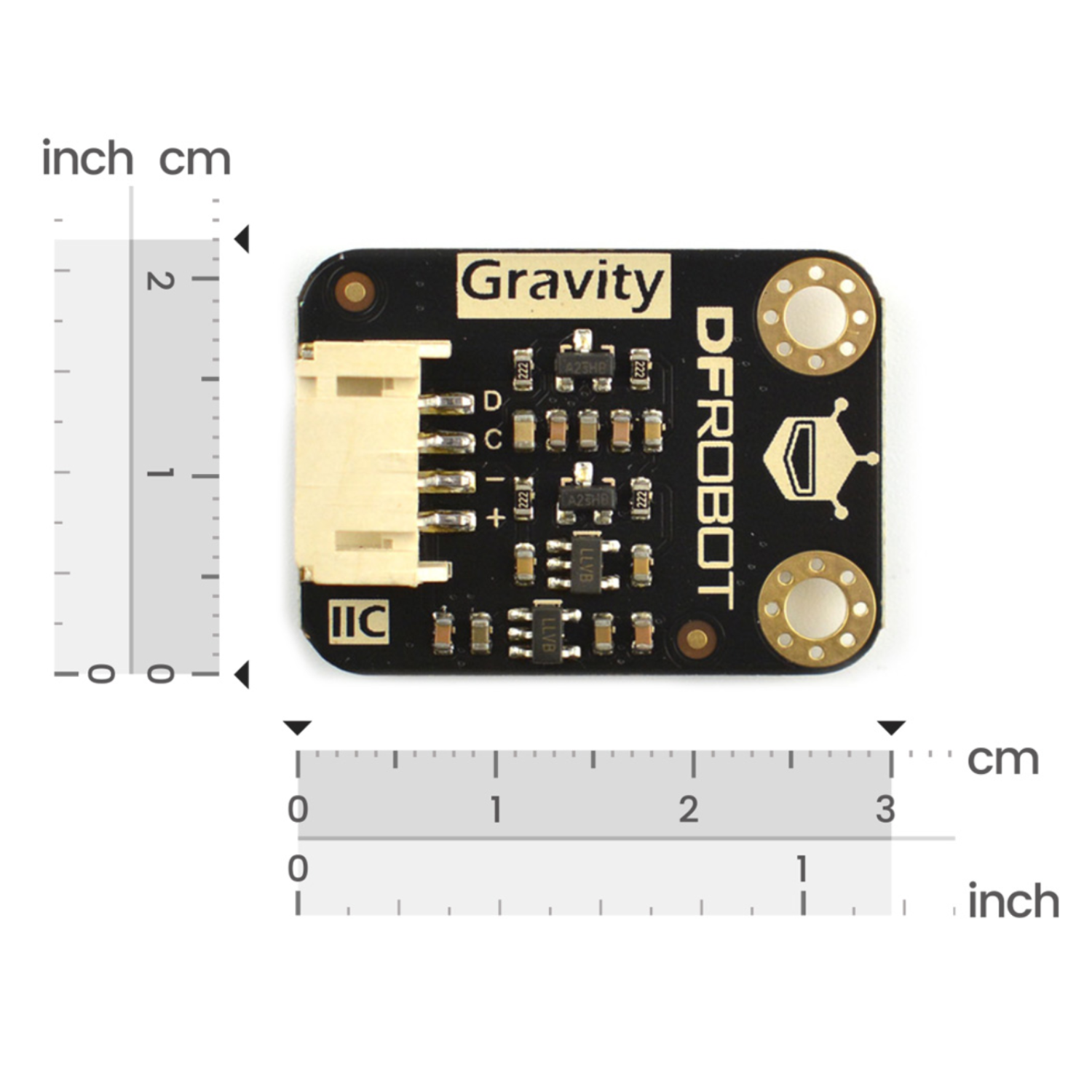

DFRobot Gravity PAJ7620U2 Gesture Sensor Digital 9-Gesture Recognition Module With I2C Interface For Robotics And IoT

DFRobot Gravity PAJ7620U2 Gesture Sensor Digital 9-Gesture Recognition Module With I2C Interface For Robotics And IoT

In stock

Rs. 1,333.00
Rs. 1,333.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Transform your projects with the power of touchless interaction using the PAJ7620U2 3D Gesture Sensor. This highly accurate and responsive sensor recognizes up to 13 gestures within a 20cm range, offering a stable and reliable solution for a wide array of interactive applications. Envision seamless control of smart devices, engaging robotic interfaces, and immersive gaming experiences – all through simple hand movements.

The sensor features two convenient recognition modes: a fast mode for 9 common gestures (left, right, up, down, forward, backward, clockwise, counter-clockwise, wave) and a slow mode that adds 4 refined movements (slowly left/right, slowly up/down, slowly forward/backward, random). For advanced users, the slow mode allows for adjustable sampling times and even the creation of custom gesture commands, providing ultimate flexibility in design.

Specifications:

  • Operating Voltage: 3.3V~5.5V
  • Operating Current: 3.5mA
  • Communication Port: Gravity-I2C 4Pin
  • I2C Address: 0x73
  • Operating Temperature Range: -40℃~85℃
  • Detection Distance: 3 cm- 20 cm
  • Update Rate: 120Hz
  • Ambient Light Immunity: <100k Lux

Features:

  • Recognizes 13 distinct gestures.
  • Offers 2 gesture detection modes.
  • Allows for custom gesture creation.
  • Ultra-low power operation.
  • Standard I2C interface

Applications:

  • Non-contact Remote Controller
  • Interactive Robot
  • Gesture-based Game
  • Smart Lighting System

Documents:

Package Included:

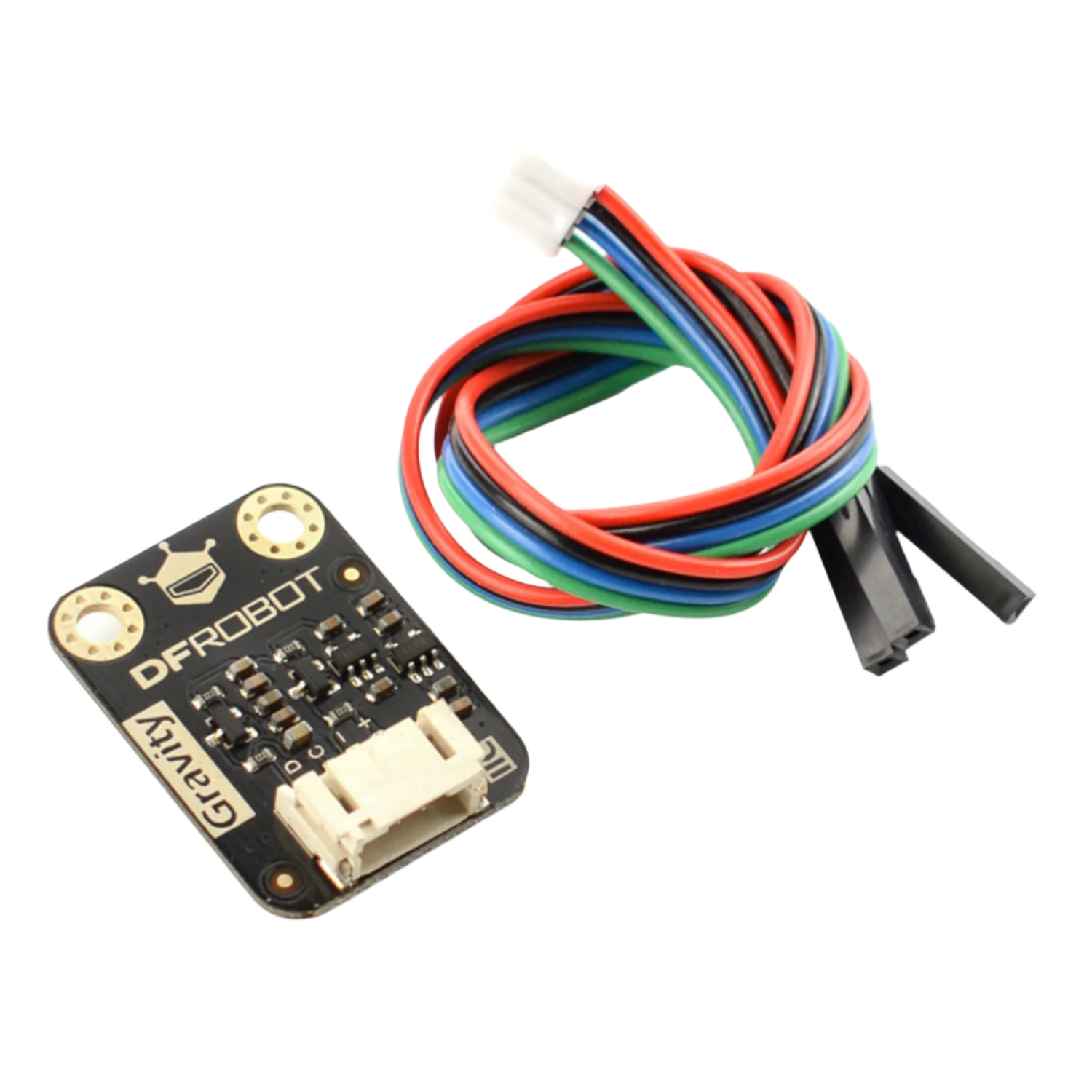

1 x DFRobot Gravity PAJ7620U2 Gesture Sensor
