Description:
The Gravity: C4001 is a high-precision millimeter-wave presence sensor operating at 24GHz, designed for reliable human detection and environmental monitoring. This sensor offers a wide 100° horizontal detection angle, ensuring comprehensive coverage of the target area. It accurately detects human presence within an 8-meter radius, while also providing advanced motion detection and ranging capabilities up to 12 meters. Featuring the user-friendly Gravity interface (PH2.0), the C4001 seamlessly integrates with popular development platforms like Arduino, Raspberry Pi, and ESP32/ESP8266 through its versatile I2C and UART communication options. Ideal for real-time monitoring applications, this sensor provides robust and accurate data for smart home systems, security solutions, and environmental control projects.
Specifications:
- Operating Voltage: 3.3V/5V
- Maximum Detection Range: 12m
- Beam Angle: 100*80°
- Modulation Mode: FMCW
- Operating Frequency: 24GHz
- Operating Temperature: -40~85℃
- Baud Rate: 9600
- I2C Address: 0x2A/0x2B

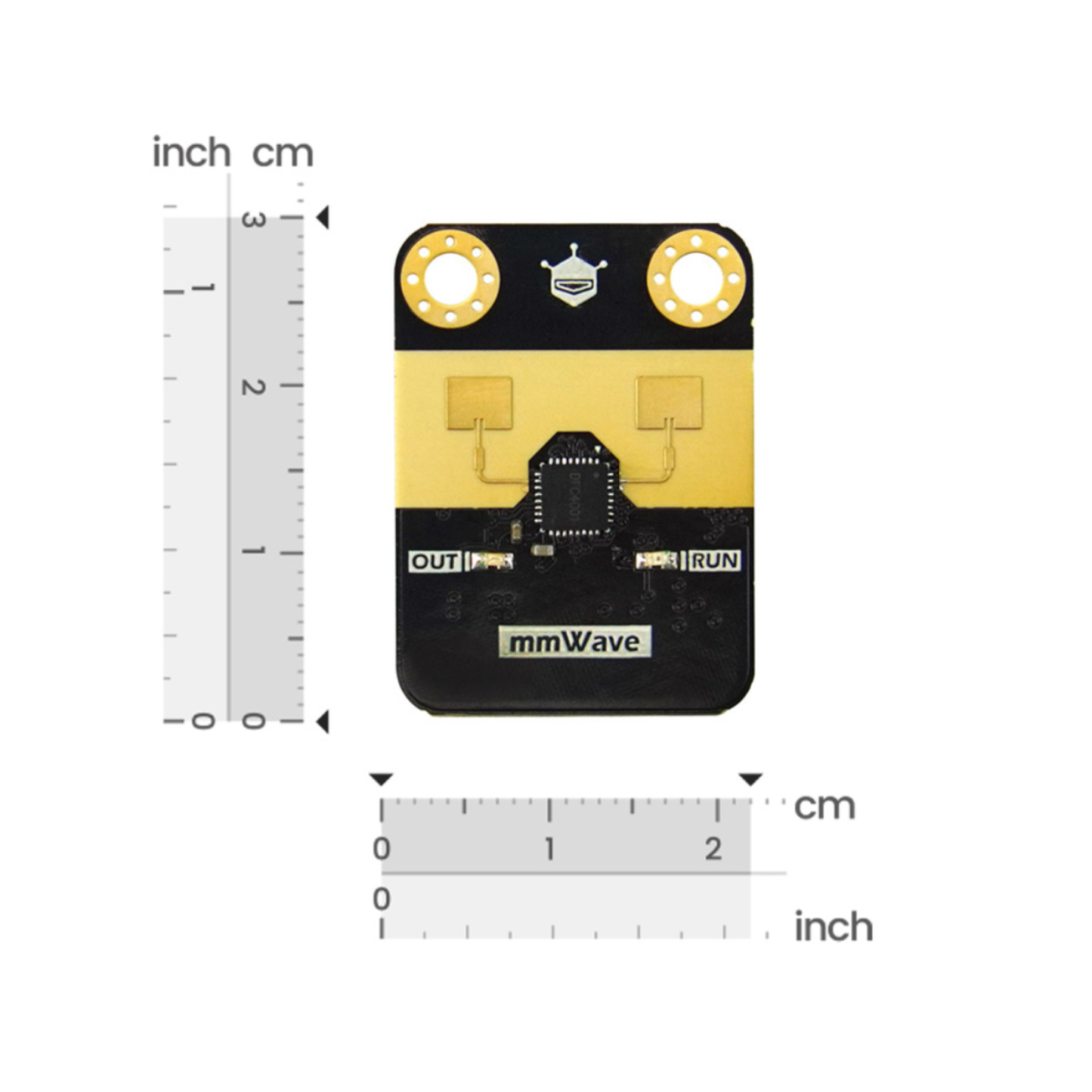

- Size: 22*30mm
Applications:
- Human Detection
- Distance and Velocity Detection
- Environmental Monitoring
- Industrial Automation
- Real-time Monitoring and Tracking
Features:
- I2C and UART communication for flexible integration.
- Gravity PH2.0 interface for easy setup.
- Up to 8 meters, with motion detection to 12 meters.
- Measures distance from 1.2 to 12 meters.
- Detects movement speeds from 0.1 to 10 m/s.
- Unaffected by environmental factors like weather, temperature, and light.
- The small form factor for easy embedding in projects.
Documents:
Package Included:

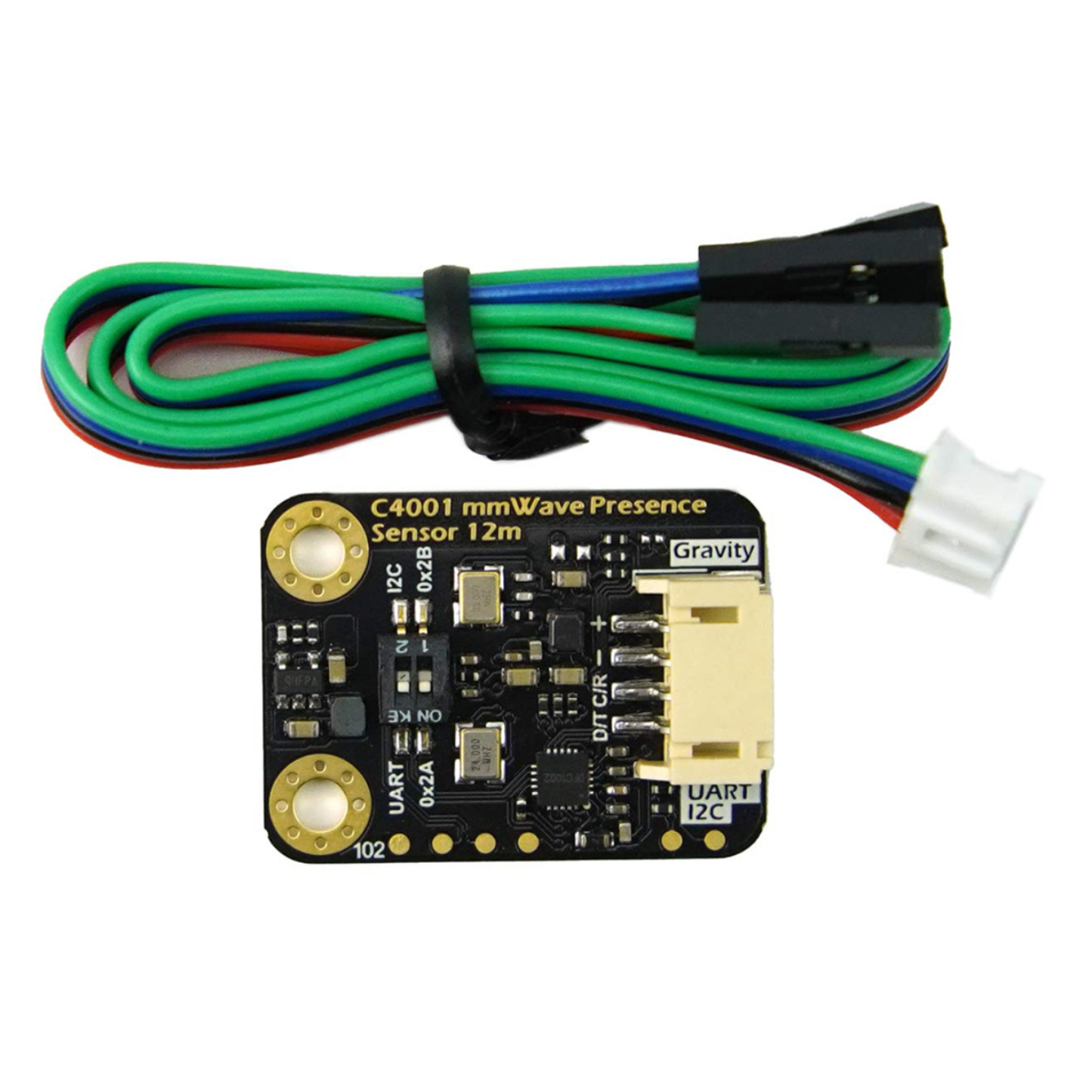

1 x DFRobot Gravity: mmWave C4001 24GHz Human Presence Detection Sensor
