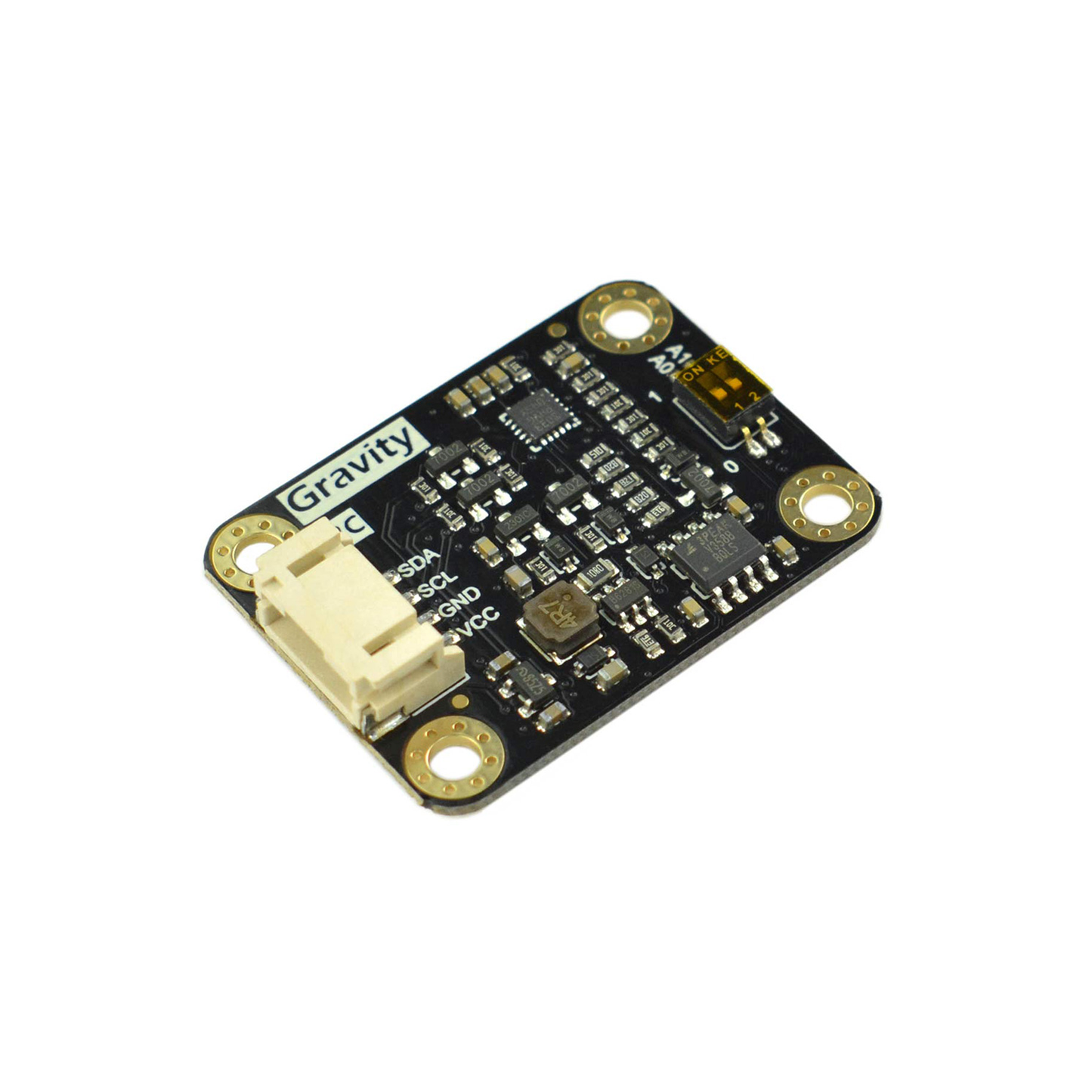

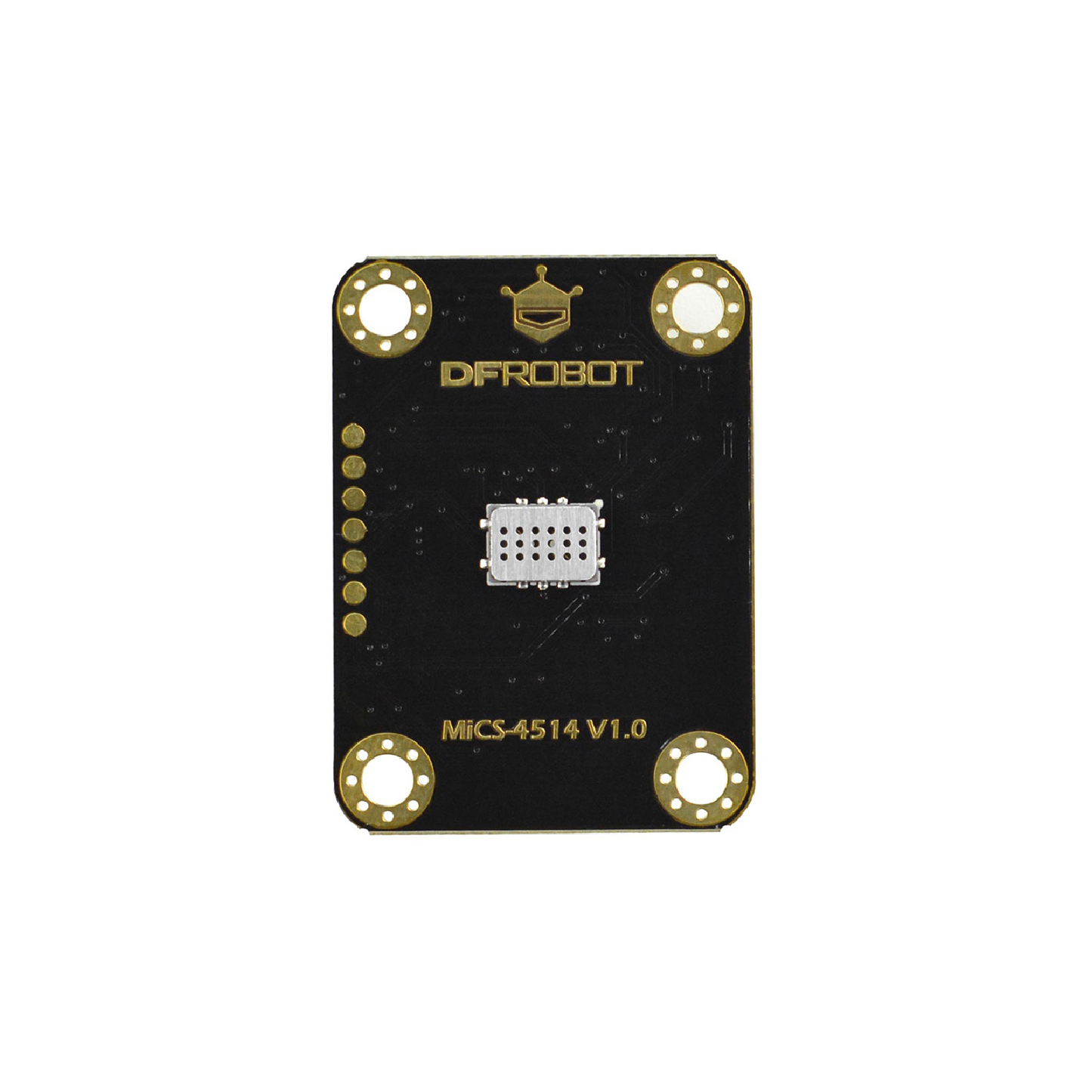

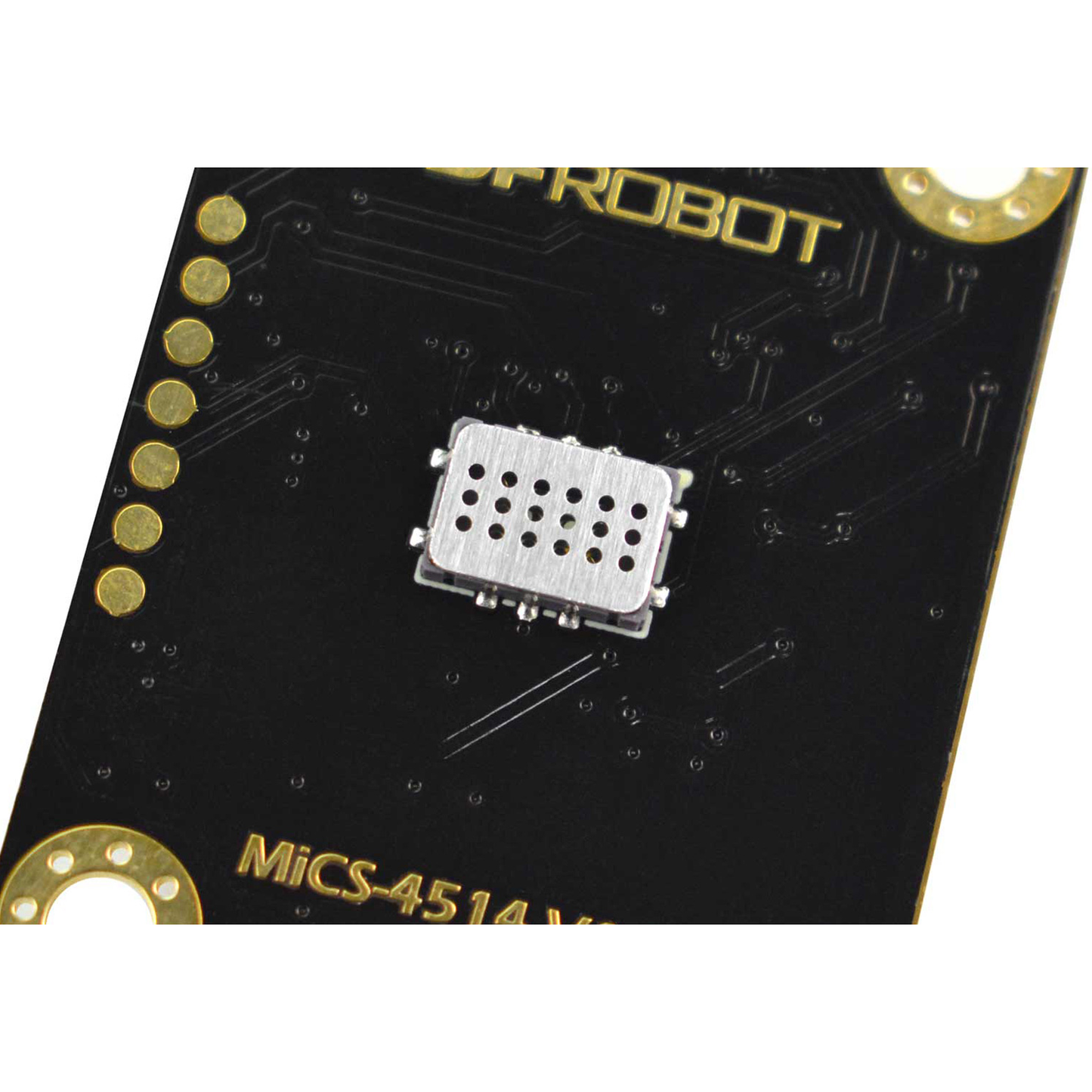

DFRobot Gravity MiCS-4514 Gas Sensor: Detects CO, Alcohol, NO2, And NH3 Via I2C For Air Quality Monitoring and Environmental Sensing

Description:

This is a 3.3/5V compatible MEMS gas concentration sensor from DFRobot. This sensor supports the detection of various gas concentrations like CO, C2H5OH (Alcohol), H2, NO2, and NH3, and integrates various gas concentration conversion formulas in the code to facilitate the testing and use of sensors. With I2C output and 3.3~5.5V wide voltage input, it is compatible with Arduino, ESP32, Raspberry Pi, and other mainstream controllers.

Specifications:

• Detection of Physical Quantities: gas concentration of CO，C2H5OH(Alcohol), H2, NO2, NH3, CH4
• Operating Voltage: 3.3～5.5V DC
• Power Dissipation: 0.45W(5V)
• Output Signal: I2C (0~3V)
• Measuring Range:
           1 – 1000ppm (Carbon monoxide CO)
           0.05 – 10ppm (Nitrogen dioxide NO2)
           10 – 500ppm (Ethanol C2H5OH)
           1 – 1000ppm (Hydrogen H2)
           1 – 500ppm (Ammonia NH3)
           >1000ppm (Methane CH4)
• Working Temperature: -30～85℃
• Working Humidity: 5～95% RH(No condensation)
• Storage Temperature: -40~85℃
• Lifespan: >2 years (in the air)

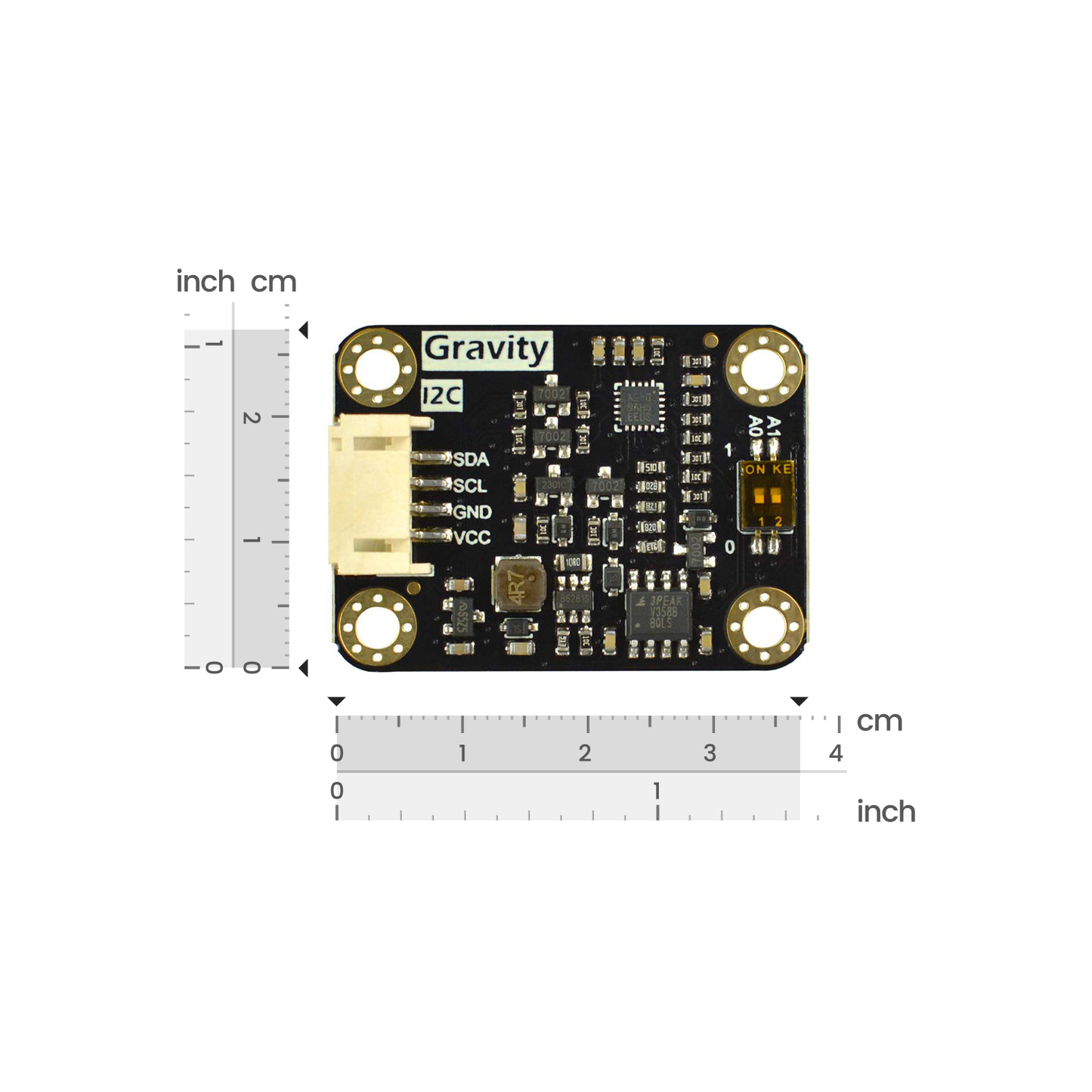

• Circuit Board Size: 27mm* 37mm
• Mounting Hole Size: inner diameter 3.1mm/ outer diameter 6mm

Features:

• Support detection of a variety of harmful gas
• Integrate the calculation formulas of various gas concentration
• Low power consumption
• I2C digital output
• Compatible with the 3.3~5.5V master controller

Applications:

• Gas leak detection
• Gas safety equipment
• Air environment detection

Project:

• Project: Bhopal 84, detect harmful gases with TinyML

Introduction: Train a small Arduino device with Machine Learning to detect harmful gases

Useful Links:

• DFRobot Gravity MiCS-4514 Gas Sensor
• MiCS-4514 Datasheet
• Schematics Diagram
• Dimension and Component Layout

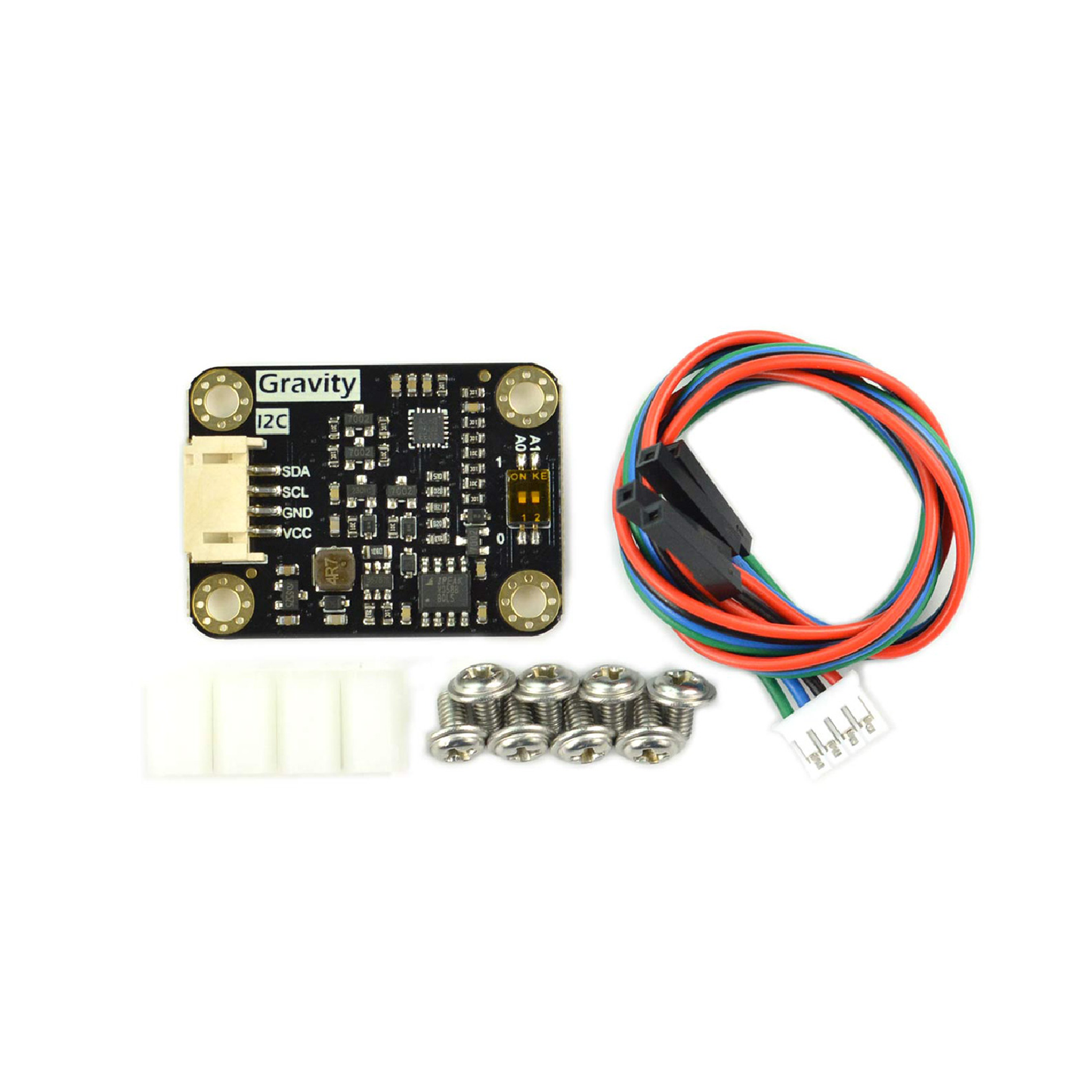

Package Included:

• 1 x Gravity: MEMS CO, Alcohol, NO2 & NH3 Gas Sensor
• 1 x Gravity-4pin I2C Cable
