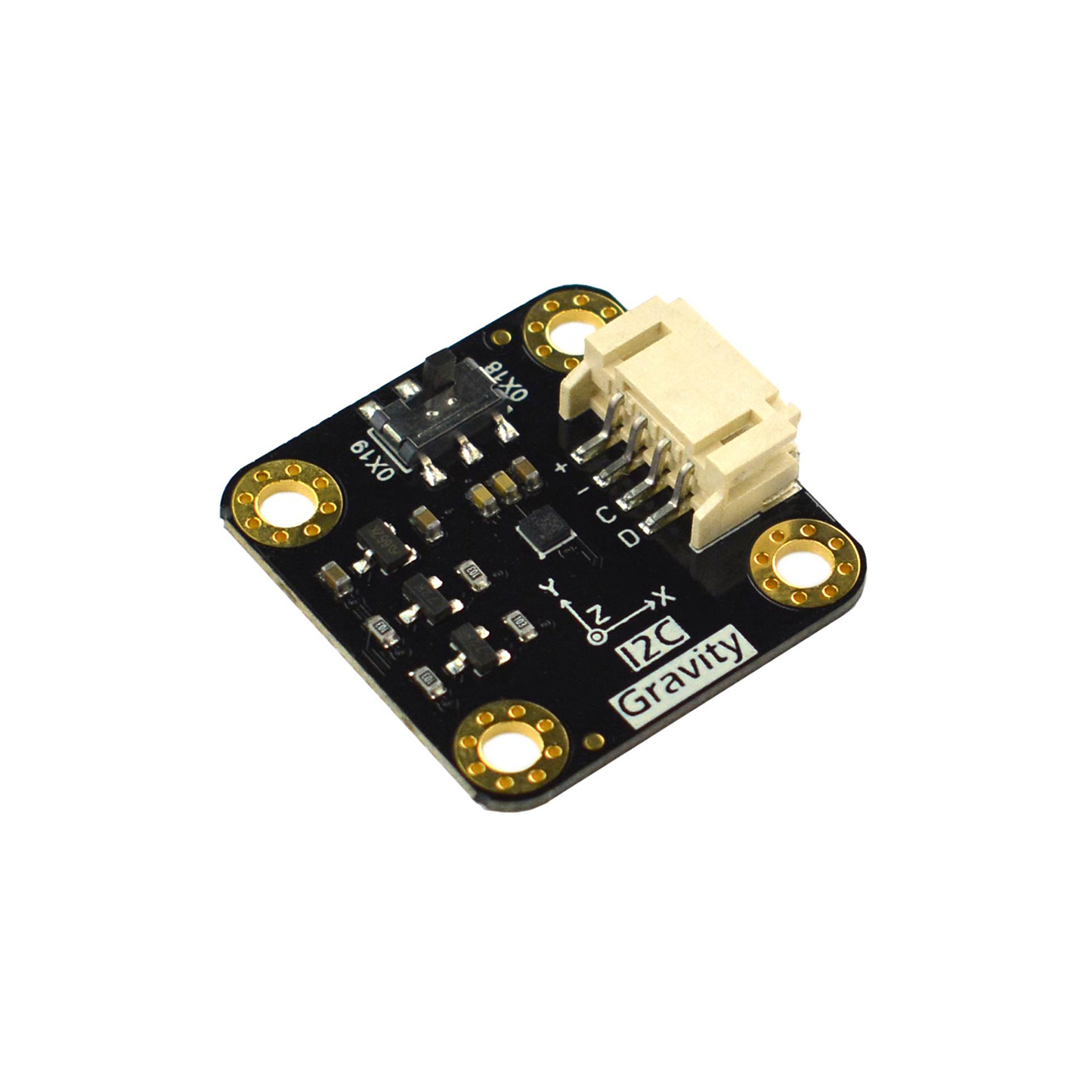

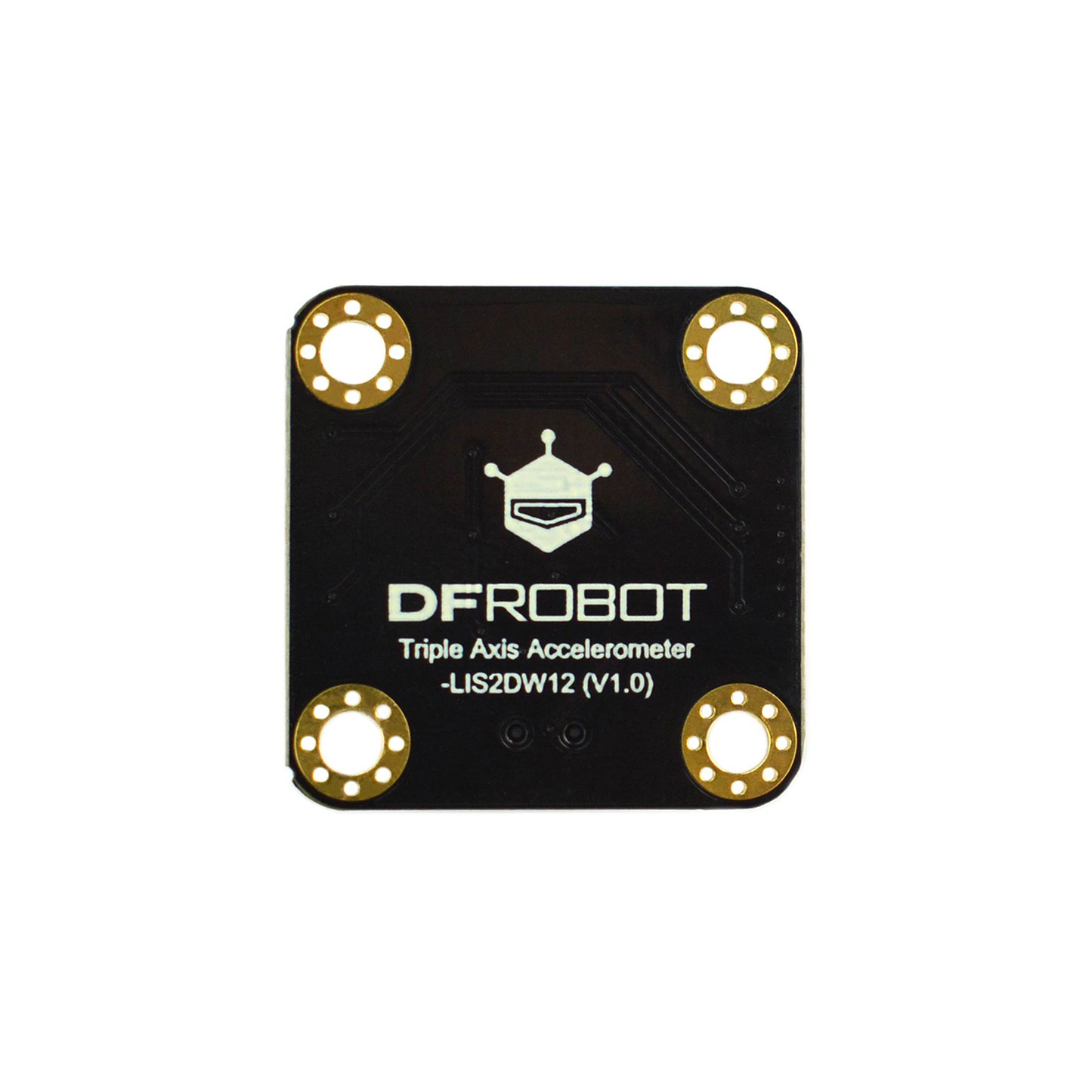

DFRobot Gravity LIS2DW12: I2C Triple Axis Accelerometer Sensor With Wide Range (±2g/±4g/±8g/±16g) For Accurate Motion Detection

DFRobot Gravity LIS2DW12: I2C Triple Axis Accelerometer Sensor With Wide Range (±2g/±4g/±8g/±16g) For Accurate Motion Detection

In stock

Rs. 475.00
Rs. 475.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The LIS2DW12 is an ultra-low-power, high-performance three-axis linear accelerometer with user-selectable full scales of ±2g/±4g/±8g/±16g. It can measure accelerations with output data rates from 1.6 Hz to 1600 Hz.

The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. For your convenience, we provide sample programs for the above functions.

Specifications:

  • Operating Voltage: 3.3V~5V
  • Operating Current: 8~10uA(low-power & low-noise mode)/0.12mA(high performance mode)
  • Interface: Gravity-I2C
  • I2C Address: 0x19 (default) / 0x18 (optional)
  • User-selectable Scale: ±2g/±4g/±8g/±16g
  • Operating Temperature: -40℃~+85℃
  • Frequency: 1.6Hz~1600Hz
  • Ultra-low Noise: 1.3mgRMS(low power mode)
  • 16-bit Data Output
  • 32-Level FIFO(First-in first-out buffer zone)
  • Sleep to Wake-up Function
  • 10000g High Shock Survivability
  • ECOPACK, RoHS, and "Green" Compliant

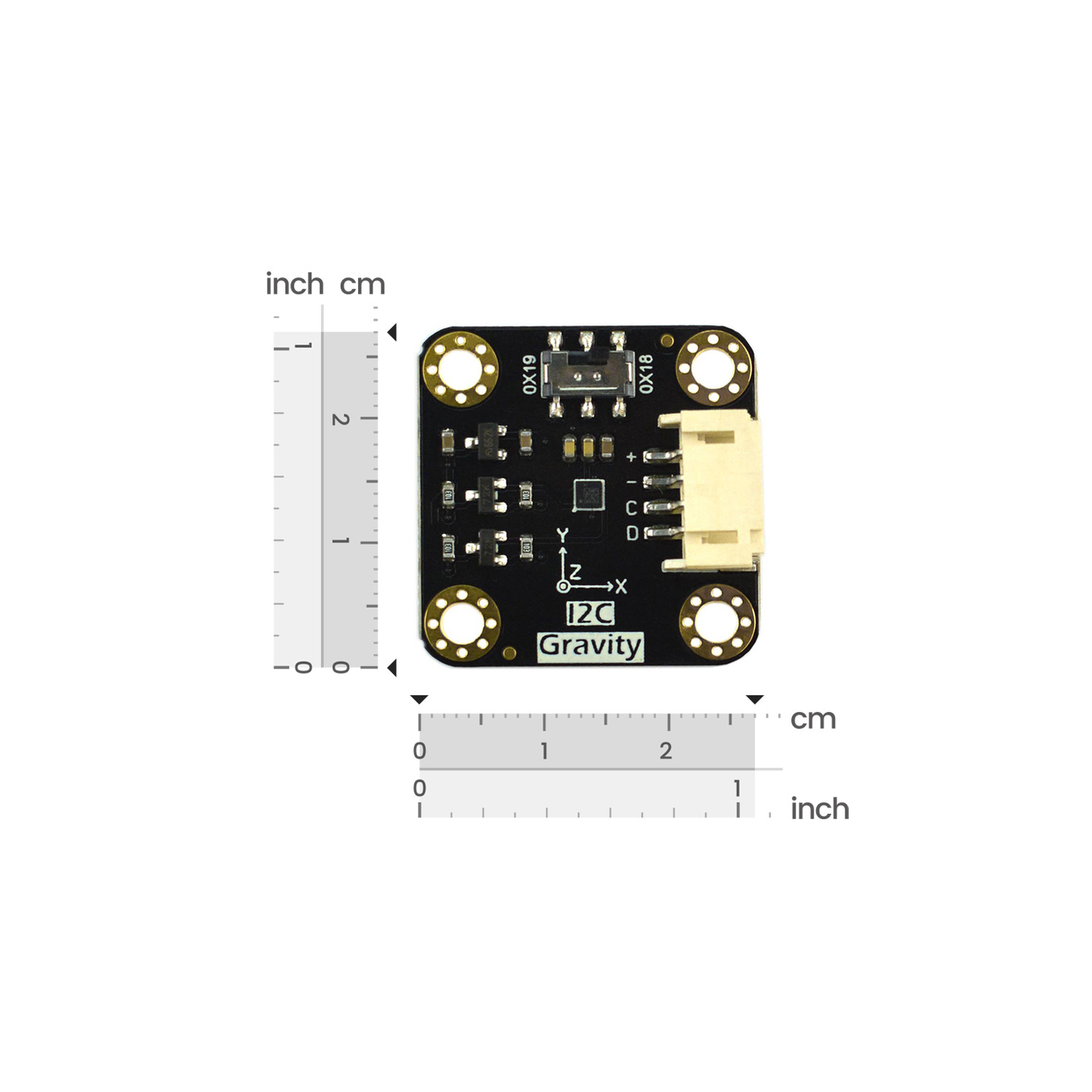

  • Module Size: 27*27mm/1.06*1.06
  • Mounting Hole Size: inner 3.1mm/outer 6mm

Features:

  • User-selectable scale: ±2g/±4g/±8g/±16g
  • 16-bit data output
  • Easy-to-use Gravity interface, no need to solder
  • Change the I2C address by the toggle switch

Useful Link:

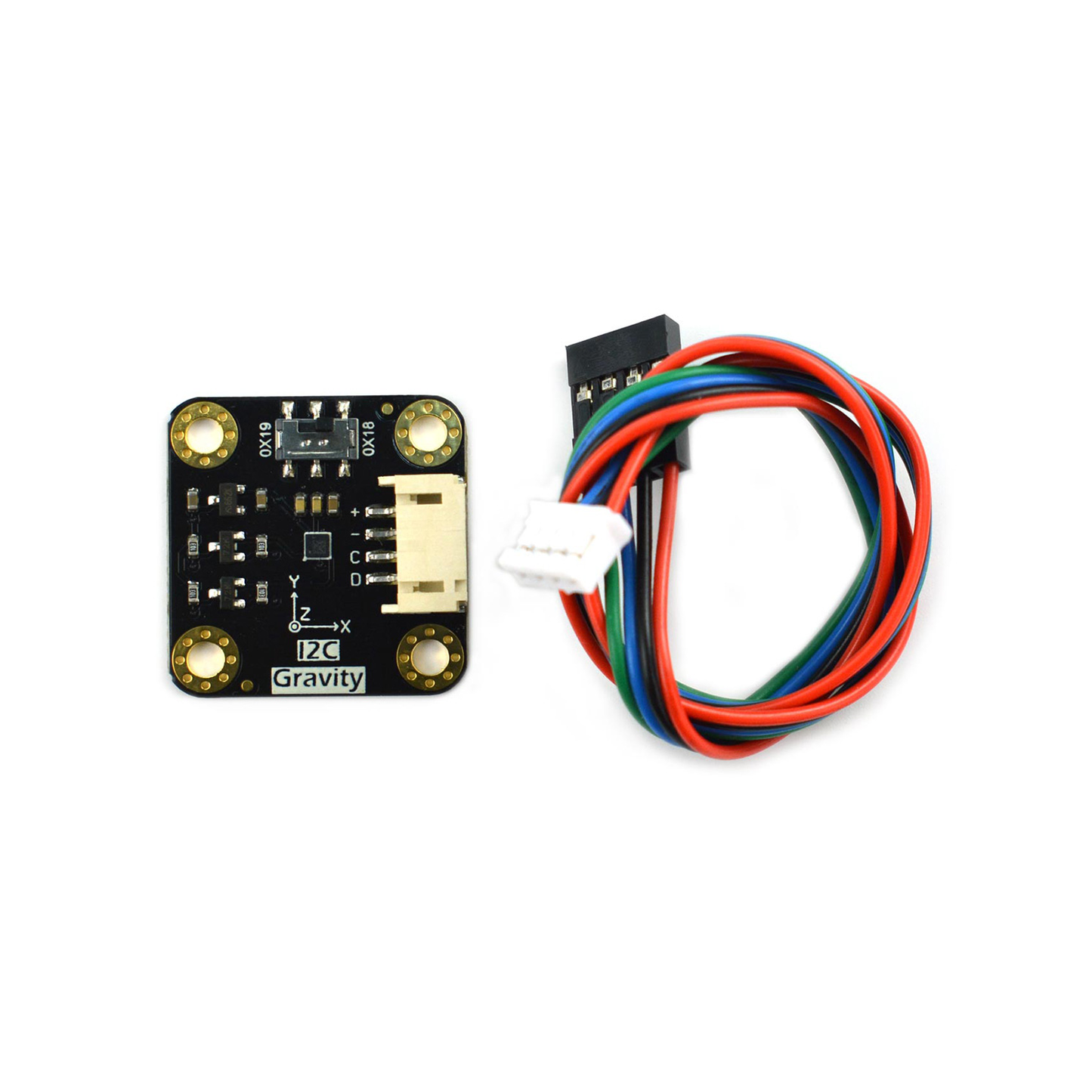

Package Included:

  • 1 x Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor
  • 1 x Gravity-4P I2C/UART Sensor Connector
